93 electrical issue
Thread Starter
Heel & Toe
Joined: Jun 2016
Posts: 20
Likes: 0
From: Howard, Wisconsin
93 electrical issue
Needing guidance. I just had my ignition switch replaced due to failure. When I picked car up I have lost all analog gauges, DIC and driver’s window operation. Passenger window works, factory security system works. Do these symptoms appear related to switch replacement or unrelated issues that happened to fail simultaneously?
Thread Starter
Heel & Toe
Joined: Jun 2016
Posts: 20
Likes: 0
From: Howard, Wisconsin
Yes, you are correct, he states he didn’t touch anything by instrument cluster and it’s likely that cluster is bad. I hadn’t noticed window inoperative at that time was following time I drove car I attempted lowering windows. He has done work on this and a few other vehicles with good results.
Team Owner
Joined: Sep 2003
Posts: 25,394
Likes: 2,741
Does the DIC light up appropriately with KEY ON - ENGINE OFF (BULB CHECK)? You say you lost ALL analog gauges. That seems odd. Lot's to check but it seems quite odd. Do you have the FSM (Factory/Field Service Manual) so that you could attempt some DIY checks? Has the shop committed to diagnostics for you?
Thread Starter
Heel & Toe
Joined: Jun 2016
Posts: 20
Likes: 0
From: Howard, Wisconsin
I do not nor has he committed to anything stating he didn’t touch anything related to gauges. I read on a c5 thread someone posted on disconnecting battery and connecting positive and negative terminals of wiring harness to discharge capacitors but that thread wasn’t exactly my symptoms. I am trying to gauge where to begin with diagnosis. Part of me says buy reconditioned gauges and install. You tube video was clear enough fo me to understand that process. I don’t want to replace gauges if something else is cause.
Thread Starter
Heel & Toe
Joined: Jun 2016
Posts: 20
Likes: 0
From: Howard, Wisconsin
I do not nor has he committed to anything stating he didn’t touch anything related to gauges. I read on a c5 thread someone posted on disconnecting battery and connecting positive and negative terminals of wiring harness to discharge capacitors but that thread wasn’t exactly my symptoms. I am trying to gauge where to begin with diagnosis. Part of me says buy reconditioned gauges and install. You tube video was clear enough fo me to understand that process. I don’t want to replace gauges if something else is cause.
I test for power there if I pill door apart for window switch or motor if needed. DIC out with gauges tells me something central is causing symptoms. Am I wrong in that thought process?
I test for power there if I pill door apart for window switch or motor if needed. DIC out with gauges tells me something central is causing symptoms. Am I wrong in that thought process?
Team Owner
Joined: Sep 2003
Posts: 25,394
Likes: 2,741
Your thoughts thus far are mostly flawed. The C5 read ain't appropriate. I asked one question that you apparently haven't done > BULB CHECK (KEY ON/ENGINE OFF) What lights in the DIC? You said you lost ALL Analog gauges. That seems very odd. You lost Volt meter operation also? A purchase of anything at this point would be foolish! Very foolish!
Do you understand BULB CHECK? How long have you owned the car?
Do you understand BULB CHECK? How long have you owned the car?
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Heel & Toe
Joined: Jun 2016
Posts: 20
Likes: 0
From: Howard, Wisconsin
Bulb check DIC

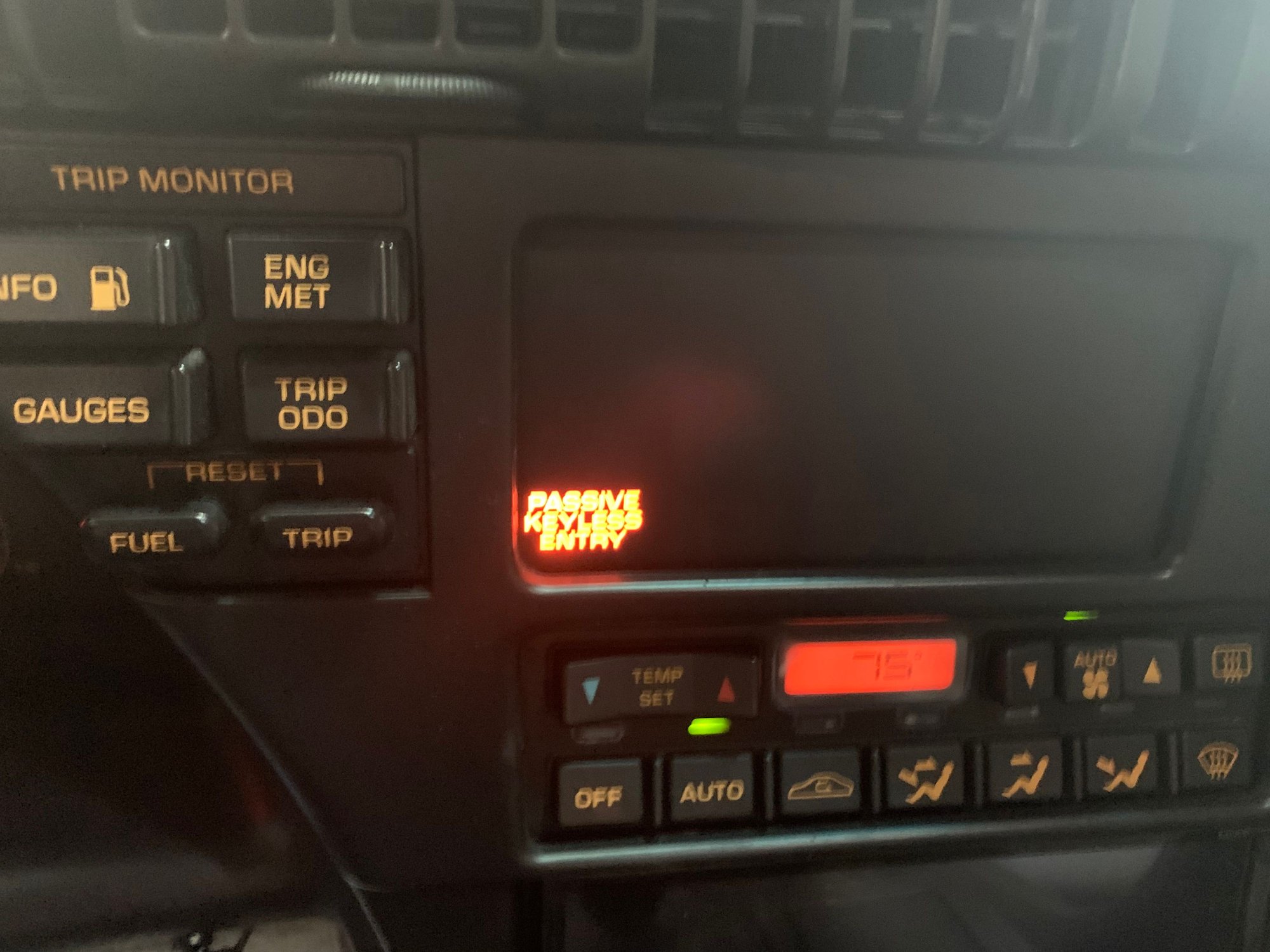

Bulb check response sent as you responded. Only security light flashed. Yes All analog gauges inoperative. Voltage, temps operating on digital display. Also forgot to mention gauge illumination out.
