94-96 MAF Sensor Outer Diameter Spec

Hey all,

Can anyone with a 94-96 LT1 or LT4 really quickly measure the outer diameter of the MAF sensor were the intake ducting slips over?

I am trying to figure out if an 86-89 TPI MAF would correctly interface with the ducting that goes on either side of the 94-96 MAF sensor.

Thanks!

Oct 21, 2023 | 11:55 AM

yakmastermax

Thread Starter

Drifting

Joined: Apr 2011

Posts: 1,925

Likes: 441

From: Albuquerque NM

Bump!

Hoping someone might be able to take a few min this weekend to take this measurement!

I would but I don't have a 94-96 MAF car nor the parts to measure the dimensions from!

Thanks!

Oct 21, 2023 | 12:09 PM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,393

Likes: 2,741

How about a new on the shelf at a 'local' supplier?

Oct 21, 2023 | 12:13 PM

yakmastermax

Thread Starter

Drifting

Joined: Apr 2011

Posts: 1,925

Likes: 441

From: Albuquerque NM

Great idea! I didn't think of that lol

Oct 23, 2023 | 01:09 AM

RPO Joe

Pro

Joined: Jul 2023

Posts: 712

Likes: 852

From: Central Kansas – early 1977 L-48 Coupe in Classic White, aka the Sunset Stripper

2023 C4 of the Year Winner - Unmodified

Quote:

Originally Posted by yakmastermax

I was gone over the weekend, or else I'd have already gotten this measurement for you. I'll grab it first thing in the morning.

Oct 23, 2023 | 10:54 AM

RPO Joe

Pro

Joined: Jul 2023

Posts: 712

Likes: 852

From: Central Kansas – early 1977 L-48 Coupe in Classic White, aka the Sunset Stripper

2023 C4 of the Year Winner - Unmodified

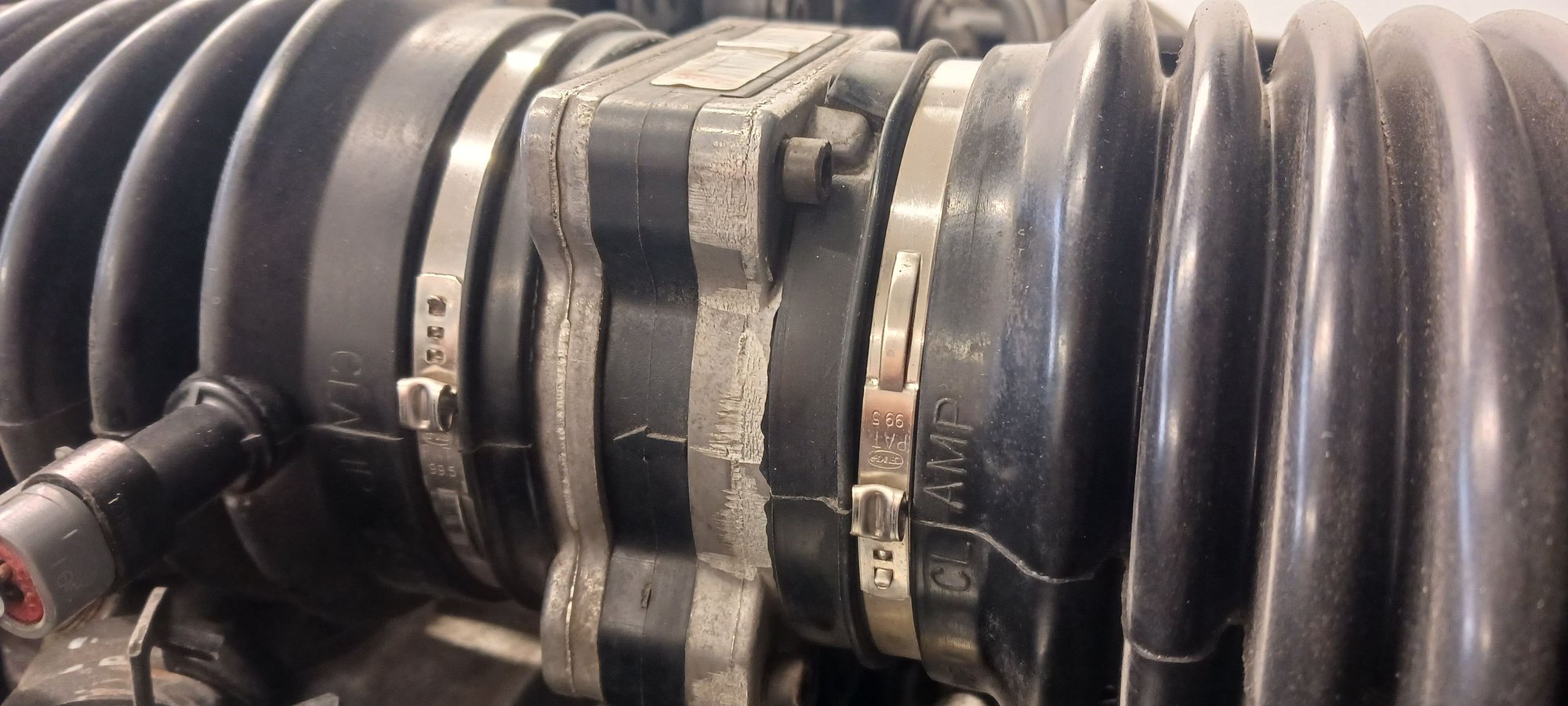

To my eye, it appears to be right at 3-5/8".

Oct 23, 2023 | 11:02 AM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,393

Likes: 2,741

Quote:

Originally Posted by RPO Joe

To my eye, it appears to be right at 3-5/8".

Needs to be a bit more accurate than your 'Eyescope' to be of value to the OP!

Oct 23, 2023 | 11:18 AM

RPO Joe

Pro

Joined: Jul 2023

Posts: 712

Likes: 852

From: Central Kansas – early 1977 L-48 Coupe in Classic White, aka the Sunset Stripper

2023 C4 of the Year Winner - Unmodified

Quote:

Originally Posted by WVZR-1

Needs to be a bit more accurate than your 'Eyescope' to be of value to the OP!

Yeah, I totally get your comment, but I'm unfamiliar with these clamps and how to remove/install them...

...so I did my best to give the OP some hopefully useful data. I just very carefully re-measured the MAF housing inlet diameter, looking straight down from above, and I'm confident that my eyescope reading of 3-5/8" is within a 1/16". If the OP's MAF diameter is significantly different from this (say, 3-3/8", or 3-13/16", or...), then my measurement should be of value to him.

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Oct 23, 2023 | 12:26 PM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,393

Likes: 2,741

OEITKER clamp and in the past this ( OEITKER P/N 16700092) was mentioned to be correct but OEITKER has some very interesting options and dependent on the vendor minimums might not be an issue. The 293 style from them looks interesting.

This is a 7+ year old discussion

https://www.corvetteforum.com/forums...r-1996-c4.html

A different part number mentioned in that thread seems to be available from many vendors as inexpensively as $1.39 plus of course the ship. Do your own research!

A complete 'Air Induction Selection' is here

https://www.oetiker.com/en-us/Market...Intake-Systems

Last edited by WVZR-1; Oct 23, 2023 at 12:33 PM.

Oct 23, 2023 | 01:26 PM

#10

RPO Joe

Pro

Joined: Jul 2023

Posts: 712

Likes: 852

From: Central Kansas – early 1977 L-48 Coupe in Classic White, aka the Sunset Stripper

2023 C4 of the Year Winner - Unmodified

Thanks @WVZR-1 for the info. Over the several months I've been skulking about here on the C4 forum I've been building a "Helpful Corvette Links" database on my computer, and just added the above links to it for future reference.

Thanks again.

Oct 23, 2023 | 03:26 PM

#11

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,393

Likes: 2,741

Anyone could check diameter of the MAF with a 'local' - that sensor has GM applications through probably 2004 and a person might find both metallic and plastic/composite versions of it. OE from GM I believe was serviced with clamps earlier years. Later I doubt that.

Oct 23, 2023 | 07:17 PM

#12

yakmastermax

Thread Starter

Drifting

Joined: Apr 2011

Posts: 1,925

Likes: 441

From: Albuquerque NM

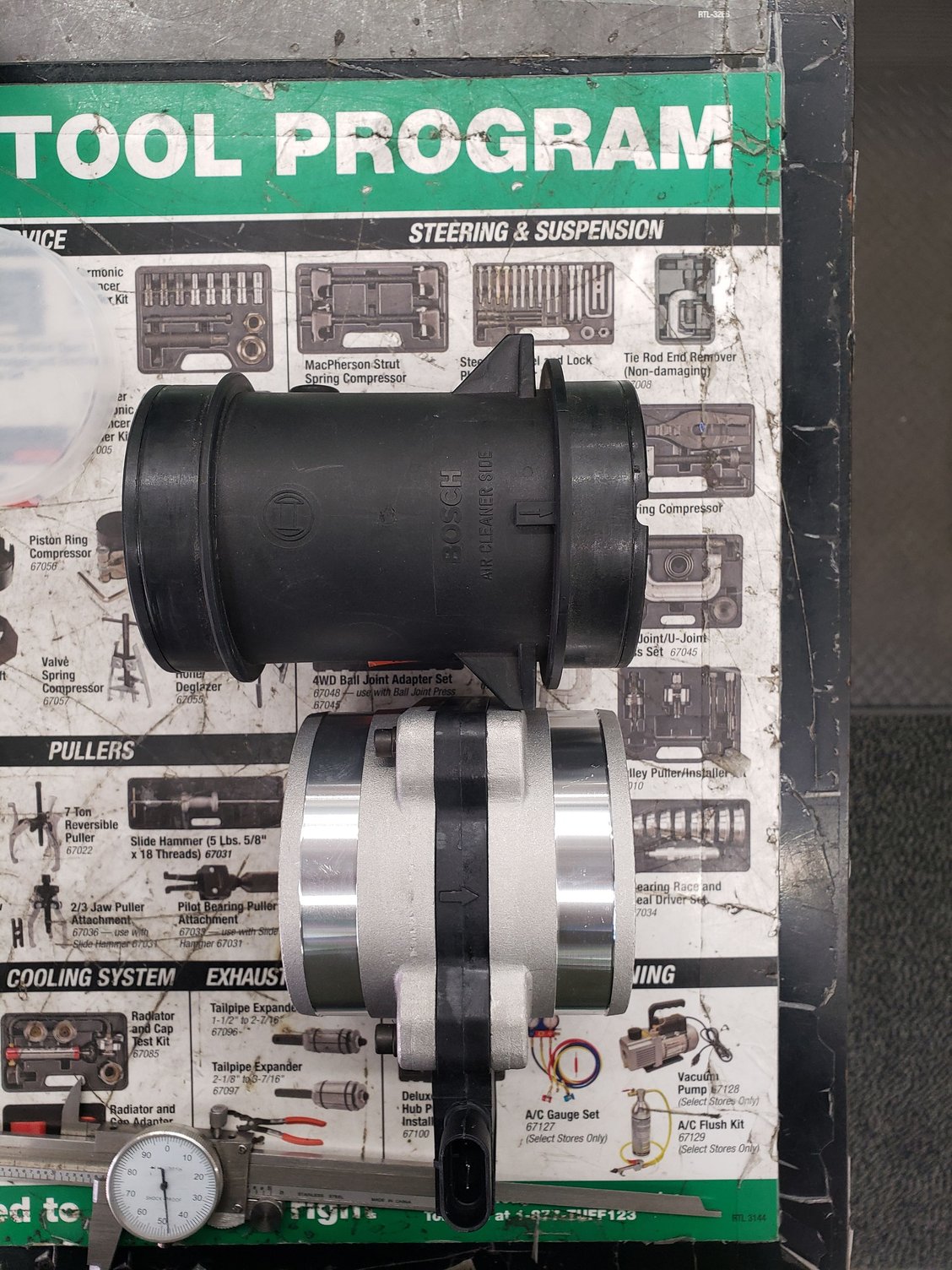

Okay found a local O'Reilly that had a 1995 Vette MAF sensor in stock. Bad news is that the dimensions don't match the 1985 sensor that I have. Good news is that it doesn't appear too far off.
