Injectors not firing
Thread Starter
Intermediate
Joined: Sep 2025
Posts: 25
Likes: 0
Injectors not firing
Hey guys this is my first post here and have found a lot of help in searching around prior to this. I recently picked up a 92 project, wouldnt even crank over when i picked it up. Got a new key made up for it and got it cranking, ooti was bad and got that replaced along with the ignition coil and spark plug wires. Now I'm down to fuel.
Fuel pump is working and I have fuel pressure at the rail. But the injectors are not firing, confirmed with a noid light.
So far the fusable kinks were pretty corroded so I got those cleaned up as well as the 2 grounds under the battery tray, next is to hit the ground locations on the bell housing.
It seems the wiring harness has been messed with in the past, wires that don't seem to be factory on the green plug in the ecm.
Would anyone be able to tell me which plug or plugs at the ecm have the 12v supply and ground? I found somewhere if I remember correctly that the black with white tracer was the ground for the fuel injectors (fuses are not blown on a side note). Or does anyone have any suggestions on what I should be looking in to next?
Any help would be greatly appreciated.
Fuel pump is working and I have fuel pressure at the rail. But the injectors are not firing, confirmed with a noid light.
So far the fusable kinks were pretty corroded so I got those cleaned up as well as the 2 grounds under the battery tray, next is to hit the ground locations on the bell housing.
It seems the wiring harness has been messed with in the past, wires that don't seem to be factory on the green plug in the ecm.
Would anyone be able to tell me which plug or plugs at the ecm have the 12v supply and ground? I found somewhere if I remember correctly that the black with white tracer was the ground for the fuel injectors (fuses are not blown on a side note). Or does anyone have any suggestions on what I should be looking in to next?
Any help would be greatly appreciated.
Safety Car
Joined: Aug 2009
Posts: 3,751
Likes: 276
From: Melbourne, Victoria, Australia
Hey guys this is my first post here and have found a lot of help in searching around prior to this. I recently picked up a 92 project, wouldnt even crank over when i picked it up. Got a new key made up for it and got it cranking, ooti was bad and got that replaced along with the ignition coil and spark plug wires. Now I'm down to fuel.
Fuel pump is working and I have fuel pressure at the rail. But the injectors are not firing, confirmed with a noid light.
So far the fusable kinks were pretty corroded so I got those cleaned up as well as the 2 grounds under the battery tray, next is to hit the ground locations on the bell housing.
It seems the wiring harness has been messed with in the past, wires that don't seem to be factory on the green plug in the ecm.
Would anyone be able to tell me which plug or plugs at the ecm have the 12v supply and ground? I found somewhere if I remember correctly that the black with white tracer was the ground for the fuel injectors (fuses are not blown on a side note). Or does anyone have any suggestions on what I should be looking in to next?
Any help would be greatly appreciated.
Fuel pump is working and I have fuel pressure at the rail. But the injectors are not firing, confirmed with a noid light.
So far the fusable kinks were pretty corroded so I got those cleaned up as well as the 2 grounds under the battery tray, next is to hit the ground locations on the bell housing.
It seems the wiring harness has been messed with in the past, wires that don't seem to be factory on the green plug in the ecm.
Would anyone be able to tell me which plug or plugs at the ecm have the 12v supply and ground? I found somewhere if I remember correctly that the black with white tracer was the ground for the fuel injectors (fuses are not blown on a side note). Or does anyone have any suggestions on what I should be looking in to next?
Any help would be greatly appreciated.
You should have 12 volts to injectors with ignition on and cranking, assuming the vehicle anti theft system (within the central command module) is happy with ignition key resistance. The ECM drives the injectors by grounding them "batch firing" one bank at a time.
The ZR1 went sequential not sure what year that became normal to go from batch firing one bank of injectors at a time to sequential in other years .... 🤔

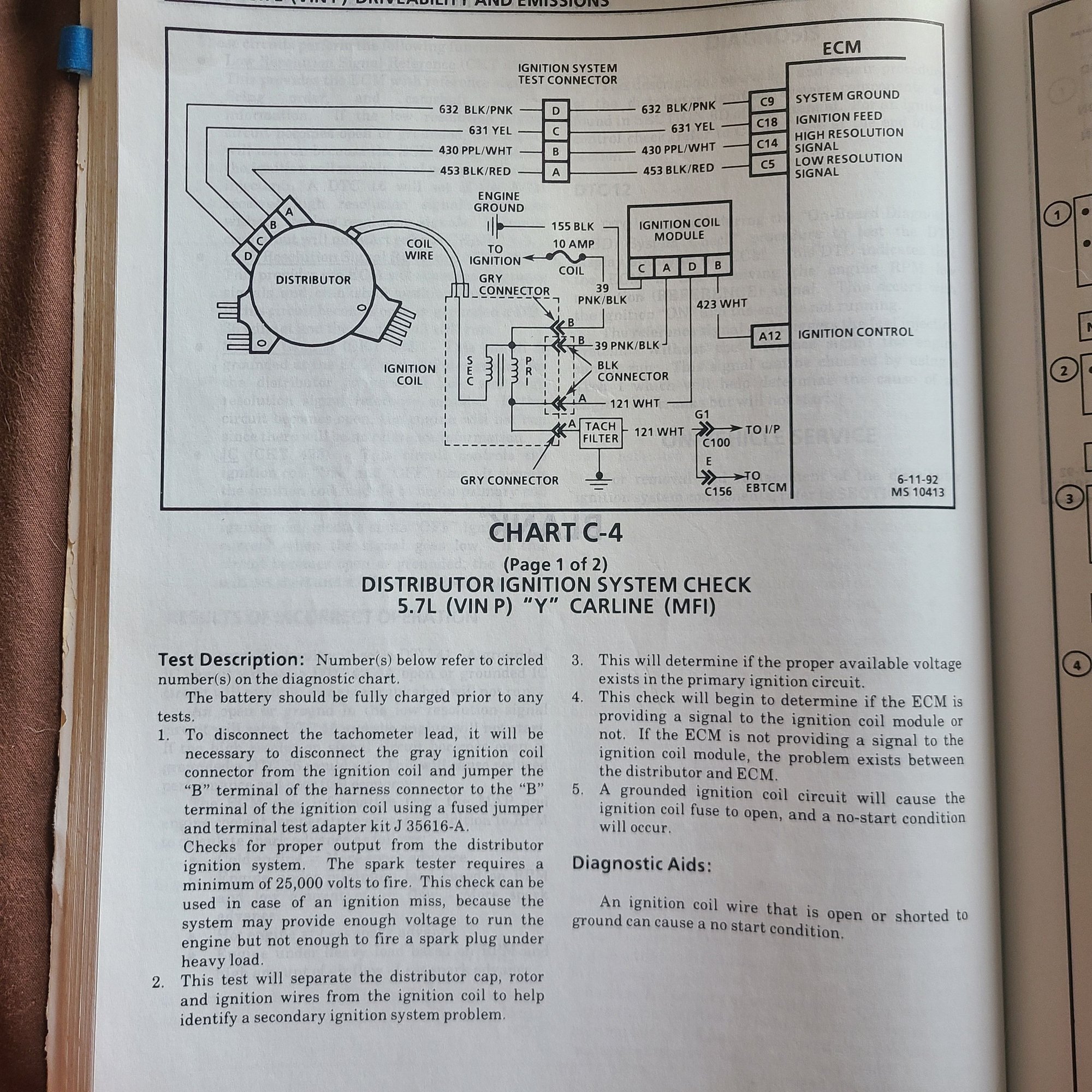

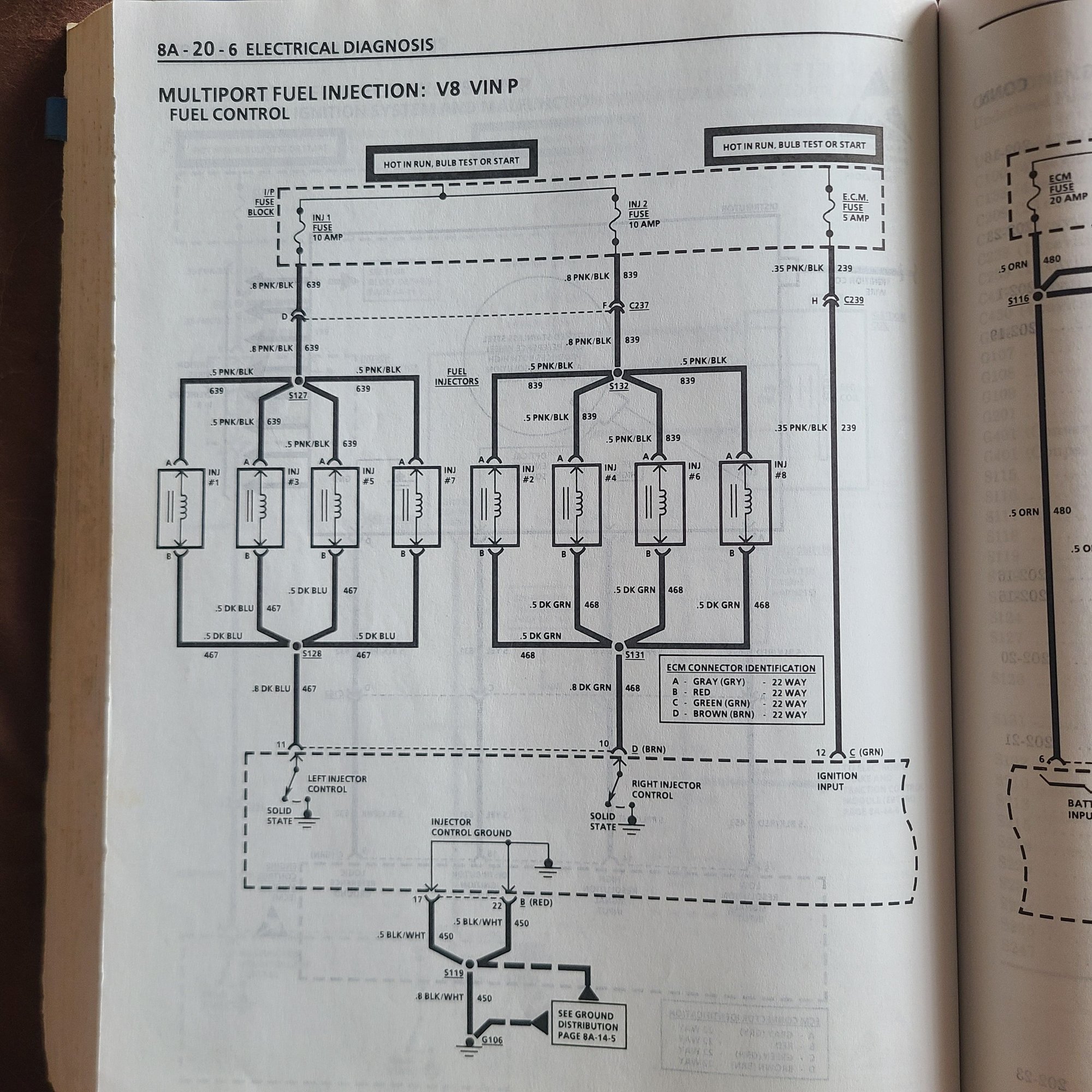

Hopefully someone can post a pic fro. their 92 workshop manual, as they went optispark will be differences from anything in my 91 manual won't relate to your 92 ..
