IAT timing tricker
Thread Starter
Advanced
Joined: Jun 2007
Posts: 77
Likes: 0
IAT timing tricker for nirtous...

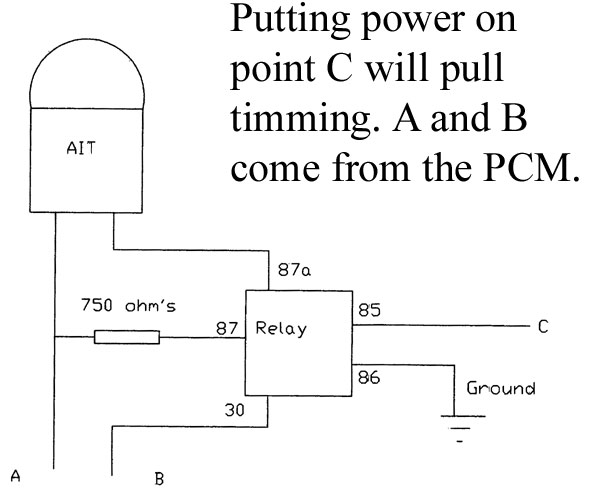

Can anyone send me a diagram on how to do this??... Something like a 750ohm resistor or something.... I have a zo6 maf so I have the 5 wire MAF... I need to know what color wires do what on the IAT wiring on the MAF... Here is a diagram I found can someone elaborate on it....
http://ls1tech.com/forums/attachment...chmentid=21043
From what it says put power to point C...ok how's that work a 2 pole switch??? from the batt. to one pole then the other pole to the "point C" on the diagram????
Also wires A & B that come from the pcm... what color wire (meaning POINT B) goes to the relay??
Thanks.....
http://ls1tech.com/forums/attachment...chmentid=21043
From what it says put power to point C...ok how's that work a 2 pole switch??? from the batt. to one pole then the other pole to the "point C" on the diagram????
Also wires A & B that come from the pcm... what color wire (meaning POINT B) goes to the relay??
Thanks.....
Last edited by 01c5z; Jul 8, 2007 at 08:22 PM.
Thread Starter
Advanced
Joined: Jun 2007
Posts: 77
Likes: 0
Collections Hold
Joined: May 2003
Posts: 3,520
Likes: 2
From: Tacoma WA
Check back in a bit to the diagram over at tech, I will post the info I have on what pinout from the pcm connectors. from there you have to use an ohm meter to verify at the IAT. I only have certain years info, so...
Robert
Robert
Thread Starter
Advanced
Joined: Jun 2007
Posts: 77
Likes: 0
Where should I look at ls1tech...nitrous section??? could you e-mail it to me?? Pm sent..
Collections Hold
Joined: May 2003
Posts: 3,520
Likes: 2
From: Tacoma WA
Yes, n2o section, the wiring sticky at the top of page, and post #112. I have some other info and diagrams on this type of trick, and think it's on the 2nd page towards the bottom, but post # not sure.
Robert
Robert
Thread Starter
Advanced
Joined: Jun 2007
Posts: 77
Likes: 0
BTW. I have Efilive
