TPMS Receiver Access?
#1
Cruising
Thread Starter
Member Since: Jul 2009
Location: Winchester, Virginia
Posts: 12
Received 0 Likes
on
0 Posts
TPMS Receiver Access?
All my TP sensors "died" at once, so I suspect the receiver. From what I can find, in my 2003 it's up over the LR wheel well, so I believe it's in this lump:

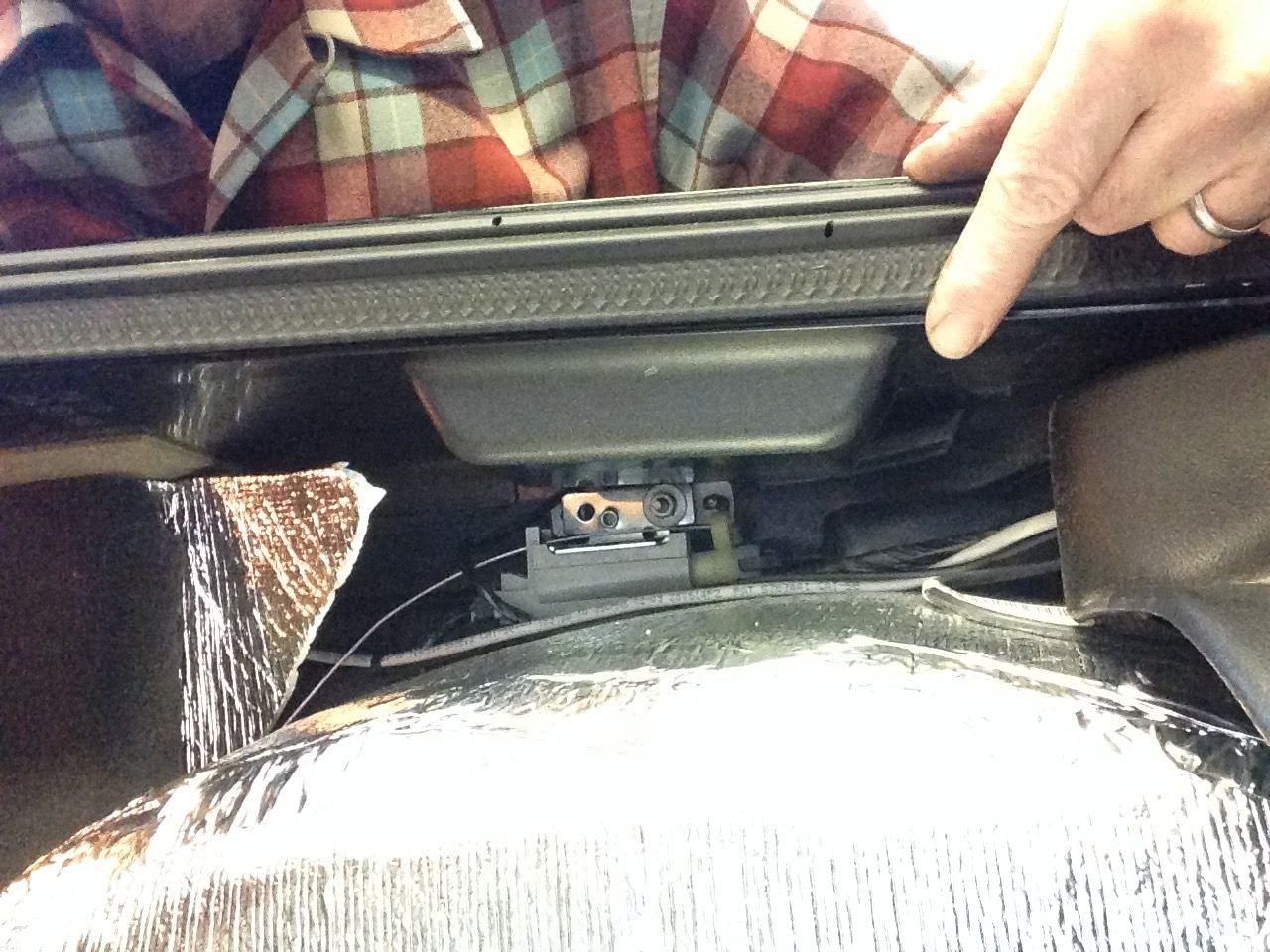

I cannot see how to get in there, however. Anybody know how to remove that panel?
JGeezer
2003 w/Corsa, Chip, Electronics implant
(plus an LS6 in my CTS-V)
I cannot see how to get in there, however. Anybody know how to remove that panel?
JGeezer
2003 w/Corsa, Chip, Electronics implant
(plus an LS6 in my CTS-V)
#2
Team Owner
If your remotes still work, there's very little chance the receiver is the problem. Maybe they lost comm with the receiver, did you try reprogramming?
#3
Administrator
Member Since: Mar 2001
Location: In a parallel universe. Currently own 2014 Stingray Coupe.
Posts: 343,004
Received 19,303 Likes
on
13,975 Posts
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03-'04-'05-'06-'07-'08-'09-'10-'11-'12-'13-'14-'15-'16-'17-'18-'19-
'20-'21-'22-'23-'24
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
The attached file talks more about a 2000 C5, but it may give you some useful info.
#4
Cruising
Thread Starter
Member Since: Jul 2009
Location: Winchester, Virginia
Posts: 12
Received 0 Likes
on
0 Posts
https://www.corvetteforum.com/forums...-reciever.html
had the money quote:
... one step is missing from every post on the subject, how to remove the plastic cover. Get yourself a utility knife. It's the only tool you need. Behind the driver seat, there is a plastic trim piece on the underside of the upper deck. You will see a bulge about the size of a deck of cards, this is where the receiver is located. Pull out the carpet from around the speaker and the rear section. The plastic trim is held on with double stick tape.
Take your utility knife and gently cut the tape. I cut back about 16 inches. This will give you enough room to access the receiver. The receiver simply clips in. Reach up behind the receiver (the outside edge) and push in on the plastic clip. Then pull down. You can now easily pull out the receiver, unplug the wire connector and replace with your new receiver. You will need a bit of new double stick tape to get the plastic back in place.
Take your utility knife and gently cut the tape. I cut back about 16 inches. This will give you enough room to access the receiver. The receiver simply clips in. Reach up behind the receiver (the outside edge) and push in on the plastic clip. Then pull down. You can now easily pull out the receiver, unplug the wire connector and replace with your new receiver. You will need a bit of new double stick tape to get the plastic back in place.
#5
Le Mans Master
Before you just start accessing the RFA so you can just look at it, answer 65GGverts questions and also pull your DIC codes from the dash, not an auto store scanner. If you need help on pulling the codes let us know. You are flying blind now.
#6
Le Mans Master
To dadaroo listen you must!
#8
Melting Slicks
"Loss of, or low system battery voltage will cause all of the sensor ID codes to be erased from the RCDLR's [receiver] memory and set all 4 sensor DTCs."
(I don't recall having to reprogram the TPMS sensors after replacing the battery, but so it goes.)
#9
Melting Slicks
One tidbit from the 2004 FSM:
"Loss of, or low system battery voltage will cause all of the sensor ID codes to be erased from the RCDLR's [receiver] memory and set all 4 sensor DTCs."
(I don't recall having to reprogram the TPMS sensors after replacing the battery, but so it goes.)
"Loss of, or low system battery voltage will cause all of the sensor ID codes to be erased from the RCDLR's [receiver] memory and set all 4 sensor DTCs."
(I don't recall having to reprogram the TPMS sensors after replacing the battery, but so it goes.)
#10
Cruising
Thread Starter
Member Since: Jul 2009
Location: Winchester, Virginia
Posts: 12
Received 0 Likes
on
0 Posts
Under B0-RFA - Remote Function Actuation:
C2100 Left Front TPM Sensor Malfunction
C2105 Right Front TPM Sensor Malfunction
C2110 Right Rear TPM Sensor Malfunction
C2115 Left Rear TPM Sensor Malfunction
U1000 Loss of Communication Undetermined
Under sections other than RFA I found:
U1016 Loss of Communication with PCM
U1064 Loss of Communication with BCM
U1096 Loss of Communication with IPC
So what's the rule on the "H" flag? You can totally ignore these codes?
I did try something else, though - I have eight wheels for Precious, and I tried one from the other set. Grrr, got a beep. It may be that my sensors are just past their lifespan, I guess I should just bite the bullet and replace them.
#11
Le Mans Master
History H codes are important and you should keep a record of them and see if they come back.
Remember most codes will go to H once you turn the ignition OFF.
Clear all of these codes and go for a drive to try and activate the tire sensors since they only work at speed and shut off if stopped for a few minutes. This is to save battery life in the sensors.
Then, pull your codes again BEFORE you turn the ignition OFF.
Let us know what you get.
Remember most codes will go to H once you turn the ignition OFF.
Clear all of these codes and go for a drive to try and activate the tire sensors since they only work at speed and shut off if stopped for a few minutes. This is to save battery life in the sensors.
Then, pull your codes again BEFORE you turn the ignition OFF.
Let us know what you get.
#12
Cruising
Thread Starter
Member Since: Jul 2009
Location: Winchester, Virginia
Posts: 12
Received 0 Likes
on
0 Posts
History H codes are important and you should keep a record of them and see if they come back.
Remember most codes will go to H once you turn the ignition OFF.
Clear all of these codes and go for a drive to try and activate the tire sensors since they only work at speed and shut off if stopped for a few minutes. This is to save battery life in the sensors.
Then, pull your codes again BEFORE you turn the ignition OFF.
Let us know what you get.
Remember most codes will go to H once you turn the ignition OFF.
Clear all of these codes and go for a drive to try and activate the tire sensors since they only work at speed and shut off if stopped for a few minutes. This is to save battery life in the sensors.
Then, pull your codes again BEFORE you turn the ignition OFF.
Let us know what you get.
#13
Melting Slicks
So what do these 3 codes mean?
U1016 Loss of Communication with PCM
U1064 Loss of Communication with BCM
U1096 Loss of Communication with IPC
2000 Vert...
I have no problem with my remote FOB and all my wheel sensors are working....these 3 come back every time after a drive or 2, but everything works...
U1016 Loss of Communication with PCM
U1064 Loss of Communication with BCM
U1096 Loss of Communication with IPC
2000 Vert...
I have no problem with my remote FOB and all my wheel sensors are working....these 3 come back every time after a drive or 2, but everything works...
#14
Melting Slicks
Which control module are the Uxxxx codes listed under???? RFA??? IPC???? Are they all listed under the same module???? They can be listed under more than one module and it makes a difference.
Loss of communications means that the signaling that takes place over the serial data buss between sensors and controllers is experiencing problems. Several possible causes for this. Need more specifics about your codes and controllers that are reporting the codes to provide additional info.
Loss of communications means that the signaling that takes place over the serial data buss between sensors and controllers is experiencing problems. Several possible causes for this. Need more specifics about your codes and controllers that are reporting the codes to provide additional info.
Thanks!
Jim
#16
Melting Slicks
Since the codes are limited to the RFA I suggest it has to do with wiring to that device. There is a ground through SP208 and G104 that may need to be serviced. See the following links about grounds:
http://forums.corvetteforum.com/c5-t...locations.html
http://forums.corvetteforum.com/c5-t...tion-long.html Post #1
If that doesn't resolve the issue then I would inspect the connector to the RFA. There have been previous threads on the Forum about breaks in the wires that go to the connector for the RFA. Intermittant electrical connectivity is the most likely cause of the codes you get.
Worst case, and that is highly unlikely, the RFA is bad. These devices seldom fail completely.
Essentially your RFA has bouts of not being able to communicate over the serial data buss and hence the codes.
http://forums.corvetteforum.com/c5-t...locations.html
http://forums.corvetteforum.com/c5-t...tion-long.html Post #1
If that doesn't resolve the issue then I would inspect the connector to the RFA. There have been previous threads on the Forum about breaks in the wires that go to the connector for the RFA. Intermittant electrical connectivity is the most likely cause of the codes you get.
Worst case, and that is highly unlikely, the RFA is bad. These devices seldom fail completely.
Essentially your RFA has bouts of not being able to communicate over the serial data buss and hence the codes.
Jim
#17
Tpms
Im not getting tire pressure readings on my DIC display for my 2000 Vert. Only one of my key fobs are working properly. (Ordered a new one) My driver side door lock will NOT unlock, but will lock with my one key fob. The passenger door works fine both ways. Im confused on which way to go first. Any suggestions to get my two issues working again and what order to I start first? Thanks, Matt
Last edited by earlyseventy6; 03-03-2017 at 09:47 AM.
#18
Race Director
Member Since: Jul 2007
Location: Arlington Hts, IL
Posts: 15,901
Received 1,090 Likes
on
797 Posts
St. Jude Donor '13-'14-'15-'16-'17-'18-'19-'20-'21-'22-'23-'24
Im not getting tire pressure readings on my DIC display for my 2000 Vert. Only one of my key fobs are working properly. (Ordered a new one) My driver side door lock will NOT unlock, but will lock with my one key fob. The passenger door works fine both ways. Im confused on which way to go first. Any suggestions to get my two issues working again and what order to I start first? Thanks, Matt
The following users liked this post:
earlyseventy6 (03-03-2017)
#19
I just received a "rebuilt" key fob from ebay and it will not program to the car. I tried a new battery as well. Emailed the guy i bought it from for exchange and will probably just buy a new one. I did pull the codes and only got 2, both were from the battery replacement B2284 and B2285. Will wait till i get new key fob to see if it will program to car. Thanks again.
#20
