C5 plese help
Thread Starter
Intermediate
Joined: May 2015
Posts: 30
Likes: 0
From: blockhouse nova scotia
I guess what I'm asking is the orange wire at the end of the journey or is it leaving the control box cuz if it's just leaving the control box that doesn't sound good for the control box correct me if I'm wrong have a wonderful evening thanks again for your time
Max
Max
Drifting
Joined: Nov 2016
Posts: 1,660
Likes: 365
From: SF Bay Area
I guess what I'm asking is the orange wire at the end of the journey or is it leaving the control box cuz if it's just leaving the control box that doesn't sound good for the control box correct me if I'm wrong have a wonderful evening thanks again for your time
Max
Max
Thread Starter
Intermediate
Joined: May 2015
Posts: 30
Likes: 0
From: blockhouse nova scotia
Good morning it looks like I found a schematic that shows that the orange and black wire may have 5 volt I would like to send you that schematic but I'm not sure how by way of this platform. If you email me I could probably do it easier
Thanks again have a great day
maxcbishop@gmail.com
Thanks again have a great day
maxcbishop@gmail.com
Drifting
Joined: Nov 2016
Posts: 1,660
Likes: 365
From: SF Bay Area
This is what I found for the 2000 steering system, which should be close to yours. I would check the black/white wire on the EBTCM to make sure it has a good ground.

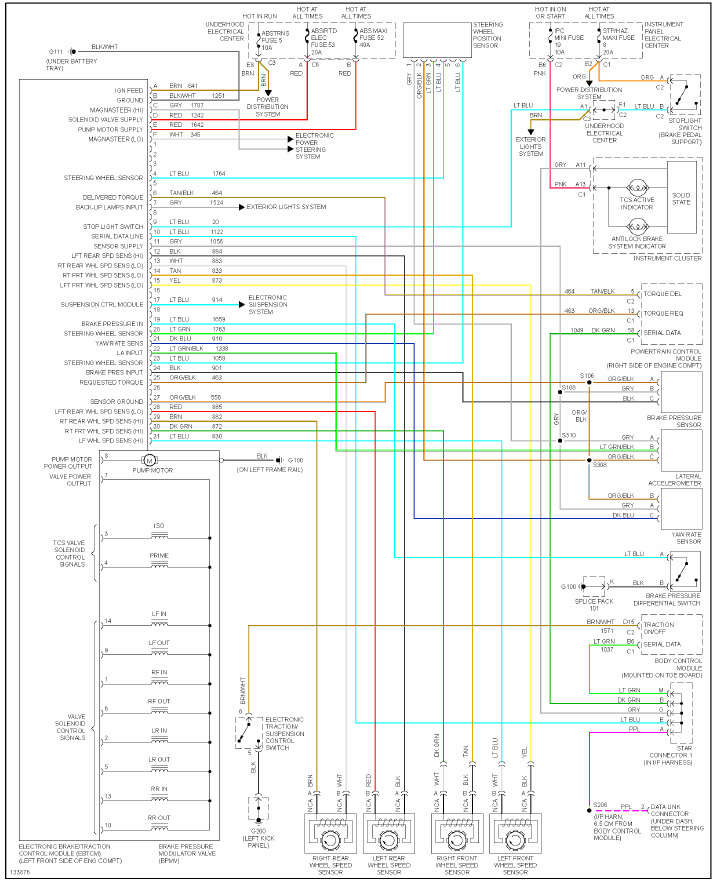

Edit: This is the entire EBTCM system:
The two components that are throwing codes share ground and 5v reference connections from the EBTCM.
Last edited by Tsumi; Apr 13, 2017 at 05:54 AM.
Thread Starter
Intermediate
Joined: May 2015
Posts: 30
Likes: 0
From: blockhouse nova scotia
The picture that I had definitely shows power on that orange and black it's a request torque signal how can I send you that picture boy I missed two days of a carburetor and choke and a set of points LOL
Thread Starter
Intermediate
Joined: May 2015
Posts: 30
Likes: 0
From: blockhouse nova scotia
Hi there I'm looking at that wonderful diagram
I had mentioned earlier that a diagram that I had shows that the orange black had power it was requested torque to the PCM.. after studying the schematic that I received from you I noticed that online number 27 and 25 the electronic brake traction control module are both orange black and one is a ground and the other one is requested torque to the PCM. So I guess my question is which one has power and why are they both the same color
I had mentioned earlier that a diagram that I had shows that the orange black had power it was requested torque to the PCM.. after studying the schematic that I received from you I noticed that online number 27 and 25 the electronic brake traction control module are both orange black and one is a ground and the other one is requested torque to the PCM. So I guess my question is which one has power and why are they both the same color
