Hi there still trying to get to the bottom of the electrical confusion of my C5. I pretty well have everything else under control except for the fact that I am getting a c 1285. And a c1288. I'm currently in the process of testing the voltage on the steering wheel positioning sensor. The research that I have found describes for wires however I have five. The voltage that I have found is as follows on the grey wire I have 5.03 volts. On the orange wire I have 4.5 volts. On the light green wire I have 11.78 volt and on one of the blue wires I have 11.78 as well. And the other blue wire which is the same color as the ones I just mentioned is carrying .01 volts.. I would be truly grateful if I could get some insight into this please
Have a nice day
Max
It is a 1999 I'm just wondering about 11.78 volts that seems a bit High to me but then again I have no idea thank you for replying I can use all the help I can get however after owning this for 3 years and being the only one that has worked on it I have learned a lot
It is a 1999 I'm just wondering about 11.78 volts that seems a bit High to me but then again I have no idea thank you for replying I can use all the help I can get however after owning this for 3 years and being the only one that has worked on it I have learned a lot
While I can't help you there is a forum member by the name of Bill Curlee who is the electrical wizard. You may want to try to contact him as my understanding is that he has helped many, many forum members over the years with their electrical gremlins. Good luck!
While I can't help you there is a forum member by the name of Bill Curlee who is the electrical wizard. You may want to try to contact him as my understanding is that he has helped many, many forum members over the years with their electrical gremlins. Good luck!
Thank you very much I sent him an email earlier today hopefully I will get a response he is probably a very busy man. It is a good thing that this car is so beautiful any other vehicle by now with all the electrical problems that I've had this past 3 years I would have either sold or buried it with my tractor LOL thanks again for the response have a wonderful evening
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '26
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Originally Posted by friou
While I can't help you there is a forum member by the name of Bill Curlee who is the electrical wizard. You may want to try to contact him as my understanding is that he has helped many, many forum members over the years with their electrical gremlins. Good luck!
Bill is a very good source of info on the C5s electrical system. Good luck getting this solved.
Looking at the PDFs I have, the 98 steering wheel sensor should have 6 lines. White, light green, two light blues, orange/black, and gray.
Orange is ground, and should be reading 0 volts. The fact that you're reading 4.5 vol
ts on the orange wire is definitely not right.
Well there's definitely 5 wires on my 1999 two Blues Orange .green.. and grey
Do you have any suggestions as soon what may be wrong where do you suggest I should test next
I truly do appreciate your help in this matter have a wonderful day
Max
I will try to put up a picture of the PDF later today. For now, since there is clearly something wrong with the orange wire not reading 0 volts, you can try to see if you can locate the orange wire at the control computer. That computer is located in the driver side storage compartment in the trunk. Test the voltage there and see if it reads 0.

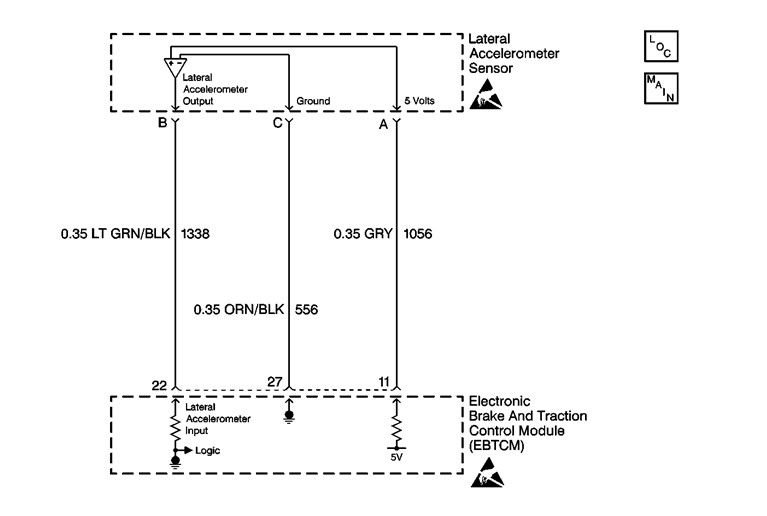

Here is the schematic for the steering wheel sensor Without RPO JL4 .
If you have the RPO JL4 then you don't have the wire 1765 .
DTC 1288 sets when the Steering Wheel Position Sensor analog output voltages falls outside 0.2-4.8V range.
DTC C1285 is Lateral Accelerometer Sensor Circuit Malfunction.
DTC C1285 can be set any time the ignition is present and the Lateral Accelerometer voltage is less than 0.15 volts or greater than 4.85 volts for approximately 1 second or more.
The control computer that you speak of that is in your rear compartment is it underneath the carpet or is it right in the open I don't remember seeing it is that the real name or is it some type of module thanks in advance
St. Jude Donor '14-'15-'16-'17-'18-'19-'20-'21-'22-'23
Originally Posted by takeittothemax
The control computer that you speak of that is in your rear compartment is it underneath the carpet or is it right in the open I don't remember seeing it is that the real name or is it some type of module thanks in advance
The module in the left rear is for your F45 suspension

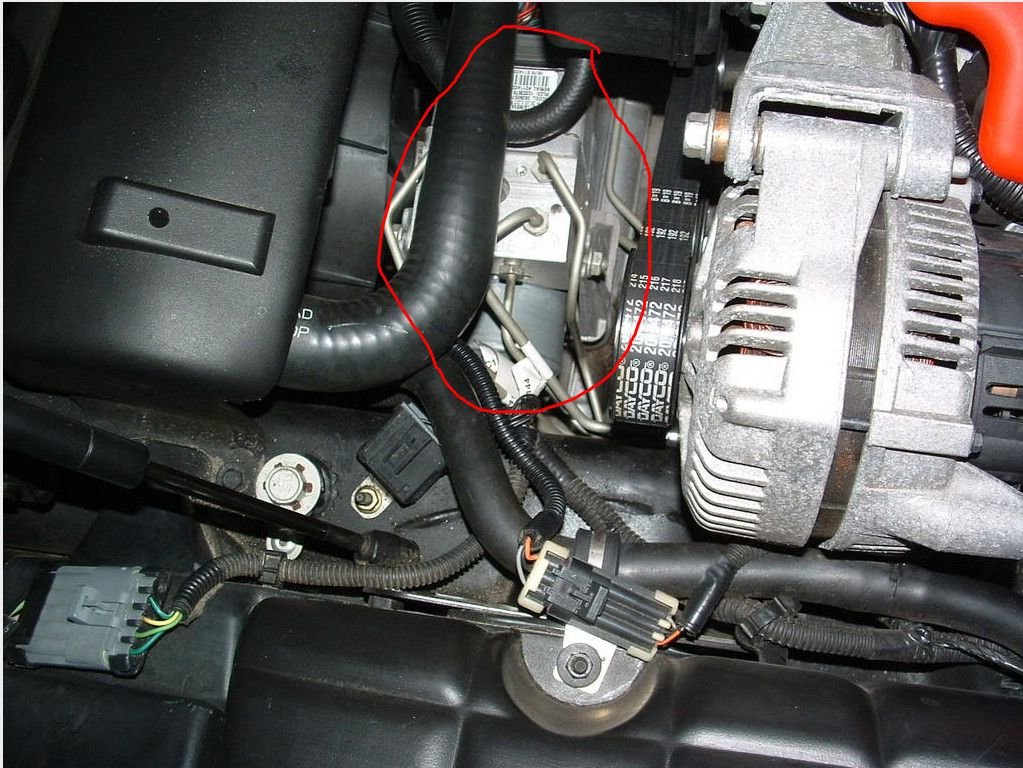

Well I just had a chance to check that orange wire directly at the main control which you sent me the picture of on the front of the engine and that wire has voltage as well at 4.97 I think. My question where exactly does that wire come from I know it's supposed to be ground is that control box the end of the journey or is it the beginning of the journey when I look at the wiring schematics do the little arrows in the cape the direction of wire headed to to power I do catch on very fast and I truly appreciate any help that you can give me
