How to remove the instrument cluster
Team Owner
Joined: Apr 2001
Posts: 54,204
Likes: 180
From: S.W. Ohio. . . . . . NRA Life Member
Le Mans Master
Joined: Sep 2003
Posts: 6,276
Likes: 227
From: Farmington CT
Cruise-In VII Veteran
www.vetteessentials.com
i think there is a 'how to' for the bezels; be careful with the hud connection up top
i think there is a 'how to' for the bezels; be careful with the hud connection up top
Race Director
Joined: Dec 2004
Posts: 13,760
Likes: 75
From: Haymarket VA
"Pace This" has some good instructions around here somewhere. I assume this is for a HUD install? If you are just swapping out the cluster you can to it by dropping the sterring column to make room.
Team Owner
Joined: Apr 2001
Posts: 54,204
Likes: 180
From: S.W. Ohio. . . . . . NRA Life Member
Originally Posted by WKMCD
"Pace This" has some good instructions around here somewhere.
Race Director
Joined: Mar 2000
Posts: 17,602
Likes: 20
From: Palm City Florida
Originally Posted by Phil97SVT
Are there any tutorials or tips?
You install my Clutch and I'll work on your Instrument Cluster..
Drifting
Joined: Oct 2004
Posts: 1,384
Likes: 8
From: Southwest Virginia

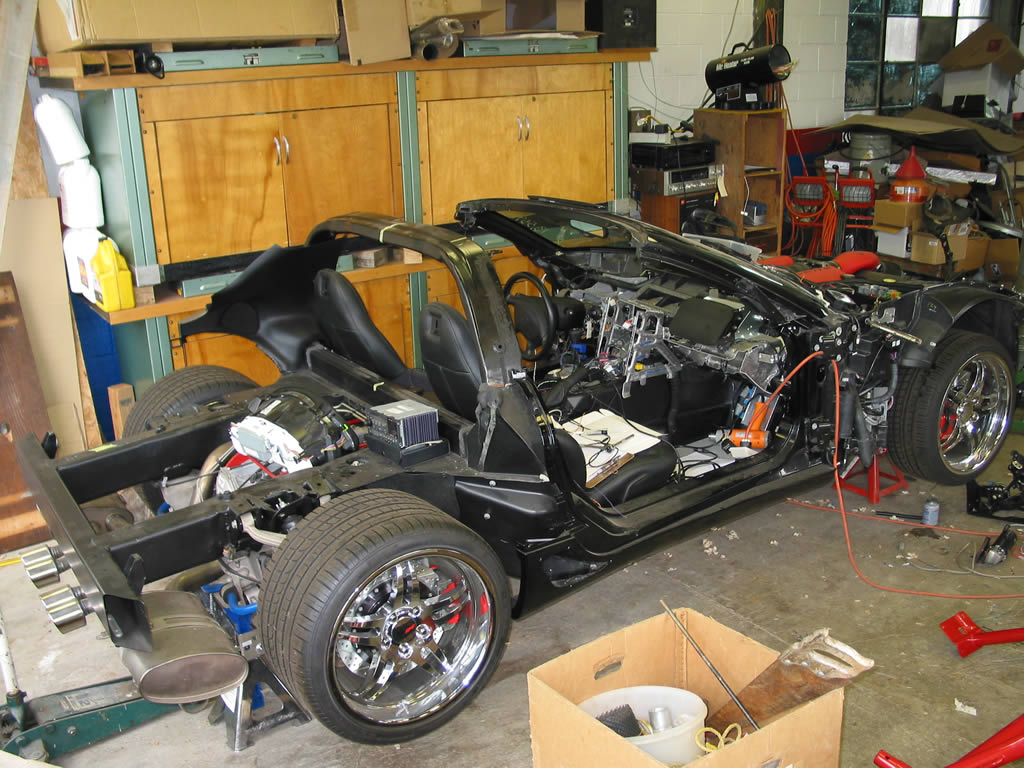

Pretty simple, I'm sure you can get it in 20 minutes or less. Pretty much all you have to do is remove the center console and the trim under the left dash. Two screws in the top of the IPC and two below. One big wiring plug and the small HUD plug is equipped. You will need to remove the two nuts holding the steering column and drop it a inch or two to get the cluster to clear the steering wheel. But you may not want to follow my instructions, I think I did something wrong! My IPC ended up on the rear diff!!!
Last edited by SpeedyZ; Jan 15, 2020 at 11:45 PM. Reason: Fixed broken link
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Le Mans Master
Joined: Oct 2001
Posts: 5,577
Likes: 3
From: Southern Maryland Maryland
Thread Starter
Le Mans Master
Joined: Oct 2001
Posts: 5,577
Likes: 3
From: Southern Maryland Maryland
Originally Posted by SpeedyZ
Pretty simple, I'm sure you can get it in 20 minutes or less. Pretty much all you have to do is remove the center console and the trim under the left dash. Two screws in the top of the IPC and two below. One big wiring plug and the small HUD plug is equipped. You will need to remove the two nuts holding the steering column and drop it a inch or two to get the cluster to clear the steering wheel. But you may not want to follow my instructions, I think I did something wrong! My IPC ended up on the rear diff!!!
Thread Starter
Le Mans Master
Joined: Oct 2001
Posts: 5,577
Likes: 3
From: Southern Maryland Maryland
Originally Posted by chuckster
Hey Phil, I have had mine out 2 times... I'll make you a deal..
You install my Clutch and I'll work on your Instrument Cluster..
You install my Clutch and I'll work on your Instrument Cluster..
Le Mans Master
Joined: Apr 2001
Posts: 5,941
Likes: 281
From: Was New Orleans but swam to Baton Rouge LA
Cruise-In IX Veteran
Try this write up for an LED swap it has good removal instructions.
http://www.spdkilz.com/techtipleddic.html
http://www.spdkilz.com/techtipleddic.html
