5-wire MAF IAT wires


Old 07-13-2008, 10:11 PM
  #1
BLOWNBLUEZ06
Tech Contributor
Thread Starter

BLOWNBLUEZ06's Avatar

Member Since: Apr 2007
Location: Forney Texas
Posts: 10,885
Thanked 41 Times in 30 Posts
Default 5-wire MAF IAT wires

I just want confirmation that the 2 outside wires are the IAT wires from the 5-wire MAF. They are yellow and purple.
I am re-locating the IAT sensor and ditching the MAF.

Thanks
BLOWNBLUEZ06 is offline
Old 07-13-2008, 10:39 PM
  #2
Y2Kvert4me
CF Senior Member

Member Since: Oct 2002
Location: Gone
Posts: 16,477
Thanks: 0
Thanked 6 Times in 6 Posts
CI 6-7-8-9-10 Veteran
St. Jude Donor '03
Default

Purple and tan wires are IAT.
Y2Kvert4me is offline
Old 07-13-2008, 10:48 PM
  #3
Todd157k
CF Senior Member

Todd157k's Avatar

Member Since: Jul 2006
Location: Simi Valley CA
Posts: 2,893
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Found this from Redhardsupra...


Looked, but did not find, so beeped it all out.

Delphi 85mm 5-pin MAF is used in trucks, Z06 and is the base for
SLP and the Granatelli "low cost" 85mm MAF

Delphi 76mm 3-pin MAF is used on '98-'02 F-Bodies and older
Corvettes.

Delphi 5-Pin MAF
Connector Pins, left to right, looking into inlet

(Left)
1 IAT output, to F-Body IAT harness, TAN (tan), to PCM C2 Pin 25
2 IAT reference, to F-Body IAT harness, PPL (purple), to PCM C1 Pin 57
3 MAF ground, to FBody MAF harness, BLK (black) to main ground dist.
4 MAF power (IGN), to FBody MAF harness, PNK (pink) to ENG SEN fuse
5 MAF output, to FBody MAF harness, YEL (yellow) to PCM C2 Pin 31
(Right)

'98-'02 3-pin MAF
Connector Pins, left to right, looking into inlet

(Left)
1 MAF output, to FBody MAF harness, YEL (yellow) to PCM C2 Pin 31
2 MAF ground, to FBody MAF harness, BLK (black) to main ground dist.
3 MAF power (IGN), to FBody MAF harness, PNK (pink) to ENG SEN fuse
(Right)

This info may let you wire up your own harness or use these MAFs
in other applications (my purpose for doing this was to use the truck
MAF in a "ghetto flow bench" I'm building).
Todd157k is offline
Old 07-13-2008, 10:49 PM
  #4
BLOWNBLUEZ06
Tech Contributor
Thread Starter

BLOWNBLUEZ06's Avatar

Member Since: Apr 2007
Location: Forney Texas
Posts: 10,885
Thanked 41 Times in 30 Posts
Default

Thanks. I'm trying to finish up my monster this week and don't want to get anything wrong.
BLOWNBLUEZ06 is offline
Old 07-13-2008, 10:52 PM
  #5
Y2Kvert4me
CF Senior Member

Member Since: Oct 2002
Location: Gone
Posts: 16,477
Thanks: 0
Thanked 6 Times in 6 Posts
CI 6-7-8-9-10 Veteran
St. Jude Donor '03
Default

Originally Posted by Todd157k View Post
1 IAT output, TAN (tan),
2 IAT reference, PPL (purple)


Y2Kvert4me is offline
Old 12-29-2012, 07:25 PM
  #6
Rich Z
CF Senior Member
Support Corvetteforum!

Rich Z's Avatar

Member Since: Sep 2005
Location: Tallahassee FL
Posts: 1,767
Thanked 1 Time in 1 Post
Default

Originally Posted by Todd157k View Post
Found this from Redhardsupra...


Looked, but did not find, so beeped it all out.

Delphi 85mm 5-pin MAF is used in trucks, Z06 and is the base for
SLP and the Granatelli "low cost" 85mm MAF

Delphi 76mm 3-pin MAF is used on '98-'02 F-Bodies and older
Corvettes.

Delphi 5-Pin MAF
Connector Pins, left to right, looking into inlet

(Left)
1 IAT output, to F-Body IAT harness, TAN (tan), to PCM C2 Pin 25
2 IAT reference, to F-Body IAT harness, PPL (purple), to PCM C1 Pin 57
3 MAF ground, to FBody MAF harness, BLK (black) to main ground dist.
4 MAF power (IGN), to FBody MAF harness, PNK (pink) to ENG SEN fuse
5 MAF output, to FBody MAF harness, YEL (yellow) to PCM C2 Pin 31
(Right)

'98-'02 3-pin MAF
Connector Pins, left to right, looking into inlet

(Left)
1 MAF output, to FBody MAF harness, YEL (yellow) to PCM C2 Pin 31
2 MAF ground, to FBody MAF harness, BLK (black) to main ground dist.
3 MAF power (IGN), to FBody MAF harness, PNK (pink) to ENG SEN fuse
(Right)

This info may let you wire up your own harness or use these MAFs
in other applications (my purpose for doing this was to use the truck
MAF in a "ghetto flow bench" I'm building).

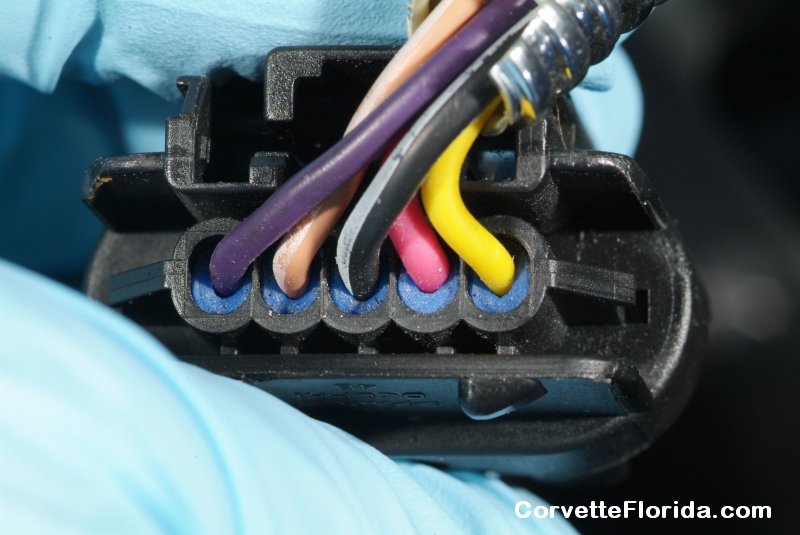

Sorry to resurrect an old thread, but I'm trying to troubleshoot an intermittent bogus IAT signal so I'm looking at the connector end and will be working towards the PCM as needed. Getting a intermittent high temp signal. Anyway, according to the above, pin 1 should be tan and pin 2 should be purple. That is not what I am seeing:



Now it is entirely possible that one of the guys hacking on my car a little while back might have replaced a connector and switched the wires. Would that make a difference? From what I understand the IAT sensor is just a thermistor, so I don't think there would be a polarity issue. At least not one that would be intermitten, but I'm trying to eliminate all variables.

My plan is to get an extension cable and make is a signal break out box so I can figure out if the IAT sensor itself is flaky, or there is a problem with one of those two wires on the way back to the PCM. So knowing which wires I need to deal with would certainly help.

Thanks...
Rich Z is offline
Old 12-29-2012, 08:44 PM
  #7
RonSSNova
CF Senior Member

RonSSNova's Avatar

Member Since: Aug 2011
Location: Portland OR
Posts: 3,364
Thanks: 0
Thanked 54 Times in 52 Posts
Default

No polarity on a thermistor.

Ron
RonSSNova is offline
