I wonder how hard it would be to get someone like www.eficonnection.com to make the wiring harness adapters so no cutting or splicing of the factory harness was necessary?
It should work the same as for my 99. I would verify the 98 wiring is not different prior to cutting wires.
#63
Tech Contributor
Member Since: Dec 1999
Location: Anthony TX
Posts: 32,736
Received 2,180 Likes
on
1,583 Posts
CI 6,7,8,9,11 Vet
St. Jude Donor '08
I'm the happy owner of a functional 98 (non AH) with a "properly functioning" ebcm.
The though of not having a fix is daunting if it does go, I'm kinda screwed. having the AH sensors "faked" could be an option? I have a fairly decent knowledge of serial communications and I'm a system administrator so perhaps we could just figure out what feedback the ebcm wants?
Thanks for investing the time into this man!
The though of not having a fix is daunting if it does go, I'm kinda screwed. having the AH sensors "faked" could be an option? I have a fairly decent knowledge of serial communications and I'm a system administrator so perhaps we could just figure out what feedback the ebcm wants?
Thanks for investing the time into this man!
I seriously doubt that you can cobble anything together to FAKE all that data from the system..
BC
#64
Le Mans Master
Member Since: Jul 2011
Location: Morristown New Jersey
Posts: 7,263
Received 914 Likes
on
721 Posts
Oldtimer
Congrats to you, Caddy, this is a great accomplishment! I forget to check this part of the forum too often and I see it's a big mistake. Since I have an '02, I fortunately don't have to deal with this. In my search for my second C5, I passed up many nice cars because of this problem. There are so many interesting parts of your article and the thread responses. To be brief, since I do most of my own work, and this is my second c5, many of the mods I made to the first one take less than half the time. I'm sure a very significant amount of Caddy's time was spent on research, check/recheck multiple times, cut/bend/fit till it's right, and the exhaustive process of figuring/testing out the wiring. Caddy has given anyone willing to take on the job a terrific framework to go by. Those who mentioned experience with tube bending and electronics have another step up.
Having done the EBCM "resolder" on my first one, and talking a good friend thru the job on his, I'm not afraid to do it again. That is worth something.
Gotta love this forum. Great job everyone!
Having done the EBCM "resolder" on my first one, and talking a good friend thru the job on his, I'm not afraid to do it again. That is worth something.
Gotta love this forum. Great job everyone!
The following users liked this post:
esandgc (11-26-2020)
#65
Race Director
Member Since: Apr 2007
Location: South Western Ontario
Posts: 11,061
Received 845 Likes
on
721 Posts
I'm the happy owner of a functional 98 (non AH) with a "properly functioning" ebcm.
The though of not having a fix is daunting if it does go, I'm kinda screwed. having the AH sensors "faked" could be an option? I have a fairly decent knowledge of serial communications and I'm a system administrator so perhaps we could just figure out what feedback the ebcm wants?
Thanks for investing the time into this man!
The though of not having a fix is daunting if it does go, I'm kinda screwed. having the AH sensors "faked" could be an option? I have a fairly decent knowledge of serial communications and I'm a system administrator so perhaps we could just figure out what feedback the ebcm wants?
Thanks for investing the time into this man!
I wonder how hard it would be to get someone like www.eficonnection.com to make the wiring harness adapters so no cutting or splicing of the factory harness was necessary?
#66
Melting Slicks
Member Since: Jul 2004
Location: orlando florida
Posts: 3,092
Received 114 Likes
on
98 Posts
St. Jude Donor '15
if you take the time to remove the pins from the newer design and soldered them to the wires, you wouldn't need to splice and have butt connectors everywhere. it's just more time.
#69

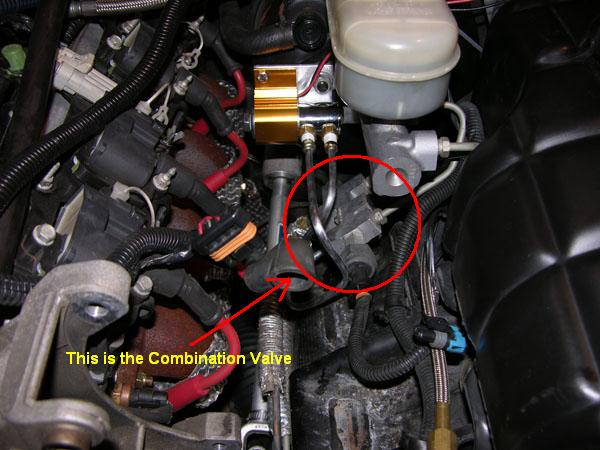

Caddy 2006 ive read this thread and copied your re pin schematic I'm going to attempt this myself I was curious as to what you did with the proportioning valve under the master cylinder ive included a picture for
easy referance
easy referance
#70
Advanced
Thread Starter
That proportioning valve is no longer needed with the later model unit. The later model hard brake lines go directly from the master cylinder into the BPMV. The BPMV/EBCM handles all the proportioning duties.
#71
Race Director
Pro Mechanic
Member Since: Mar 2004
Location: Fort Wayne IN
Posts: 12,244
Received 813 Likes
on
431 Posts
C5 of Year Finalist (performance mods) 2019
2017 C5 of the Year Finalist
2016 C5 of the Year Finalist
2015 C5 of the Year Finalist
I Believe In The Beer Fairy
Picture thief. Glad it's getting some more use than what I am doing with it
#73
No proportioning valve. Just this brass elbow essentially and doesn't have any wires on it.
Looks like I'm gonna be like @tdteel1999 and try this too. Think it'll work on a 2000?
A couple pled of questions, my 2000 frc with active handling doesn't have a porportioning valve. The brake lines from the master run straight into the BPMV. So maybe I can just clean all that out like the 99 and move on?
For the EBCM connector, did you only splice into the 6 wires as shown in the original pic? Looks like it, but wanted to verify. I know the plugs are different so wondered how you did that.
Looks like I'm gonna be like @tdteel1999 and try this too. Think it'll work on a 2000?
A couple pled of questions, my 2000 frc with active handling doesn't have a porportioning valve. The brake lines from the master run straight into the BPMV. So maybe I can just clean all that out like the 99 and move on?
For the EBCM connector, did you only splice into the 6 wires as shown in the original pic? Looks like it, but wanted to verify. I know the plugs are different so wondered how you did that.
Last edited by Standi; 11-22-2017 at 07:53 PM.
#74
Advanced
Thread Starter
No proportioning valve. Just this brass elbow essentially and doesn't have any wires on it.
Looks like I'm gonna be like @tdteel1999 and try this too. Think it'll work on a 2000?
A couple pled of questions, my 2000 frc with active handling doesn't have a porportioning valve. The brake lines from the master run straight into the BPMV. So maybe I can just clean all that out like the 99 and move on?
For the EBCM connector, did you only splice into the 6 wires as shown in the original pic? Looks like it, but wanted to verify. I know the plugs are different so wondered how you did that.
Looks like I'm gonna be like @tdteel1999 and try this too. Think it'll work on a 2000?
A couple pled of questions, my 2000 frc with active handling doesn't have a porportioning valve. The brake lines from the master run straight into the BPMV. So maybe I can just clean all that out like the 99 and move on?
For the EBCM connector, did you only splice into the 6 wires as shown in the original pic? Looks like it, but wanted to verify. I know the plugs are different so wondered how you did that.
ALL connections on the late model EBCM connector have to be spliced into the wiring on the car. I just showed an in-process picture to illustrate the process.
Good luck!
#75
Le Mans Master
Did all cars after 01 have active handling?
Does this mean for a 99 owner like myself who does not have or want AH, that this won’t work?
Does this mean for a 99 owner like myself who does not have or want AH, that this won’t work?
#76
Advanced
Thread Starter
A conversion might still be feasible - but more wiring would have to be done to include all the accelerometers used by active handling (that weren't installed/wired on the early cars without active handling).
#77
Instructor
Has anyone else completed this tutorial? I'm trying to decide weather to stock pile a used ebcm, swps and modulator valve (which will cost me a **** load) or just buy the parts for conversion should the time come when one of these critical components fails.
It looks like the ebcm on the early model c6's is now discontinued also, so I guess we will see a thread pop up over on the c6 forums within due course. Really struggling to recommend GM with there complete disregard for their older customers.
It looks like the ebcm on the early model c6's is now discontinued also, so I guess we will see a thread pop up over on the c6 forums within due course. Really struggling to recommend GM with there complete disregard for their older customers.
The following users liked this post:
Tomm1011 (06-07-2019)
#78
I have an early '98, EBCM in rear, with AH and 1255 code. This solution is an attractive option, but I am wondering if doable. The most obvious issue I see is that the rear brake proportioning valve on my car has no sensor and no wires, so nothing there to wire to the EBCM. I'm not even sure it's a proportioning valve, it's so small it looks more like a splitter. Does that kill the swap right there?
Also, there is not a lot of detail on the EBCM connector rewiring. The other thread referenced by the OP regarding pinout mentioned a few connections that simply didn't line up. Were these just left unconnected?
Also, there is not a lot of detail on the EBCM connector rewiring. The other thread referenced by the OP regarding pinout mentioned a few connections that simply didn't line up. Were these just left unconnected?
#79
Melting Slicks
I have an early '98, EBCM in rear, with AH and 1255 code. This solution is an attractive option, but I am wondering if doable. The most obvious issue I see is that the rear brake proportioning valve on my car has no sensor and no wires, so nothing there to wire to the EBCM. I'm not even sure it's a proportioning valve, it's so small it looks more like a splitter. Does that kill the swap right there?
Also, there is not a lot of detail on the EBCM connector rewiring. The other thread referenced by the OP regarding pinout mentioned a few connections that simply didn't line up. Were these just left unconnected?
Also, there is not a lot of detail on the EBCM connector rewiring. The other thread referenced by the OP regarding pinout mentioned a few connections that simply didn't line up. Were these just left unconnected?
Last edited by GCG; 10-28-2018 at 03:43 PM.
#80
Just did this conversion over the last few days. Got everything in the car but still have a few codes. need to go over the wiring to make sure I didn’t miss anything. Great write up man helped allot. Hope to have the bugs worked out this weekend/next week
The following 2 users liked this post by raorlan5850:
JimHarris4 (11-25-2020),
Torch Red Fire 21 (03-01-2024)
