Need help wiring new DRLs

Reply Subscribe

Thread Tools

Search this Thread

Jul 8, 2019 | 10:19 PM

Time for a C-5

Thread Starter

Burning Brakes

Joined: Feb 2015

Posts: 987

Likes: 224

From: Motor City, MI

Need help wiring new DRLs

I bought a set of DRLs from Radioflyer but they didn't come with directions. I'm an okay wrench turner but not an electrical guru. I'm looking for any tips I can get.

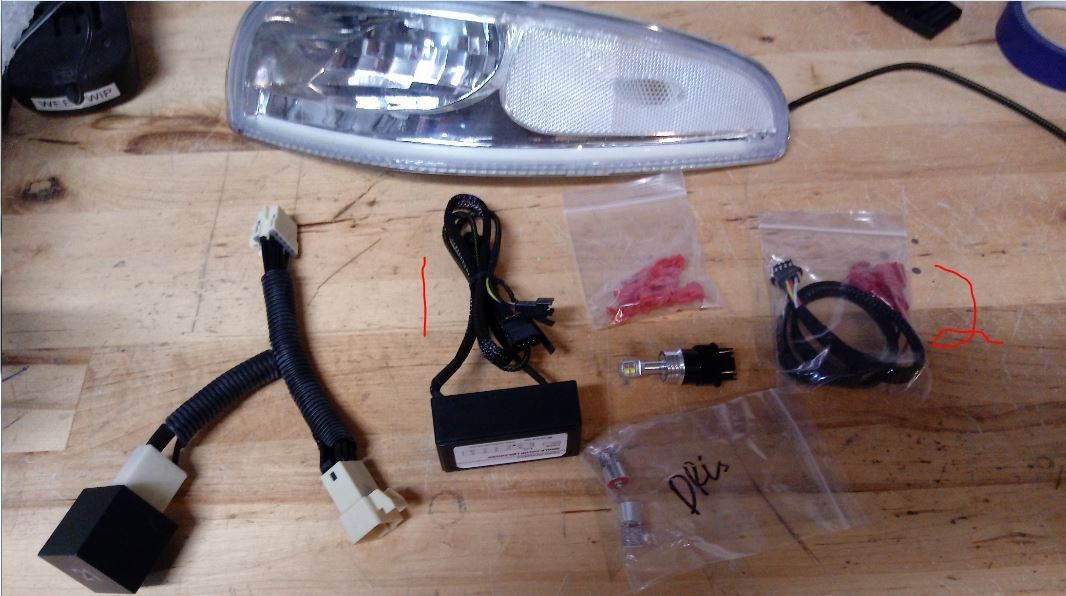

Below is a pic of everything I received (for one side). The Y wire on the left is a switchback connector and there are instructions on the website so I can get that connected.

I opted for the LED strip along the bottom, which I'd like to be on all of the time, basically my daytime runners like modern cars. I'm not sure where to connect this wire.

Then there's 1 and 2 in the pic below...I have no idea what these are for. I haven't pulled the old lights out yet, and maybe it will be more obvious when I do, but I'd like to go into the project with some idea how to finish it. Any tips are appreciated.

Jul 9, 2019 | 03:39 AM

laurent_zo6

Melting Slicks

Joined: Aug 2013

Posts: 2,491

Likes: 315

St. Jude Donor '15-'16-'17-'18-'19-'20-'21-'22

Look if the installation guide is on this link:

https://radioflyerinnovations.com/installation-guides

Jul 9, 2019 | 08:48 AM

Time for a C-5

Thread Starter

Burning Brakes

Joined: Feb 2015

Posts: 987

Likes: 224

From: Motor City, MI

Quote:

Originally Posted by laurent_zo6

Look if the installation guide is on this link:

https://radioflyerinnovations.com/installation-guides

The hyperflash instructions are posted but not the DRL wiring.

Jul 10, 2019 | 12:20 AM

TheRadioFlyer

Supporting Vendor

Joined: Jul 2010

Posts: 8,550

Likes: 901

From: Republic of Texas

For the T-taps:

Wire on the new harness: ----->

Black - Ground (black factory wire)
Yellow - Turn signal wire
Red - Brown wire

Jul 22, 2019 | 08:32 PM

Time for a C-5

Thread Starter

Burning Brakes

Joined: Feb 2015

Posts: 987

Likes: 224

From: Motor City, MI

[QUOTE=TheRadioFlyer;1599728022]For the T-taps:

Wire on the new harness: ----->

Black - Ground (black factory wire) on the DRL, not turn signal, correct?
Yellow - Turn signal wire Brown turn signal wire?
Red - Brown wire DRL Brown?

George, I have the light apart. You supplied four T taps and you gave me three connections above. Please confirm the red above. What do I do with the last one? My housing has the LED strip on the bottom. Is that related to the fourth wire? I'd like the LED stip on all of the time, if possible. Thanks.

Last edited by Time for a C-5; Jul 22, 2019 at 08:41 PM.

Jul 22, 2019 | 10:52 PM

TheRadioFlyer

Supporting Vendor

Joined: Jul 2010

Posts: 8,550

Likes: 901

From: Republic of Texas

[QUOTE=Time for a C-5;1599816410]

Quote:

Originally Posted by TheRadioFlyer

For the T-taps:

Wire on the new harness: ----->

Black - Ground (black factory wire) on the DRL, not turn signal, correct?
Yellow - Turn signal wire Brown turn signal wire?
Red - Brown wire DRL Brown?

George, I have the light apart. You supplied four T taps and you gave me three connections above. Please confirm the red above. What do I do with the last one? My housing has the LED strip on the bottom. Is that related to the fourth wire? I'd like the LED stip on all of the time, if possible. Thanks.

There should only be 3 taps per side. I must have included an extra tap by mistake.
