C5 Wiring Diagram

Can anyone point me to a C5 wiring schematic online?

Thanks, John

May 5, 2020 | 05:30 PM

laurent_zo6

Melting Slicks

Joined: Aug 2013

Posts: 2,491

Likes: 315

St. Jude Donor '15-'16-'17-'18-'19-'20-'21-'22

Plenty of choices if you google "c5 wiring diagram"

May 5, 2020 | 05:51 PM

motorcyclefanatic

Thread Starter

5th Gear

Joined: Jan 2020

Posts: 5

Likes: 0

Quote:

Originally Posted by laurent_zo6

Plenty of choices if you google "c5 wiring diagram"

Apparently not. I tried that first.

Care to provide just one?

Last edited by motorcyclefanatic; May 5, 2020 at 05:51 PM.

May 5, 2020 | 05:53 PM

GCG

Melting Slicks

Joined: Jan 2009

Posts: 3,275

Likes: 739

From: Miami FL

What are you specifically looking for?

May 5, 2020 | 05:55 PM

motorcyclefanatic

Thread Starter

5th Gear

Joined: Jan 2020

Posts: 5

Likes: 0

Quote:

Originally Posted by GCG

What are you specifically looking for?

I'd like to see a wiring schematic for a 2000 C5 Corvette. Specifically looking for info on exterior lights, head/tail lights.

May 5, 2020 | 07:06 PM

SilverC54me

Melting Slicks

Joined: Jul 2004

Posts: 3,294

Likes: 482

From: Brea CA

The circuits for the exterior lighting are the same across the line. I can get you them from my 2002 service manual tonight.
Is there a particular issue you are trying to solve?

Gary

May 5, 2020 | 07:42 PM

motorcyclefanatic

Thread Starter

5th Gear

Joined: Jan 2020

Posts: 5

Likes: 0

Quote:

Originally Posted by SilverC54me

The circuits for the exterior lighting are the same across the line. I can get you them from my 2002 service manual tonight.
Is there a particular issue you are trying to solve?

Gary

Thanks, I'd appreciate the look.

Having an intermittent running lights issue.

May 6, 2020 | 01:51 AM

SilverC54me

Melting Slicks

Joined: Jul 2004

Posts: 3,294

Likes: 482

From: Brea CA

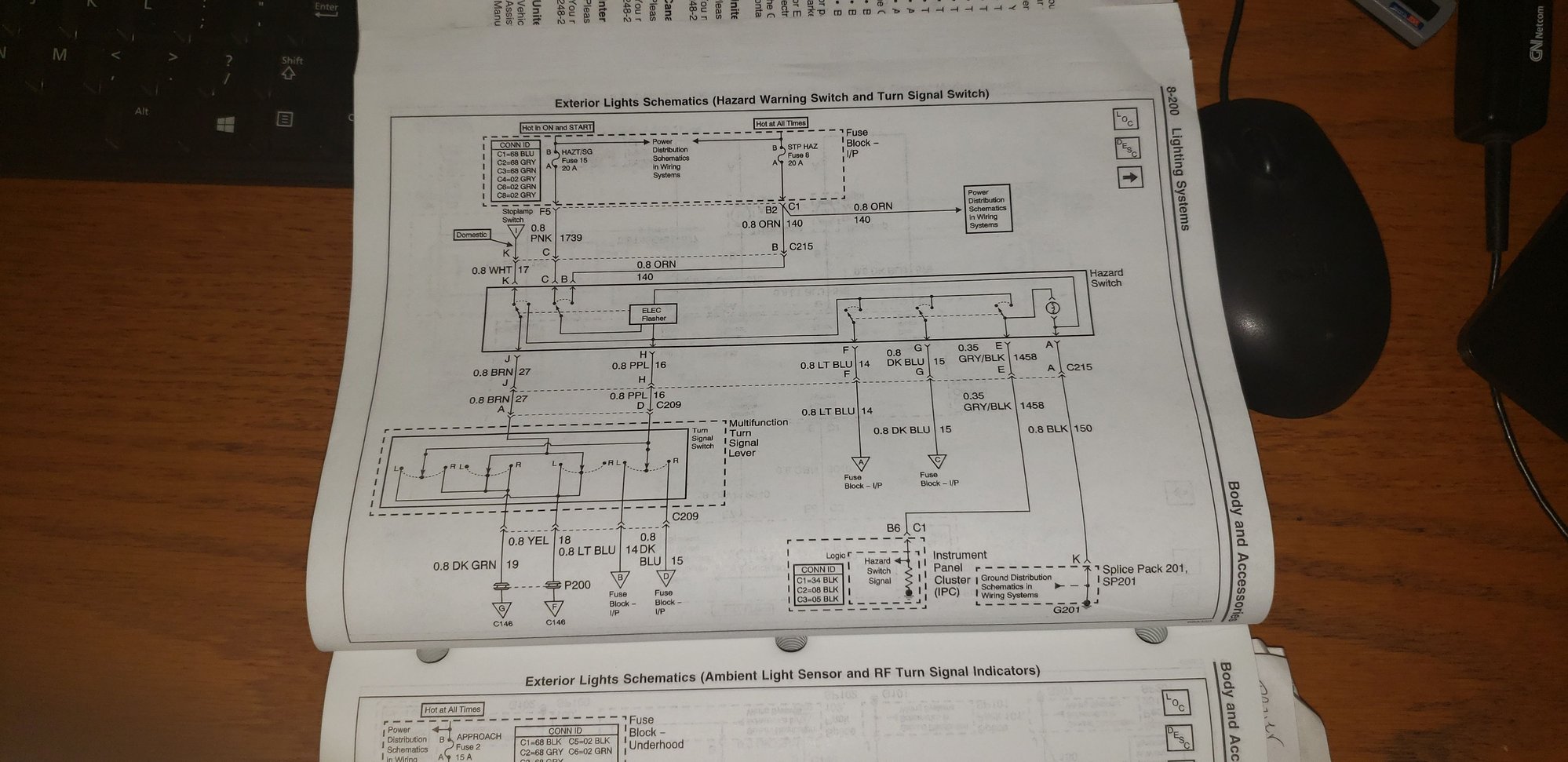

Here pictures of the exterior lighting systems diagrams.

Gary

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

May 6, 2020 | 08:33 AM

motorcyclefanatic

Thread Starter

5th Gear

Joined: Jan 2020

Posts: 5

Likes: 0

Thank you very much!

May 6, 2020 | 09:59 AM

#10

Steeldragon

Instructor

Joined: Jul 2016

Posts: 128

Likes: 26

From: Oak Ridhe MIssouri
