C5 knock sensor problem
After re-assembling the parts I now have TWO knock sensor codes, for both banks. I disassembled all of the connectors for cleaning and resetting the contact pin socket tension, that made no difference, the scanner shows a low voltage code for both knock sensors. Anyone out there have any ideas for a solution?
The engine runs normally, and does NOT knock or ping on any acceleration rate. In the past, when I found knock sensor codes in customer's Corvettes (prior to 98) I always heard spark knock on even mild acceleration. To rule out some of it, I cleaned and checked for continuity or resistance every connector under the hood, the ones I could get to. And I checked the connectors at the ECM, BCM, and all of the fuses in both fuse boxes. I don't have a problem with going back into the knock sensors, but an idea of what to look for would be nice.
Thanks in advance for any ideas you might have.

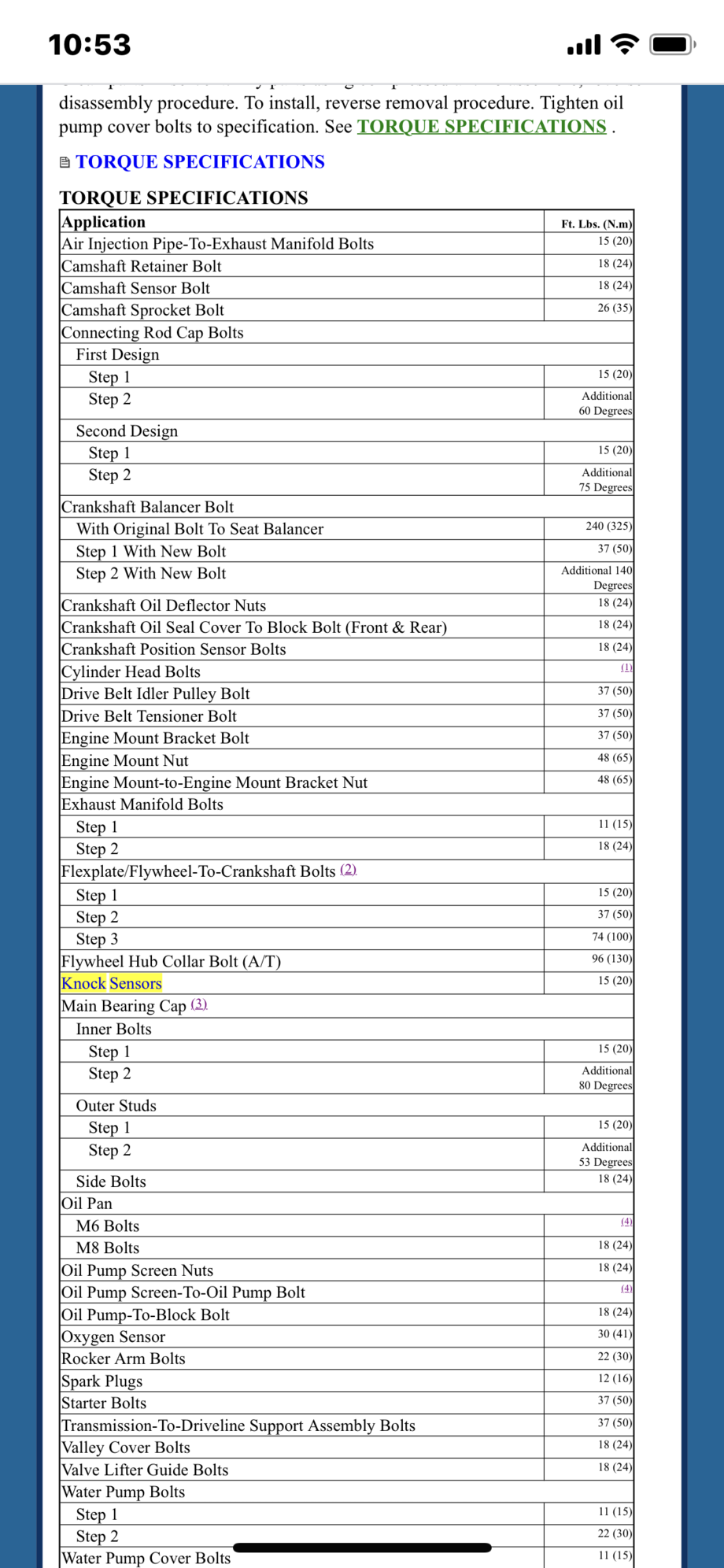

...did you check the circuit from the PCM out to the harness ??...do you have a lab scope ??...if not you can use a DVOM but as you probably know it will only average the AC voltage from the sensor...you can try giving the exhaust manifold a couple love taps while back probing the signal wire and see what the sensor is putting out i f anything...you’ll be lucky to see maybe close to .1 VAC maybe !!...I can’t remember if there is a bias voltage on that line but you can probably check that...did you ohm out the new sensors ??...I believe you’ll be looking in the K Ohms but I can’t remember the number...this is a torque for those things and it’s critical...another thing that you can check is your alternator ripple since the both the ABS sensors and knock sensors produce AC...just a thought ...I had a Forum member I know call me and said his Wife’s Tahoe was throwing both those DTC’s (knock and WSS) if I can remember...he had close to 1 volt AC ripple...a new alternator took care of that..I probably don’t think I have to tell you how to check AC ripple...good luck !!
Last edited by C5 Diag; May 11, 2020 at 06:45 PM.
Last edited by sjhanc; May 11, 2020 at 07:44 PM.





I always had ASE Certification since the 70's, but in the early 90's a service manager decided that he need at least one master in the service dept, so he sent me to Jacksonville to take the GM automatic transmission course, the only area I had very little experience in, although I had done some work on automatics. After passing that course I took the ASE exams in all areas and got the Master Certification. I mostly worked on engine, drive train, and drive-ability problems, and was given the difficult-to-fix problems for the whole shop. I retired from auto repair before the first C5 warranty problems began to show up, so I can't claim to be expert in C5 and later Vettes. I started work for Harber Chevrolet in 1972 as a Corvette mechanic, based on my experience racing my own Corvettes, 2 C2 Models. No one else in that shop was willing to touch a Vette at that time. I took numerous GM training center courses, GM sent me 'Certified technician' diplomas, I never got any explanation of what that meant. I held a 100% customer satisfaction rate for two years just before I left the Chevy dealership.
Other training was on Mazda rotary engines and manual transmissions, and Mitsubishi Engines, because the GM dealers I worked for also sold those brands. I was the only mechanic in the dealership for the additional brands. I had customers who refused to take their car into the dealership for repairs, so I also fixed cars in my garage at home, nights and weekends, until I decided, (or my Wife did) that I was doing too much. During all the time I worked for dealerships I built racing engines for others at home. My best customer raced an aluminum big block C3 in SCCA competition. I didn't build HIS engine, but I made it go, solving a misfire problem and tuning the engine. He reported over 220 mph on the back straight at Daytona, might have been exaggerating, but he let me test drive it, 95 mph in first gear. I decided to not go any faster. I built differential gears for the sports car racers, I knew how to build for endurance.
Last edited by sjhanc; May 11, 2020 at 09:04 PM. Reason: spelling
The Best of Corvette for Corvette Enthusiasts
Anywho, do you know how to check a knock sensor with a multimeter? I would probably check both of them and ensure they're actually giving off a voltage with knock.
Yes, I know how to check them, and I will when I get back into it.
Last edited by sjhanc; May 12, 2020 at 10:10 PM.
Yes, I know how to check them, and I will when I get back into it.
Last edited by C5 Diag; May 11, 2020 at 10:54 PM.
Are you aware of the TSB GM issued concerning the knock sensor DTC's ??...don't know if you did the RTV thing on installation per the TSB...BTW, did you ever get this patch on your arm ??...what percentage of dealer Techs had it ???
Audible Spark Knock (Detonation), MIL Illuminated, DTC P0332 Set (Replace Rear Bank Knock Sensor and RTV Area Around Sensor) #02-06-04-023
Audible Spark Knock (Detonation), MIL Illuminated, DTC P0332 Set (Replace Rear Bank Knock Sensor and RTV Area Around Sensor)
1998-2002 Chevrolet Camaro, Corvette
1998-2002 Pontiac Firebird
with 5.7L Engine (VIN G -- RPO LS1)
1999-2002 Chevrolet and GMC C/K Pickup and Utility Models (Avalanche, Silverado, Sierra, Tahoe, Suburban, Yukon, Yukon XL, Yukon Denali, Yukon Denali XL)
with 4.8L, 5.3L or 6.0L Engine (VINs V, T, Z, N, U -- RPOs LR4, LM7, L59, LQ9, LQ4)
Condition
Some customers may comment on a mild to severe engine ping (commonly referred to as spark knock), usually worse during acceleration and/or an illuminated MIL. Upon investigation, the technician may find DTC P0332 set.
Cause
This condition may be the result of corrosion of the rear bank knock sensor due to water intrusion into the sensor cavity. This condition is more apparent on vehicles in which customers frequently wash the engine compartment.
Correction
Replace the rear bank knock sensor and build a dam (wall) around the sensor using RTV to divert water away from the sensor. Use the procedure and part number listed below.
Remove the intake manifold. Refer to the Intake Manifold Replacement procedure in the Engine Controls sub-section of the appropriate Service Manual.
Remove the wiring harness assembly from the knock sensor.
Remove the rear bank knock sensor.
Install the new rear bank knock sensor. Tighten
Tighten the knock sensor to 20 N·m(15 lb ft).
Install the wiring harness assembly to the knock sensor.
Apply a bead of RTV silicone sealant approximately 9 mm (3/8 in) wide and 6 mm (1/4 in) high along the outside edge of the ridge on the engine block valley cover around the rear bank knock sensor. DO NOT form a complete circle. Leave the rear section open as shown.
From the underside of the intake manifold, completely remove the rear intake manifold seal (foam material).
Install the intake manifold. Refer to the Intake Manifold Replacement procedure in the Engine Controls sub-section of the appropriate Service Manual.
Parts Information
Part Number
Description
Qty
10456603
Sensor, Knock
1
Parts are currently available from GMSPO.
Warranty Information
For vehicles repaired under warranty, use:
Labor Operation
Description
Labor Time
J4437
(F-Car)
Sensor, Knock -- Replace
1.7 hrs
Add
(1998-1999 F-Car Only)
To Remove EGR
0.2 hr
J4437
(Y-Car)
Sensor, Knock -- Replace
1.6 hrs
J4437
(C/K-Truck)
Sensor, Knock -- Replace
1.5 hrs
Add
(C/K Truck Only)
With Three Piece Engine Covers
0.2 hr
Add
(All)
Diagnosis Time
0.3 hr
Add
(All)
To RTV Area Around Sensor and Remove Intake Manifold Seal
0.2 hr
Good luck
