Wave form

01Z06.....Could someone show me what a cmp sensor wave form looks like on a Tech 2? Mine looks like stair steps instead of a square wave.

Aug 19, 2020 | 08:33 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,434

Likes: 3,981

From: Cape Coral, Florida

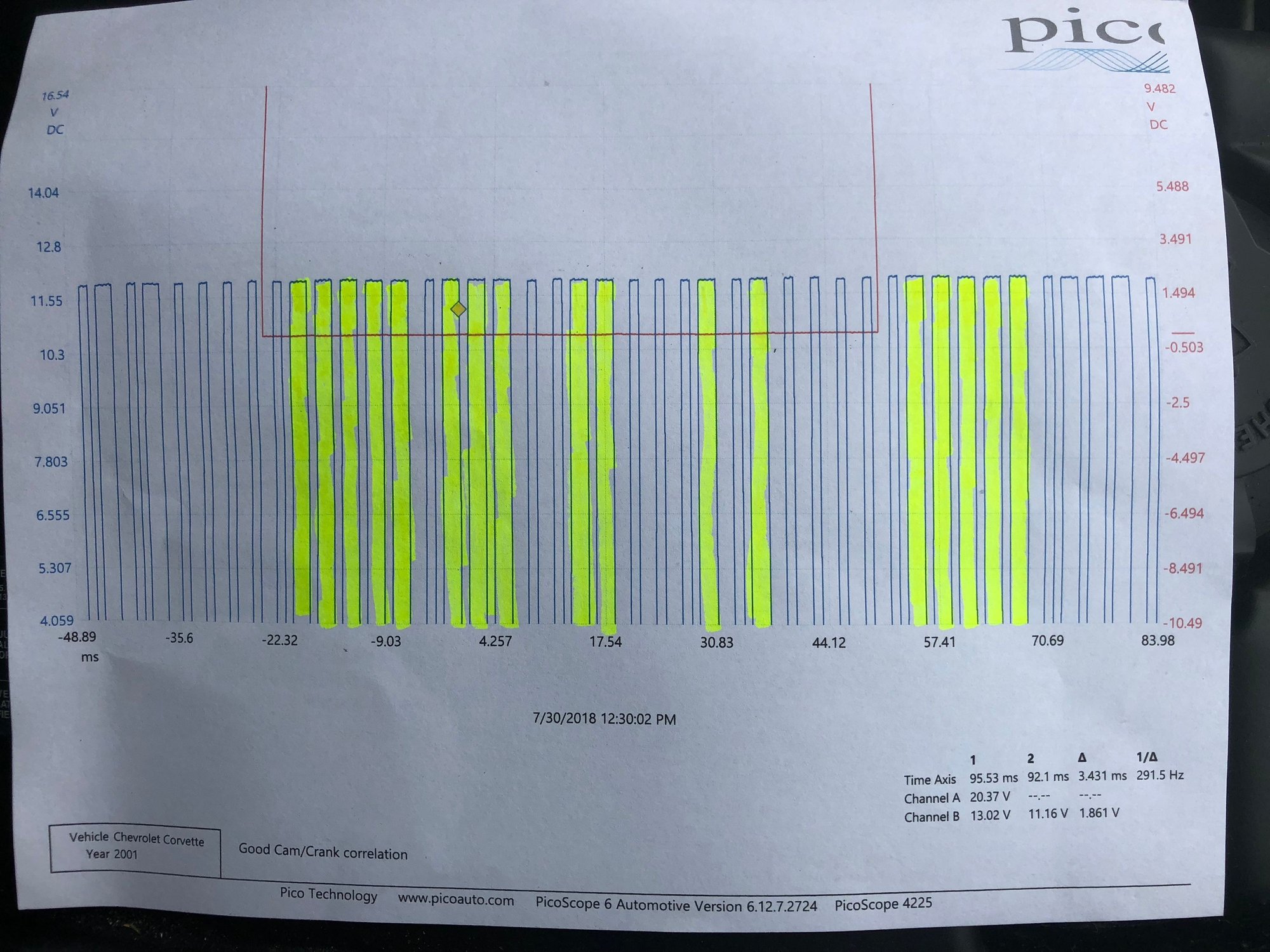

A Tech 2 does NOT show a CMP waveform...you need a DSO (digital storage oscilloscope)...is this what you’re using ???....this is a cam-crank correlation waveform on my scope on my ‘01...bottom blue waveform is crank and top red is CMP.

Last edited by C5 Diag; Aug 19, 2020 at 08:39 PM.

Aug 20, 2020 | 09:16 PM

Ronnie_W

Thread Starter

Pro

Joined: Jan 2003

Posts: 638

Likes: 23

From: St. Johns Fl

[QUOTE=C5 Diag;1602039703]A Tech 2 does NOT show a CMP waveform...you need a DSO (digital storage oscilloscope)...is this what you’re using ???...

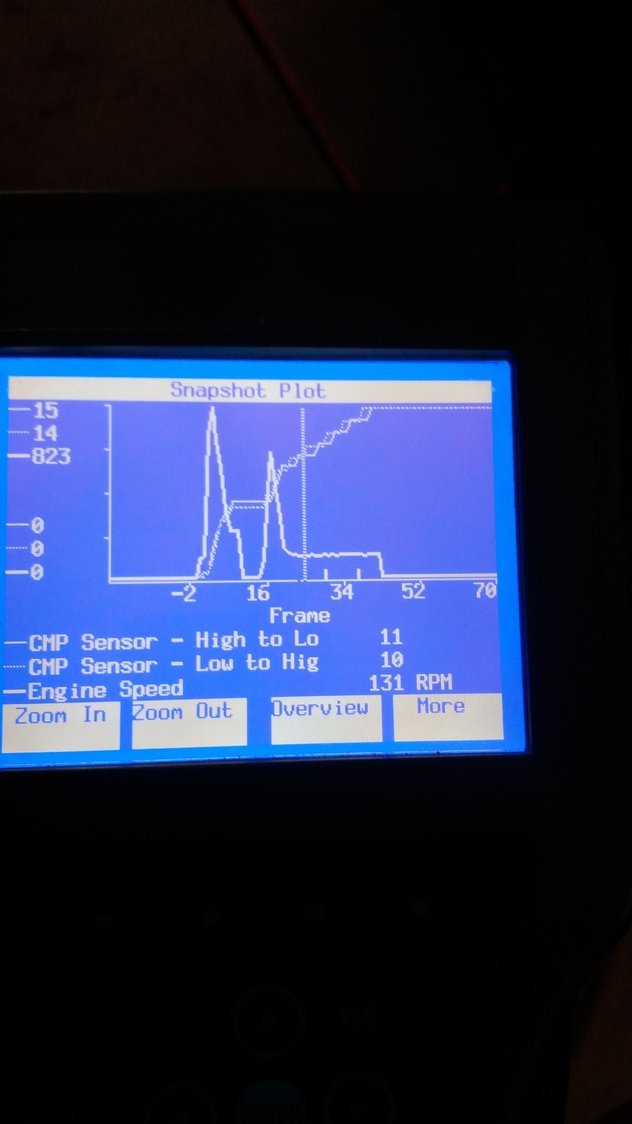

This is my attempt to gragh the cmp and rpm with the TECH 2. Thanks for the info and the graph.

Aug 20, 2020 | 09:24 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,434

Likes: 3,981

From: Cape Coral, Florida

You will only see a true CMP waveform
using a DSO...you want to be looking at a voltage over time waveform...this is not the true waveform one would use to diagnose a faulty sensor.
