Still troubleshooting this fire issue that occured on the door socket. I can definately use some help here...

On the door correctors in the accordion how do I de-pin them and replace them? I got the plate down so now I can evaluate any damage. Before I was stuck working inside the door panel only. Now that the wires are in the interior I want to remove the pins and slide heat shrink over all of them to solve the issue.

Another problem that I noticed once I got the connector inside the interior is one of the wires going into the pins seems to have severed as a result of the fire so I need to depin it and fix it with a new splice. By the way that plate came off easily, thank you for the help guys.

How do I get that out of the connector to add a new splice to the severed pin? What tool do I need to remove this. I've searched the internet for this type of plug being explained with no luck, so I am at a standstill.

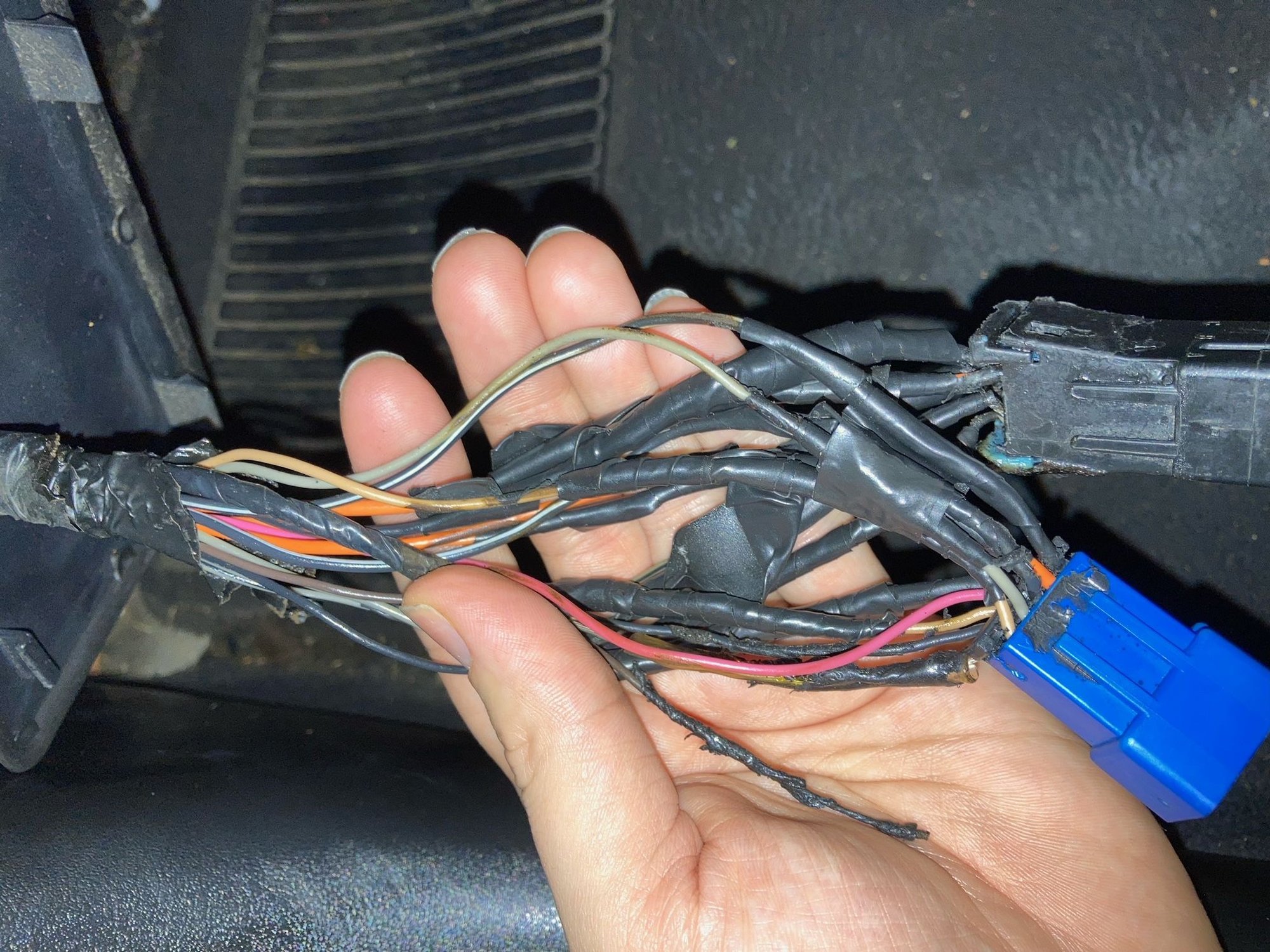

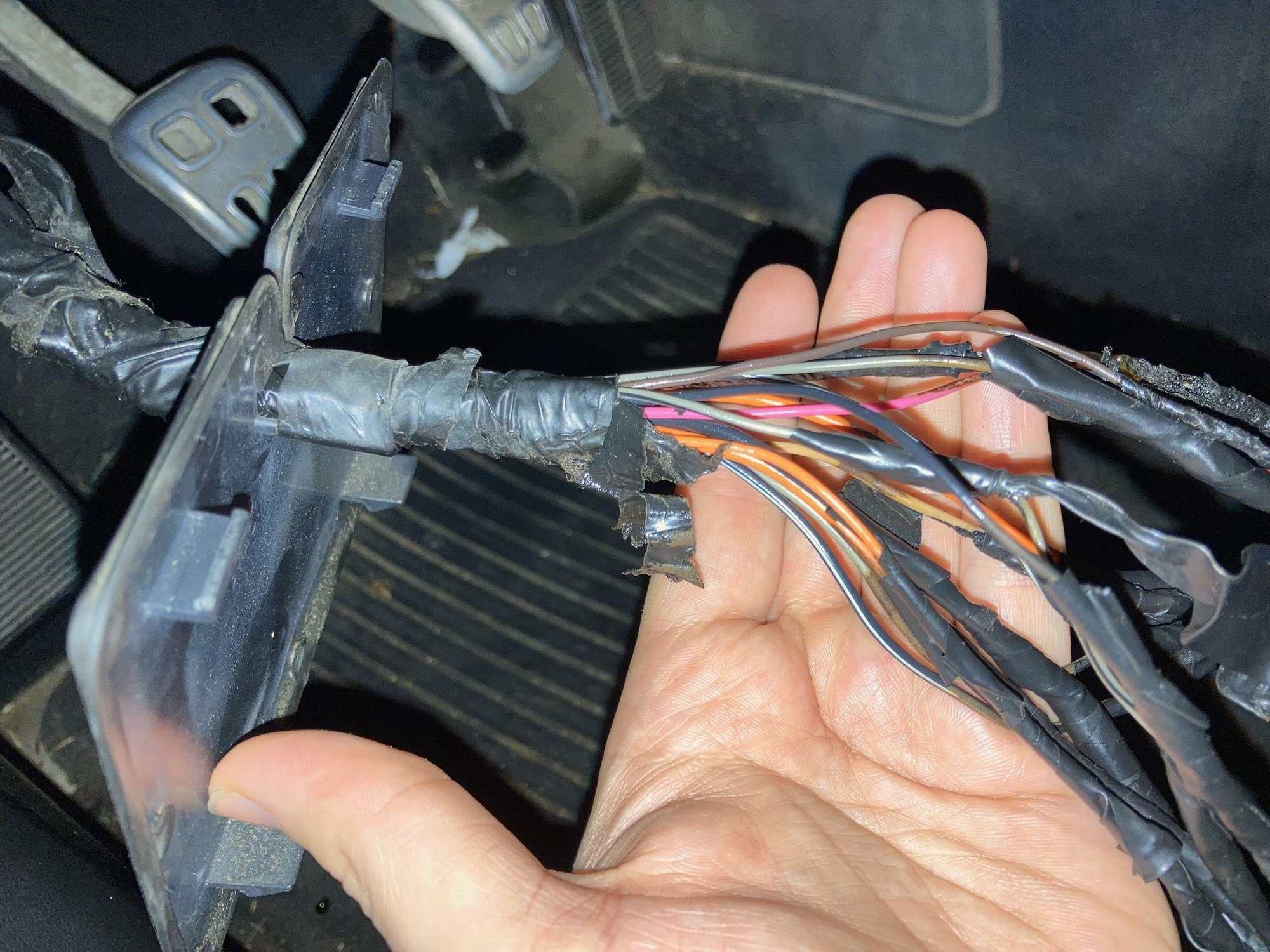

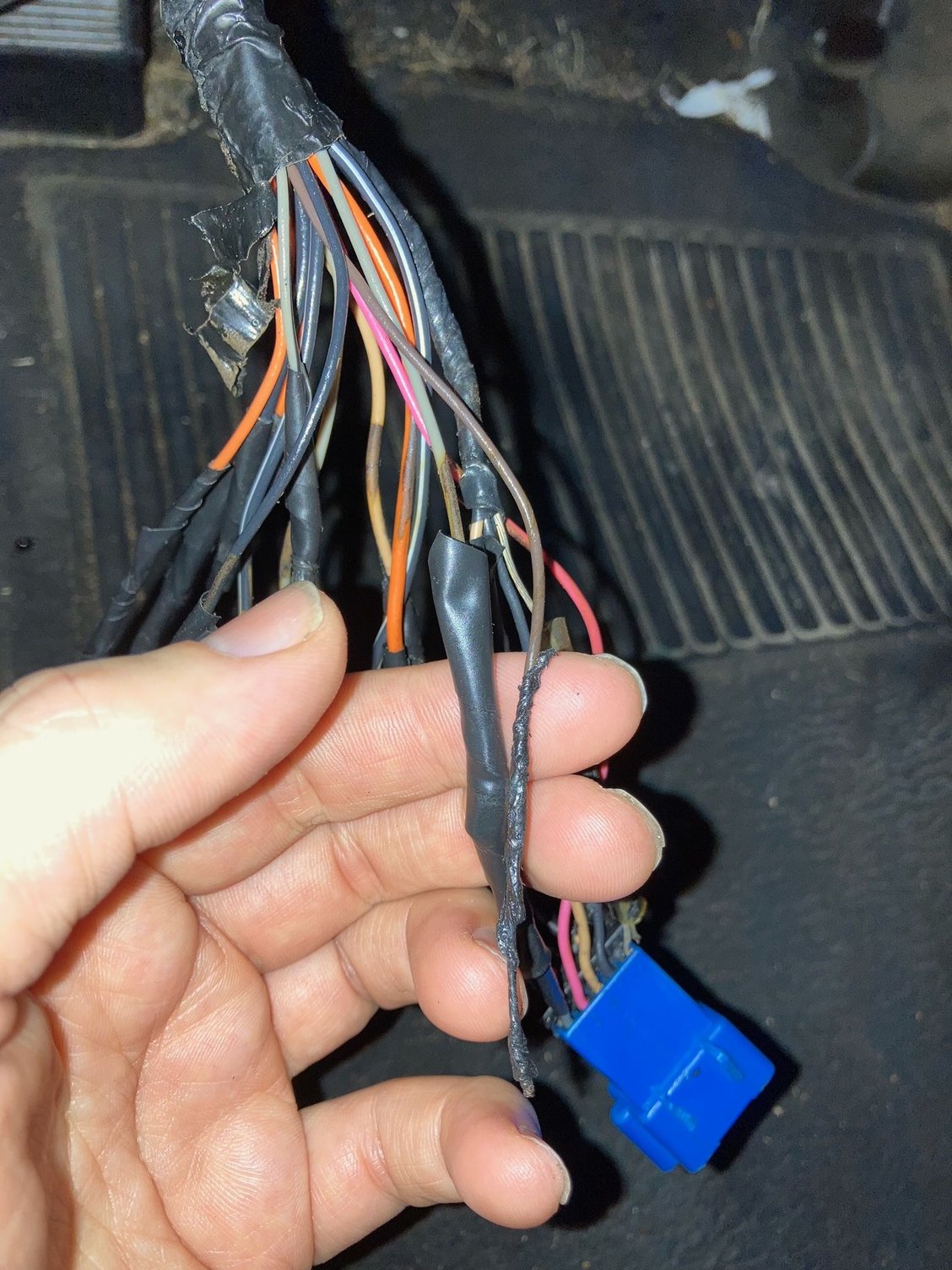

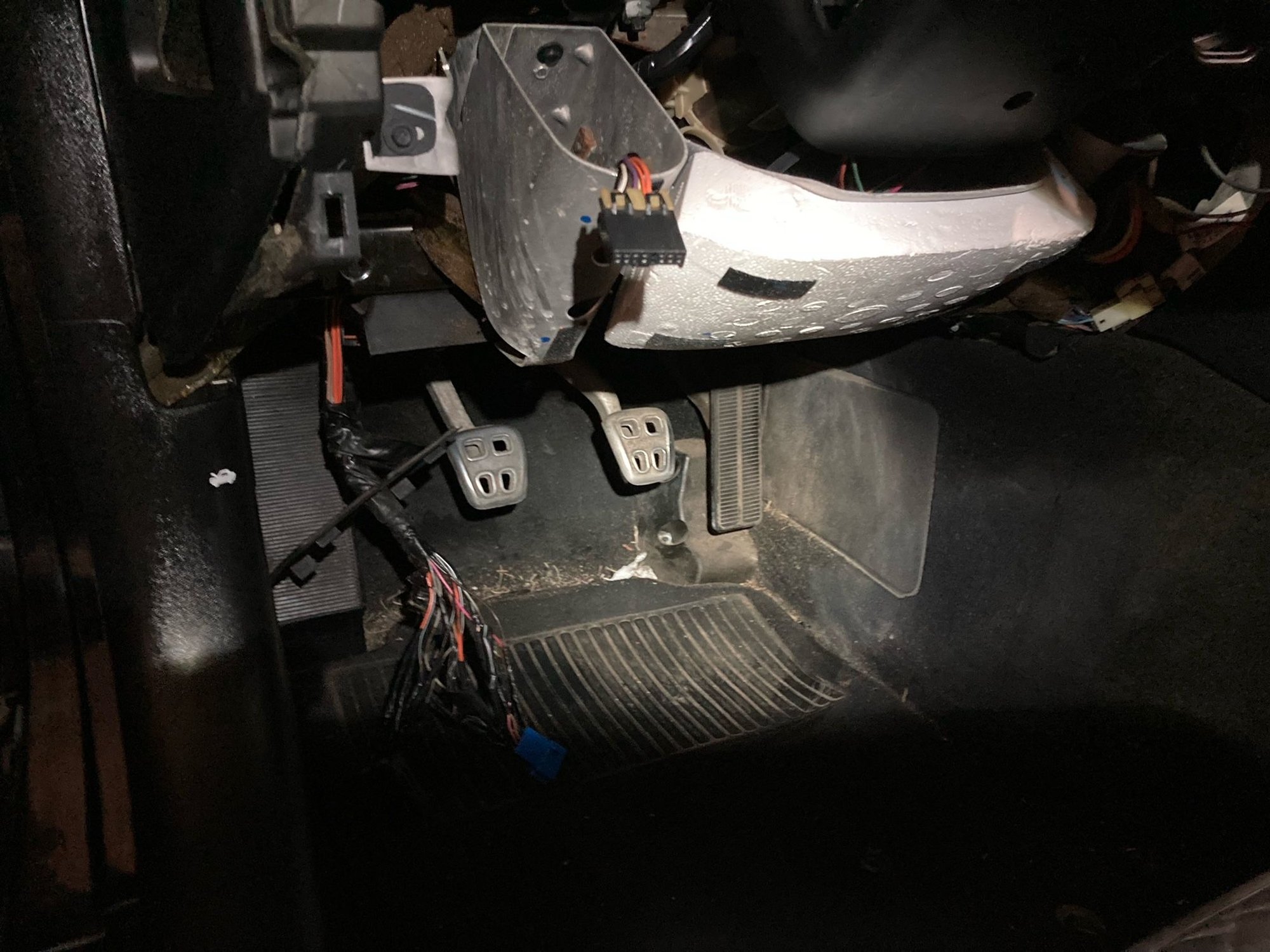

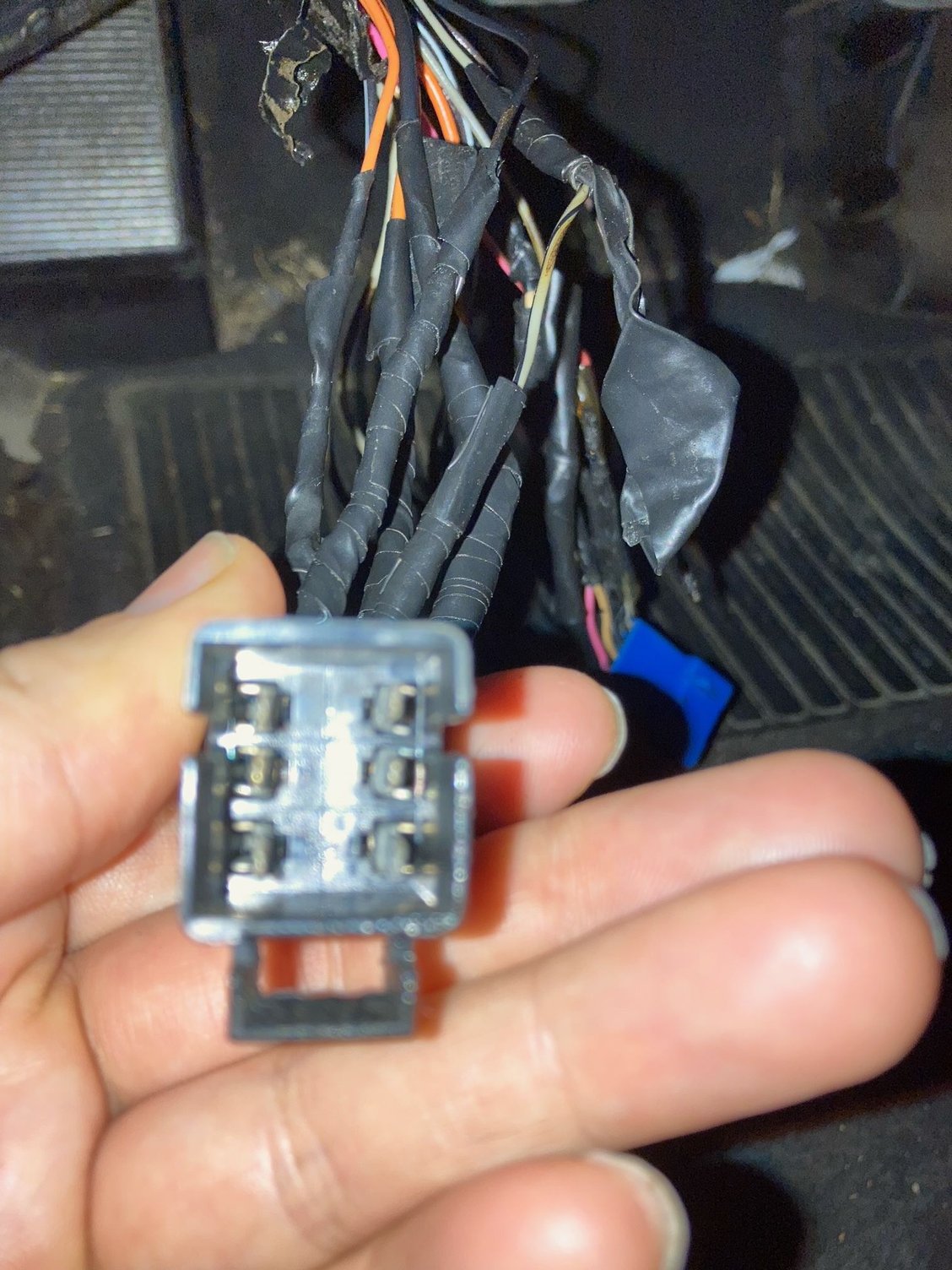

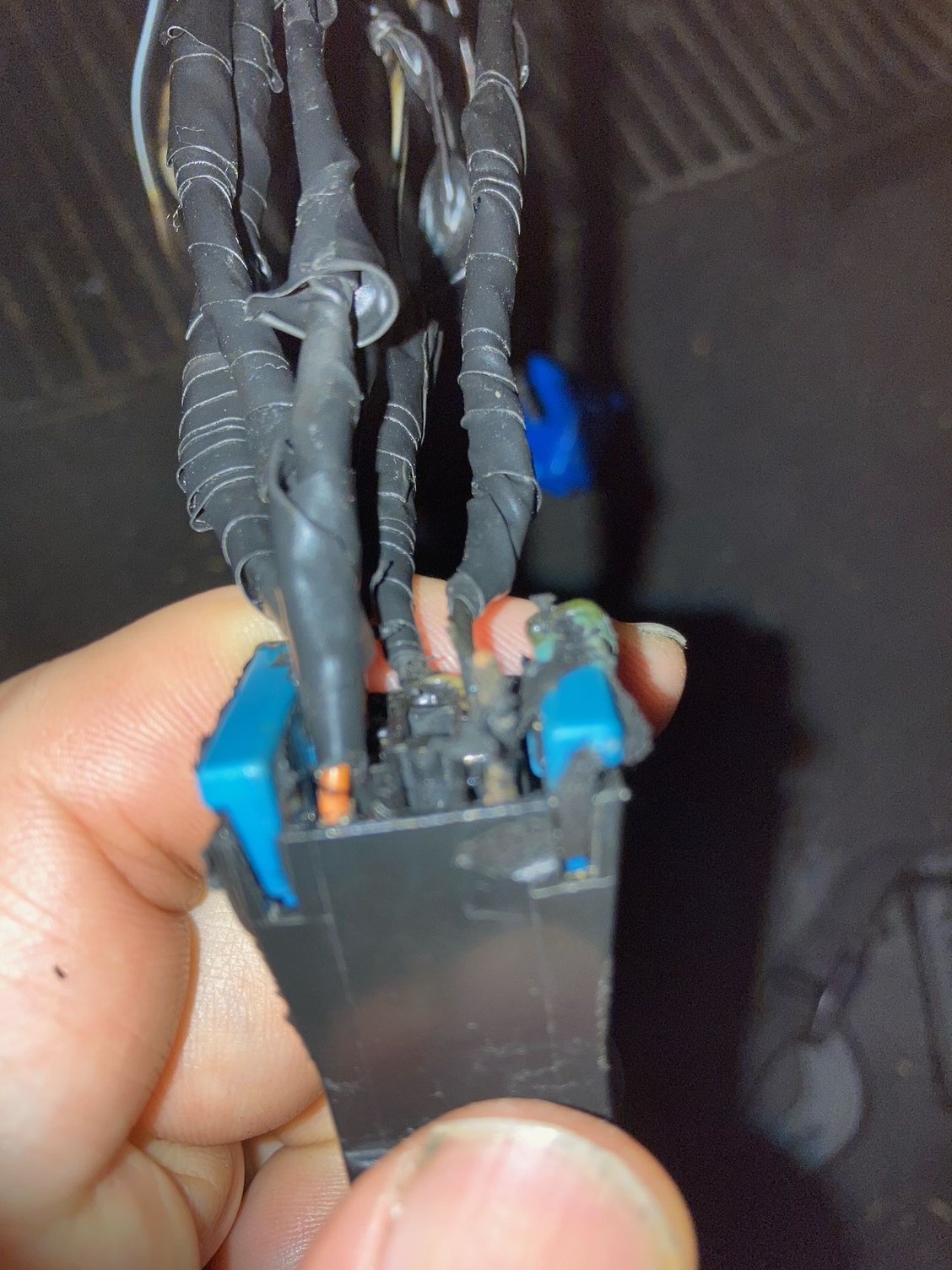

Here is the new pics with more of the wire exposed inside the interior. The fire seems to have done very minimal damage overall. It could have been so much worse.

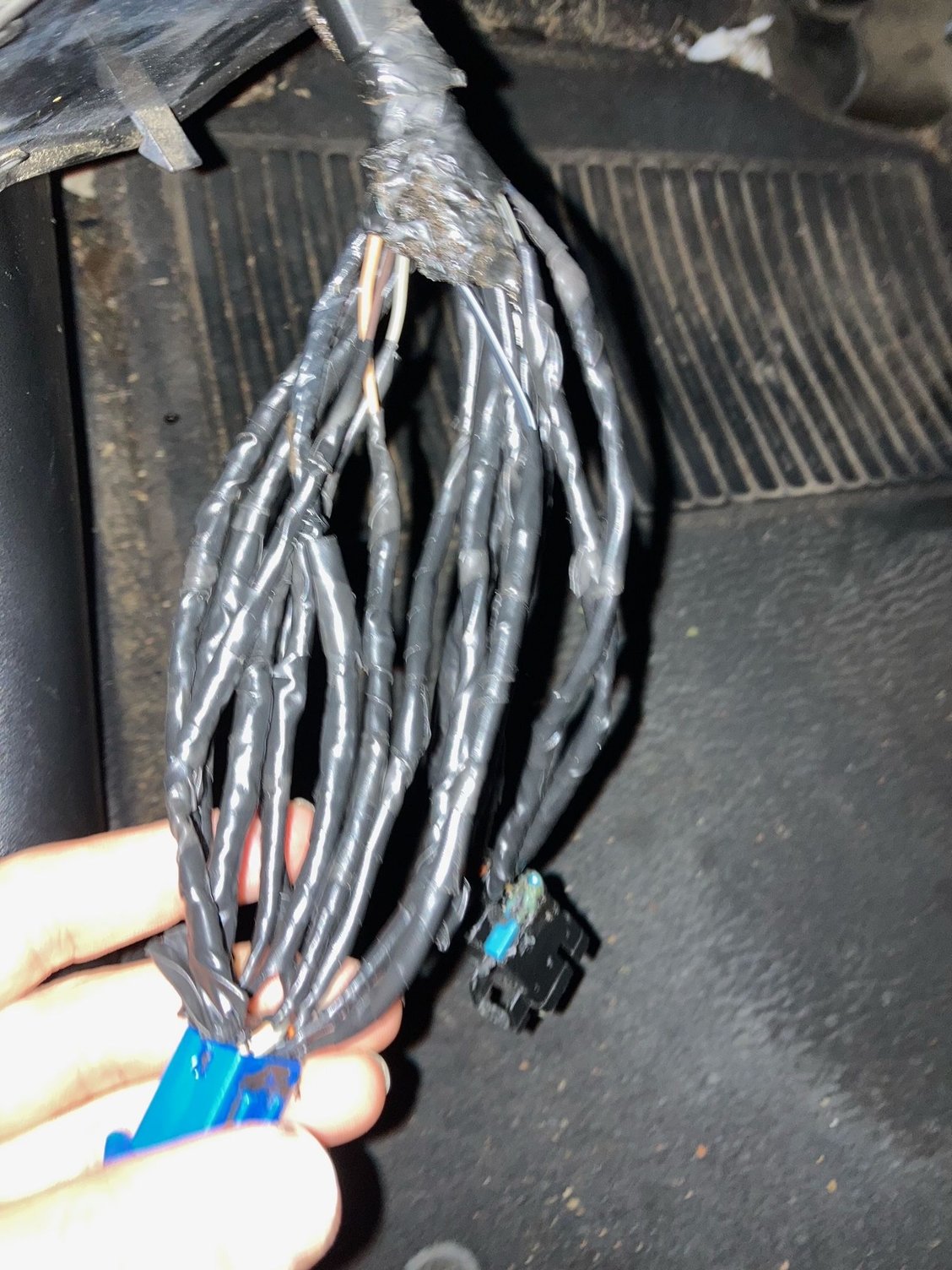

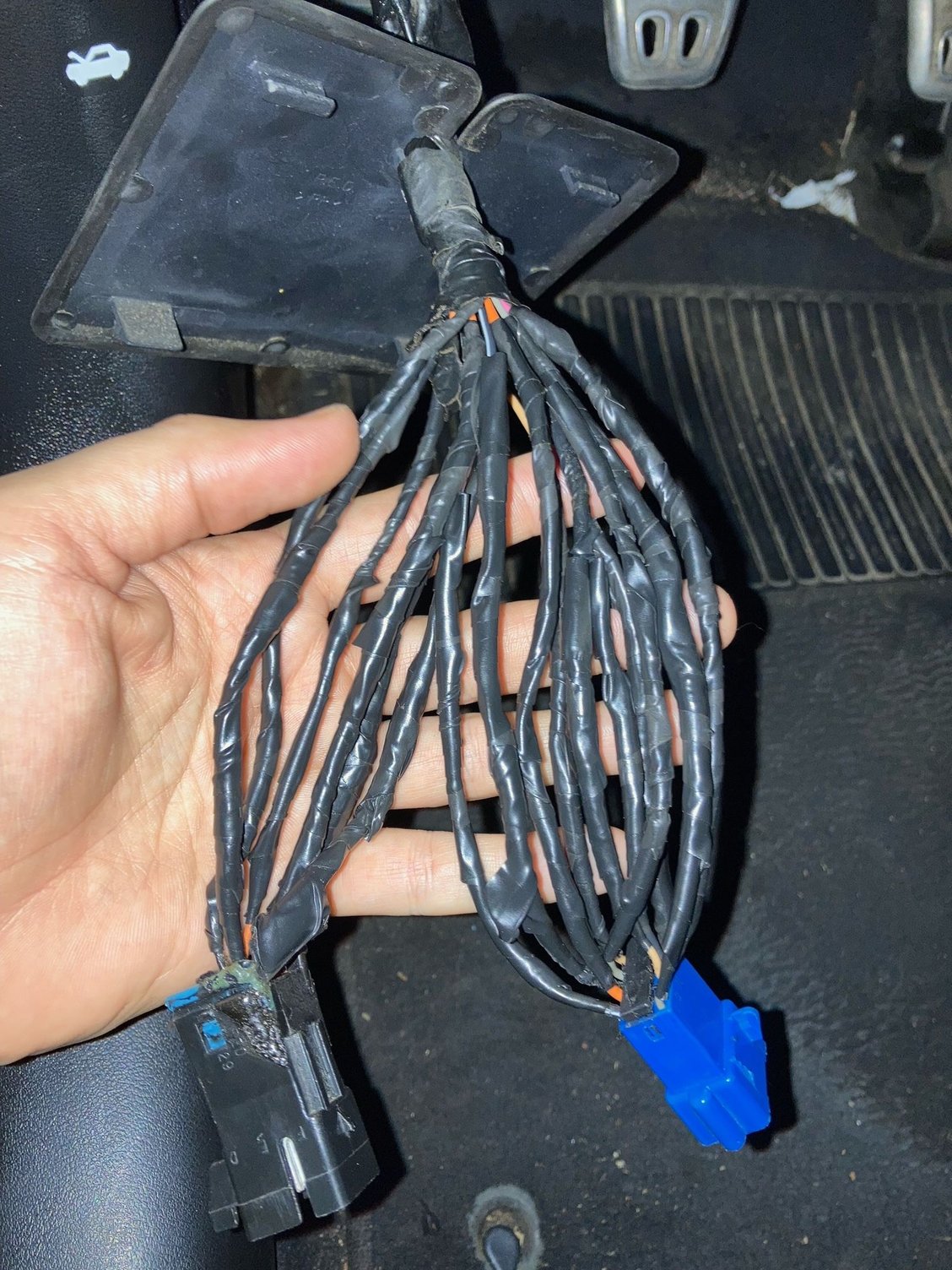

This is after I removed some of the electrical tape to put heat shrink on it this time around. I still got alot to go before its finished.

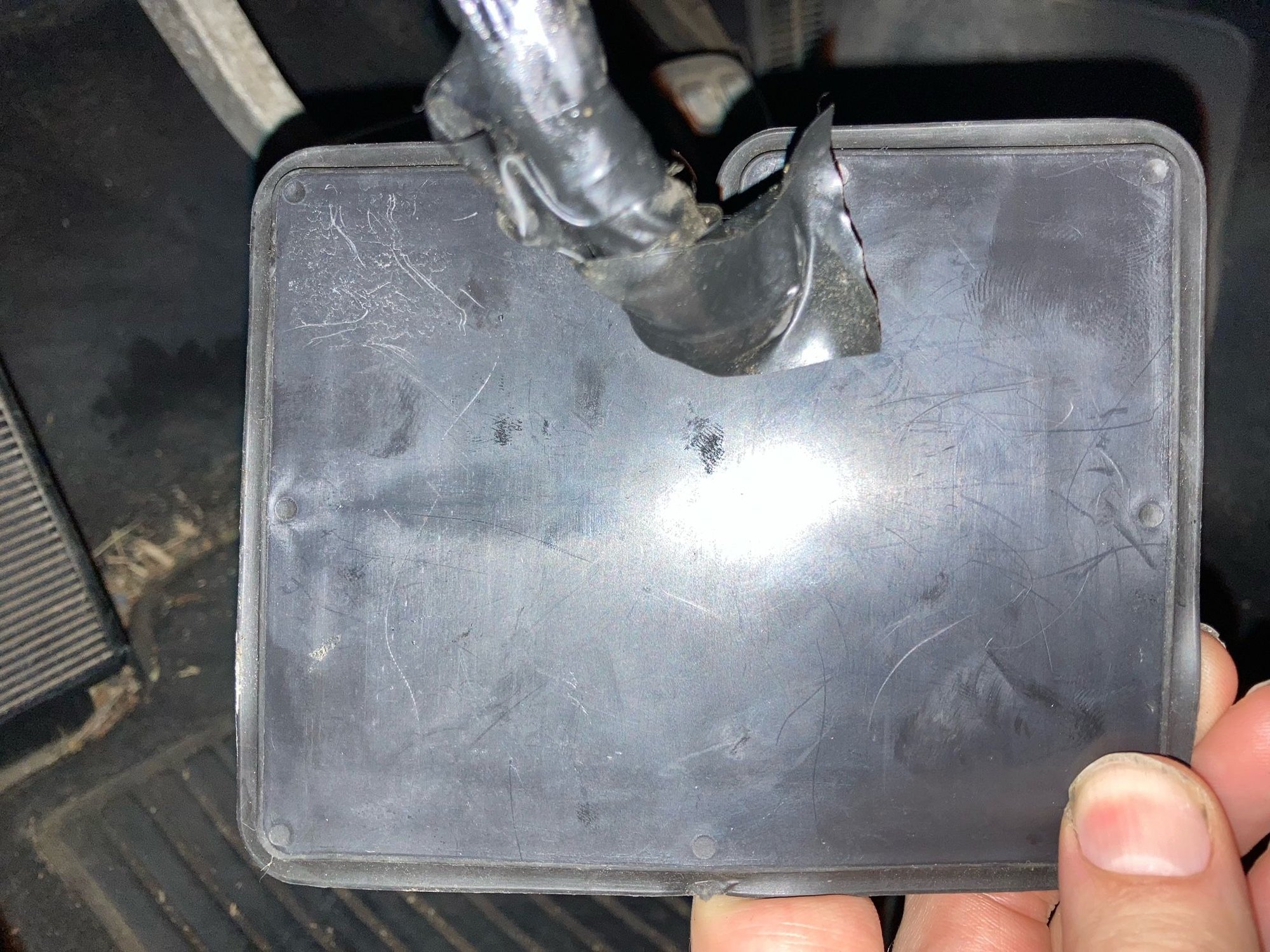

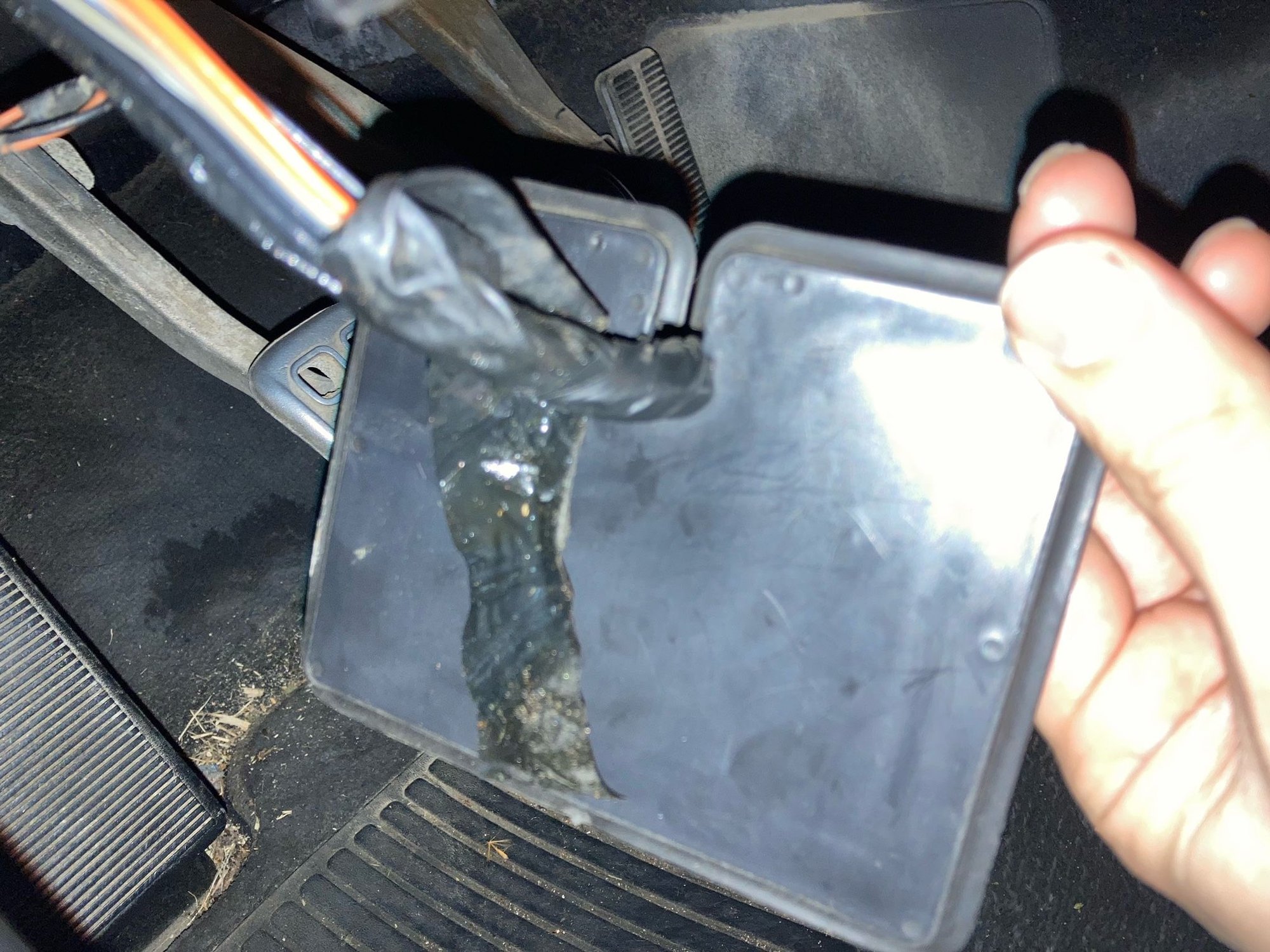

It doesn't seem like the fire reached the interior plate, otherwise there would have been more damage on the plate and the wires going inside.

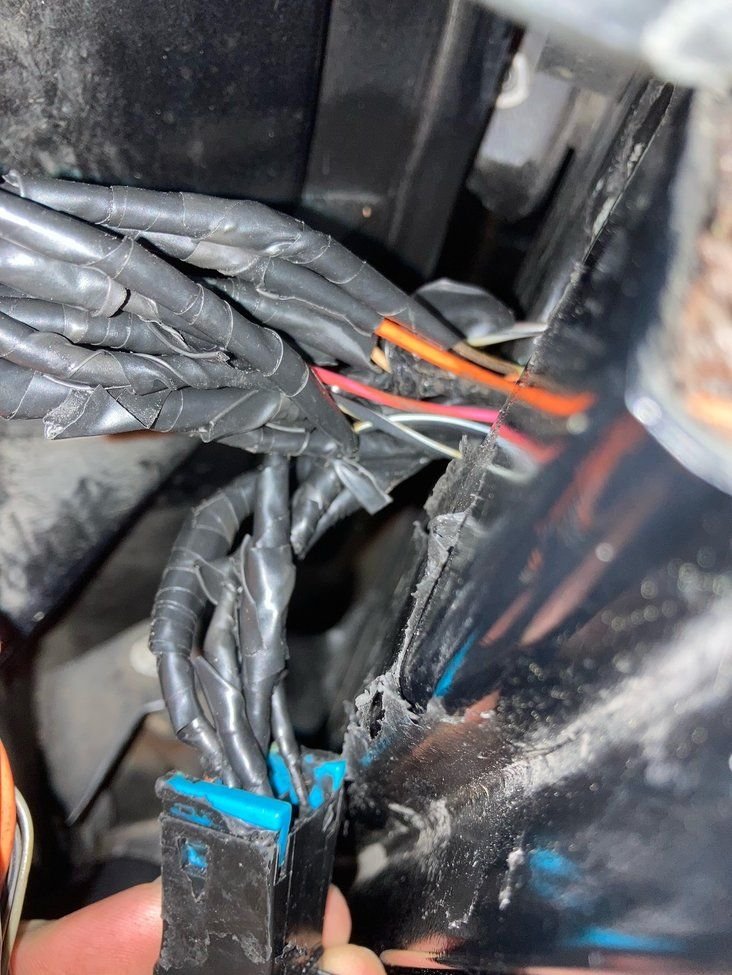

I am in the process of removing all of the electrical tape all over again to put heat shrink over all of the wires one final time.

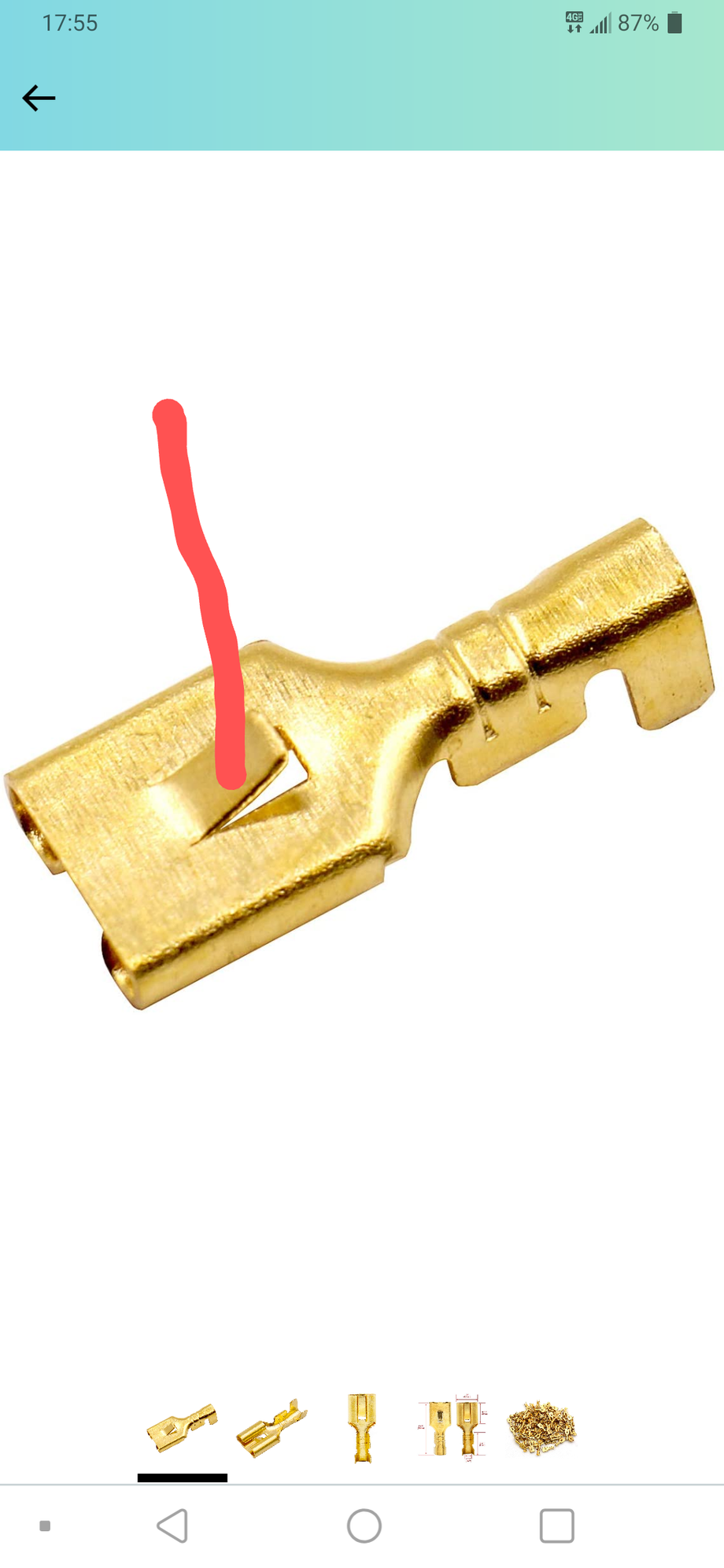

You need a special tool (or a paperclip) to fold down the locking tab on the terminal. Here is a generic picture of a tab on a terminal.

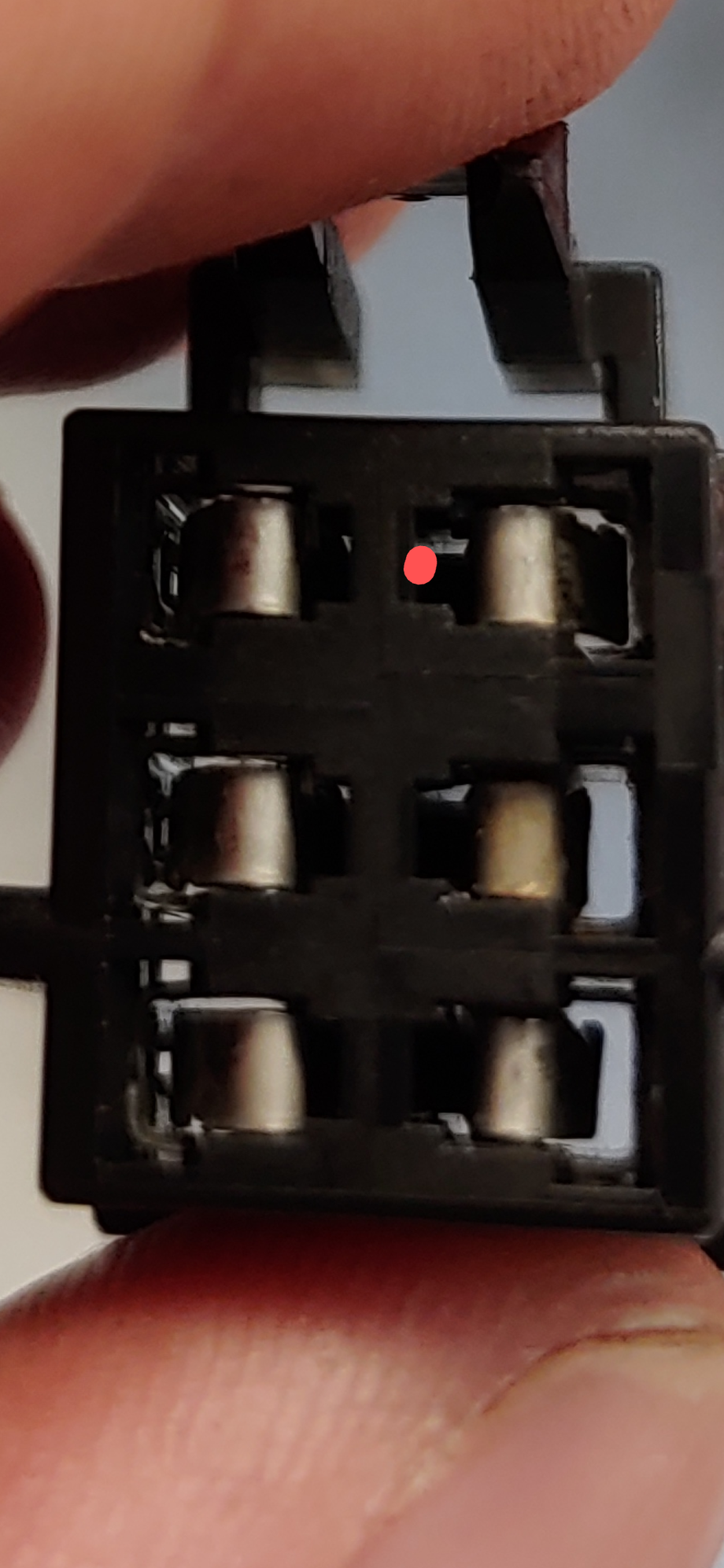

Insert the tool into these holes. It will fold the tab down.





Gently pull the wires out.



To replace the terminal you're going to need a special crimping tool.




The new terminals just push in and lock into place.

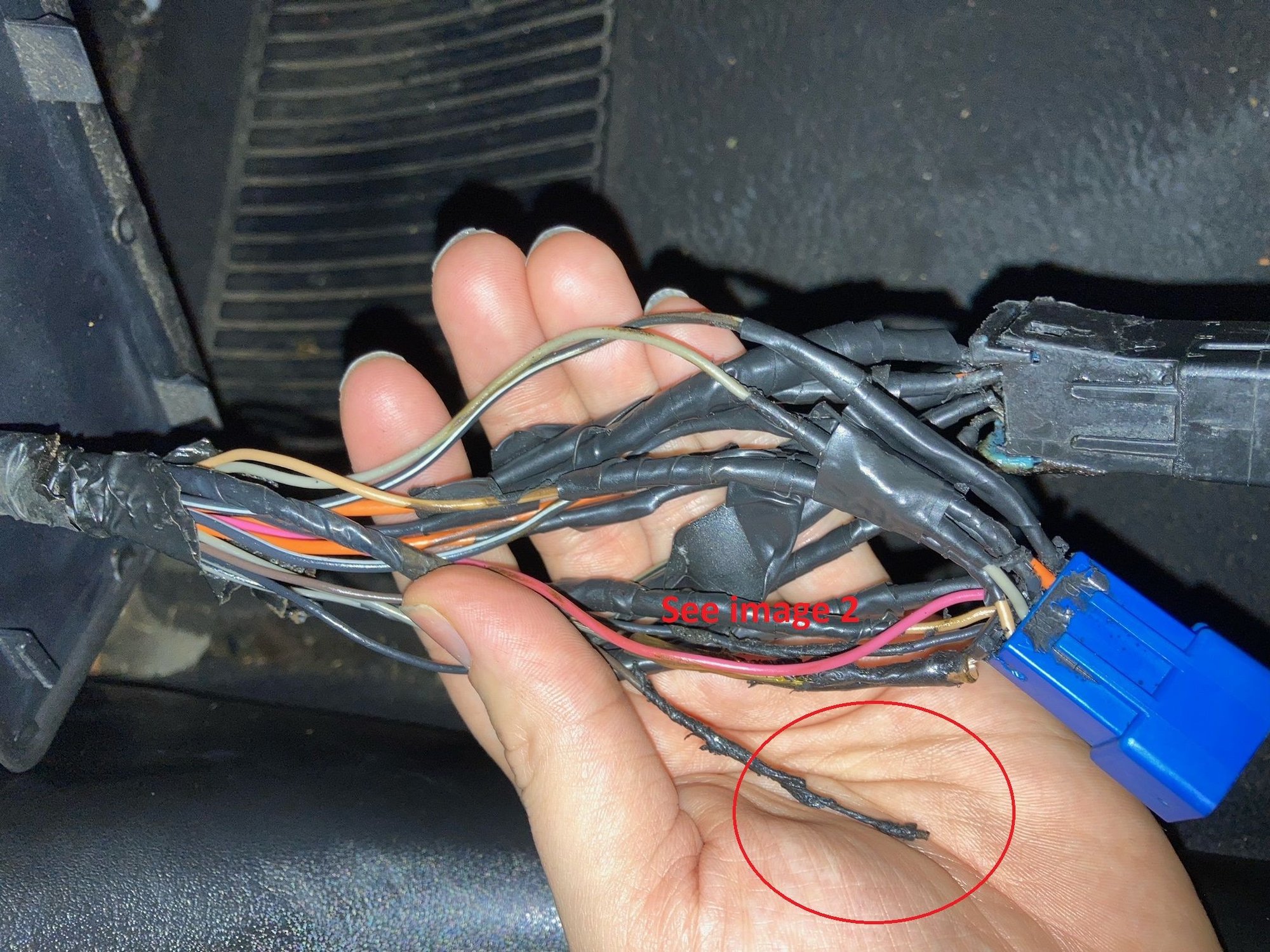

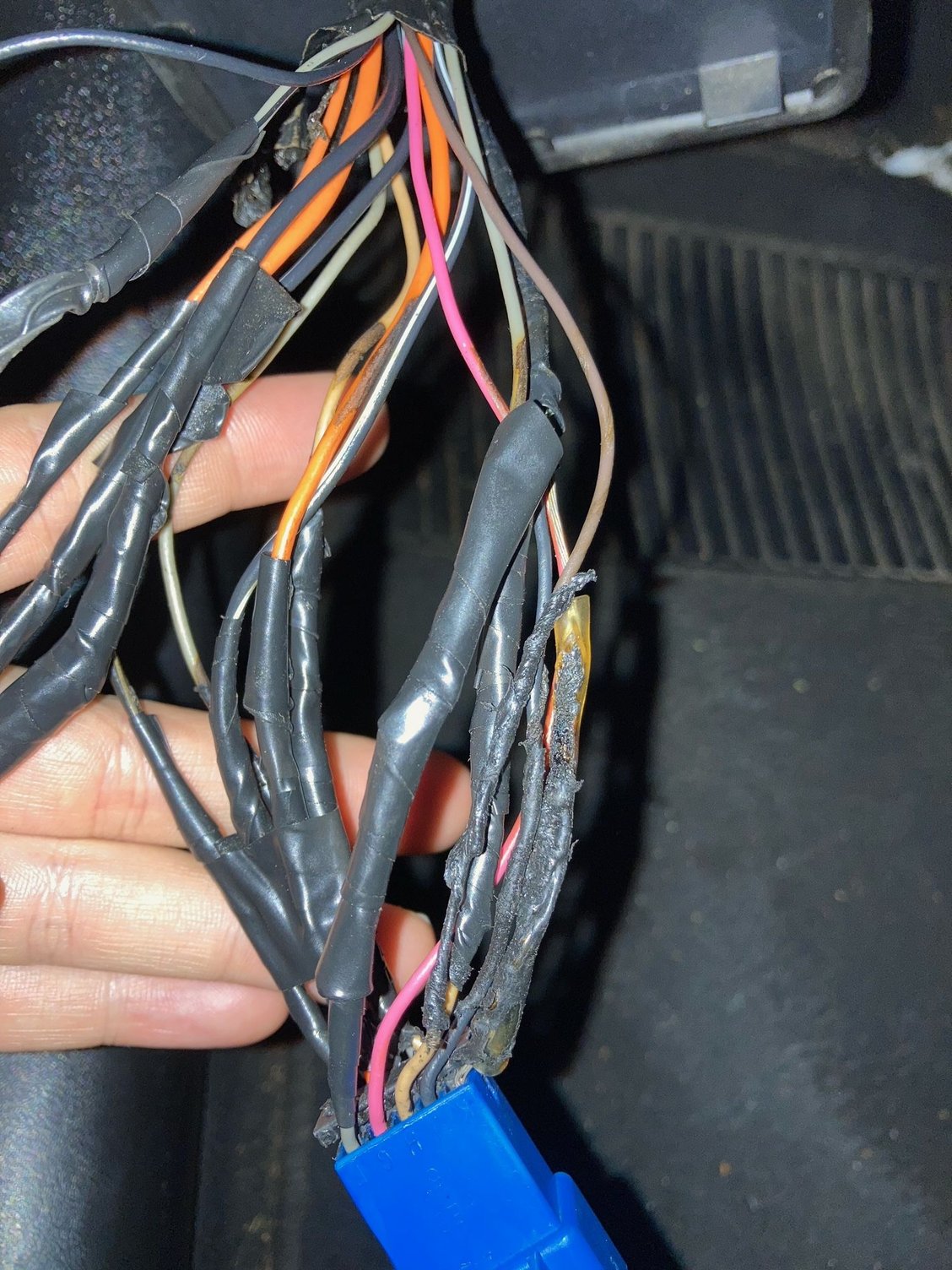

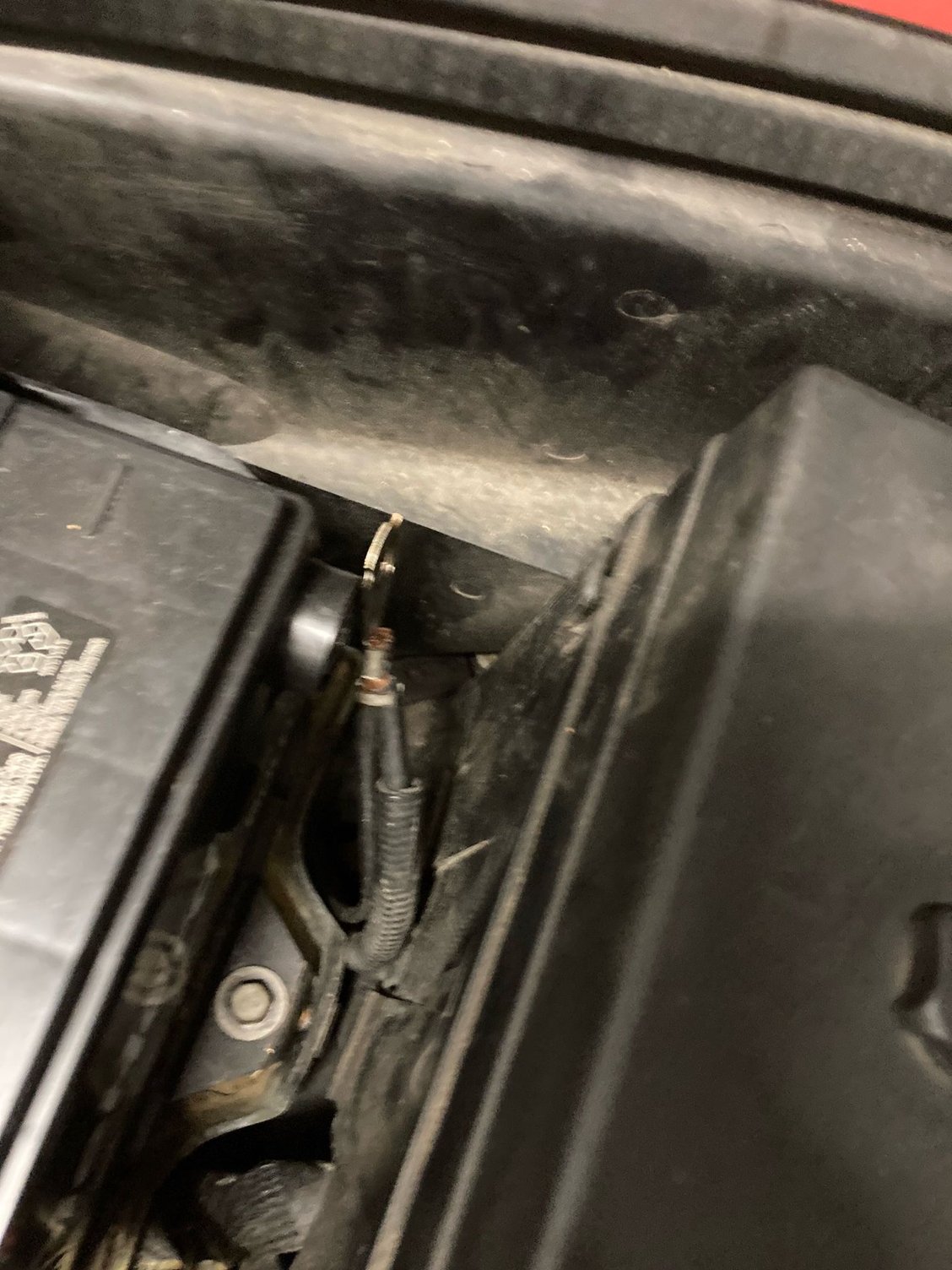

Based upon what I can see the cutoff point for the fire appears right here (see first image) .

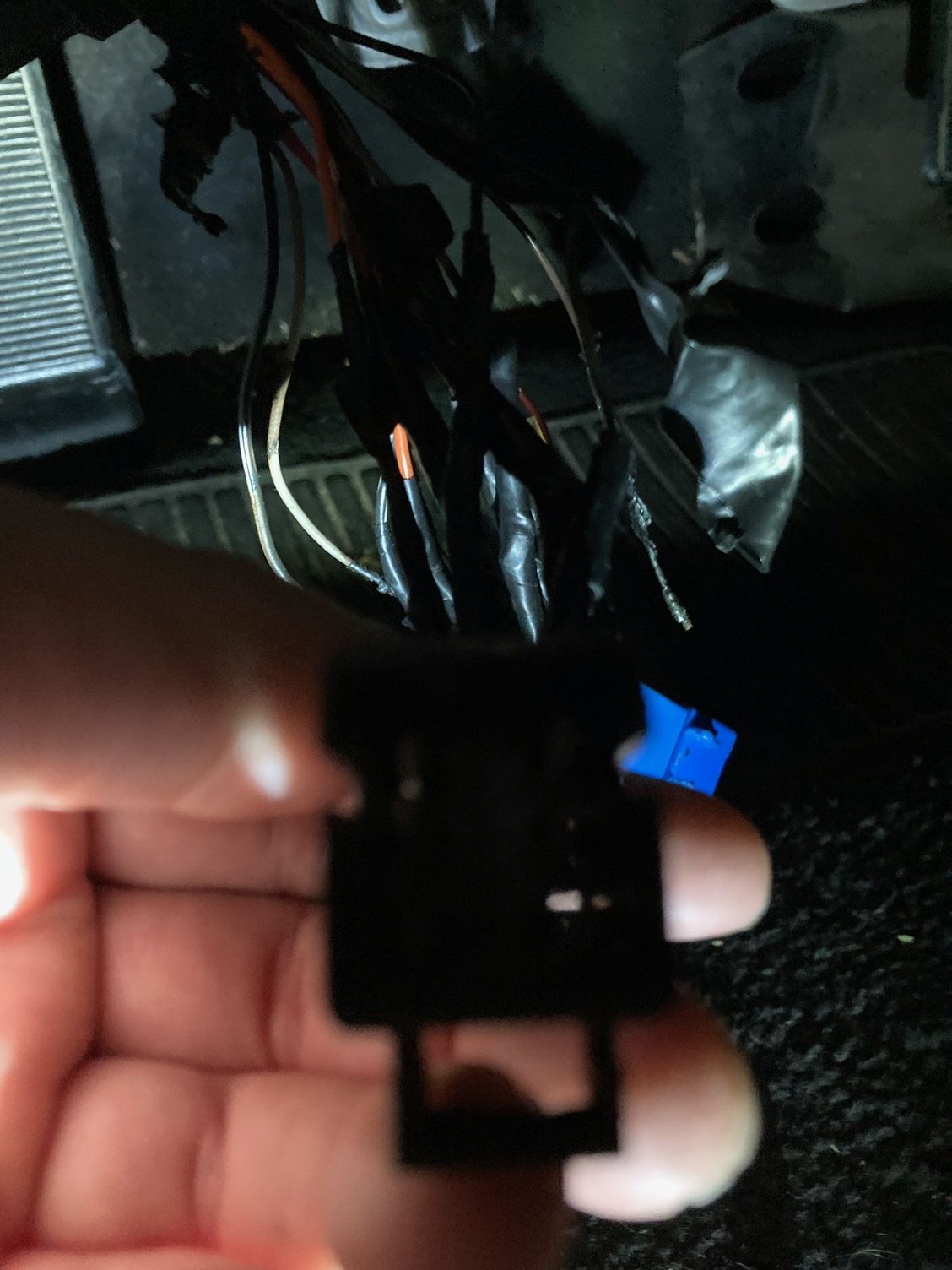

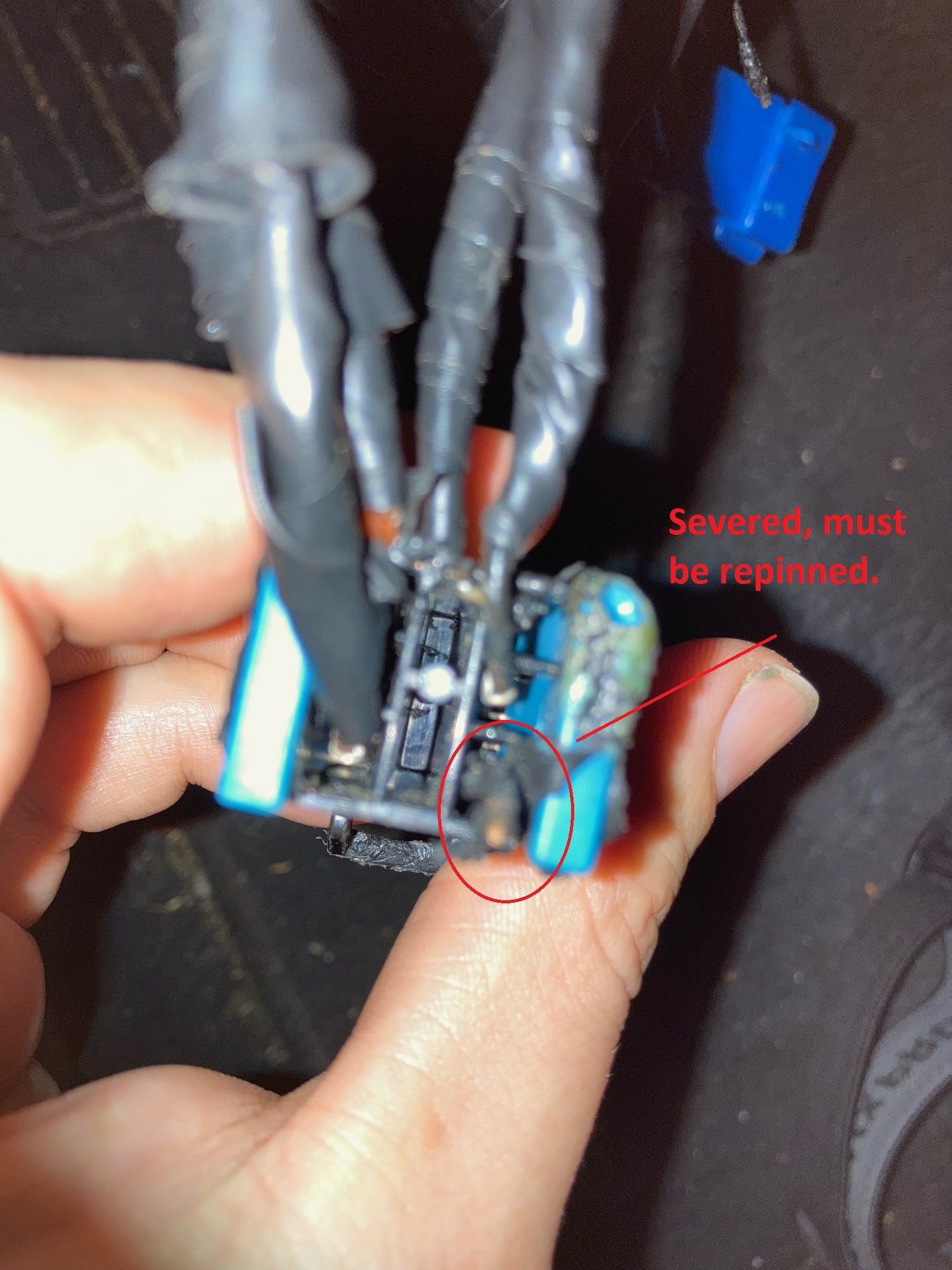

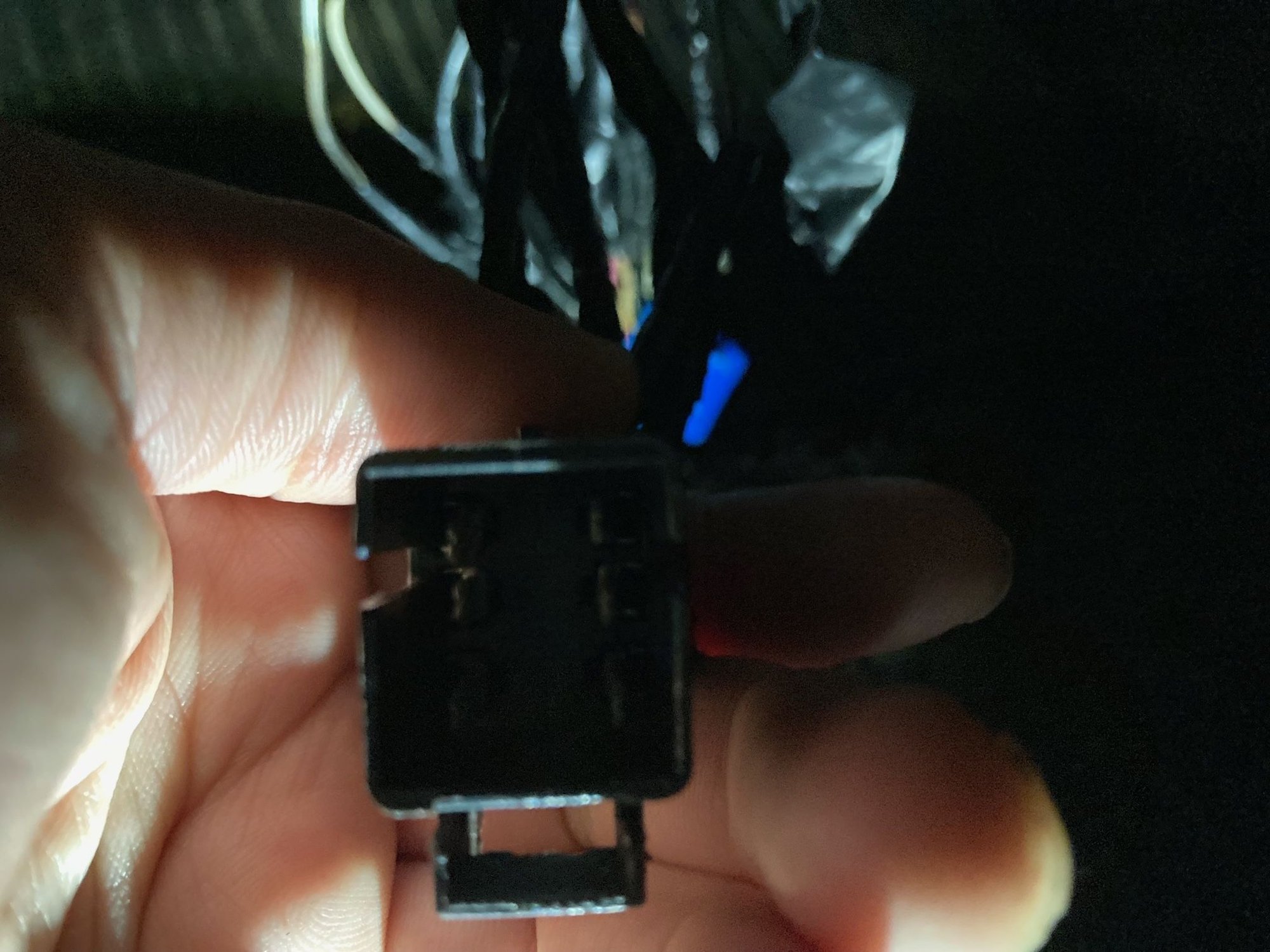

The next image is the wire that severed its brown on the black connector.

What is that tool called to release the terminal pins? I have an auto crimper I will use.
I went to autozone earlier and asked for such a tool. Almost everyone was baffled that such a tool exists. They had no idea what to even look for.




Is it possible to buy new blue and black connectors or are they specificly part of the interior wiring harness?



New connectors and terminals are available. I'll take a look at the service manual tonight, (so I don't have to guess) and I should be able to find what style, series and part number they are.

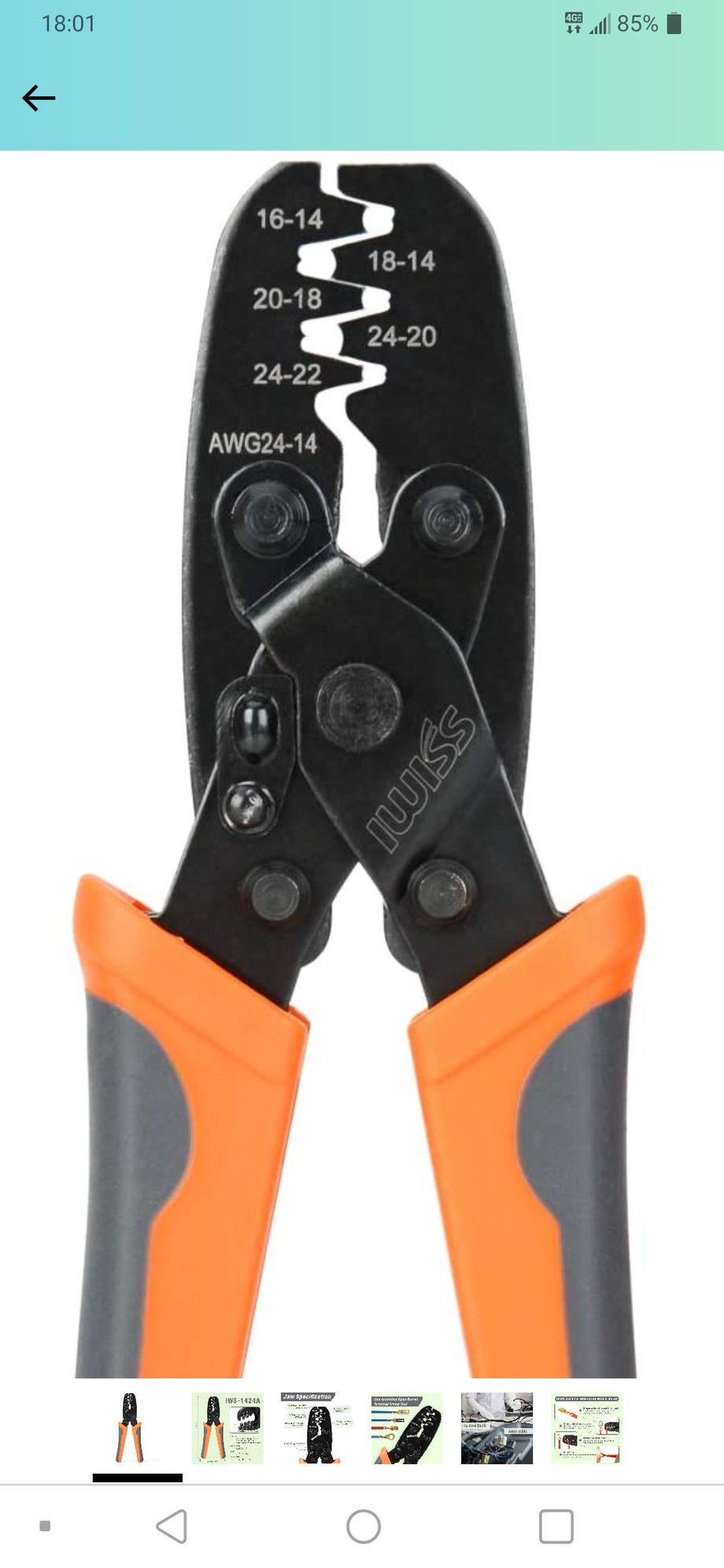

If you have to do this much at all these would likely be much easier than a paperclip...

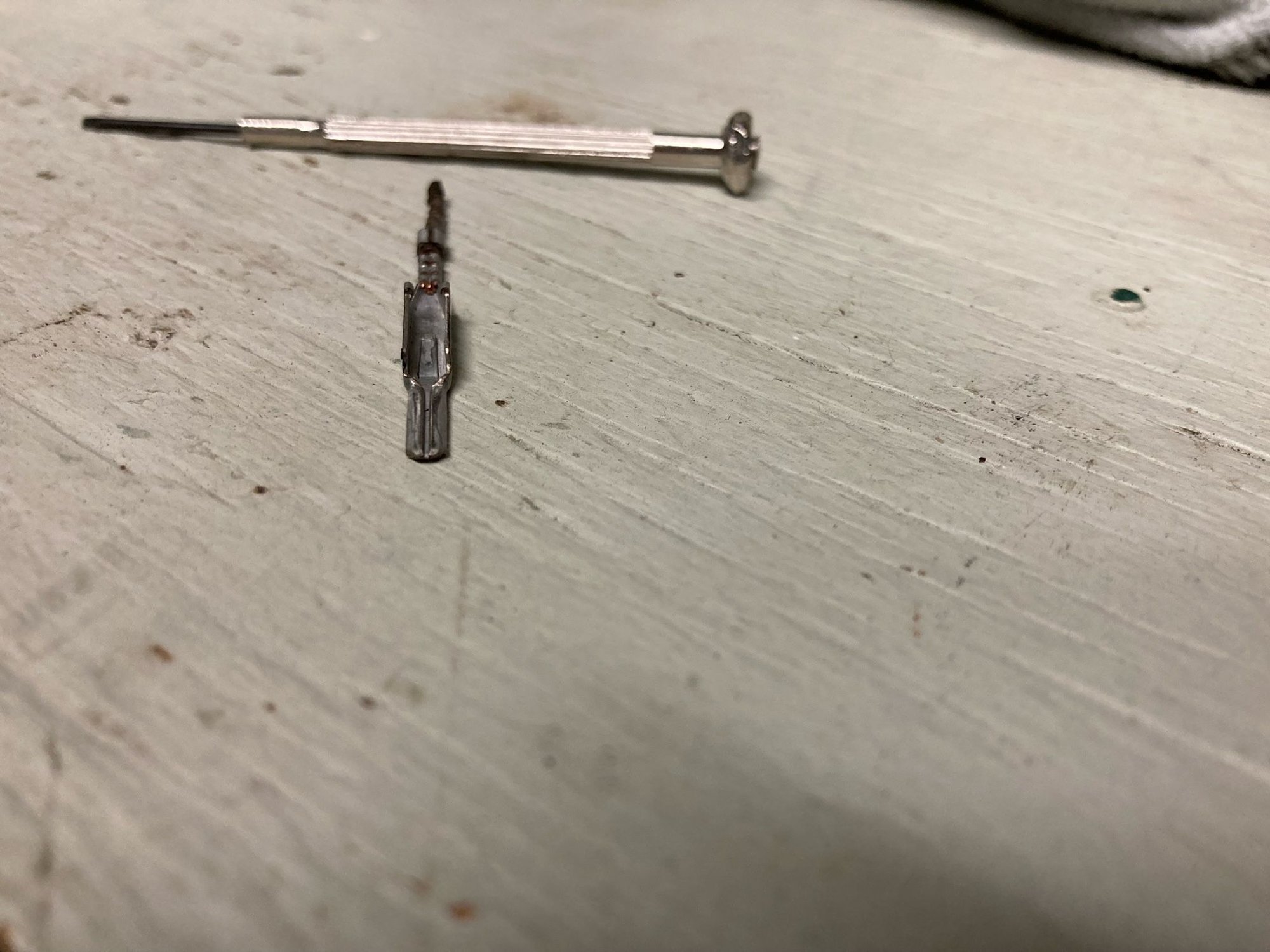

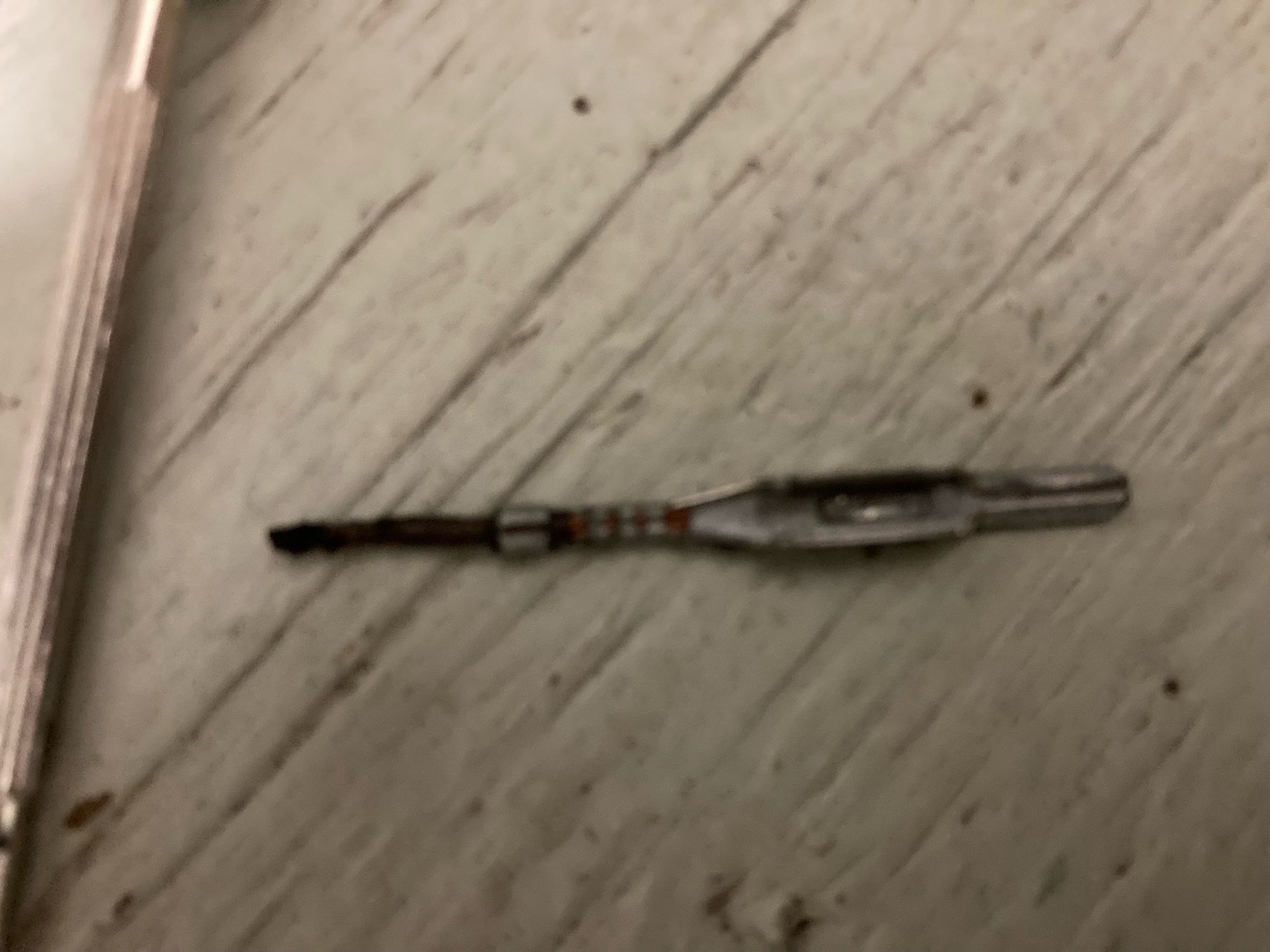

Okay so here is where I am at right now... This is what the door pin looks like. Is there a way to re-use this and re-crimp it or do I need to goto a store to get another one.

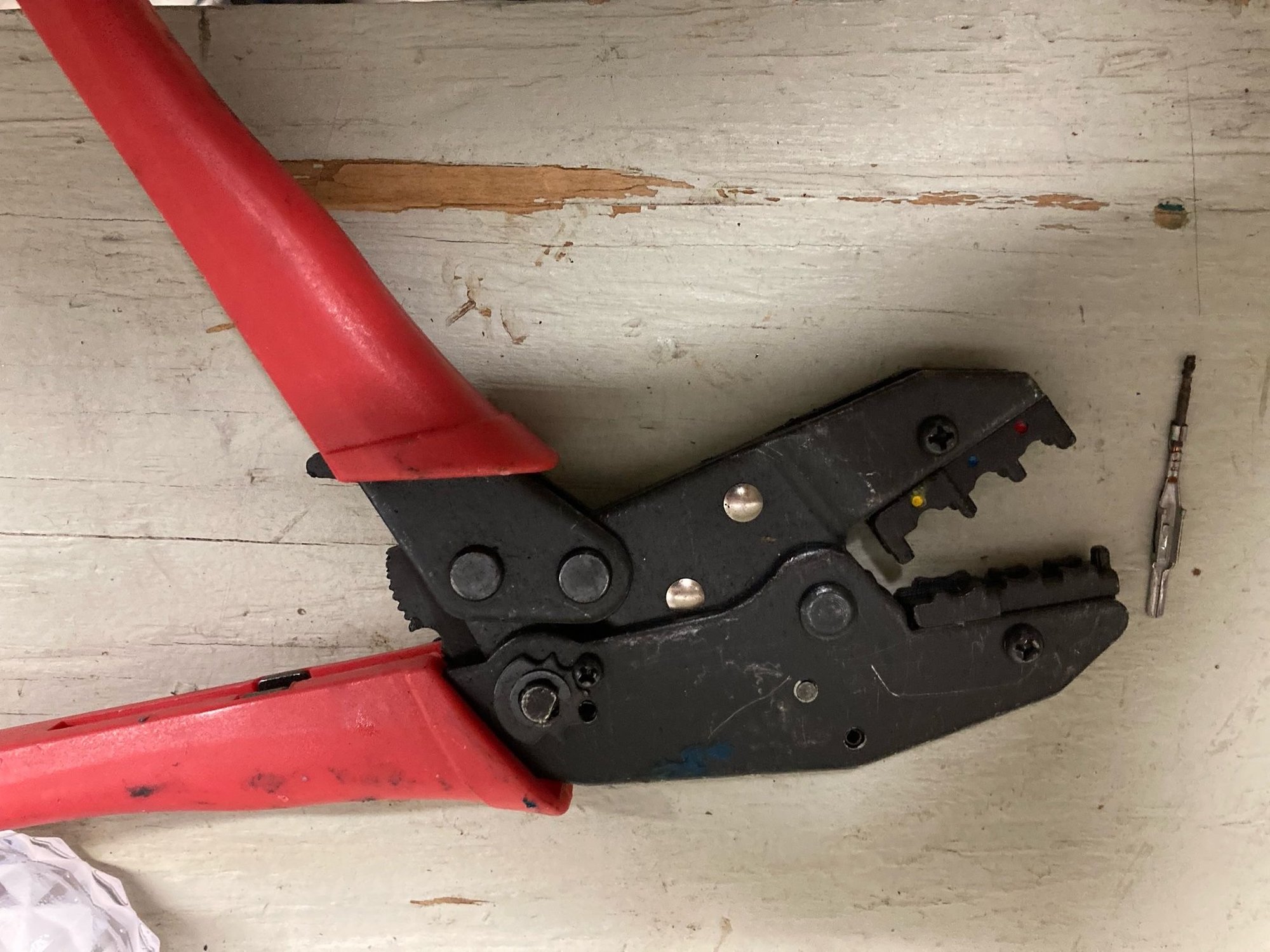

Also which color would this crimp auto crimp on. I included a picture of my autocrimper.

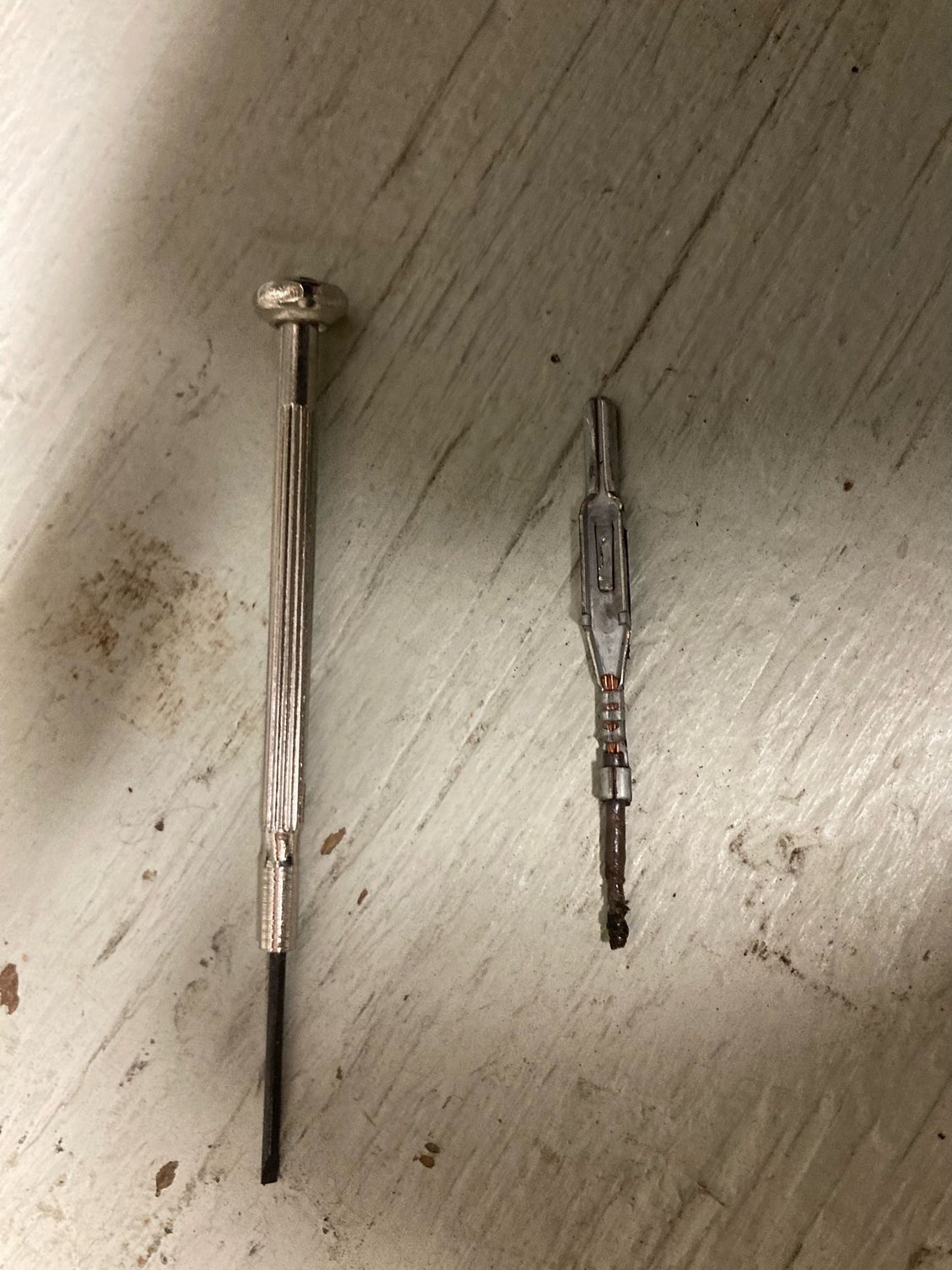

I used a small little precision screwdriver to pop the pin out.
I heatshrinked the wires then rewrapped them with electrical tape.

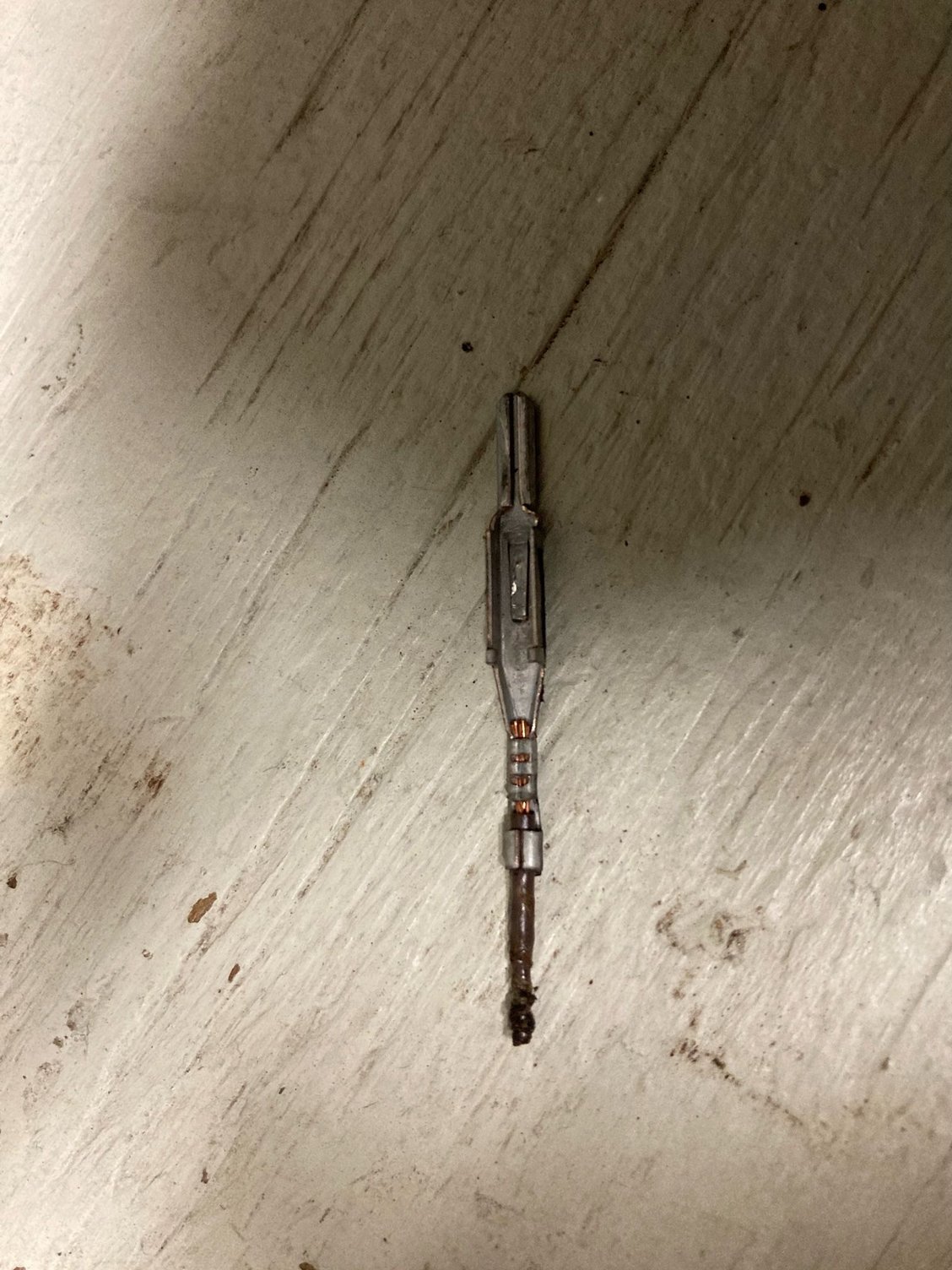

I'm not sure what this pin type is called, but there it is.

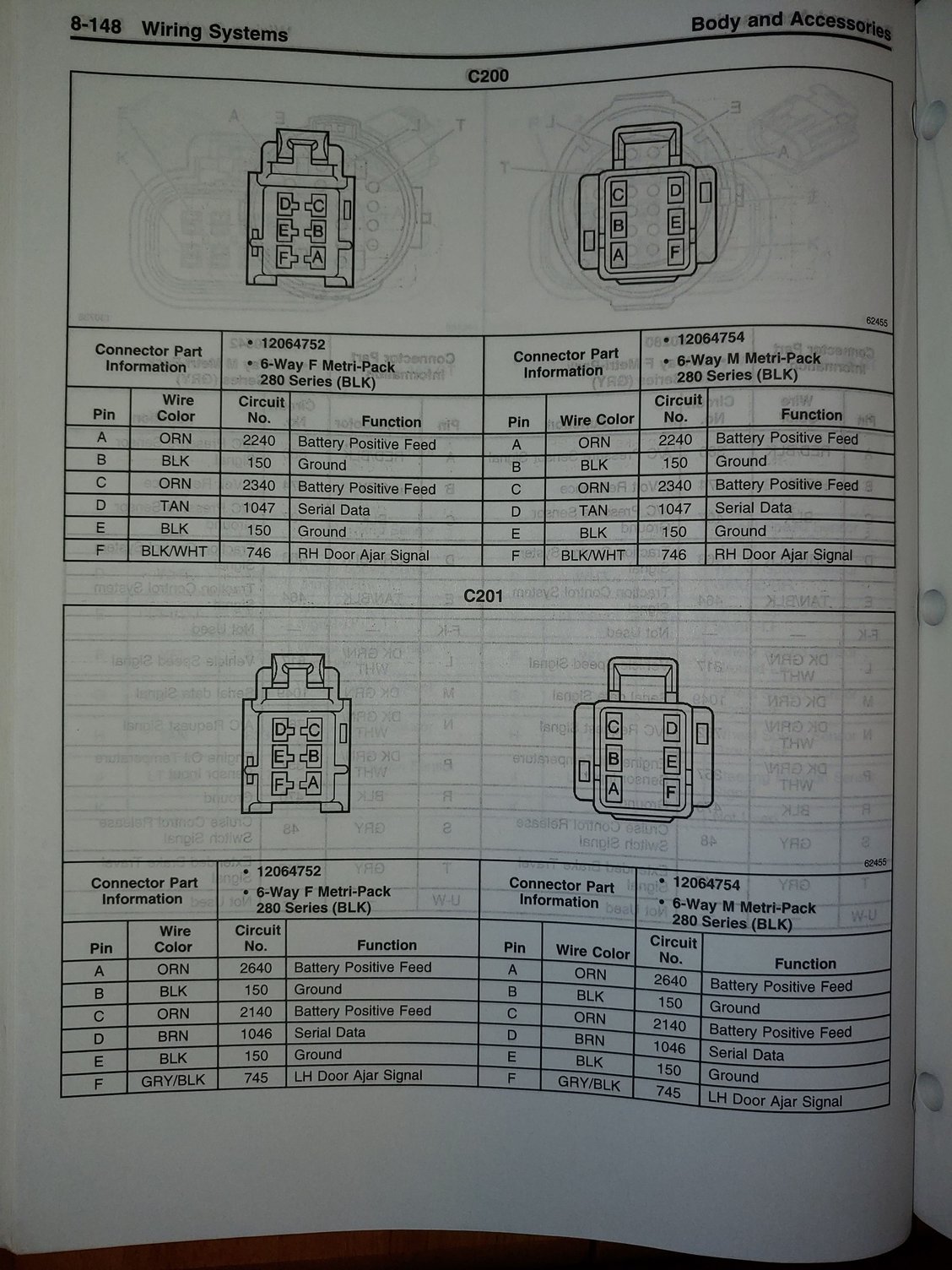

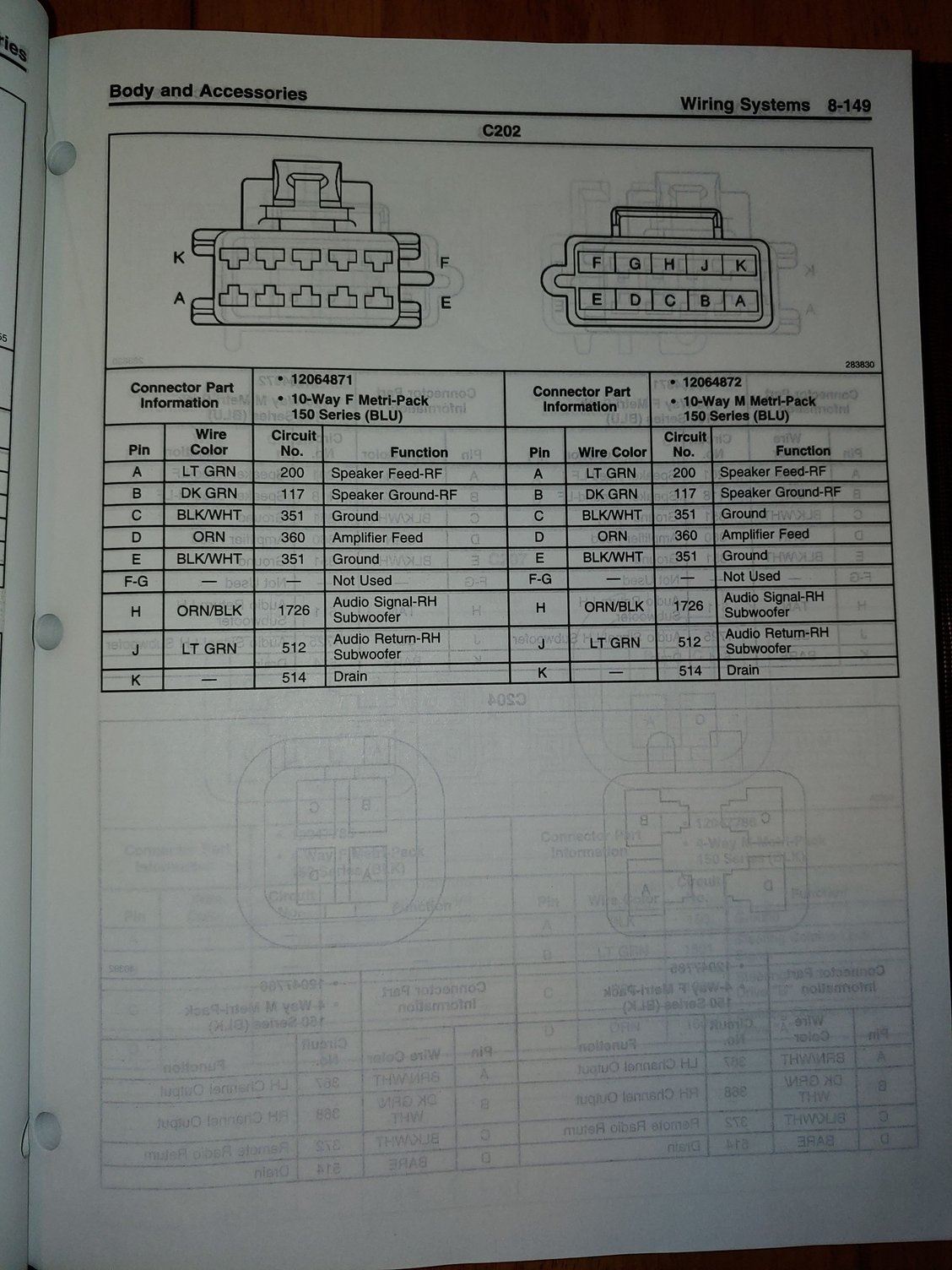

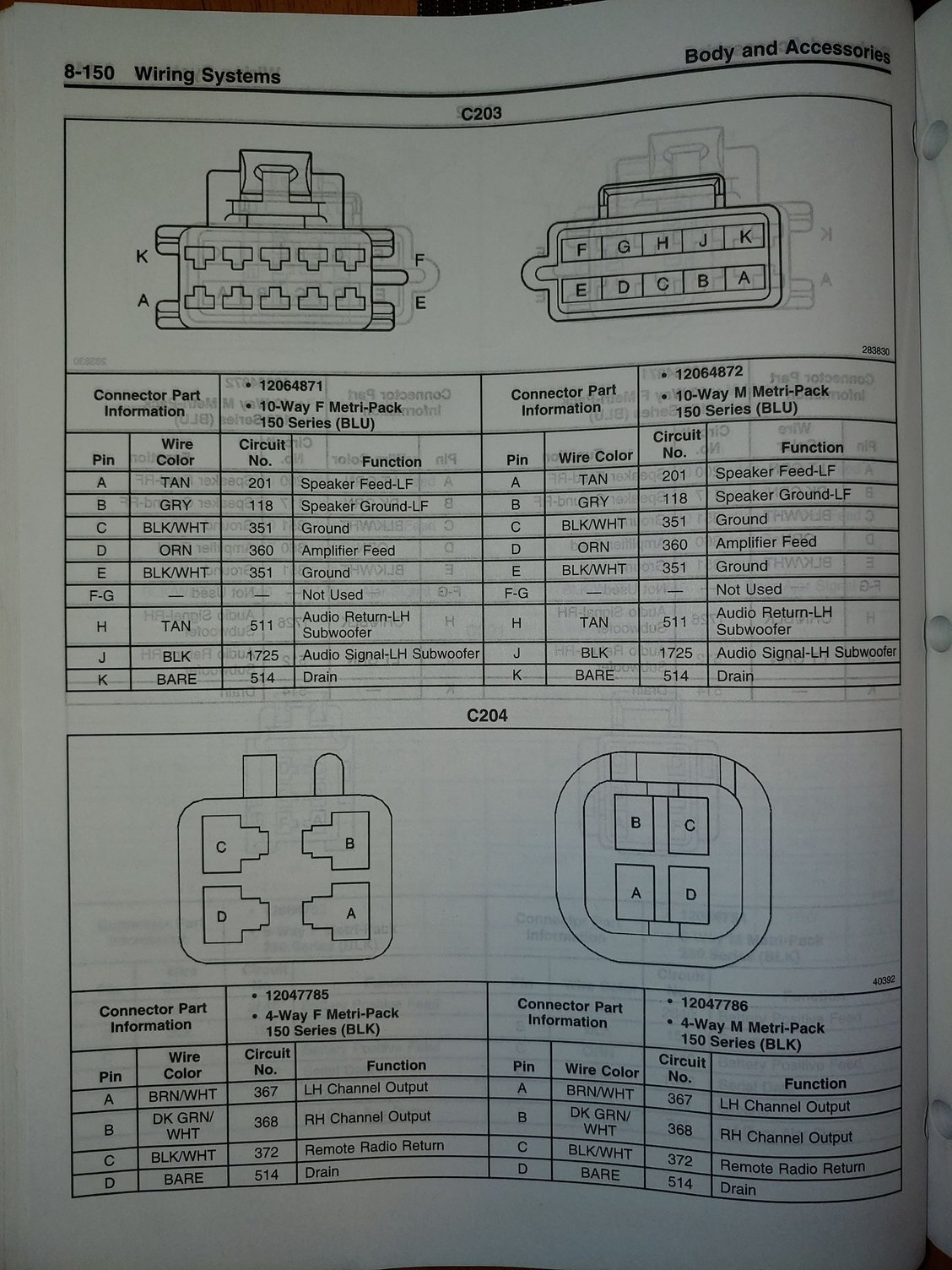

I hope these help. I didn't catch what year your car was but these are for a 2001. (Ignore C204)



I'm going to assume your car is an 01 by your user name.

I read some of your other posts, and I think you should buy a nice, used, complete door harness for each door, if possible, and rewire the body side. It's a shame what that radio shop did to your car and I'm certain it caused the fire.



Those look to be male metri-pak contacts. Most likely 150 size. Measure the width of the blade. If it's 1.5mm it's 150. If it's 2.8mm it's 280. They have several sizes available. There are special removal tools available which make removing them easy and without damage. However, if you re-insert make sure the tang is not flattened.
To crimp them you need to use a proper crimp tool for that application. There are several, but basically they fold over the wings. I like to call them an "f" crimp, but I've also heard them referred to as a "b" crimp. Personally, I use the proper crimpers designed for such a use. In the case of an mp150 you can purchase either an mp150 crimper or even a weather pack crimper. They are the same crimp and I've used both in such an application. As you go up in size so does the need for a larger cavity crimper as well as removal tool. I'll link below some suggestions on tools that I personally use and are made exactly for your application.


#3189 CT - Metri-Pack Sealed Terminal Crimp Tool | SARGENT Tools



Thank you guys. This has been a real headache trying to fix. The door panel doesn't work without the 6th pin connected. There is no power to the door panel at all so long as that is severed.
I was hoping to reuse that 150MP, but I'm not sure if it can be re-crimped with what I currently have available.
