Default Coil Harness
I'm trying to figure out a harness I had bought for my IGN-1A coils.

All I need to know is which color cable is unique to each coil, by number, for either bank.

Both sides have Green, Purple, Red and Blue.
Reply
0
Old May 19, 2023 | 04:58 PM
Share
  #2
C5 Diag's Avatar
C5 Diag
Moderator, Tech Contributor
Supporting Lifetime Gold
10 Year Member
Veteran: Air Force
Liked
Community Favorite

Joined: Sep 2013
Posts: 15,500
Likes: 3,999
From: Cape Coral, Florida
Default

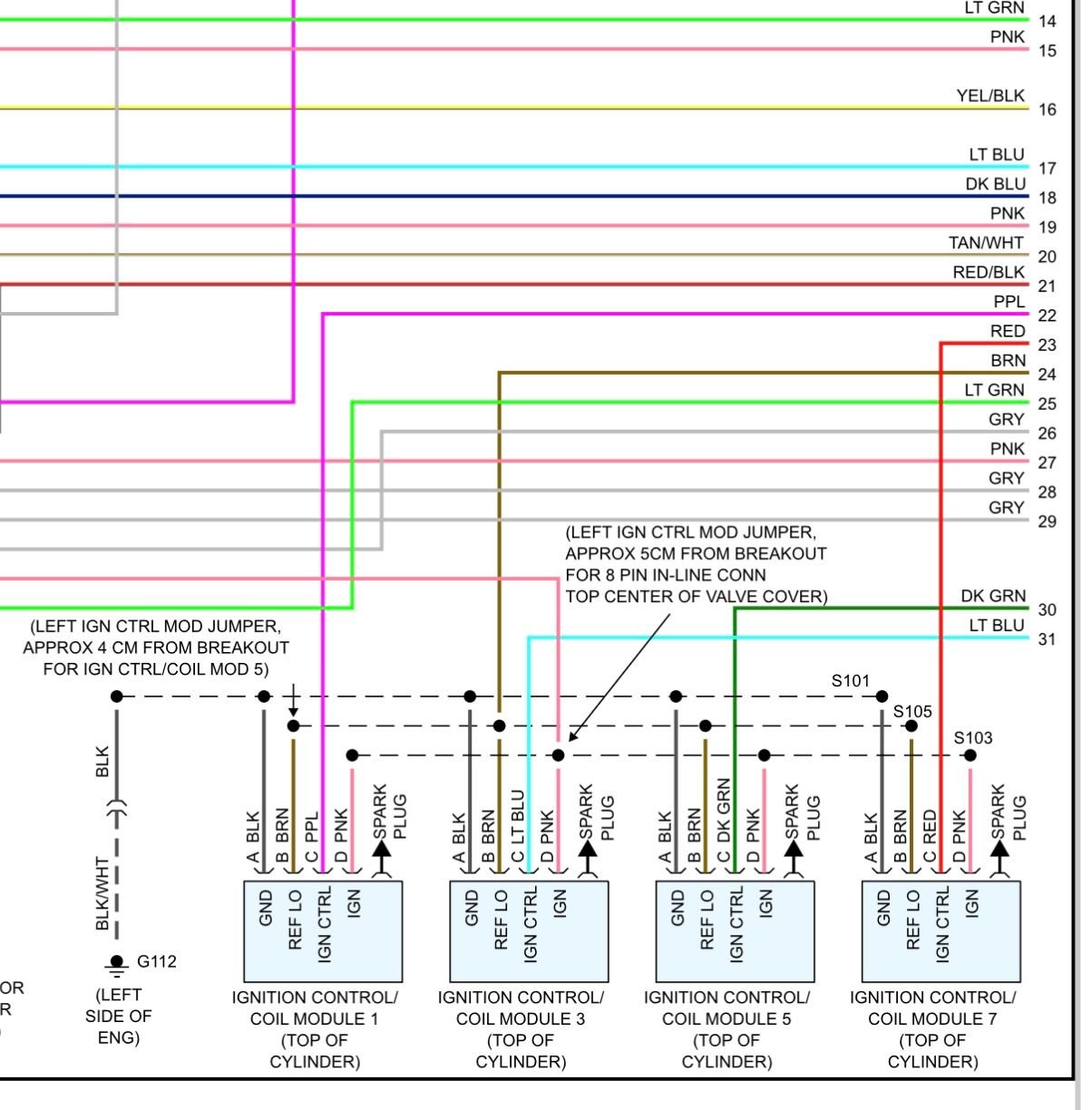

Those ignition control wire colors are the same for both banks…control for cylinder 1 is purple and red for cylinder 2.





Reply
0
Old May 19, 2023 | 06:26 PM
Share
  #3
Tusc's Avatar
Tusc
Thread Starter
Running Guns & Moonshine

Joined: Aug 2001
Posts: 12,564
Likes: 7,239
From: CT
Default
That's perfect. Thanks!

1 Purple
3 Blue
5 Green
7 Red
2 Red
4 Green
6 Blue
8 Purple
Reply
1
