New Member, Need AC Advice Please
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,629
Likes: 4,074
From: Cape Coral, Florida
If EVERYTHING is working correctly in the AC circuit and the sensor is not working the AC compressor will not come on…how exactly did you check the ground ??..that ground is a ground at all times…if you have no ground at the sensor you will have to check AT the PCM…you may have a broken wire between the PCM and the sensor or just a bad terminal at the sensor.
Heel & Toe
Joined: Sep 2005
Posts: 18
Likes: 1
From: North Port, Fl
If EVERYTHING is working correctly in the AC circuit and the sensor is not working the AC compressor will not come on…how exactly did you check the ground ??..that ground is a ground at all times…if you have no ground at the sensor you will have to check AT the PCM…you may have a broken wire between the PCM and the sensor or just a bad terminal at the sensor.
I did a continuity test with VOM between Bat neg and pin in sensor plug. Open circuit.
could I have accidentally discus ground when removing the accumulator and compressor when repairing the sys?
put in new accumulator, compressor, orifice tube and pressure sensor.
I also started to get a traction control solenoid and relay error message on the dash display.
other work done before the AC repair was replacing the knock sensor’s with the NAPA sensors which were fine installed but is back to low signal codes on bank 1 and 2.
Any connections to those new issues?
thank you for help
Last edited by owlhh; Sep 14, 2024 at 08:42 AM.
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,629
Likes: 4,074
From: Cape Coral, Florida
Thank you for the quick response
I did a continuity test with VOM between Bat neg and pin in sensor plug. Open circuit.
could I have accidentally discus ground when removing the accumulator and compressor when repairing the sys?
put in new accumulator, compressor, orifice tube and pressure sensor.
I also started to get a traction control solenoid and relay error message on the dash display. Any relation?
thank you for help
I did a continuity test with VOM between Bat neg and pin in sensor plug. Open circuit.
could I have accidentally discus ground when removing the accumulator and compressor when repairing the sys?
put in new accumulator, compressor, orifice tube and pressure sensor.
I also started to get a traction control solenoid and relay error message on the dash display. Any relation?
thank you for help
Heel & Toe
Joined: Sep 2005
Posts: 18
Likes: 1
From: North Port, Fl
Get yourself a 12 volt Incandescent test light (with a bulb) and connect it to battery positive and see if the test light illuminates when probing the ground wire at the pressure sensor…if no good go down to that PCM wire and try it there….if good at the PCM you have a break in the wire…if you have something to back probe the ground terminal at the sensor you can take a length of wire and connect it between the sensor and a good ground and see if the compressor functions.
Ok. Thank you. I will try that
If that works, then back to checking the wire to PCM?
where does the PCM get it’s grounds?
could I have accidentally disconnected one?
Are there any ground connections near the accumulator?
Just thinking back to what I moved replacing the accumulator and compressor.
Last edited by owlhh; Sep 14, 2024 at 09:27 AM.
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,629
Likes: 4,074
From: Cape Coral, Florida

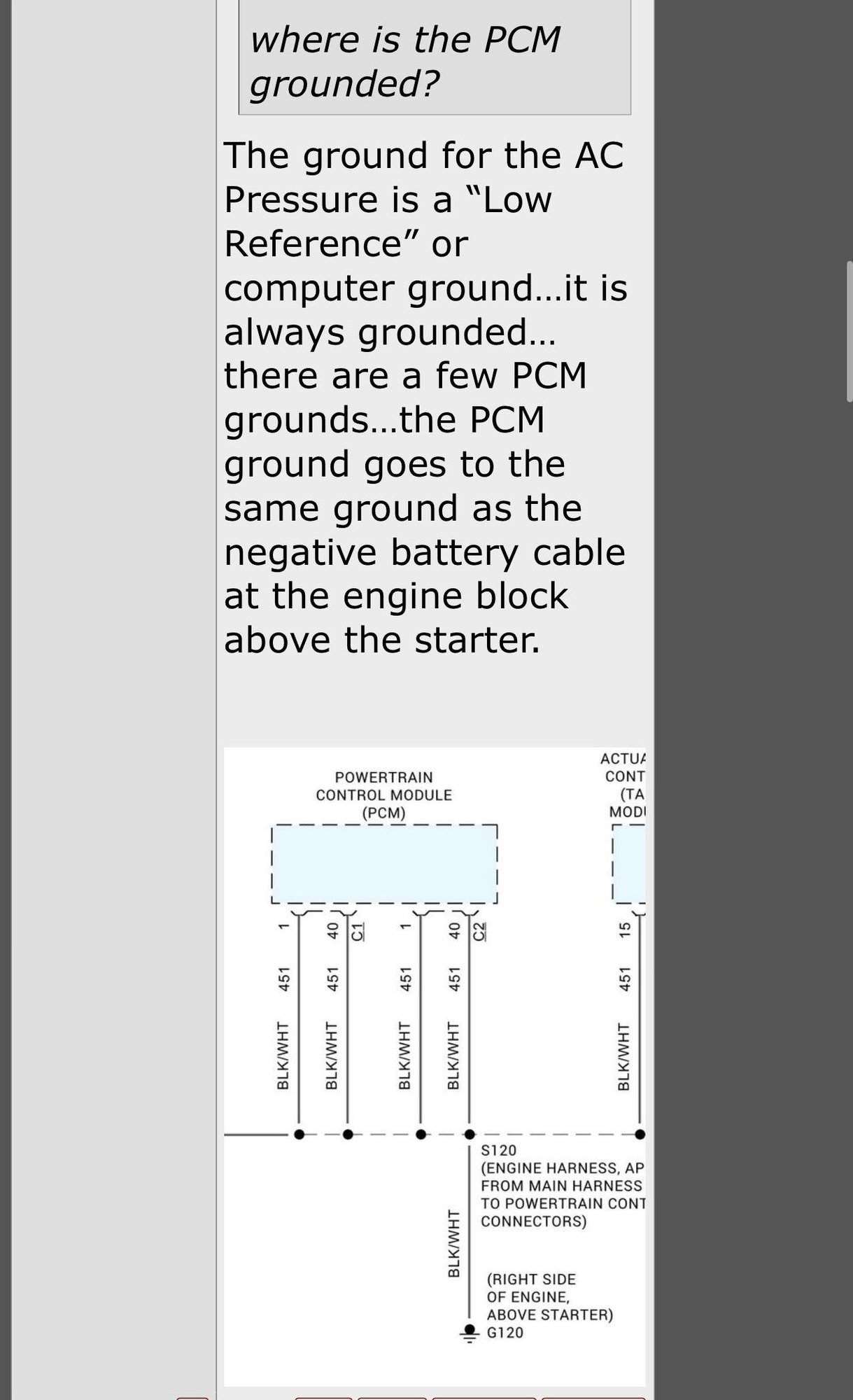

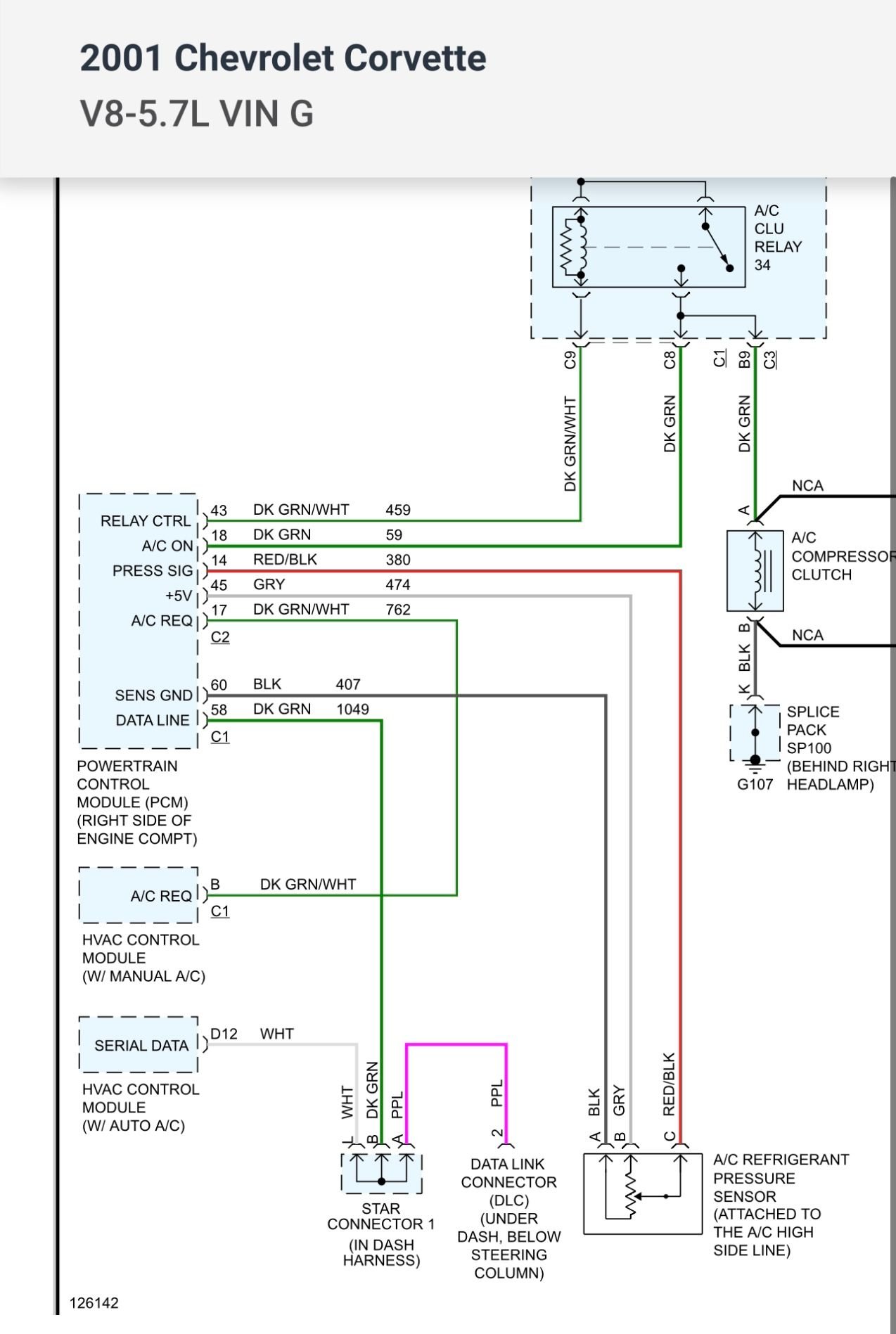

As I had previously mentioned in a post I included a picture of the 4 PCM ground wires that go to engine block…refer to that.
