I wonder what will happen if you turn both switches on at the same time?

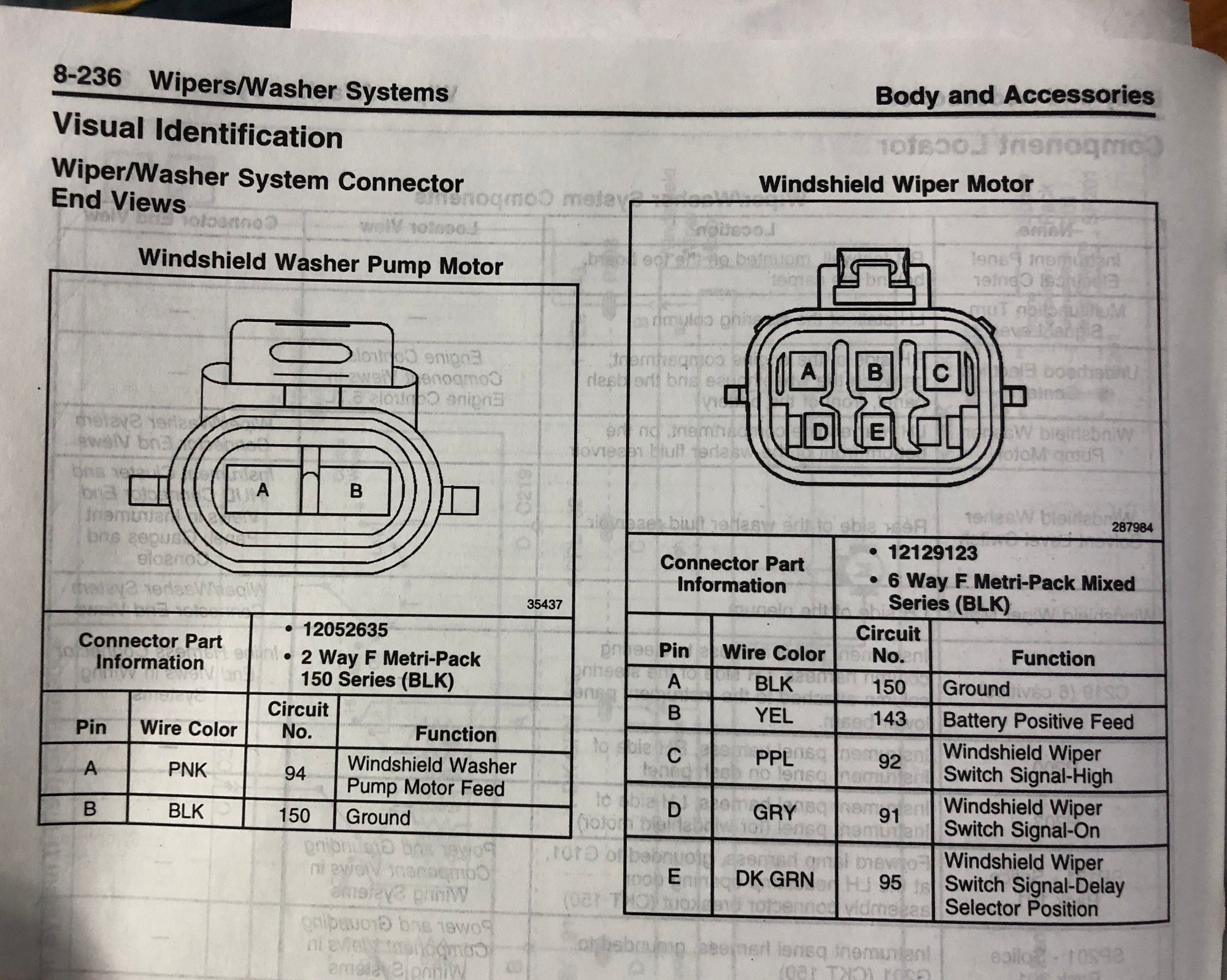

Find the connector view in your service manual. Connect power to the input side of each switch and the speed you want to the output side.
Yeah... so, considering the info Dads2kconvertible shared... how should I build my switch? I need ground and B (Yellow) wires in it? If I only want to have one switch with High speed, for example...
Seems it would be just as easy to get either low or high with a DPDT (on-off-on) toggle switch. You can just pull the wires from C219 or find them before the go through the firewall.

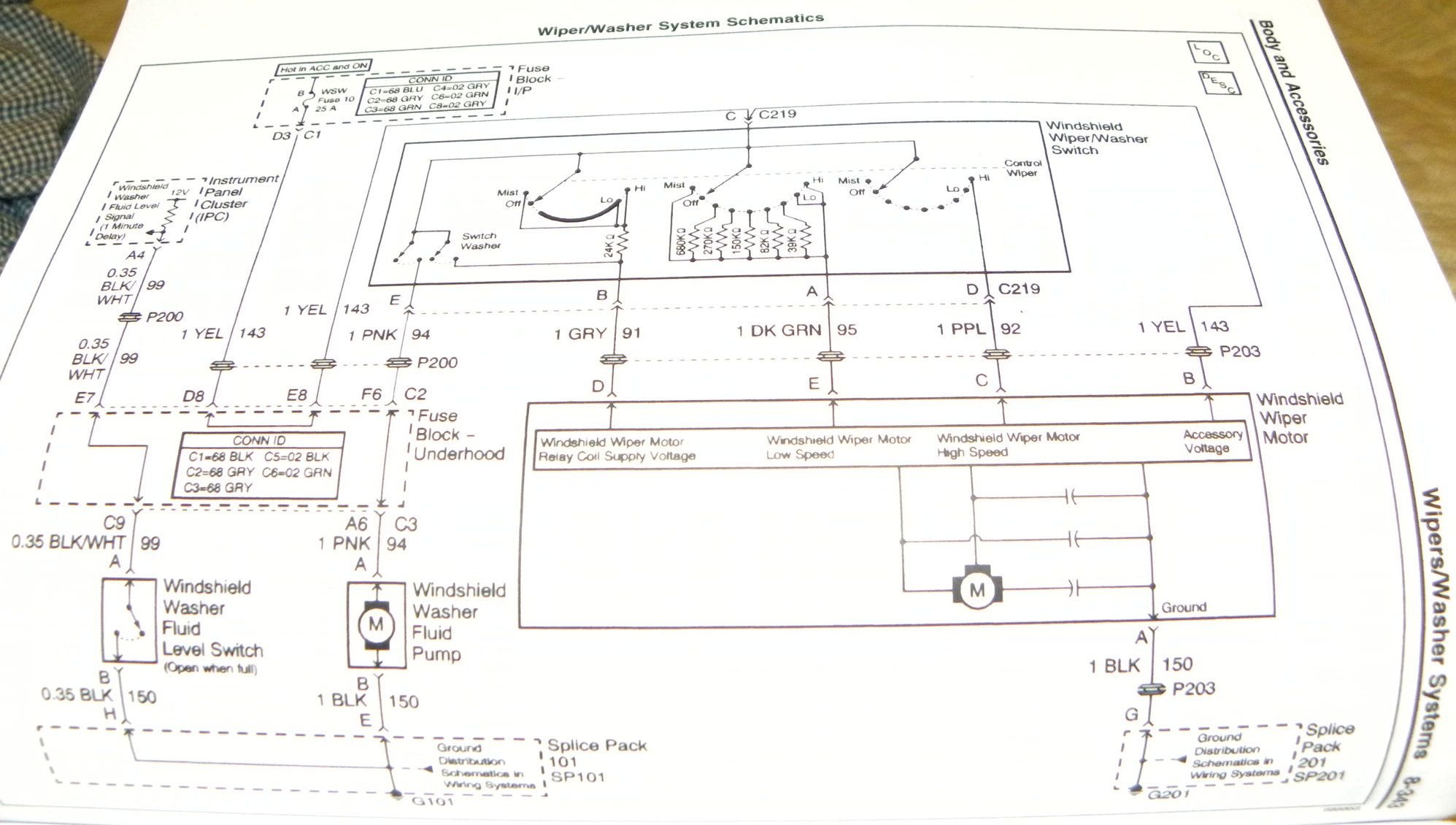

Based on the diagram:
"Mux 2" wants 12v input through the 24k ohm resistor in low or high
"Mux 1" wants 12v input in low or high
"High" wants 12 volts in high only

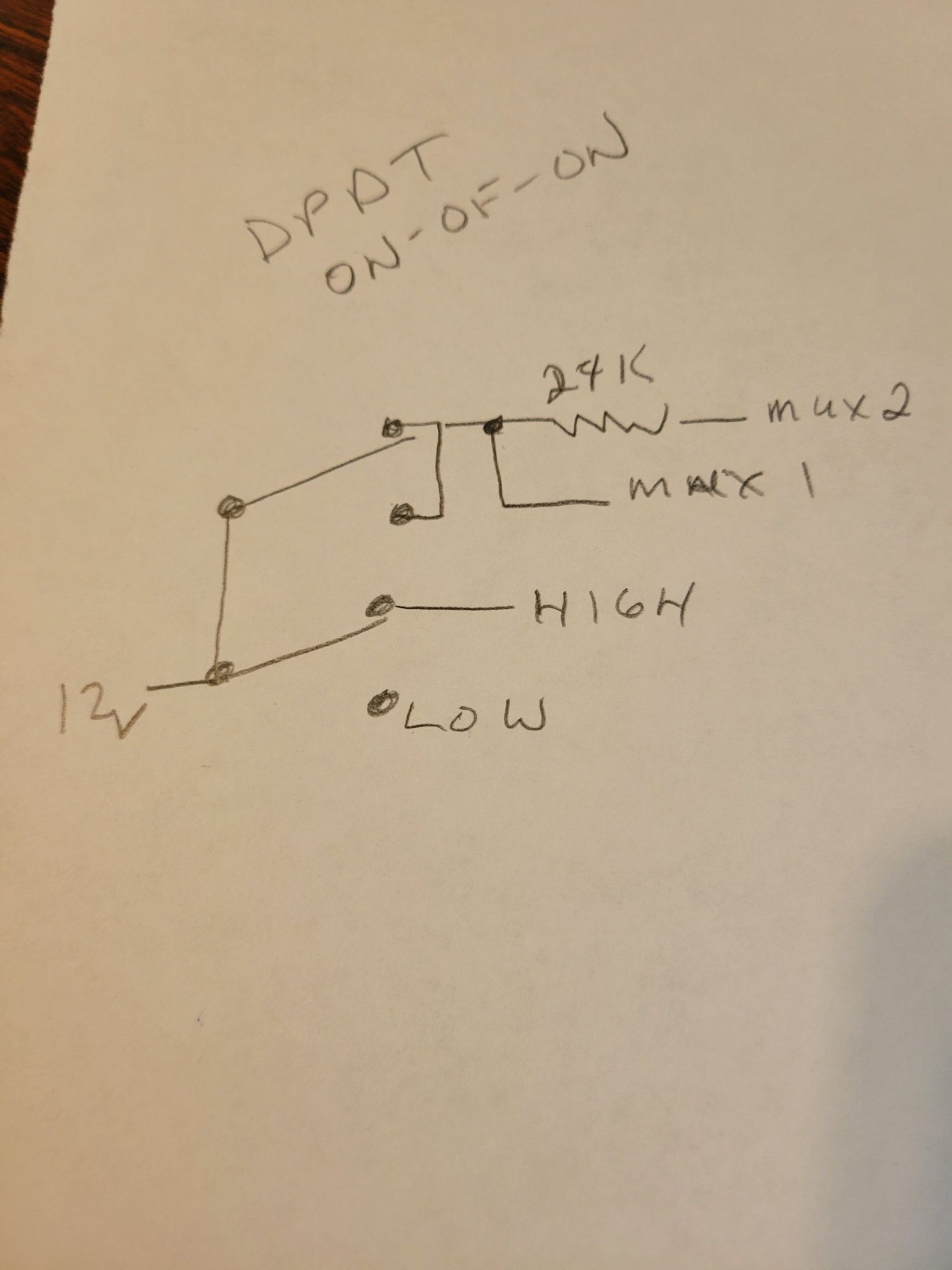

Over-simplified drawing not showing center off position ......
Last edited by lucky131969; Jul 25, 2024 at 04:04 PM.
