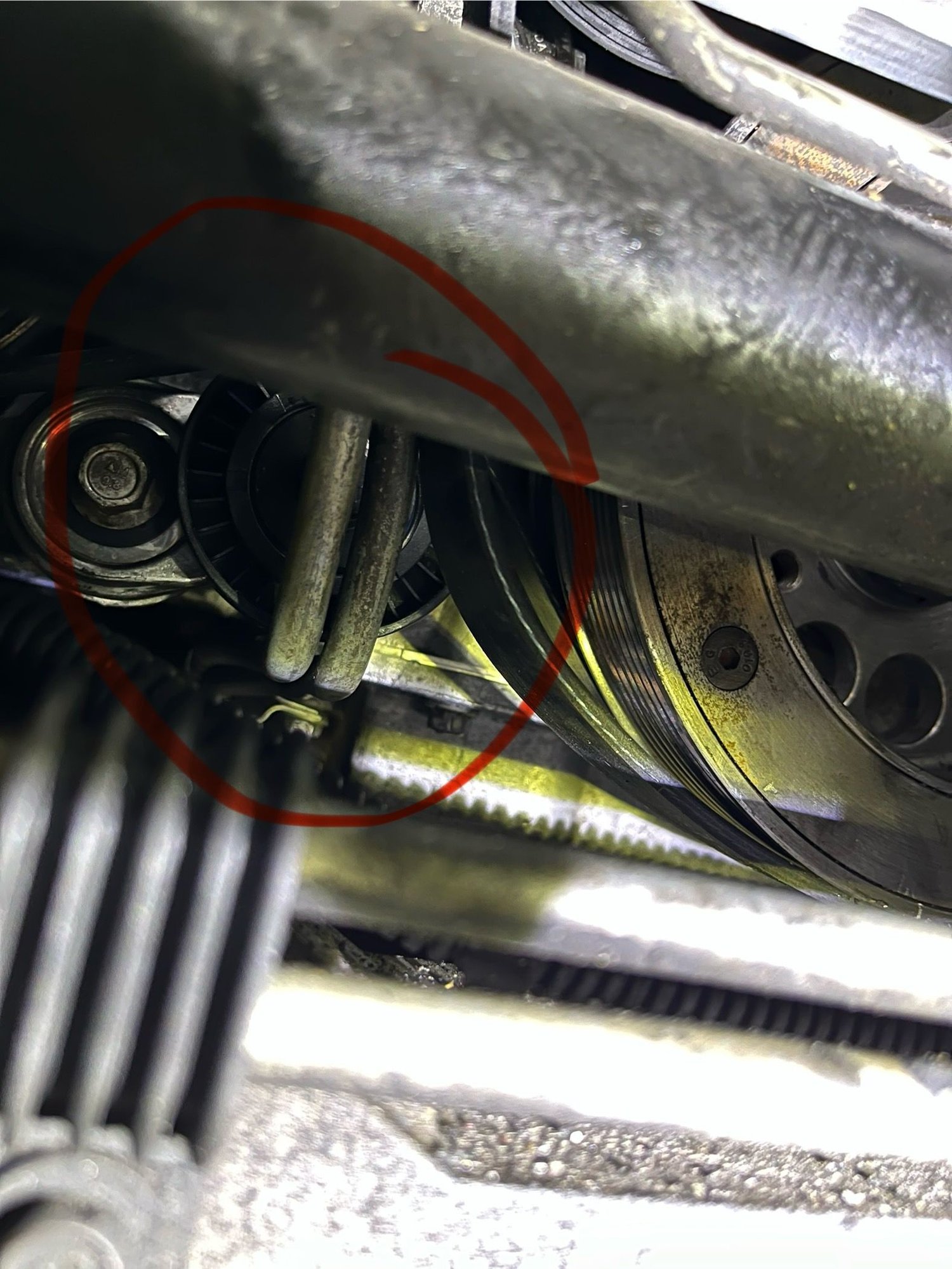

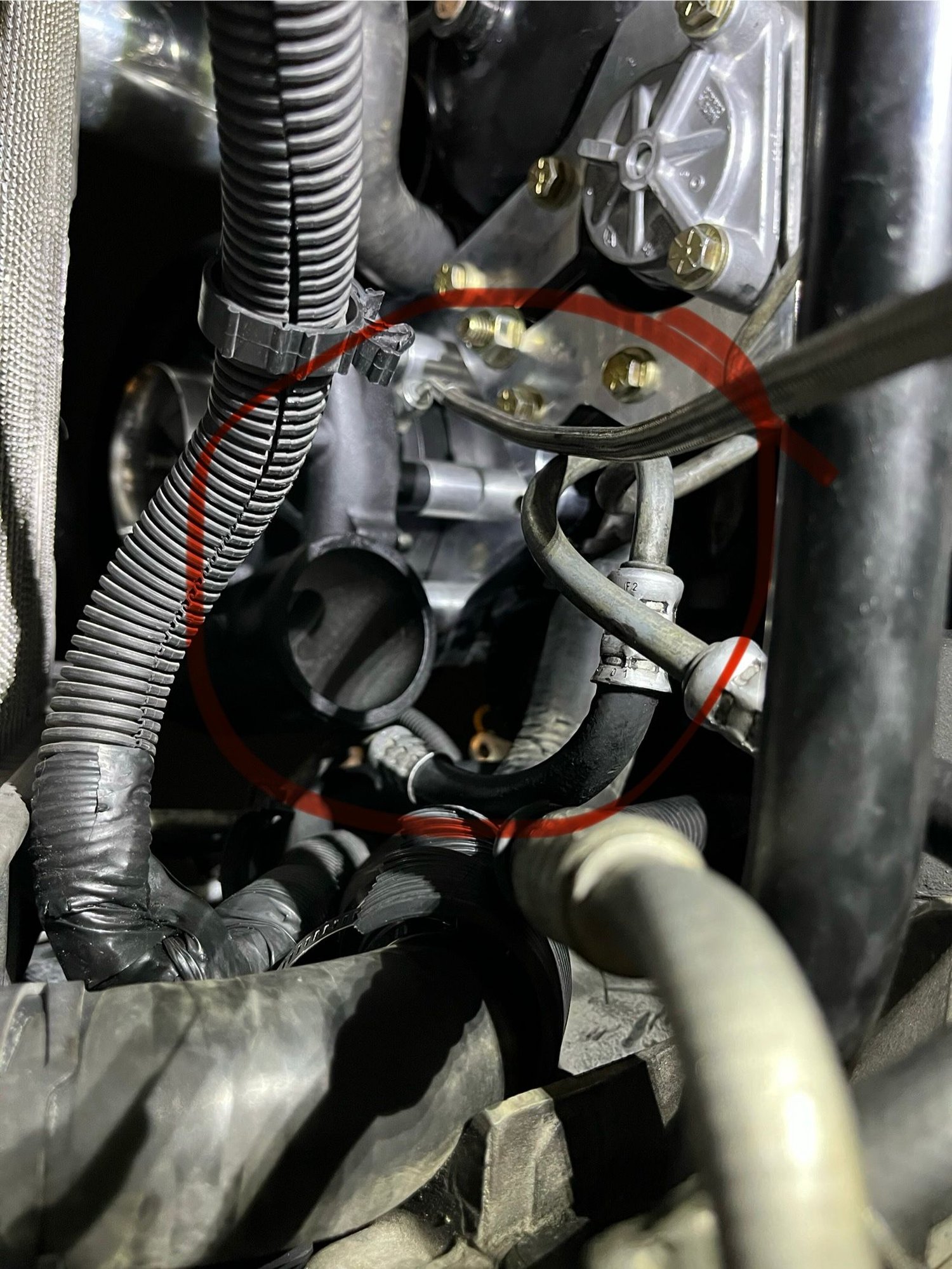

I am supercharging my C5 with a 4l60e and I am running into an issue with the transmission line placement in the engine bay. For backstory, I pulled the motor to cam it, refresh it, etc. and the transmission lines have been a bit of a struggle to get right. Below are photos of the way they are placed currently. You will see the black a&a blower up top, and the transmission lines are in the way of me installing the charge pipe.

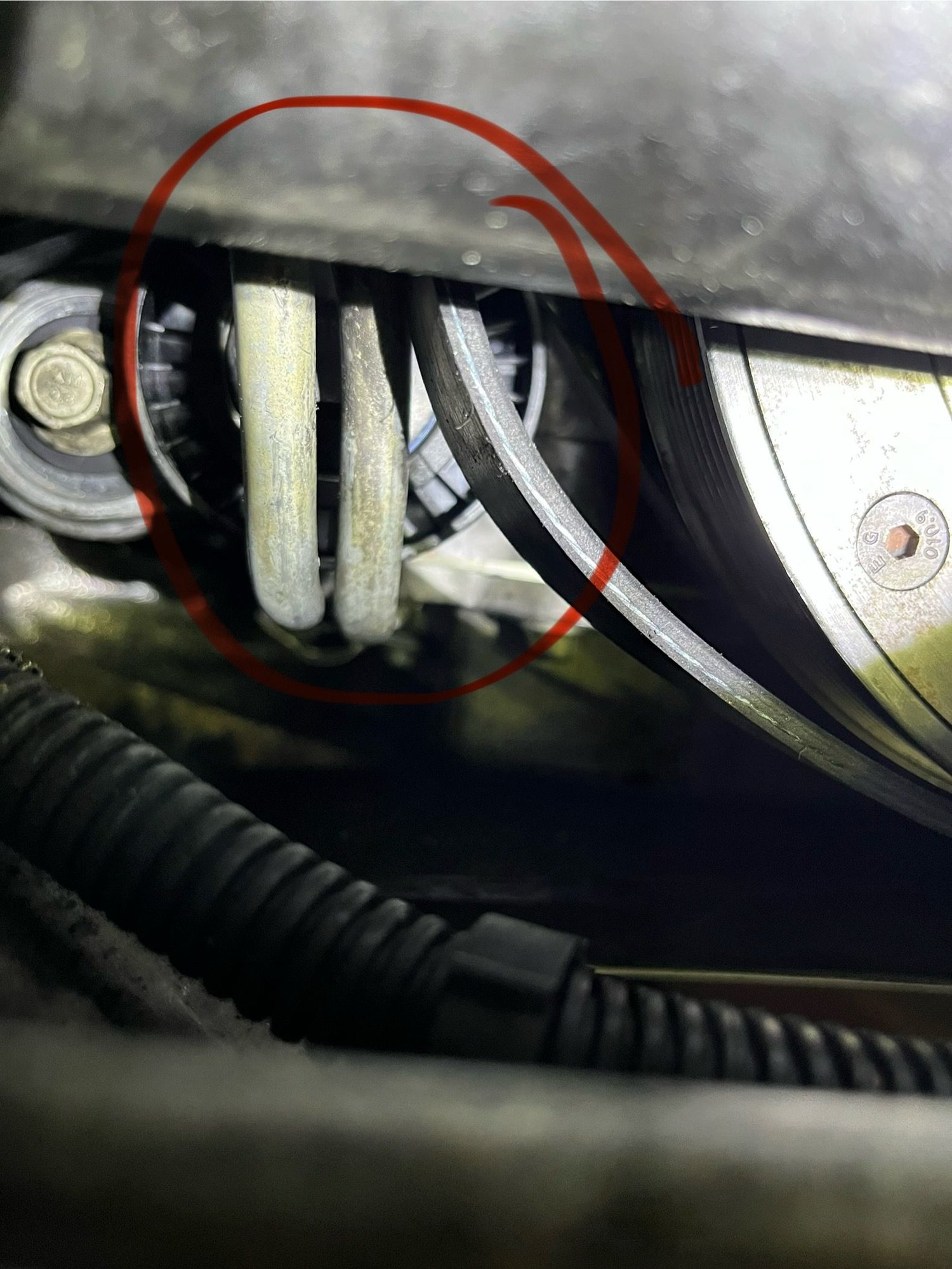

I think what needs to happen is I need to move the lines toward the driver side, but I want to be sure of what the correct orientation is, so I am wondering if anyone has insight into how these lines should be properly routed. Also notice that the lines currently are directly under the idler pulley and basically touching it, which further reinforces my thought. I think they made need to be in between that pulley and the balancer.
Thanks in advance!
