2002 Corvette EBCM Help

Thread Tools

Search this Thread

Old Oct 5, 2025 | 10:57 PM
Share
  #1
xmanguy's Avatar
xmanguy
Thread Starter
3rd Gear

Joined: Oct 2025
Posts: 3
Likes: 0
Default 2002 Corvette EBCM Help
I’m hoping to see if anyone knows what resistor I need to replace a burnt one on the EBCM circuit board.

I have a 2002 Corvette base. I took apart EBCM in the hopes to do the 5 point re-solder but looks like a previous owner has already performed it. However, I found a burnt resistor. If anyone knows the resistance value or band colors, it would be greatly appreciated.

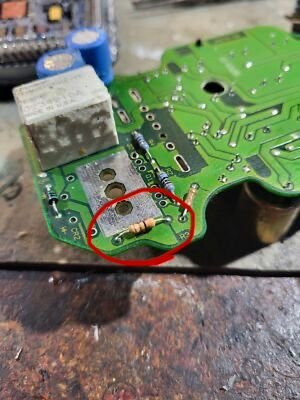

I found a blurry picture from the internet but it does show which resistor I’m looking for. A little hard to tell what color the bands are.

Thanks for any help.


Reply
0
Old Oct 6, 2025 | 10:32 AM
Share
  #2
C5 Diag's Avatar
C5 Diag
Moderator, Tech Contributor
Supporting Lifetime Gold
10 Year Member
Veteran: Air Force
Liked
Community Favorite

Joined: Sep 2013
Posts: 15,595
Likes: 4,055
From: Cape Coral, Florida
Default
Google is your friend !!…you can find a color band chart there…they are standard.
Reply
0
Old Oct 6, 2025 | 10:38 AM
Share
  #3
mmartinez's Avatar
mmartinez
Melting Slicks
15 Year Member
Active Streak: 30 Days
Active Streak: 60 Days
Liked

Joined: Sep 2008
Posts: 3,138
Likes: 802
From: Espanola New Mexico
Default
It is very hard to tell what colors are from that photo, maybe try to find a schematic drawing of the EBCM, good luck
Reply
0
Old Oct 6, 2025 | 01:19 PM
Share
  #4
mmartinez's Avatar
mmartinez
Melting Slicks
15 Year Member
Active Streak: 30 Days
Active Streak: 60 Days
Liked

Joined: Sep 2008
Posts: 3,138
Likes: 802
From: Espanola New Mexico
Default
Opps
Reply
0
Old Oct 6, 2025 | 02:48 PM
Share
  #5
xmanguy's Avatar
xmanguy
Thread Starter
3rd Gear

Joined: Oct 2025
Posts: 3
Likes: 0
Default
Unfortunately, the resistor on my EBCM is burnt so I can’t tell what the color the bands are.

I’ve also tried look for the schematic but had no luck finding one for the board itself, only wiring diagrams for the harness.

Hoping someone has the module on hand to tell me what that resistor is.
Reply
0
Old Oct 6, 2025 | 02:50 PM
Share
  #6
lucky131969's Avatar
lucky131969
Tech Contributor
15 Year Member
Active Streak: 30 Days
Community Builder
Liked

Joined: Jan 2007
Posts: 19,453
Likes: 1,158
From: Dyer, IN
Default
Originally Posted by xmanguy
Unfortunately, the resistor on my EBCM is burnt so I can’t tell what the color the bands are.

I’ve also tried look for the schematic but had no luck finding one for the board itself, only wiring diagrams for the harness.

Hoping someone has the module on hand to tell me what that resistor is.
Have you tried reaching out to ABSFixer.com?
Reply
0
Old Oct 6, 2025 | 03:06 PM
Share
  #7
xmanguy's Avatar
xmanguy
Thread Starter
3rd Gear

Joined: Oct 2025
Posts: 3
Likes: 0
Default
Originally Posted by lucky131969
Have you tried reaching out to ABSFixer.com?
I have, wanted to try and fix this before I had to send it out.
Reply
0
