GM used to come out with an updated disc every year in late summer/fall for the production line, and fall/winter for sales to existing cars.
But the last update they did was for 2013, there has been no 2014 or 2015 disc from GM.
Not sure if there ever will be.
Be careful about buying a disc from anyone except a current C6 owner or the GM site; check the site for version and part number. There are other GM nav discs that don't work in the C6. Some Toyota/Lexus discs worked when I tried them years ago, but not sure if that's still true. Some years (approx 2008-2011?) used two discs, be sure you get the correct number of discs for your year.
But the last update they did was for 2013, there has been no 2014 or 2015 disc from GM.
Not sure if there ever will be.
Be careful about buying a disc from anyone except a current C6 owner or the GM site; check the site for version and part number. There are other GM nav discs that don't work in the C6. Some Toyota/Lexus discs worked when I tried them years ago, but not sure if that's still true. Some years (approx 2008-2011?) used two discs, be sure you get the correct number of discs for your year.
Drifting
Joined: Jun 2009
Posts: 1,301
Likes: 231
From: Queen Creek AZ
I looked at that website today after I read your post. I couldn't find anywhere on the website that states whether the discs are new or used. Perhaps I just overlooked it.
The price listed was about half of what gmnavdisc.com is asking. However I didn't care for the payment options listed on the website. I usually use PayPal and I didn't see that option. That sent up a red flag for me. JMHO
The price listed was about half of what gmnavdisc.com is asking. However I didn't care for the payment options listed on the website. I usually use PayPal and I didn't see that option. That sent up a red flag for me. JMHO
Burning Brakes
Joined: Sep 2013
Posts: 760
Likes: 6
From: Georgetown Texas
I looked at that website today after I read your post. I couldn't find anywhere on the website that states whether the discs are new or used. Perhaps I just overlooked it.
The price listed was about half of what gmnavdisc.com is asking. However I didn't care for the payment options listed on the website. I usually use PayPal and I didn't see that option. That sent up a red flag for me. JMHO
The price listed was about half of what gmnavdisc.com is asking. However I didn't care for the payment options listed on the website. I usually use PayPal and I didn't see that option. That sent up a red flag for me. JMHO
on the about us page .... some are used, some are new, at the bottom it shows paypal in the list of C.C's they take.
I don't like the fact you can't call them and there is no address as to where they are located. read the Terms and Condition closely .... I don't think I would buy these.
Drifting
Joined: Apr 2005
Posts: 1,753
Likes: 29
From: McKinney TX
GM used to come out with an updated disc every year in late summer/fall for the production line, and fall/winter for sales to existing cars.
But the last update they did was for 2013, there has been no 2014 or 2015 disc from GM.
Not sure if there ever will be.
Be careful about buying a disc from anyone except a current C6 owner or the GM site; check the site for version and part number. There are other GM nav discs that don't work in the C6. Some Toyota/Lexus discs worked when I tried them years ago, but not sure if that's still true. Some years (approx 2008-2011?) used two discs, be sure you get the correct number of discs for your year.
But the last update they did was for 2013, there has been no 2014 or 2015 disc from GM.
Not sure if there ever will be.
Be careful about buying a disc from anyone except a current C6 owner or the GM site; check the site for version and part number. There are other GM nav discs that don't work in the C6. Some Toyota/Lexus discs worked when I tried them years ago, but not sure if that's still true. Some years (approx 2008-2011?) used two discs, be sure you get the correct number of discs for your year.
Le Mans Master
Joined: Jan 2005
Posts: 6,200
Likes: 233
From: "Nowhere Man"
St. Jude Donor '13-'14-'15-'16-'17-'18-'19-'20-'21-'22
22820294 was the one that came with my 2012. Have not seen one past 22944166
I noticed he has a 2006. Is that one of the years that the Nav had 2 discs? If it is, just something else the OP has to consider.
Last edited by LUVMINE; Apr 2, 2015 at 09:16 AM.
Drifting
Joined: Jul 2012
Posts: 1,879
Likes: 106
From: Newburgh,IN
Are there other website vendors that are recommended? In other words do we have more than just GM for a reliable source?
Le Mans Master
Joined: Jan 2005
Posts: 6,200
Likes: 233
From: "Nowhere Man"
St. Jude Donor '13-'14-'15-'16-'17-'18-'19-'20-'21-'22
Not sure about outside vendors. Those numbers above are correct for MY 12 and 13.
Jim, if you're still following. Do you know if the single GM Nav Disc can be used in cars that used 2 Discs?. My 2007 used two discs then somewhere along the way, all the info was on one disc and I'm pretty sure it worked.
Will all the discs made during the C6 run work on any C6.
Jim, if you're still following. Do you know if the single GM Nav Disc can be used in cars that used 2 Discs?. My 2007 used two discs then somewhere along the way, all the info was on one disc and I'm pretty sure it worked.
Will all the discs made during the C6 run work on any C6.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Race Director
Joined: Sep 2009
Posts: 11,351
Likes: 2,445
From: Eastern
These are the Nav DVD's from 2005-2013. The maker is DENSO Global
The years with (1) DVD covered all of US and Canada. The years with 2 DVD's covered East US and Canada on DVD #1, and West US and Canada on DVD #2.
If you buy the years with 2 DVD's, pay close attention to what you get. A lot of the DVD's get sold separately, so you only get the East or West US DVD.
It's nice that the 2012 and 2013 versions only has 1 DVD.
2005 version 1.0 p/n 10381886 one dvd.
2006 version 2.0 p/n 15779679 one dvd.
2007 version 3.0 p/n 15932106 one dvd.
2008 version 4.0 p/n 25852830 two dvd's.
2009 version 5.0 p/n 25976806 two dvd's.
2010 version 6.0 p/n 20861474 two dvd’s.
2011 version 7.0 p/n 20980238 two dvd's.
2012 version 8.0 p/n 22820294 one dvd.

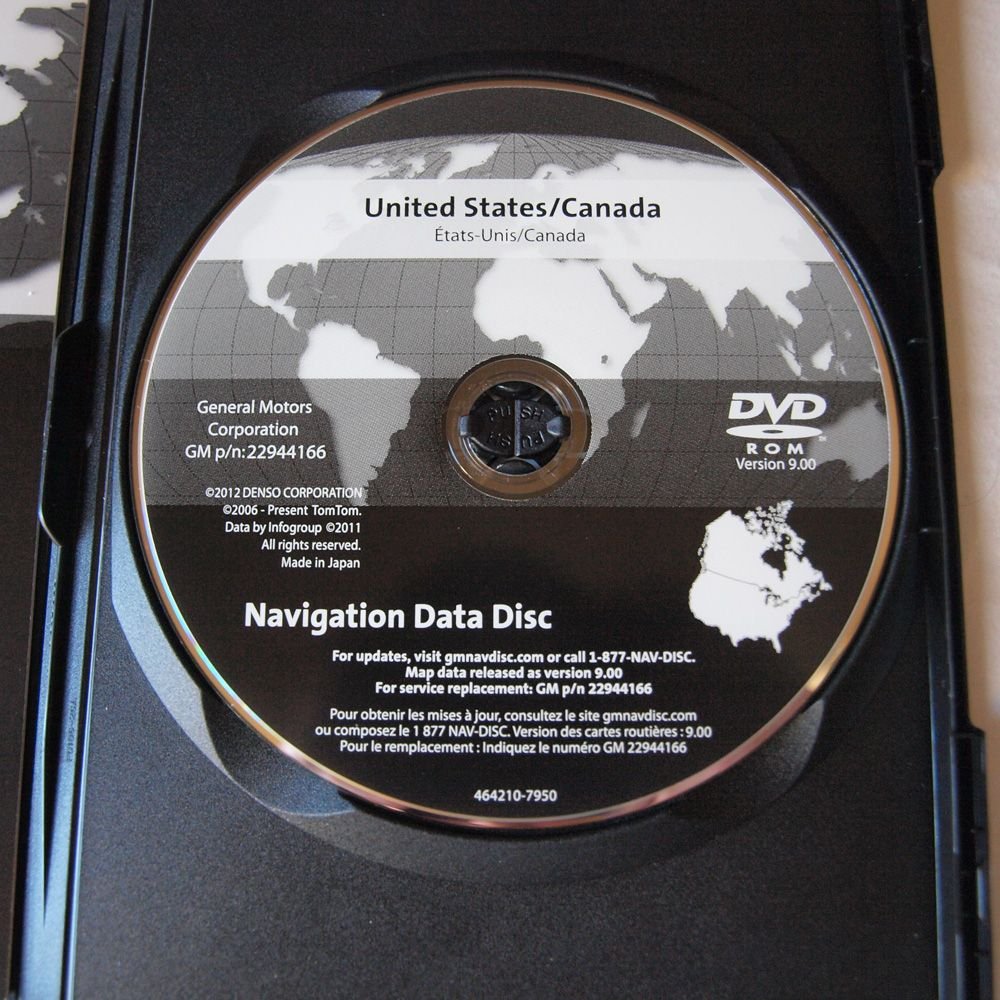

2013 version 9.0 p/n 22944166 one dvd.
There has not been any more made since the Version 9, and likely will not be any more made.
I've had a version 2 that came with my 2006, and have upgraded every 2 years, and bought the last one from GMNav division.
I made a copy and keep the original tucked away for safe keeping. The copy works great.
The years with (1) DVD covered all of US and Canada. The years with 2 DVD's covered East US and Canada on DVD #1, and West US and Canada on DVD #2.
If you buy the years with 2 DVD's, pay close attention to what you get. A lot of the DVD's get sold separately, so you only get the East or West US DVD.
It's nice that the 2012 and 2013 versions only has 1 DVD.
2005 version 1.0 p/n 10381886 one dvd.
2006 version 2.0 p/n 15779679 one dvd.
2007 version 3.0 p/n 15932106 one dvd.
2008 version 4.0 p/n 25852830 two dvd's.
2009 version 5.0 p/n 25976806 two dvd's.
2010 version 6.0 p/n 20861474 two dvd’s.
2011 version 7.0 p/n 20980238 two dvd's.
2012 version 8.0 p/n 22820294 one dvd.
2013 version 9.0 p/n 22944166 one dvd.
There has not been any more made since the Version 9, and likely will not be any more made.
I've had a version 2 that came with my 2006, and have upgraded every 2 years, and bought the last one from GMNav division.
I made a copy and keep the original tucked away for safe keeping. The copy works great.
Last edited by 4SUMERZ; Apr 2, 2015 at 12:37 PM.
Team Owner
Joined: Sep 2000
Posts: 25,019
Likes: 2,713
From: Far NW 'burbs of Chicago
St. Jude Donor '13
Not sure about outside vendors. Those numbers above are correct for MY 12 and 13.
Jim, if you're still following. Do you know if the single GM Nav Disc can be used in cars that used 2 Discs?. My 2007 used two discs then somewhere along the way, all the info was on one disc and I'm pretty sure it worked.
Will all the discs made during the C6 run work on any C6.
Jim, if you're still following. Do you know if the single GM Nav Disc can be used in cars that used 2 Discs?. My 2007 used two discs then somewhere along the way, all the info was on one disc and I'm pretty sure it worked.
Will all the discs made during the C6 run work on any C6.
We had a 2006 and now a 2009 and tried a friend's 2005.
Any C6 disc seems to work in any year C6, unless the disc or the nav unit is malfunctioning.
Team Owner
Joined: Sep 2000
Posts: 25,019
Likes: 2,713
From: Far NW 'burbs of Chicago
St. Jude Donor '13
I'm pretty sure it was Denso, who also made the Nav in our 2005 Toyota Camry. That would explain why the discs seemed at least partly interchangable, not sure if all of the functions worked when trying to "cross pollenate."
If GM refuses to make updated discs even at their outrageious prices, that tells us a lot about their attitude toward customer support.
If GM refuses to make updated discs even at their outrageious prices, that tells us a lot about their attitude toward customer support.
Race Director
Joined: Feb 2013
Posts: 12,687
Likes: 224
From: Nazareth, PA.
St. Jude Donor '17
i'm surprised chevy still uses the disk. my ford has the sd card in it which i like better than the disk since there is no way you can mess it up with finger prints. i've seen other peoples disks and i'm surprised they function at all.
Le Mans Master
Joined: Jan 2005
Posts: 6,200
Likes: 233
From: "Nowhere Man"
St. Jude Donor '13-'14-'15-'16-'17-'18-'19-'20-'21-'22
Melting Slicks
Joined: Apr 2010
Posts: 3,191
Likes: 53
From: Tucson Arizona
Not sure about outside vendors. Those numbers above are correct for MY 12 and 13.
Jim, if you're still following. Do you know if the single GM Nav Disc can be used in cars that used 2 Discs?. My 2007 used two discs then somewhere along the way, all the info was on one disc and I'm pretty sure it worked.
Will all the discs made during the C6 run work on any C6.
Jim, if you're still following. Do you know if the single GM Nav Disc can be used in cars that used 2 Discs?. My 2007 used two discs then somewhere along the way, all the info was on one disc and I'm pretty sure it worked.
Will all the discs made during the C6 run work on any C6.
The EULA specifically allows the copying of the original disc to be used by the original discs owner.
I purchase the latest disc directly from HERE , the map provider for GM, rather than the GM nav disc site and got it for $50 off on sale and shipped from them.
Le Mans Master
Joined: Aug 2000
Posts: 6,486
Likes: 1,659
From: Las Vegas NV
Melting Slicks
Joined: Apr 2010
Posts: 3,191
Likes: 53
From: Tucson Arizona
"HERE" (formerly Navteq) is the name of the map company, owned by Nokia, that provides the maps for Garmins and most of the automotive factory built in nav units including GM.
http://allthingsnav.navigation.com/page/shop-update
http://allthingsnav.navigation.com/page/shop-update
Melting Slicks
Joined: May 2000
Posts: 2,530
Likes: 1
From: Rockford IL
"HERE" (formerly Navteq) is the name of the map company, owned by Nokia, that provides the maps for Garmins and most of the automotive factory built in nav units including GM.
http://allthingsnav.navigation.com/page/shop-update
http://allthingsnav.navigation.com/page/shop-update
