EBCM Electrical Connector Removal Help Needed! (2006)
Thread Starter
Racer
Joined: Feb 2006
Posts: 325
Likes: 2
From: Folsom California
EBCM Electrical Connector Removal Help Needed! (2006)
I'm in the process of replacing the EBCM on my 2006 base Z51 and have been able to get the 4 torx screws out but cannot get the large electrical connector / plug to release. I found the video posted here
which walks through most everything but when it comes to the connector, the video skips and he just says it was the easiest one he's ever encountered. So go figure I'd get stuck on that part.
Any help, pictures, diagram, videos, powerpoint, whatever, would be much appreciated. Project is a standstill because the unit will not clear the opening until the connector/plug is removed.
Any help, pictures, diagram, videos, powerpoint, whatever, would be much appreciated. Project is a standstill because the unit will not clear the opening until the connector/plug is removed.
Drifting
Joined: Apr 2005
Posts: 1,366
Likes: 9
From: Jacksonville FL

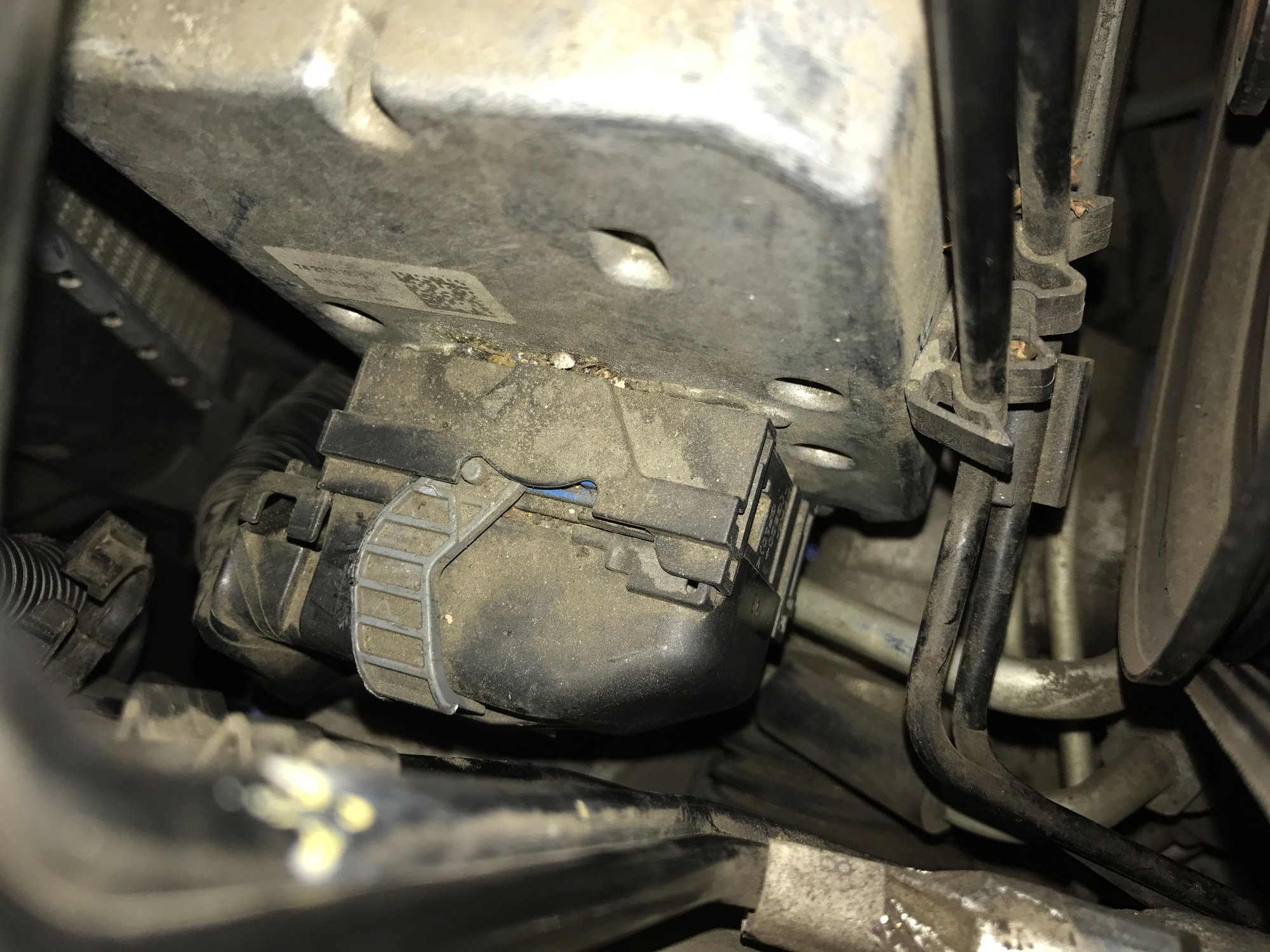

Looking at the video and service manual, there is a latch holding the connector in place (the gray lever looking part in the video). The service manual shows a kind of schematic of it and it has a thumb tab on it that you push to basically "raise or lift" the latch lever and then you disconnect the connector with the lever raised.
From the video it appears you will either be pushing the lever using the thumb tab towards the front of the car, not side to side. I hope that makes some sense and helps you out.
From the video it appears you will either be pushing the lever using the thumb tab towards the front of the car, not side to side. I hope that makes some sense and helps you out.
Last edited by DrivnXcitment; May 17, 2017 at 05:09 PM.
Drifting
Joined: Apr 2005
Posts: 1,366
Likes: 9
From: Jacksonville FL
Yup, slide it towards the rear of the car, same type of connector on your ECM in the passenger footwell. My mistake for saying to the front before. Oops.
Thread Starter
Racer
Joined: Feb 2006
Posts: 325
Likes: 2
From: Folsom California
So there's no other release or holding pin that needs to be activated or de-activated first?
