Help on buttoning up my engine?

Reply Subscribe

Thread Tools

Search this Thread

Sep 20, 2022 | 11:30 PM

JayTheHobo

Thread Starter

Intermediate

Joined: Sep 2019

Posts: 34

Likes: 4

From: Ft lauderdale

Help on buttoning up my engine?

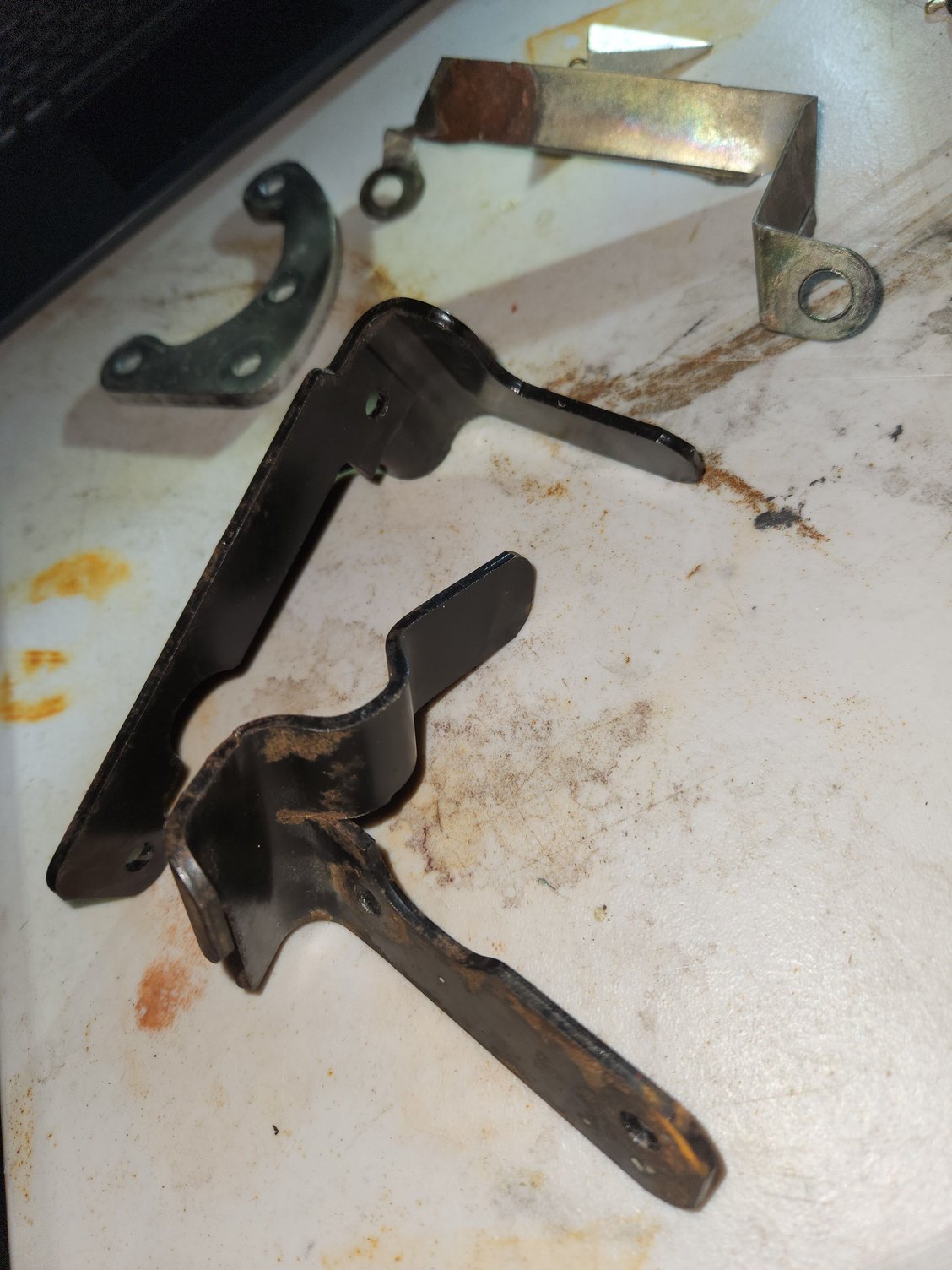

Hi there im buttoning up my swap and would love some help... i didnt take enough pictures i guess and forgot where a few things went. The 2 brackets are off the intake just not sure where exactly. The silver c looking bracket im not sure as i wasnt the one that took that off. The ground strap i believe goes to the fuel rail.... again just not sure where. Any help would be much appreciated.
2005 ls2 auto. Engine pulled due to damaged crank.

Sep 21, 2022 | 12:35 AM

JayTheHobo

Thread Starter

Intermediate

Joined: Sep 2019

Posts: 34

Likes: 4

From: Ft lauderdale

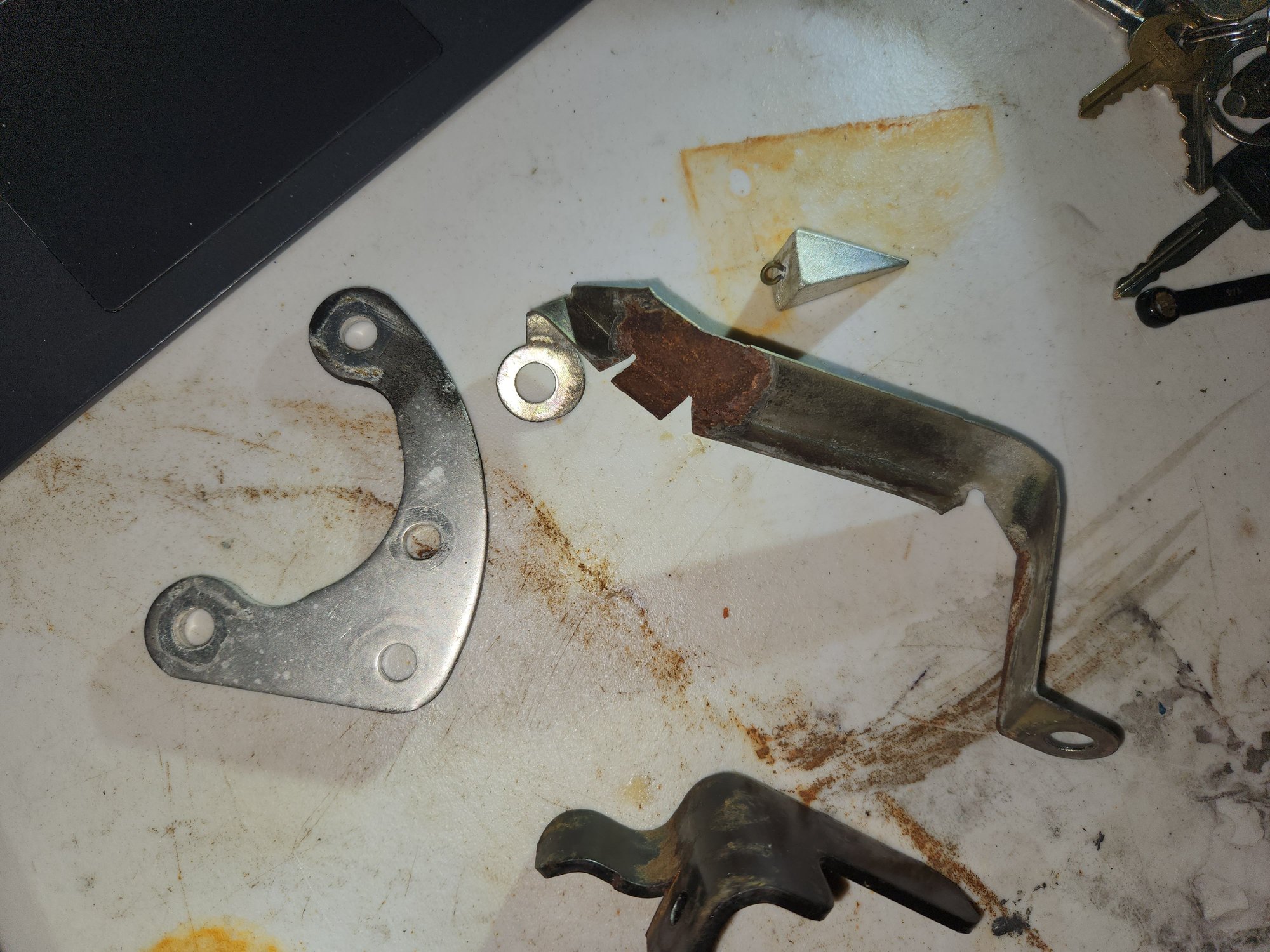

here. I found a pic of the brackets and how theyre mounted. Just need help finding the location of that weird ground strap.

Sep 21, 2022 | 07:53 PM

JayTheHobo

Thread Starter

Intermediate

Joined: Sep 2019

Posts: 34

Likes: 4

From: Ft lauderdale

The c looking piece goes to the power steering pump.

Sep 21, 2022 | 07:56 PM

JayTheHobo

Thread Starter

Intermediate

Joined: Sep 2019

Posts: 34

Likes: 4

From: Ft lauderdale

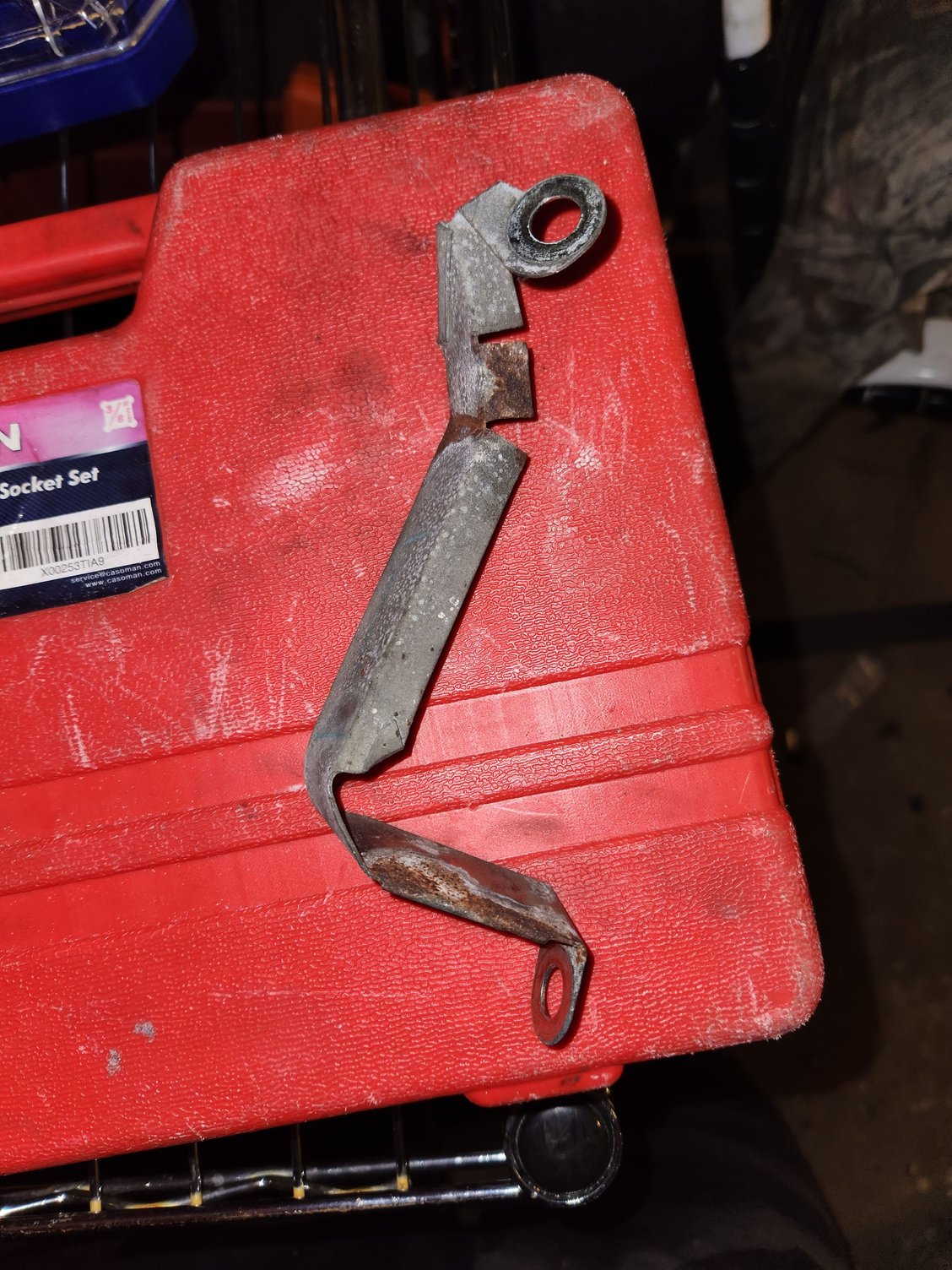

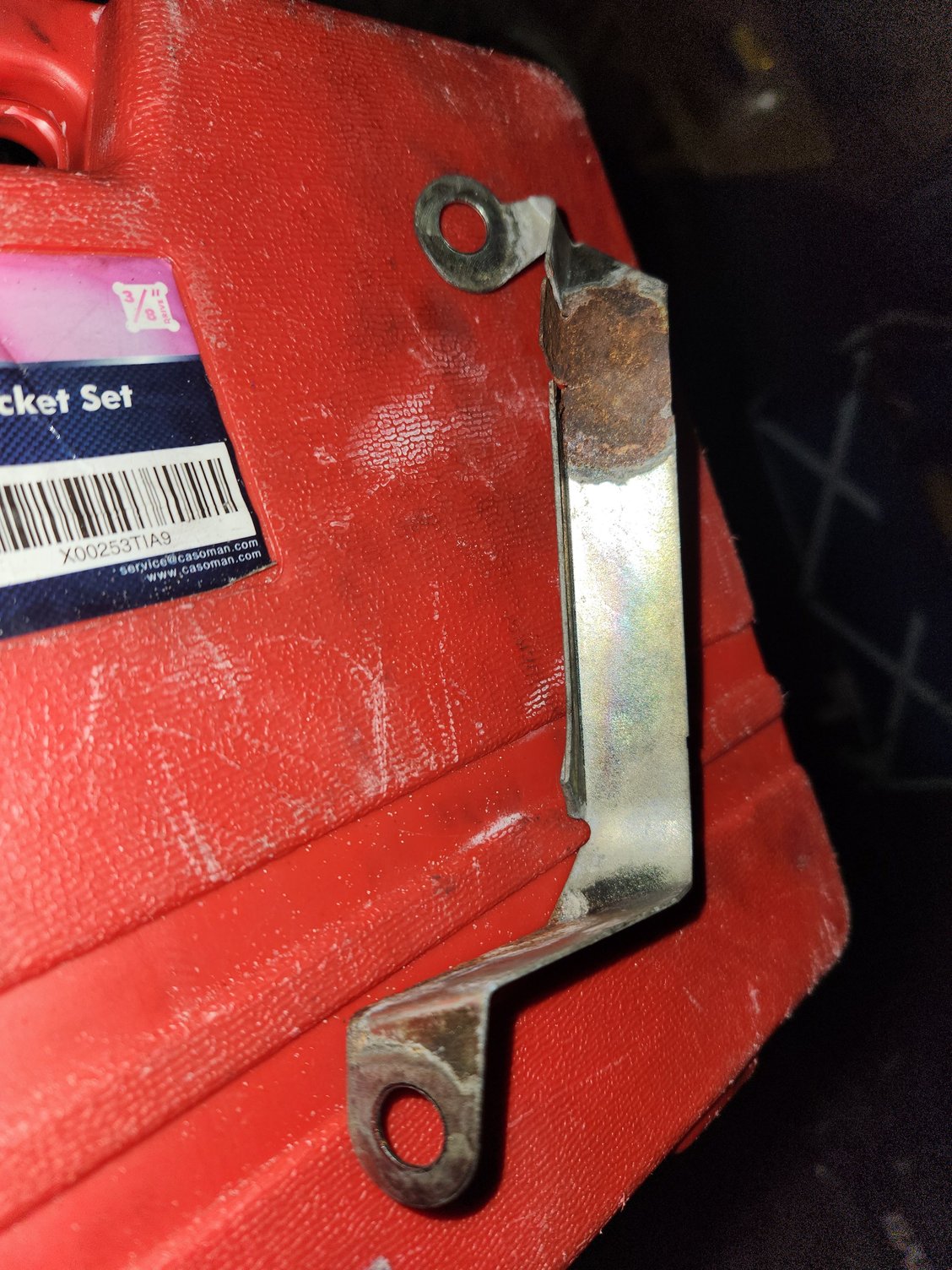

here is a closeup view of the last piece. It appears to be a ground? Somewhere around the intake or fuel rail area im pretty sure?

Sep 22, 2022 | 11:17 AM

rockymountain1999

Racer

Joined: Aug 2019

Posts: 412

Likes: 205

From: Castle Rock, CO.

2021 C6 of the Year Finalist - Modified

I did a cam and clutch swap on an Ls1 several years ago. This strap looks like the one that was holding back/supporting the stiff wire bundle that runs down past the bell housing and into the torque tube and back to the transmission. Maybe this is what that is?
