06-07 engine wire harness diagram

Anyone have the pin out for the throttle body from tb to ecu ? I need to ohm out the harness I'm getting a code for it and have already replaced the plug and 10in of the wiring. Installed another tb.

Nov 8, 2023 | 12:43 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,627

Likes: 4,071

From: Cape Coral, Florida

What’s the code ??…you normally don’t “ohm out” issues like this…resistance checks tell you NOTHING !!

Nov 8, 2023 | 01:13 PM

curtisb23

Thread Starter

Drifting

Joined: Sep 2014

Posts: 1,774

Likes: 38

[QUOTE=C5 Diag;1607219990]What’s the code ??…you normally don’t “ohm out” issues like this…resistance checks tell you NOTHING !![/QUOTE
ohm the wires out would tell me if there is a broken/Chaffed wire... i work on construction equipment i do this on a daily basis.

Nov 8, 2023 | 01:15 PM

curtisb23

Thread Starter

Drifting

Joined: Sep 2014

Posts: 1,774

Likes: 38

The codes are p2119 p2135

Nov 8, 2023 | 01:23 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,627

Likes: 4,071

From: Cape Coral, Florida

[QUOTE=curtisb23;1607220081]

Quote:

Originally Posted by C5 Diag

What’s the code ??…you normally don’t “ohm out” issues like this…resistance checks tell you NOTHING !![/QUOTE
ohm the wires out would tell me if there is a broken/Chaffed wire... i work on construction equipment i do this on a daily basis.

Yes, only if the wire is broken…if chaffed almost all the way through you will still see good resistance…that chaffed wire (power or the ground)has to handle the current flow…loaded circuit testing with a headlight bulb is how to do it correctly.

Last edited by C5 Diag; Nov 8, 2023 at 01:54 PM.

Nov 8, 2023 | 02:07 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,627

Likes: 4,071

From: Cape Coral, Florida

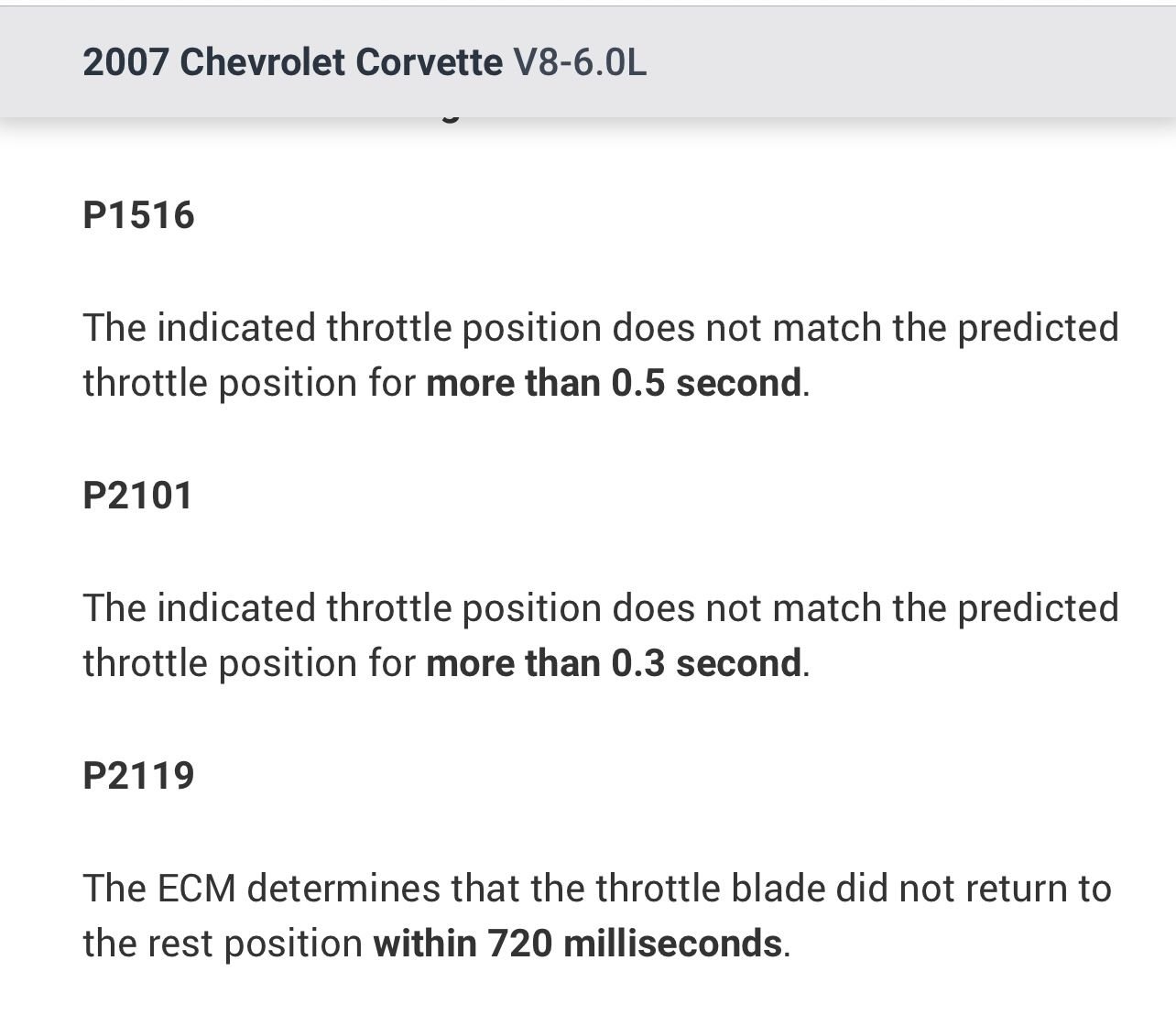

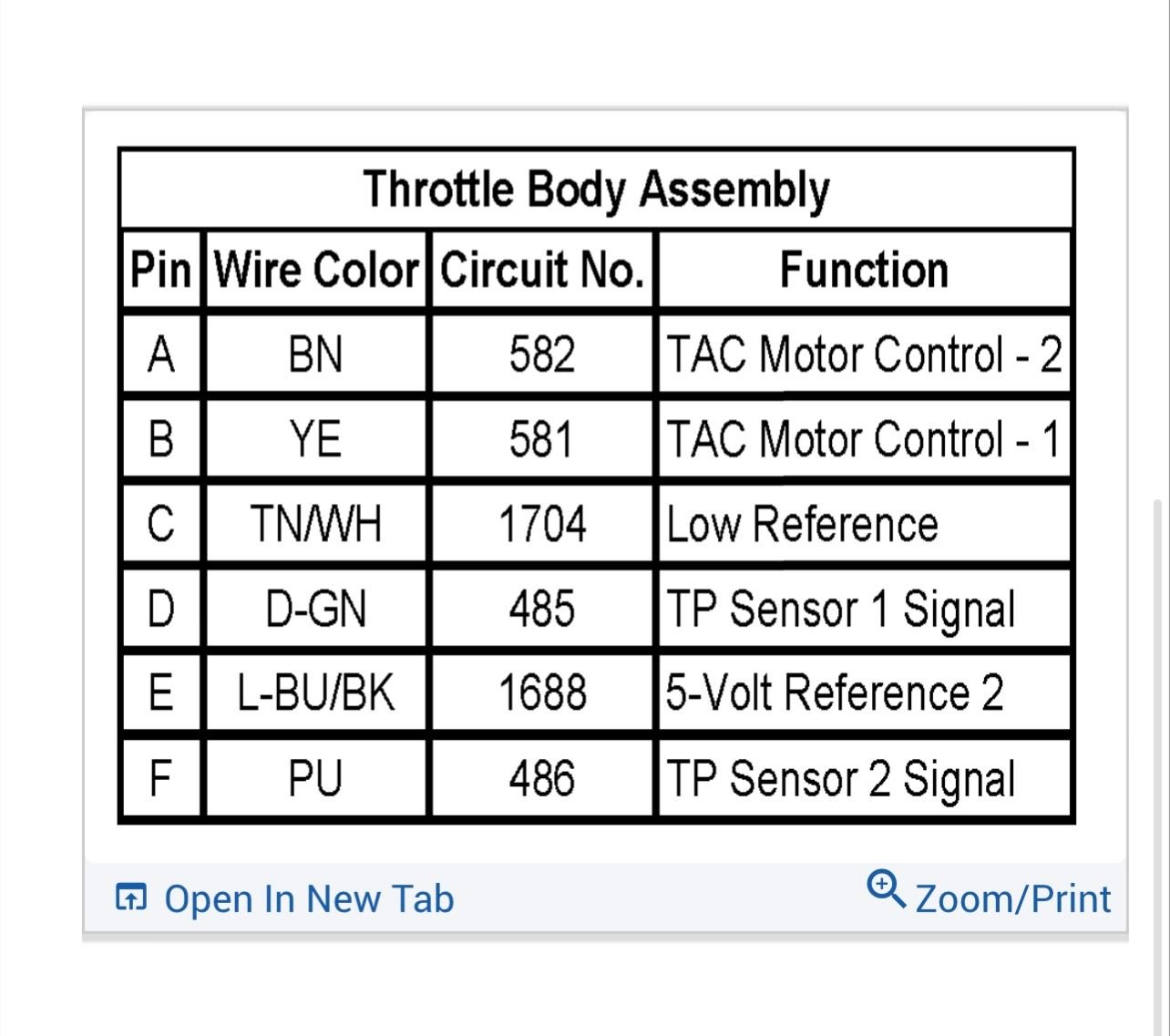

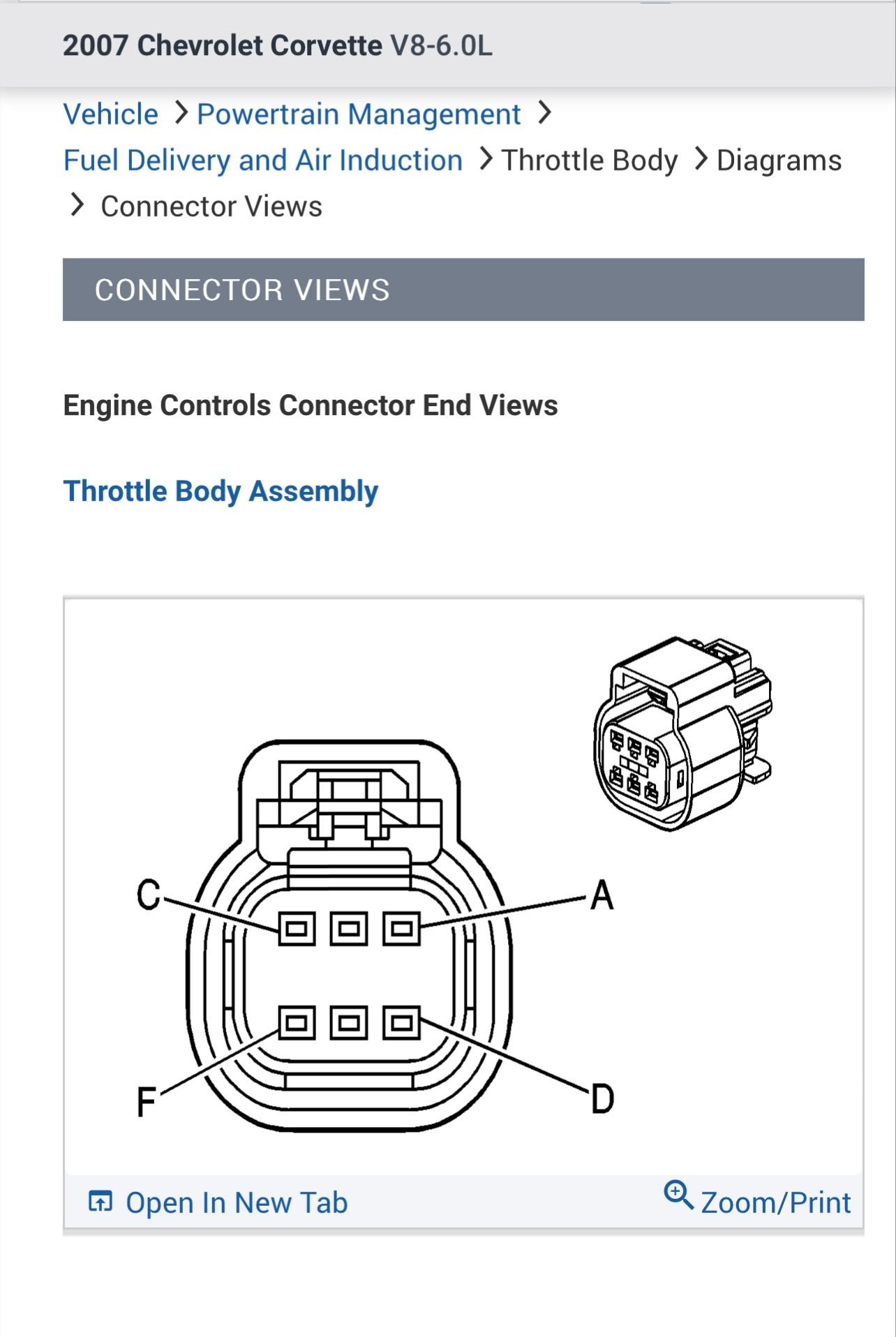

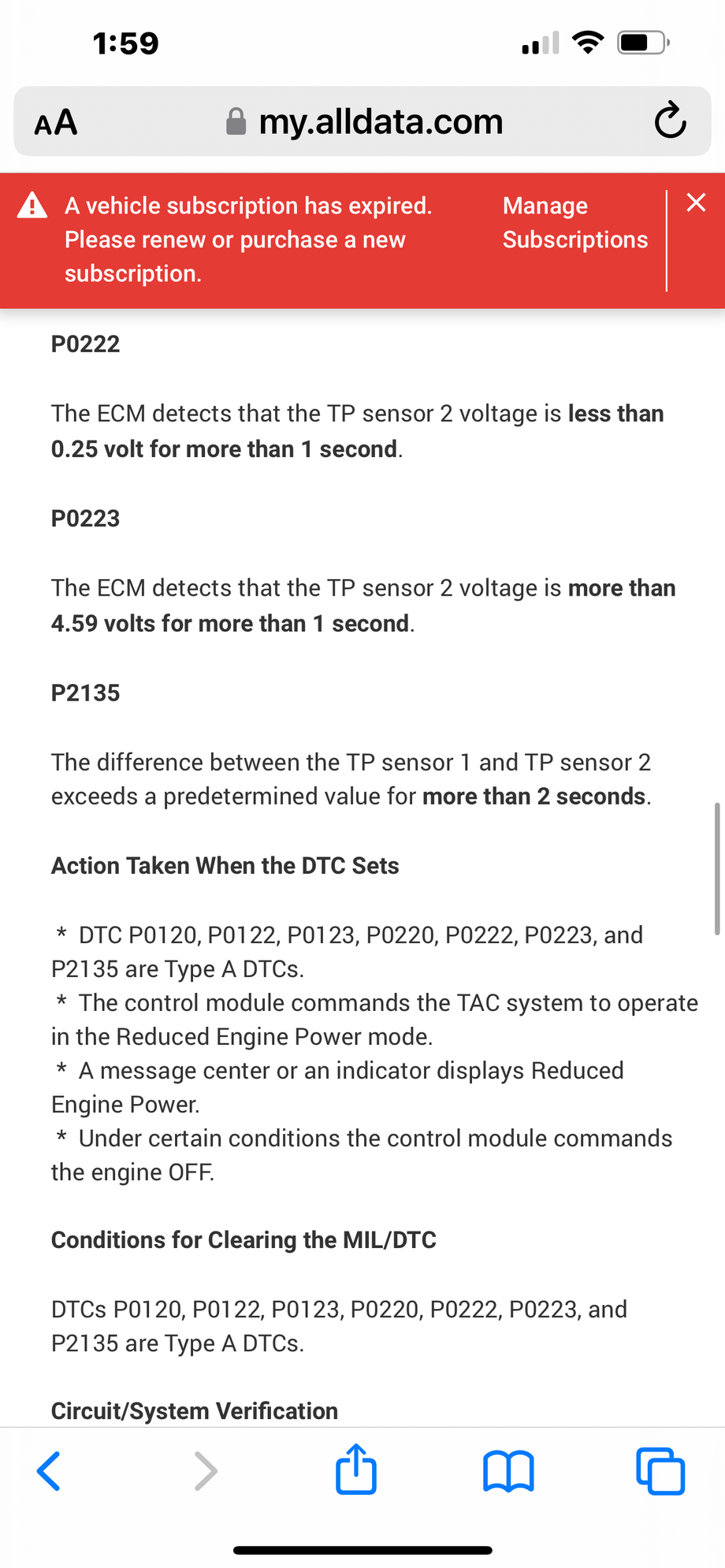

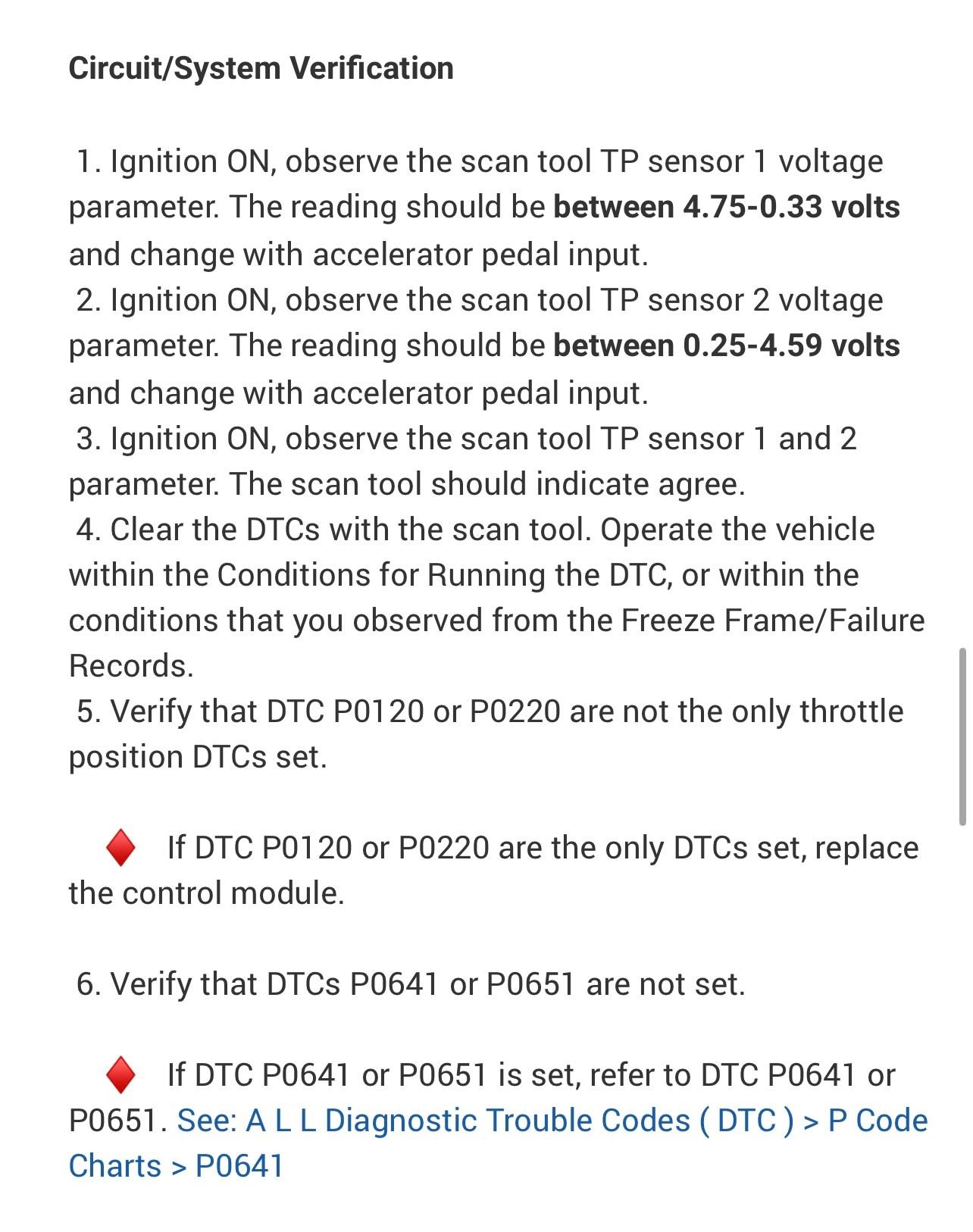

Using a labscope to check the P2135 is preferred vs a DVOM to see changes in the TPS 1 and 2 signals…wiring and code description below…is this an OEM TB ??…if not this may your problem !!
