Front Camera Video Interface - Perhaps a REAL alternative?
I am not going to mention any names, but for those of us that installed a front camera and now need an alternative that actually exists so that we can display the image on the display on the dash, can be ordered and from a real company. Has anyone tried this?

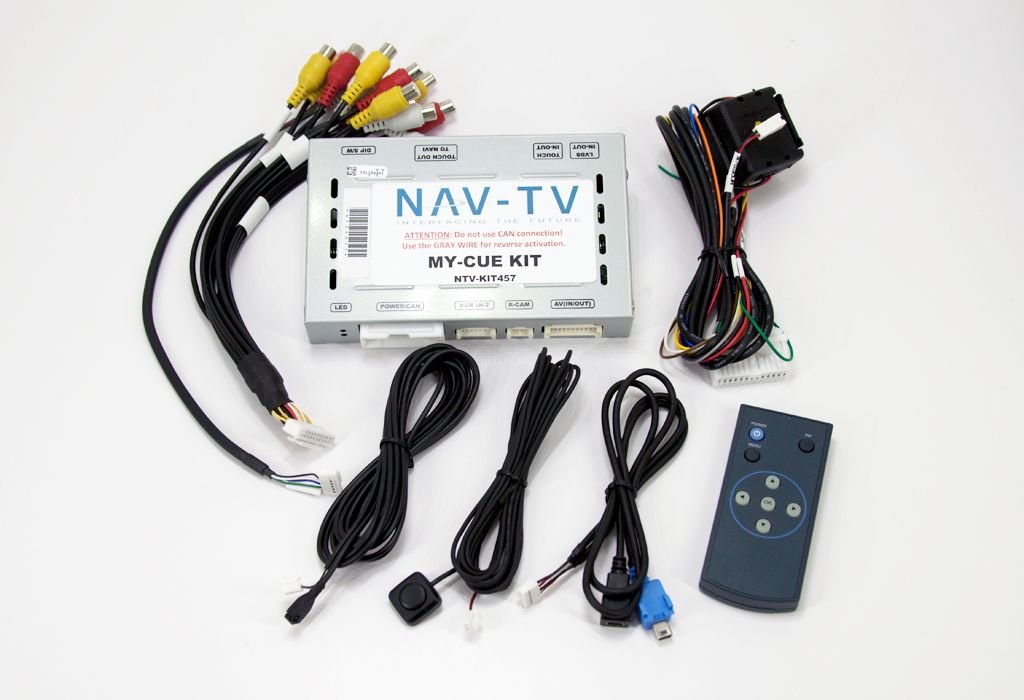

Ok google MY-CUE VIM and it will pop up first in the list.
It just does video, no phone mirror.
My wife's SLK 250 has one of this company's system installed and they are real and seem to stand behind their products.
Not cheap, but the system on her car was about the same.
What is the hive's collective opinion? Not fancy, not cheap, but will seem to do the job.
Last edited by Flame Red; Feb 16, 2016 at 04:01 PM.
Reason: Links to non-supporting vendor removed - against forum rules
Seems awful pricey. For a front camera only, I think I'd be more inclined to do something like this:
Not as convenient as putting it on the regular screen, but the whole thing costs well under $100, and how often do you use it? I was much more interested in the mirroring aspects of the Navtool, but I don't think we'll ever see that product.
Not as convenient as putting it on the regular screen, but the whole thing costs well under $100, and how often do you use it? I was much more interested in the mirroring aspects of the Navtool, but I don't think we'll ever see that product.
Not as convenient as putting it on the regular screen, but the whole thing costs well under $100, and how often do you use it? I was much more interested in the mirroring aspects of the Navtool, but I don't think we'll ever see that product.
If the other one were real, proven and shipping, I'd pay up to $1000 for it....
A freind/forum member pointed me to this one. Seems like it does the HDMI phone mirroring. Just one problem, I cannot read Korean! Anyone able to translate this? Seems like it fits the bill.
ok, this product looks good and will do the same job as that "other" product that I will not name. Here is the details. Cost is about 318 shipped priority Fedex from Korea.
[HD-LINK] IW03C-SB For Chevrolet Corvette Stingray, Suburban, Impala
홈 / Store / HD-LINK/ [HD-LINK] IW03C-SB For Chevrolet Corvette Stingray, Suburban, Impala
Back to previous page
iw03c-sb_b_img
Chevrolet Corvette, server vans, Impala dedicated HD-LINK
And Name: IW03C-SB Digital Multi Interface
And basic options: HDMI INPUT, LVDS INPUT, PGS & PDC support, RearCam INPUT, front camera support, AV IN Support
And Other: Optimized for 800 * 480 Genuine monitors
And apply the vehicle: (2015 ~) Chevrolet Corvette Stingray, Suburban, Impala
$ 261
Final total:
$ 261
Quantity:
Social
IW03C-SB For Chevrolet Corvette Stingray, Suburban, Impala " Tags: Chevrolet Interface, Chevrolet mirroring, HD-LINK, HDMI interface navigation, HDMI Interface, HD link, IW03C-SB, High definition smartphone mirroring, Video interface, Chevrolet Interface.
Please choose a currency.
Search for:
Product Category
AV Equipment & Modules
HD-LINK
D-LINK (No HDMI)
Interface
+
Parts
Other (Other Products)
Product Description
mirroringSmarphone Wireless Mirroring
navigationSettop Navigation
parking_assist_systemParking Assist System
front_view_cameraFront-View Camera
user_setting_modeUser Setting Mode
Revolution of Interface 'HD-LINK'
IW03C-SB Digital Multi Interface
For Chevrolet Corvette Stingray, Suburban, Impala
▶ Product Name: IW03C-SB
마이링크가 탑재된 2015년 이후 쉐보레 서버밴, 콜벳 스팅레이, 임팔라 지원
HDMI INPUT, supports HDMI Device
LVDS INPUT, LVDS (Digital) best picture quality at the output of the set top navigation application
Depending on the angle of the steering wheel that guides the rear lines (PGS: Parking Guide System), Park tronic sensor Graphics (PDC: Parking Distance Control) implementation
Rear Cam INPUT, external rear-view camera input support, PAS can self-rear power output when connected
Available front camera works
* Gear 'P' mode on 'D' setting changes to hours (8 seconds, 10 seconds, 15 seconds) maintain OEM front camera screen as the original screen return
* Gear 'R' mode on 'D' setting changes to hours (8 seconds, 10 seconds, 15 seconds) maintain OEM front camera screen as the original screen return
Support AV1 IN / AV2 Video 1 Audio LR IN offers
Optimized for 800 * 480 Genuine monitors
Vehicles entering the setting mode genuine Key and button provides an environment optimized for convenient user added visibility sex
Small size and easy workability
Supports the Corvette Stingray and Suburban and Impala of the Chevrolet since 2015. (With MyLink, LVDS connector of head unit)
Provide the HDMI input (HDMI device), LVDS-NAVI (Digital) input (Settop navigation), Rear camera Input, Front camera input.
When you use LVDS (Digital) output settop navigation, you can get highest picture quality. (N-LINK is Korea map only.)
Implement the PGS (Parking Guide-Line System) and PDC (Parking Distance Control) with a rear camera
When connecting PAS-CAN, It outputs rear power automatically.
Be possible connecting with front camera.
* When you change the gear to 'D' from 'P' or 'R' mode, switch automatically to front camera screen as much as you set timer (8, 10, 15 seconds).
After, return to the previous screen.
Provide the AV1 In and AV2 Video1 Sound LR In.
Optimization for original monitor of 800 * 480 High-resolution.
The user setting mode makes an optimized environment for user. And, the setting mode enters by original button.
Small size and easy install.
CAR COMPATIBILITY SHEET
Car Models Production Year Specific Models
Corvette Stingray 2015 - C7 (Equipped with 'MyLink' in 8-inch)
Suburban 2015 - Equipped with 'MyLink'
Impala 2015 - Equipped with 'MyLink' in 8-inch
It will not tolerate a little noise! Receiving the HDMI output of the wireless Wi-Fi receiver 'APCAST' to direct the output to LVDS.
In the current market there are many HDMI output capable devices. Does not cover the phone models available wireless mirroring APCAST, Google's Chrome cast and various Android PC,
DivX, etc ... Now, using the HD-LINK directly without any intermediate steps True high definition digital implementationIt is possible.
View the APCAST
HDMI output of the APCAST (Wi-Fi receiver) -> HD-LINK -> LVDS output to the original monitor.
Direct connect the HDMI signal without RGB convert.
[HD-LINK] High-Definition Settop Navigation
IW03C-SB (HD-LINK) + N-LINK (Settop Navigation)
* DIGITAL - LVDS (Digital to digital) / N-LINK - Atlantico 3D mounting
* Supported by the set-top navigation HDMI CablesAccept the
In general, the output of the set-top to be applied to imported car navigation is the RGB analog video signal, the advertisement of using the Digital output of nervous system structure for connecting an FPC film by decomposing geochisik navigation. It is free for the future A / S issues. HD-Link is the liberation of 100% in that part! Digital output is possible from the first set-top to use the navigation, there is no problem at all.
View the N-LINK Settop Navigation
HDMI output of the N-LINK (Settop Navigation) -> HD-LINK -> LVDS output to the original monitor.
Direct connect the HDMI signal without RGB convert.
More secure parking and a parking assistance system for easily. It is linked with the movement of the handle to be transformed Guidelines (PGS)And detecting an obstacle by expressing Park tronic sensors Graphics (PDC)It is supported at the same time. Guidelines are moving smoothly, without feeling cut off because the sensor accurately detects the distance to the obstacle, the operator can quickly see all information that is not in sight at a glance. The best parking assistance system is to be implemented in such a hers sharper picture with a neat UI!
View the Rear-CAM 'K2000-CD'
* Implement the PGS (Parking Guide-Line System) and PDC (Parking Distance Control) with a rear camera.
* SONY Super CCD2 Sensor, Rear-View Camera 'K2000-CD'
* Perfect waterproof.
HD-LINK works with a variety of front-around view camera or cameras that are sold on the market Automatically print out the image of the front camera on the 'P' or genuine monitoring of the vehicle when changing gear with 'D' mode in the 'R' modeThe. The display is automatically switched back to pure again after a certain time. Further, the holding time of the switch and the front screen can be adjusted freely by the user in the setting screen, the front gear can often determine the camera image using a button without genuine change.
View the Front-CAM 'Eieview MC5'
* When you change the gear to 'D' from 'P' or 'R' mode, switch automatically to front camera screen as much as you set timer (8, 10, 15 seconds). After, return to the previous screen.
* 180 ˚ Around Front-View Camera 'Eieview MC5' (Various view modes) - Panorama view (wide angle), Corner view (split), Top view.
* Perfect waterproof.
[HD-LINK] User Setting Mode
Offer set menus about all functions of the HD-LINK Interface. (Basic)
* User Interface Setting
Setting Mode simplifies operation support is available at your convenience and usageThe. HDMI, navigation, front and rear cameras, and the size and location of all of the screen, brightness, color adjustment, etc.
Possible, and can be configured to alchage On / Off settings and user information of the function. Get all the Screen Mode setting is appropriate for the environment in an easy and simple operation easy.
* Provide the user setting for mode each. (HDMI-Mirroring, Navigation, Rear & Front Camera)
* Control the color and brightness, location, size of the screen.
* Functions On / Off
* Interface infomation
A freind/forum member pointed me to this one. Seems like it does the HDMI phone mirroring. Just one problem, I cannot read Korean! Anyone able to translate this? Seems like it fits the bill.
Some of this is pretty hard to understand. I'm sure it's a machine translation from the Korean. I'm not sure what this means, for example.
It will not tolerate a little noise! Receiving the HDMI output of the wireless Wi-Fi receiver 'APCAST' to direct the output to LVDS.
In the current market there are many HDMI output capable devices. Does not cover the phone models available wireless mirroring APCAST, Google's Chrome cast and various Android PC,
DivX, etc ...
I'll be eagerly awaiting someone to give one of these a try.
Yes, the Google translate is a bit rough, but otherwise I would be totally clueless. Since I have a $325 for "The Vendor that shall not be named" I figured, what the heck. My only disappointment is that I have the side camera installed so I have to get some new front fender grilles and I get the pleasure of busting my knuckles getting the front fender off to replace them.
I'll post a thorough review once I receive it. Hopefully the instructions are in English but I bet not. If it is just plug and play I'll figure it out.
I tried to view http://indiwork.co.kr/ with both Firefox and Google. If you look at the top left of their site, there is a way to convert the currency to US dollars. There is also a way to translate the page into English. It makes it a little bit more understandable.
Just purchased barely used C7 and now I'm shopping around for a front camera. BUT I will NEVER buy from Asia again, did I say never ever. On my BMW image is flickering, overheating, not switching just to name a few. Patiently waiting for any news on the "other" product.
Yes, the Google translate is a bit rough, but otherwise I would be totally clueless. Since I have a $325 for "The Vendor that shall not be named" I figured, what the heck. My only disappointment is that I have the side camera installed so I have to get some new front fender grilles and I get the pleasure of busting my knuckles getting the front fender off to replace them.
I'll post a thorough review once I receive it. Hopefully the instructions are in English but I bet not. If it is just plug and play I'll figure it out.
Hopefully your existing camera install will work with the Korean unit. Looking forward to hearing all about it. I've got a friend who's wife is Korean. If you really need help with the directions, I can ask if she'll look at them.

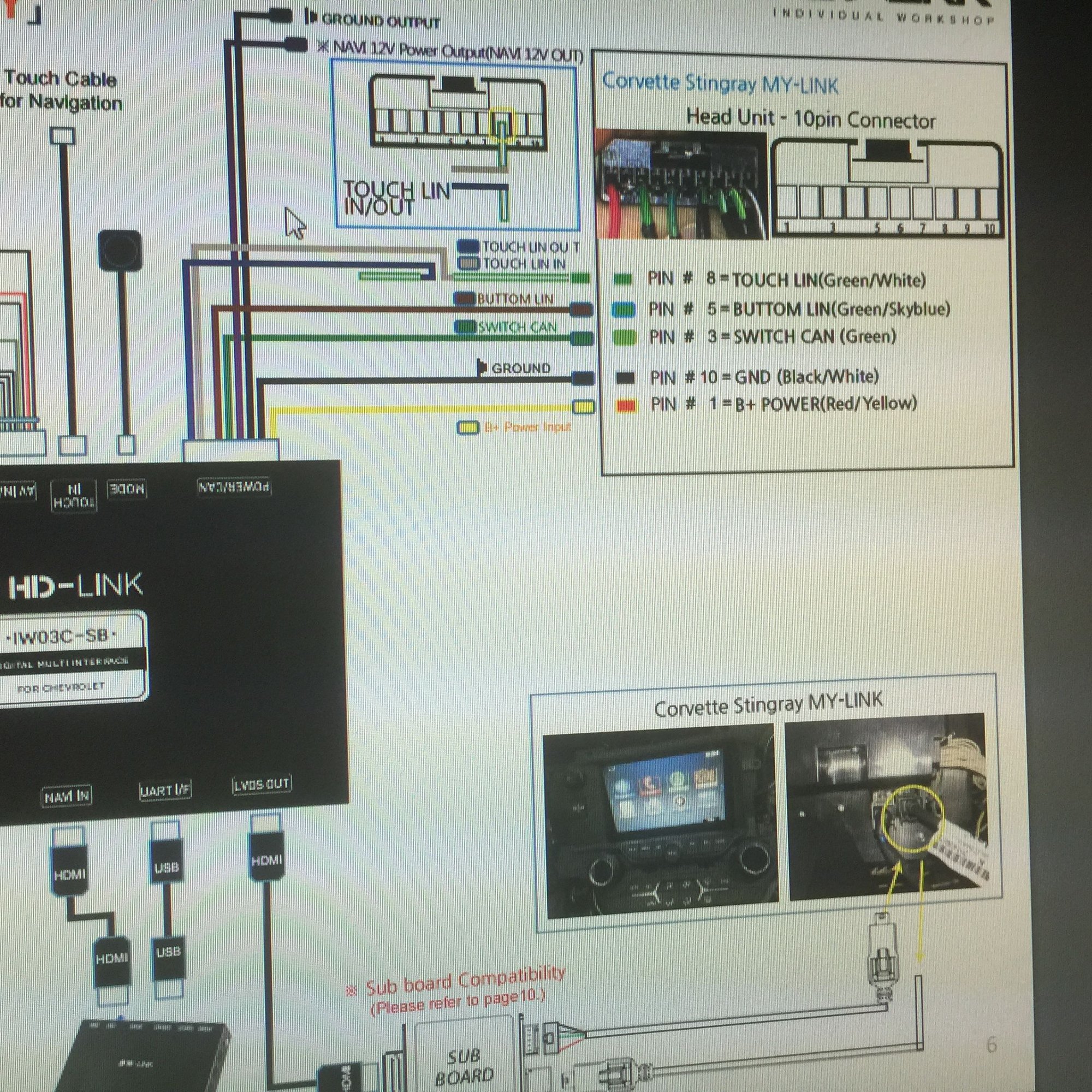

Got an email back from them. Alex is correct. This is not plug and play and requires removing the dash to access the plug that goes into the video screen.
Not good.
Last edited by Flame Red; Feb 18, 2016 at 09:04 AM.
I just back into parking spaces, don't see the need for something like this. I was looking into a camera for the back of my toy hauler that will put the picture on my iPhone. They are readily available, wireless video to iPhone or android, small camera can easily go behind the grill and a really good one is less then $200.
