Breaking the crank bolt
Instructor
Joined: Sep 2016
Posts: 193
Likes: 19
From: Henderson NV

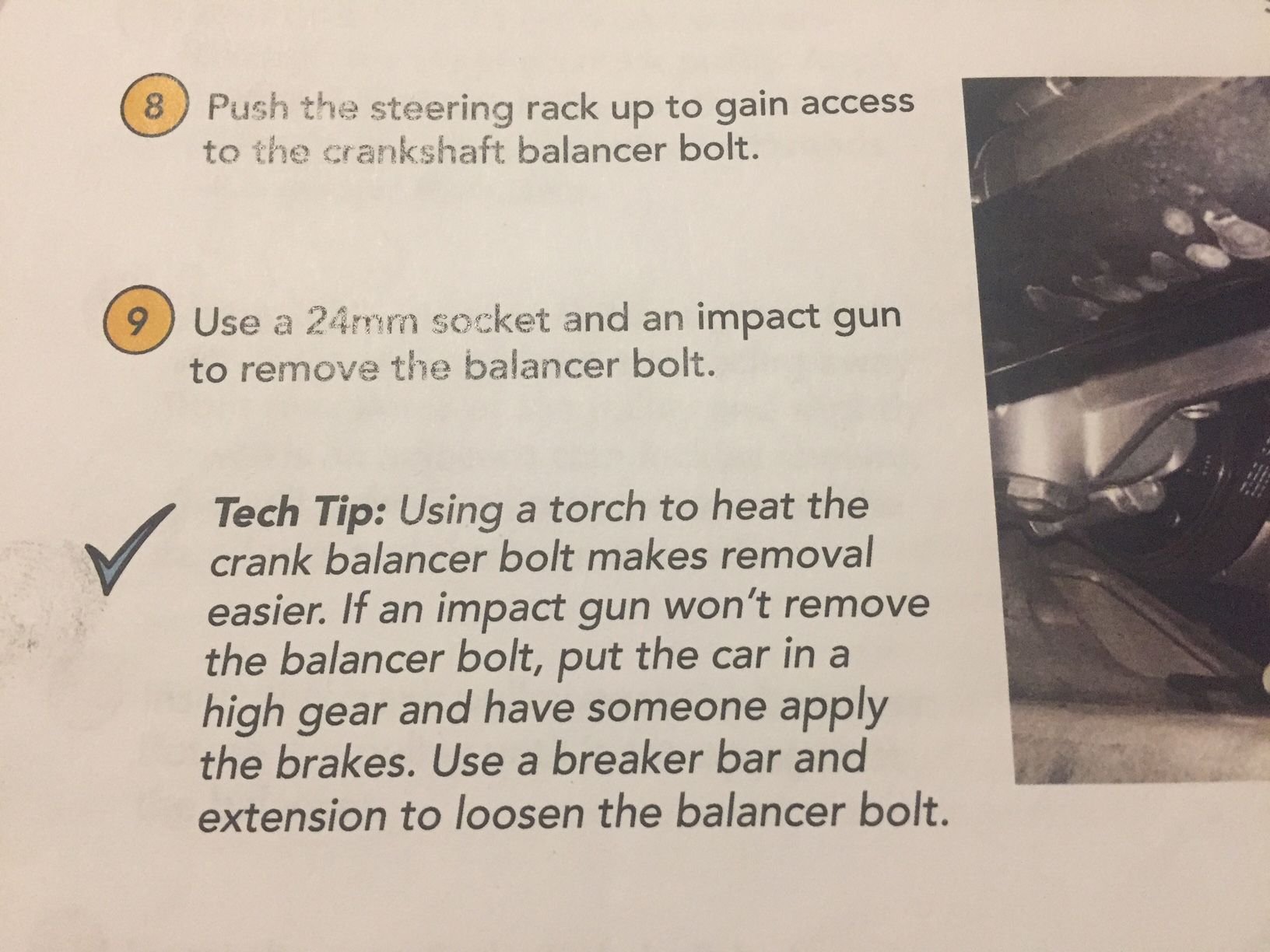

I have the automatic. I resorted to buying an ingersol rand pneumatic impact with a max torque of over 900 ft/lbs. Running it with 120 psi, I still couldn't get the bolt off without heating it. As far as installing the bolt, Procharger supplies a new bolt and I just used the impact wrench at a lower setting to install it. It ain't coming off......
Melting Slicks
Joined: Oct 2009
Posts: 2,004
Likes: 392
From: Long Island New York
You cant reuse the crank bolt, its a stretch bolt. You have to replace it with a new one and torque to correct spec... i have an extra one in the garage. Ill get you the part number if you like.
Tech Contributor
Joined: Jan 2015
Posts: 5,692
Likes: 1,451
Guys stop with the bad information. He is installing a procharger kit, it seems none of you have done so. I have installed one on my M7 car exactly 1 year ago, if auto you may need to pin the engine somehow:
1) Use a breaker bar with a 3-4 foot pipe slid onto the end. Have someone hold the brakes. Super easy.
2) Go to autozone and borrow a 250 ft-lb tq wrench, slide the pipe onto that and use it to torque the bolt to the specs given by procharger (240 ft-lbs if I remember correctly). You may need two people pulling on it or just the perfect angle. Once again, not hard.
You don't need a pulley puller or a torque multiplier or another crank bolt (the kit gives you a longer one), or anything fancy. I don't think you can fit an impact there anyways. Take a look at the below picture. There is not much space. Contact procharger, they can email you the install instructions so you can read it before getting the kit.
Other than the normal garage tools, I needed:
4 ft pipe that can fit over the tq wrench and breaker bar, 250 ftlb torque wrench, 4 ft pry bar, a 2nd set of hands, bent nose needle nose pliers for spark plug wires, a couple u joints with different size extensions, plastic panel pry tool (preferred).
Read my thread on my install, it explains any problems I've had and some hints:
https://www.corvetteforum.com/forums...-all-good.html
Search the forced induction section, there's at least another couple of writeups on this exact install (not A&A, not ECS). Oh yeah! and 1 preventative maintenance thing you can do to make sure you don't run into the problem I had. Take the tensioner assembly apart carefully and add grease/never-seize to all the moving parts. Mine wasn't moving properly and took me a while to realize why I had boost loss.
Attachment 48358639
1) Use a breaker bar with a 3-4 foot pipe slid onto the end. Have someone hold the brakes. Super easy.
2) Go to autozone and borrow a 250 ft-lb tq wrench, slide the pipe onto that and use it to torque the bolt to the specs given by procharger (240 ft-lbs if I remember correctly). You may need two people pulling on it or just the perfect angle. Once again, not hard.
You don't need a pulley puller or a torque multiplier or another crank bolt (the kit gives you a longer one), or anything fancy. I don't think you can fit an impact there anyways. Take a look at the below picture. There is not much space. Contact procharger, they can email you the install instructions so you can read it before getting the kit.
Other than the normal garage tools, I needed:
4 ft pipe that can fit over the tq wrench and breaker bar, 250 ftlb torque wrench, 4 ft pry bar, a 2nd set of hands, bent nose needle nose pliers for spark plug wires, a couple u joints with different size extensions, plastic panel pry tool (preferred).
Read my thread on my install, it explains any problems I've had and some hints:
https://www.corvetteforum.com/forums...-all-good.html
Search the forced induction section, there's at least another couple of writeups on this exact install (not A&A, not ECS). Oh yeah! and 1 preventative maintenance thing you can do to make sure you don't run into the problem I had. Take the tensioner assembly apart carefully and add grease/never-seize to all the moving parts. Mine wasn't moving properly and took me a while to realize why I had boost loss.
Attachment 48358639
Last edited by BrunoTheMellow; May 2, 2017 at 12:47 AM.
Thread Starter
Pro
Joined: Jul 2011
Posts: 707
Likes: 55
Guys stop with the bad information. He is installing a procharger kit, it seems none of you have done so. I have installed one on my M7 car exactly 1 year ago, if auto you may need to pin the engine somehow:
1) Use a breaker bar with a 3-4 foot pipe slid onto the end. Have someone hold the brakes. Super easy.
2) Go to autozone and borrow a 250 ft-lb tq wrench, slide the pipe onto that and use it to torque the bolt to the specs given by procharger (240 ft-lbs if I remember correctly). You may need two people pulling on it or just the perfect angle. Once again, not hard.
You don't need a pulley puller or a torque multiplier or another crank bolt (the kit gives you a longer one), or anything fancy. I don't think you can fit an impact there anyways. Take a look at the below picture. There is not much space. Contact procharger, they can email you the install instructions so you can read it before getting the kit.
Other than the normal garage tools, I needed:
4 ft pipe that can fit over the tq wrench and breaker bar, 250 ftlb torque wrench, 4 ft pry bar, a 2nd set of hands, bent nose needle nose pliers for spark plug wires, a couple u joints with different size extensions, plastic panel pry tool (preferred).
Read my thread on my install, it explains any problems I've had and some hints:
https://www.corvetteforum.com/forums...-all-good.html
Search the forced induction section, there's at least another couple of writeups on this exact install (not A&A, not ECS). Oh yeah! and 1 preventative maintenance thing you can do to make sure you don't run into the problem I had. Take the tensioner assembly apart carefully and add grease/never-seize to all the moving parts. Mine wasn't moving properly and took me a while to realize why I had boost loss.
1) Use a breaker bar with a 3-4 foot pipe slid onto the end. Have someone hold the brakes. Super easy.
2) Go to autozone and borrow a 250 ft-lb tq wrench, slide the pipe onto that and use it to torque the bolt to the specs given by procharger (240 ft-lbs if I remember correctly). You may need two people pulling on it or just the perfect angle. Once again, not hard.
You don't need a pulley puller or a torque multiplier or another crank bolt (the kit gives you a longer one), or anything fancy. I don't think you can fit an impact there anyways. Take a look at the below picture. There is not much space. Contact procharger, they can email you the install instructions so you can read it before getting the kit.
Other than the normal garage tools, I needed:
4 ft pipe that can fit over the tq wrench and breaker bar, 250 ftlb torque wrench, 4 ft pry bar, a 2nd set of hands, bent nose needle nose pliers for spark plug wires, a couple u joints with different size extensions, plastic panel pry tool (preferred).
Read my thread on my install, it explains any problems I've had and some hints:
https://www.corvetteforum.com/forums...-all-good.html
Search the forced induction section, there's at least another couple of writeups on this exact install (not A&A, not ECS). Oh yeah! and 1 preventative maintenance thing you can do to make sure you don't run into the problem I had. Take the tensioner assembly apart carefully and add grease/never-seize to all the moving parts. Mine wasn't moving properly and took me a while to realize why I had boost loss.
I've gone and purchased myself a 4ft breaker bar and 4ft pry bar in preparation. I've already got a 220 ft lbs torque wrench but its on a pretty short handle, so I'll need to get a cheater pipe to go over it. My impact gun can do 300ft lbs, but 60lbs over spec is going to be a bit risky I would say?
I'm pretty sure I have everything else already. Did the spark plugs come in the kit, or did you need to buy them separately?
Melting Slicks
Joined: Jun 2012
Posts: 2,226
Likes: 1,029
From: Thomas Texas
A pipe on a breaker bar should work just fine.
By the way, a friend tried to reinstall the crank pulley on his C6 using the old crank bolt. Its too short and stripped the threads in crank. Had to have it drilled and re tapped.
Lesson learned....always use a long pulley installation bolt to pull the new pulley on the crankshaft.
Standard procedure is to pin the pulley on the crank anyways.
By the way, a friend tried to reinstall the crank pulley on his C6 using the old crank bolt. Its too short and stripped the threads in crank. Had to have it drilled and re tapped.
Lesson learned....always use a long pulley installation bolt to pull the new pulley on the crankshaft.
Standard procedure is to pin the pulley on the crank anyways.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Tech Contributor
Joined: Jan 2015
Posts: 5,692
Likes: 1,451
Awesome write-up in your thread man. Thanks so much for this.
I've gone and purchased myself a 4ft breaker bar and 4ft pry bar in preparation. I've already got a 220 ft lbs torque wrench but its on a pretty short handle, so I'll need to get a cheater pipe to go over it. My impact gun can do 300ft lbs, but 60lbs over spec is going to be a bit risky I would say?
I'm pretty sure I have everything else already. Did the spark plugs come in the kit, or did you need to buy them separately?
I've gone and purchased myself a 4ft breaker bar and 4ft pry bar in preparation. I've already got a 220 ft lbs torque wrench but its on a pretty short handle, so I'll need to get a cheater pipe to go over it. My impact gun can do 300ft lbs, but 60lbs over spec is going to be a bit risky I would say?
I'm pretty sure I have everything else already. Did the spark plugs come in the kit, or did you need to buy them separately?
No, the plugs not come with the kit, I bought them on Amazon IIRC. PM me your email and i'll send you the install instruction.
