C7 lifters kit anywhere?
Thread Starter
Instructor
Joined: May 2023
Posts: 172
Likes: 10
C7 lifters kit anywhere?
About to get
- new lifters
- physically disable DOD.
- install a non-DOD valve lifter oil manifold (VLOM)
Any kit or vendor to recommend? I'm in Europe but glad to order from US if I can't source it here
I will also:
- replace trunnions (https://www.corvetteforum.com/forums...-upgrades.html)
- install ARP head stud kit
- lifter oil filter: 12623757 + gasket 12661912 (or reuse mine?)
What other maintenance should I do as I'm that far in the engine overhaul? I have new injectors/plugs
- new lifters
- physically disable DOD.
- install a non-DOD valve lifter oil manifold (VLOM)
Any kit or vendor to recommend? I'm in Europe but glad to order from US if I can't source it here
I will also:
- replace trunnions (https://www.corvetteforum.com/forums...-upgrades.html)
- install ARP head stud kit
- lifter oil filter: 12623757 + gasket 12661912 (or reuse mine?)
What other maintenance should I do as I'm that far in the engine overhaul? I have new injectors/plugs
Last edited by mjollnir51; May 29, 2025 at 09:14 AM.
Safety Car
Joined: Jul 2019
Posts: 3,844
Likes: 1,302
From: nashville TN
Brian tooley racing will have everything you need. would recommend Johnson link bar lifters over any ls7 style or caddy lifter. eliminates the lifter trays which can allow the lifter to rotate in the tray destroying the lifter and cam.
che trunnions are always quality.
arp head bolts do the job for half the cost of arp studs. if your doing all this may as well cam it and get more fuel and more lift/duration
che trunnions are always quality.
arp head bolts do the job for half the cost of arp studs. if your doing all this may as well cam it and get more fuel and more lift/duration
Last edited by 9sec; May 30, 2025 at 04:17 PM.
Thread Starter
Instructor
Joined: May 2023
Posts: 172
Likes: 10
Thanks for the heads-up. funny enough I sent a message to Brian in the mean time. Jonhson seems out of stock or decommissioned so here's my list for now, I hope I didn't miss anything:
- Trunnions kit: Comp Cams 13702-KIT or BTR TK001 or TK001NB which diff?
- Comp Cams 850-16 Hyd Roller Lifters (are they shorter than stock / can I use them with stock cam?)
- Keep original GM lifter tray? Compatible with the Comp Cams lifters?
- ARP head bolt kit 234-3710
- Head gasket GM 12659260 (seems 12688943 is also a fit)
- Fuel pump gasket 12623308
- Both high pressure fuel lines (those inside the valley between fuel pump and fuel rails)
- Valve cover gasket (2) 12619787
- Intake manifold gasket (8) 12626354
- MAF 23262344
- Trunnions kit: Comp Cams 13702-KIT or BTR TK001 or TK001NB which diff?
- Comp Cams 850-16 Hyd Roller Lifters (are they shorter than stock / can I use them with stock cam?)
- Keep original GM lifter tray? Compatible with the Comp Cams lifters?
- ARP head bolt kit 234-3710
- Head gasket GM 12659260 (seems 12688943 is also a fit)
- Fuel pump gasket 12623308
- Both high pressure fuel lines (those inside the valley between fuel pump and fuel rails)
- Valve cover gasket (2) 12619787
- Intake manifold gasket (8) 12626354
- MAF 23262344
Last edited by mjollnir51; Jun 1, 2025 at 06:05 AM.
Safety Car
Joined: Jul 2019
Posts: 3,844
Likes: 1,302
From: nashville TN
Thanks for the heads-up. funny enough I sent a message to Brian in the mean time. Jonhson seems out of stock or decommissioned so here's my list for now, I hope I didn't miss anything:
- Trunnions kit: Comp Cams 13702-KIT or BTR TK001 or TK001NB which diff?
- Comp Cams 850-16 Hyd Roller Lifters (are they shorter than stock / can I use them with stock cam?)
- Keep original GM lifter tray? Compatible with the Comp Cams lifters?
- ARP head bolt kit 234-3710
- Head gasket GM 12659260 (not sure this is OK for DOD disable or 12688943 would be better?)
- Fuel pump gasket 12623308
- Both high pressure fuel lines (those inside the valley between fuel pump and fuel rails)
- Trunnions kit: Comp Cams 13702-KIT or BTR TK001 or TK001NB which diff?
- Comp Cams 850-16 Hyd Roller Lifters (are they shorter than stock / can I use them with stock cam?)
- Keep original GM lifter tray? Compatible with the Comp Cams lifters?
- ARP head bolt kit 234-3710
- Head gasket GM 12659260 (not sure this is OK for DOD disable or 12688943 would be better?)
- Fuel pump gasket 12623308
- Both high pressure fuel lines (those inside the valley between fuel pump and fuel rails)
if not then talk to gwatney performance in Arkansas use only oem lifter trays if you aren't going link bar. anything else is prone to fail.
Thread Starter
Instructor
Joined: May 2023
Posts: 172
Likes: 10
Thanks for pointing that out. That was on my checklist before ordering, all lifters I found are 0.30" and I suspected that was shorter than stock.
I want to retain stock lift height (and would not change cam for now unless it's scorched)
I just want to have better trunions than original, what are my options? Just replace with GM trunions kit if that even exist?
There's quite a lot to figure out. I just want reliability and not really looking for performance upgrade for now. But if I have to swap cam, why not.. I'm already kind of deep in the engine if I swap lifters..
I want to retain stock lift height (and would not change cam for now unless it's scorched)
I just want to have better trunions than original, what are my options? Just replace with GM trunions kit if that even exist?
There's quite a lot to figure out. I just want reliability and not really looking for performance upgrade for now. But if I have to swap cam, why not.. I'm already kind of deep in the engine if I swap lifters..
Last edited by mjollnir51; May 30, 2025 at 04:14 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Safety Car
Joined: Jul 2019
Posts: 3,844
Likes: 1,302
From: nashville TN
Thanks for pointing that out. That was on my checklist before ordering, all lifters I found are 0.30" and I suspected that was shorter than stock.
I want to retain stock lift height (and would not change cam for now unless it's scorched)
I just want to have better trunions than original, what are my options? Just replace with GM trunions kit if that even exist?
There's quite a lot to figure out. I just want reliability and not really looking for performance upgrade for now. But if I have to swap cam, why not.. I'm already kind of deep in the engine if I swap lifters..
I want to retain stock lift height (and would not change cam for now unless it's scorched)
I just want to have better trunions than original, what are my options? Just replace with GM trunions kit if that even exist?
There's quite a lot to figure out. I just want reliability and not really looking for performance upgrade for now. But if I have to swap cam, why not.. I'm already kind of deep in the engine if I swap lifters..
when your doing lifters springs etc EVERYTHING has to be measured from lifter height to pushrod length and cam degree if you go that route. you can run a 38 % more fuel cam lobe and still have stock like reliability and virtually no cam chop in a stage 1 btr cam. single bolt cam full vvt delete allows for proper cam degree . your tearing the top end out just to do lifters so buy once cry once especially if your not in the USA where parts are easy and plentiful to get
Race Director
Joined: Apr 2000
Posts: 15,344
Likes: 4,009
From: Texas
Thanks for pointing that out. That was on my checklist before ordering, all lifters I found are 0.30" and I suspected that was shorter than stock.
I want to retain stock lift height (and would not change cam for now unless it's scorched)
I just want to have better trunions than original, what are my options? Just replace with GM trunions kit if that even exist?
There's quite a lot to figure out. I just want reliability and not really looking for performance upgrade for now. But if I have to swap cam, why not.. I'm already kind of deep in the engine if I swap lifters..
I want to retain stock lift height (and would not change cam for now unless it's scorched)
I just want to have better trunions than original, what are my options? Just replace with GM trunions kit if that even exist?
There's quite a lot to figure out. I just want reliability and not really looking for performance upgrade for now. But if I have to swap cam, why not.. I'm already kind of deep in the engine if I swap lifters..
DoD / AFM you can program out but you'll still have the lifters. Gotta swap the cam.
Instructor
Joined: Sep 2016
Posts: 207
Likes: 34
That is correct and also the timing is slightly different and the opening/closing ramps are a bit different.
However, from what I understood the differences DOD lobes / non DOD lobes are so small, that I can't imagine that it really makes a difference that you can feel.
However, I might have missed something here.
However, from what I understood the differences DOD lobes / non DOD lobes are so small, that I can't imagine that it really makes a difference that you can feel.
However, I might have missed something here.
Drifting
Joined: Apr 2000
Posts: 1,390
Likes: 36
From: INDIANA
There are places that make a non-dod cam with the same specs as the stock cam, Scoggins Dickey is one place. If you use one of those you can use GM lifters and pushrods and not have to worry about any geometry issues. Plus they sell the whole kit and have good tech advice as well.
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
Melting Slicks
Joined: Feb 2018
Posts: 2,184
Likes: 1,049
From: North Texas
Just thinking out loud, I wonder if someone could design and build a lifter that was just the same height as an AFM lifter that was not engaged in the AFM mode, and you could just drop in this new lifter replacing the all the AFM lifters. This would not require the replacement of the cam, a lot easier operation.
Since this new lifter would be the same length as a locked AFM lifter would it not then just act the same as when the AFM is not engaged with the benefit of never having any of the issues of the collapsible stock AFM lifter? And the engine would run just as it does when the AFM is not engaged.
Thoughts...............
Since this new lifter would be the same length as a locked AFM lifter would it not then just act the same as when the AFM is not engaged with the benefit of never having any of the issues of the collapsible stock AFM lifter? And the engine would run just as it does when the AFM is not engaged.
Thoughts...............
Burning Brakes
Joined: Mar 2022
Posts: 1,220
Likes: 733
From: Phoenix, Arizona
There are places that make a non-dod cam with the same specs as the stock cam, Scoggins Dickey is one place. If you use one of those you can use GM lifters and pushrods and not have to worry about any geometry issues. Plus they sell the whole kit and have good tech advice as well.
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
Instructor
Joined: Sep 2016
Posts: 207
Likes: 34
Just thinking out loud, I wonder if someone could design and build a lifter that was just the same height as an AFM lifter that was not engaged in the AFM mode, and you could just drop in this new lifter replacing the all the AFM lifters. This would not require the replacement of the cam, a lot easier operation.
Since this new lifter would be the same length as a locked AFM lifter would it not then just act the same as when the AFM is not engaged with the benefit of never having any of the issues of the collapsible stock AFM lifter? And the engine would run just as it does when the AFM is not engaged.
Thoughts...............
Since this new lifter would be the same length as a locked AFM lifter would it not then just act the same as when the AFM is not engaged with the benefit of never having any of the issues of the collapsible stock AFM lifter? And the engine would run just as it does when the AFM is not engaged.
Thoughts...............
Instructor
Joined: Sep 2016
Posts: 207
Likes: 34
I assume the geometry of the valve train is the same on the DOD and non DOD cylinders (other than the cam nose, the lifter and the pushrod) ?
If the geometry is the same (other than the parts mentioned above), you would just need the hardware for non DOD cylinders and everything should fit (still I would measure everything) .
Last edited by goec2468; Jun 1, 2025 at 01:27 PM.
Thread Starter
Instructor
Joined: May 2023
Posts: 172
Likes: 10
Thx for all the replies

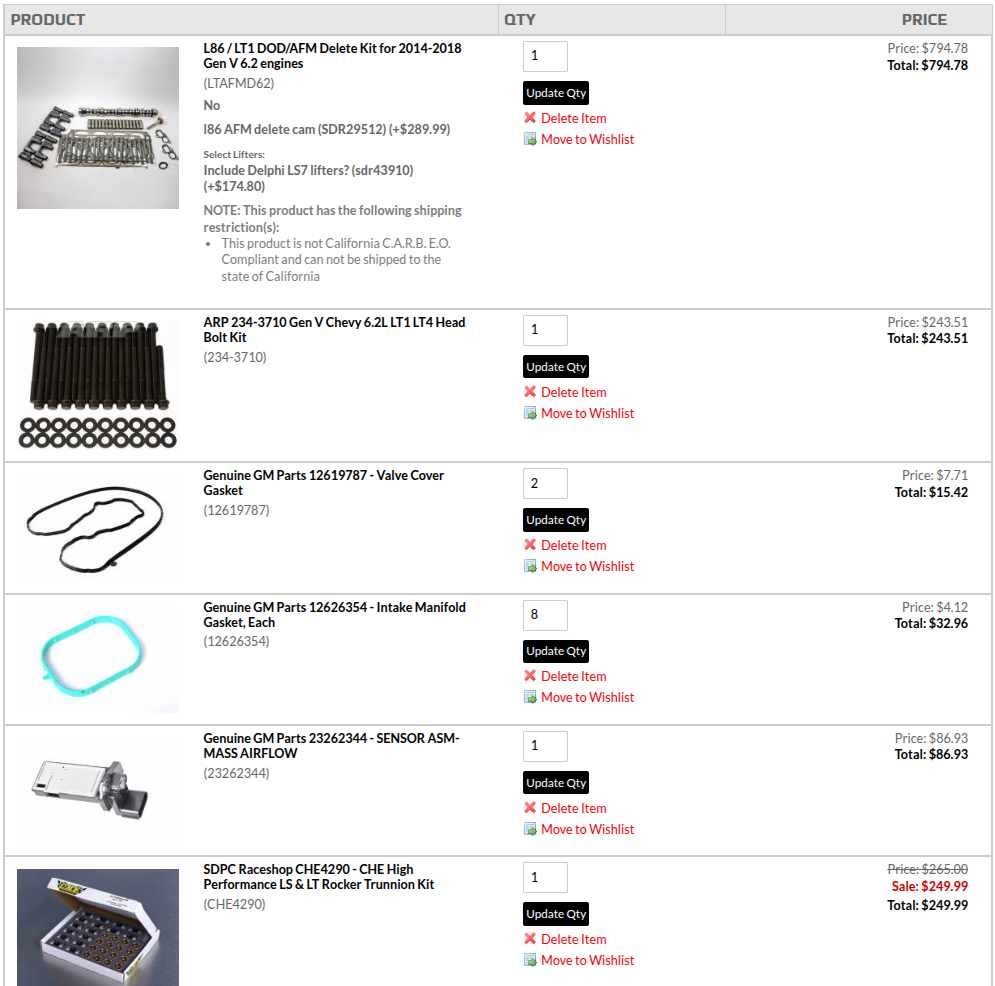

Man, exactly what I needed ty!! SKU: LTAFMD62. Contacting them right now
There are places that make a non-dod cam with the same specs as the stock cam, Scoggins Dickey is one place. If you use one of those you can use GM lifters and pushrods and not have to worry about any geometry issues. Plus they sell the whole kit and have good tech advice as well.
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
Thread Starter
Instructor
Joined: May 2023
Posts: 172
Likes: 10
You don't have to buy a replacement VLOM cover, there are places that sell a block off piece that installs in the oil port on top of the VLOM and blocks all oil to the solenoids. $30. You then also use the 8 plugs in the kit to seal up the oil towers on the block that go to the afm/dod lifters.
Isn't it redundant job tho? If I block the solenoids with the 8 plugs in the kit why is that part needed?
