C7Z Dyno thread


Old 04-22-2019, 10:32 AM
  #1
Terminator_mk6
Junior Member
Thread Starter

Terminator_mk6's Avatar

Member Since: Mar 2019
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Default C7Z Dyno thread

Coming from the cobra forums there were a few threads for dyno numbers. I searched here and didn't see one. I believe it helps plan future mods and see what works for the cars.

Figured a simple list of what is done to the car and what type of dyno as well as a8 vs m7.
Terminator_mk6 is offline
Old 05-01-2019, 01:04 AM
  #2
Freaked Ls3
CF Senior Member
Support Corvetteforum!

Freaked Ls3's Avatar

Member Since: Mar 2009
Location: NW
Posts: 632
Received 11 Likes on 10 Posts
Default

I am looking for stock M7 Z06 dyno’s and with bolt on mods. Hope people post up on this
Freaked Ls3 is offline
Old 05-01-2019, 07:53 AM
  #3
K2XSNOW
Junior Member

K2XSNOW's Avatar

Member Since: Mar 2018
Posts: 31
Received 18 Likes on 6 Posts
Default

DYNOJET - 88 deg. F. - 44% Humitity - SAE 1.03 CF - Dens Alt: 2650
'17 M7 - Drop-in Filter, Borla X, Ported TB
1st: 579 / 594 AF:14.63
2nd: 577 / 594 AF:14.45
3rd: 580 / 588 AF:15.00

Installed Halltech Intake to replace the drop-in filter. I can post details later.
K2XSNOW is offline
Old 05-01-2019, 03:28 PM
  #4
DTOM
CF Senior Member

Member Since: Sep 2017
Posts: 179
Likes: 0
Received 33 Likes on 29 Posts
C7 of Year Finalist (performance mods) 2019
Default

2019 Z06/Z07 A8

Dynojet

AFE Intake
NW 103 TB
Ported Blower
18% lower
ARH 2" long tubes
Tuned 93/100 octane via dual map toggle switch
Trans and engine tuned


702rwhp / 736rwtq
DTOM is offline
Old 05-01-2019, 03:48 PM
  #5
OH THREE Z
CF Senior Member

OH THREE Z's Avatar

Member Since: Mar 2004
Location: West Chester Ohio
Posts: 2,287
Received 130 Likes on 91 Posts
2018 C4 of Year Finalist
Default

i have the flowing on my 15 M7 Z

halltech
18 % pulley
1 7/8 headers
corsa extreme
meth and E85
cooling mods
tune

i made 696 692 on a mustang dyno with 93 still in the tank. it is nasty fast and makes my stock gen v viper feel slow
OH THREE Z is offline
Old 05-01-2019, 08:22 PM
  #6
gr8del
CF Member

gr8del's Avatar

Member Since: Jul 2009
Location: Dallas TX
Posts: 62
Received 11 Likes on 6 Posts
Default

2015 M7

AFE intake
Mamo PTB
BTR stage 2 cam
CNC heads
15% lower
kooks 2” headers
kooks catted xpipe
corsa xtreme
DSX Low side fuel kit
DSX flex fuel kit
weapon x HX


694 on pump 93
729 on E40 (ran out of high side on conservative tune)

Last edited by gr8del; 05-01-2019 at 08:23 PM.
gr8del is offline
Old 05-01-2019, 08:29 PM
  #7
AZGASSER
CF Senior Member

AZGASSER's Avatar

Member Since: Aug 2002
Location: USA
Posts: 1,450
Received 226 Likes on 171 Posts
Default

2300 w/ 80mm upper
23% power pulley
103mm TB
5” Custom CAI
Heads/cam
ARH 1 7/8s
meth
E50
low side fuel pump

860rwhp
AZGASSER is offline
Old 05-02-2019, 10:36 AM
  #8
TOPSPOT
CF Senior Member

TOPSPOT's Avatar

Member Since: Sep 2014
Location: Los Angeles California
Posts: 150
Received 31 Likes on 23 Posts
Default

2019 C7 Z07 M7

Halltech CFV
Tony Mamo Ported TB
NorCal Cat Delete
Akrapovic Evolution
2.175” Upper
Alky Meth Dual Nozzle
DSX Flex Fuel
Cordes Performance Heat Exchanger
Cordes Performance Expansion Tank
91/E50

DynoJet 675 RWHP / 671 RWTQ
TOPSPOT is offline
Old 05-02-2019, 04:20 PM
  #9
HNK
CF Senior Member

HNK's Avatar

Member Since: Jan 2006
Posts: 1,003
Received 25 Likes on 23 Posts
Default

Originally Posted by K2XSNOW View Post
DYNOJET - 88 deg. F. - 44% Humitity - SAE 1.03 CF - Dens Alt: 2650
'17 M7 - Drop-in Filter, Borla X, Ported TB
1st: 579 / 594 AF:14.63
2nd: 577 / 594 AF:14.45
3rd: 580 / 588 AF:15.00

Installed Halltech Intake to replace the drop-in filter. I can post details later.
The AF is for air/fuel ratio? If yes, isn’t it too lean even for DI??
HNK is offline
Old 05-02-2019, 04:40 PM
  #10
howdigethere
CF Senior Member

howdigethere's Avatar

Member Since: Nov 2017
Location: NYC
Posts: 186
Likes: 0
Received 41 Likes on 21 Posts
Default

howdigethere is offline
Old 05-02-2019, 05:44 PM
  #11
ssmith512
CF Senior Member

Member Since: Nov 2007
Location: Indianapolis IN
Posts: 1,318
Received 146 Likes on 96 Posts
Default

Originally Posted by howdigethere View Post
Just pulley and catless x-pipe? 93 octane tune? If so...NICE!!!
ssmith512 is offline
Old 05-02-2019, 05:48 PM
  #12
howdigethere
CF Senior Member

howdigethere's Avatar

Member Since: Nov 2017
Location: NYC
Posts: 186
Likes: 0
Received 41 Likes on 21 Posts
Default


i have cats. hi flo cats
gm performance intake
pulley, ported s/c and a tune
kooks 1 7/8” headers

that run was on e47

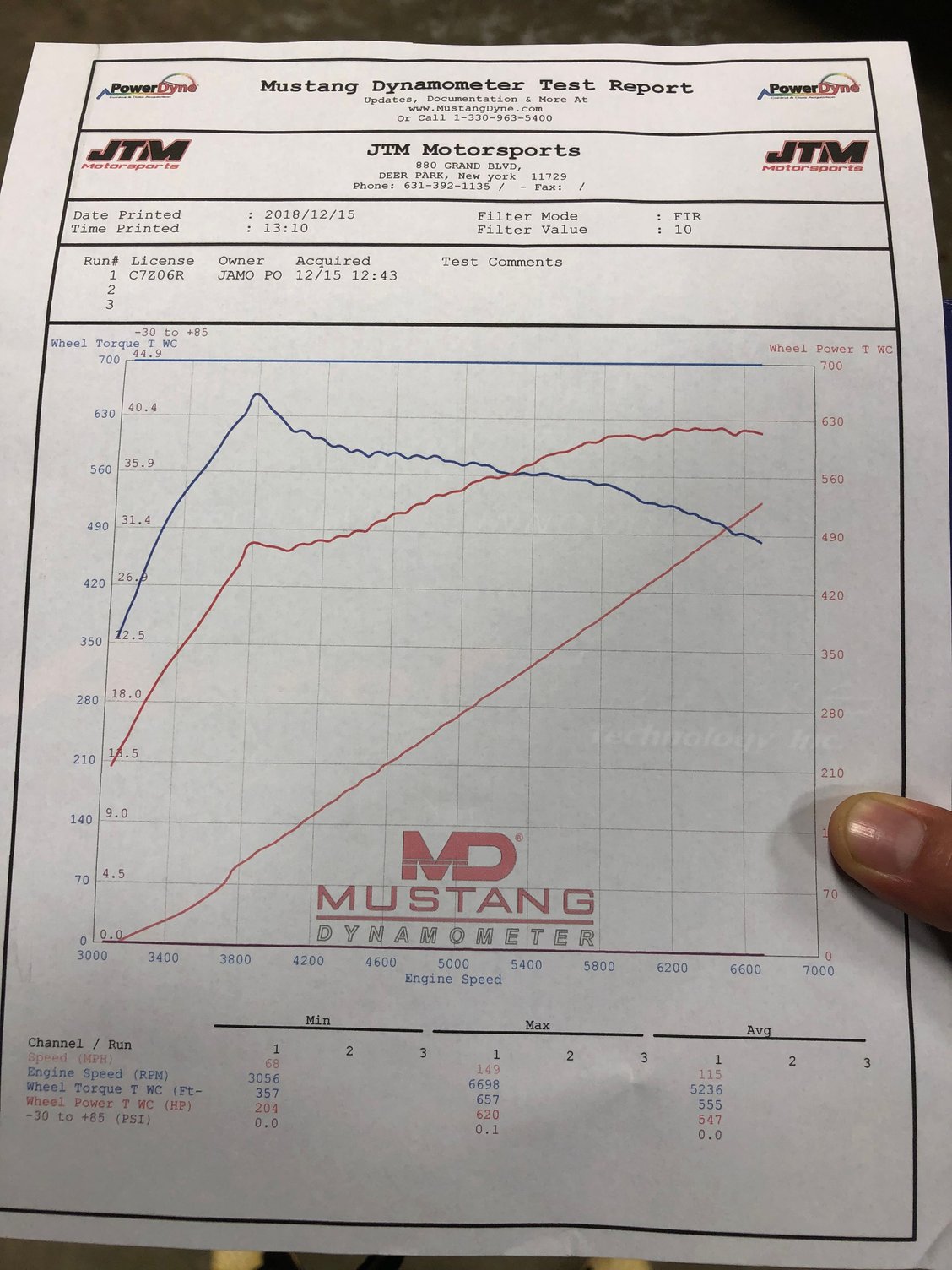

here is my 93 pull

Last edited by howdigethere; 05-02-2019 at 07:44 PM.
howdigethere is offline
Old 05-02-2019, 06:39 PM
  #13
ssmith512
CF Senior Member

Member Since: Nov 2007
Location: Indianapolis IN
Posts: 1,318
Received 146 Likes on 96 Posts
Default

Originally Posted by howdigethere View Post
i have cats. hi flo cats
gm performance intake
kooks 17/8” headers

that run was on e47

here is my 93 pull
Sweet!

Thanks for sharing. Car is bad ***!
ssmith512 is offline
Old 05-02-2019, 07:54 PM
  #14
Brady McNew
Junior Member

Brady McNew's Avatar

Member Since: Sep 2018
Location: Mobile, AL
Posts: 14
Received 2 Likes on 2 Posts
Default

2016 Z
CAI
103 TB
Ported blower
2.3 upper pulley
15% lower pully
cam/lifters etc.
1-7/8" headers
catless x-pipe
720/725
Brady McNew is offline
Old 05-02-2019, 10:35 PM
  #15
Ludicrous_Speed
CF Member

Member Since: Aug 2015
Posts: 65
Received 22 Likes on 9 Posts
Default

2016 M7

aFe Momentum intake w/ dry filter
Tony Mamo ported TB
ARH 1 7/8" long tubes/catless Xpipe
Corsa Xtreme axleback
Fasterproms expansion tank

647 RWHP / 657 RWTQ on a Dynamax, 55-60 degree humid day
Ludicrous_Speed is offline
Old 05-03-2019, 05:39 AM
  #16
JDMUSCLE
CF Senior Member

JDMUSCLE's Avatar

Member Since: Oct 2009
Location: Houston TX
Posts: 1,744
Received 90 Likes on 57 Posts
Default

2016 M7
Halltech Stinger
Borla X-pipe
Dynojet

585whp

Last edited by JDMUSCLE; 05-03-2019 at 05:40 AM.
JDMUSCLE is offline
Old 05-03-2019, 08:11 AM
  #17
K2XSNOW
Junior Member

K2XSNOW's Avatar

Member Since: Mar 2018
Posts: 31
Received 18 Likes on 6 Posts
Default

Originally Posted by HNK View Post
The AF is for air/fuel ratio? If yes, isn’t it too lean even for DI??
Correct, that was more of a typo.
2-2.5K RPM - ~14+
4K RPM - 12.4
5K RPM - 12
6K RPM - 11.9
K2XSNOW is offline
Old 05-03-2019, 09:48 AM
  #18
jstewart
CF Senior Member
Support Corvetteforum!

Member Since: Apr 2009
Location: Louisville KY
Posts: 669
Received 120 Likes on 92 Posts
Default

2016 Z07 A8
Weapon X build & tune
Mustang dyno
AFE intake (high flow filter)
Norcal cat delete pipes
Borla mid pipe (stock cat back mufflers)
18% lower pulley/balancer (Innovators west)
Mamo ported 95 mm TB
Weapon X ported stock blower and snout
Fasterproms ram air
Fasterproms thermal insulators
Fasterproms Aux intercooler tank
Cordes intercooler heat exchanger
160 degree thermostat
GM dual fuel kit
MTI low side fuel pump kit
Alky Control single nozzle (15 GPH) meth kit
DSC shock controller
Cam & valvetrain stock
Heads & block stock

14 PSI boost
704 RWHP--782 RWTQ (SAE) on 93 pump & meth inj.
742 RWHP--803 RWTQ (SAE) on 93 pump, meth inj. & 50% E-85
jstewart is offline
Old 05-04-2019, 11:24 AM
  #19
Terminator_mk6
Junior Member
Thread Starter

Terminator_mk6's Avatar

Member Since: Mar 2019
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Ludicrous_Speed View Post
2016 M7

aFe Momentum intake w/ dry filter
Tony Mamo ported TB
ARH 1 7/8" long tubes/catless Xpipe
Corsa Xtreme axleback
Fasterproms expansion tank

647 RWHP / 657 RWTQ on a Dynamax, 55-60 degree humid day

Still just 93 octane?
Terminator_mk6 is offline
Old 05-04-2019, 11:40 AM
  #20
BooSSted
CF Senior Member

BooSSted's Avatar

Member Since: Jul 2015
Location: NY
Posts: 1,012
Received 155 Likes on 133 Posts
Default

Need base numbers and post mod numbers to get best value. End results alone will have some people upset if theyre chasing a number on paper or at track.
BooSSted is offline
