Surprised there is not another post/listing since Sept 2011!!
This project for my '80 was started in March '11 and completed in Dec.
Engine: 2011 L92 "pull out" converted to LS3
Engine Mounts: Vetteworks, 1in back
Engine Accessories: Street and Performance
Water pump: Stock LS3, 2009 from GMPP
Throttle Body: Stock LS3 DBW, 2009, from GMPP
Transmission: 4L60E, stage II for 500hp max, Century Trans.
Crossmember: Stock modified for 4L60E mtng
Exhaust manifold: Long tube headers, Custom Image
Wiring harness: aftermkt custom, Schwanke
ECM: Reprogrammed/tuned by PCM For Less
Fuel pump: Camero Vetteworks rebuilt, intank w/bypass, single ss feed line
Steering system: Stock using Camero F-body pan
Radiator: HD stock with trans. cooling taps
A/C: Sanden compressor, S&P mtng
This project for my '80 was started in March '11 and completed in Dec.
Engine: 2011 L92 "pull out" converted to LS3
Engine Mounts: Vetteworks, 1in back
Engine Accessories: Street and Performance
Water pump: Stock LS3, 2009 from GMPP
Throttle Body: Stock LS3 DBW, 2009, from GMPP
Transmission: 4L60E, stage II for 500hp max, Century Trans.
Crossmember: Stock modified for 4L60E mtng
Exhaust manifold: Long tube headers, Custom Image
Wiring harness: aftermkt custom, Schwanke
ECM: Reprogrammed/tuned by PCM For Less
Fuel pump: Camero Vetteworks rebuilt, intank w/bypass, single ss feed line
Steering system: Stock using Camero F-body pan
Radiator: HD stock with trans. cooling taps
A/C: Sanden compressor, S&P mtng
Dan
Vetteworks
#84
Drifting
I just realized I never filled this out. Here goes 2 yrs late.
Year of Corvette: 1972
Engine: LS3 / 480 crate motor
Engine Mounts: CIC adapter, Energy Suspension Stock mount
Engine Accessories: CIC front runner system, low mount LS1 alternator, Vitage Air Passenger Side mount compressor.
Waterpump: Stock/Aftermarket: stock LS3, CIC modified side outlets.
Manual Throttle/Drive by Wire: DBW
Transmission: Keisler RS 500 5 spd. (was an automatic)
Crossmember (stock/modified/aftermarket): stock, not modified
Exhaust Manifolds/Headers: ARH custom headers + Magna flow 72 Big Block stainless exhaust system with quad tips
Wiring Harness (modified stock/aftermarket): GM LS wiring harness tied to stock C3 wiring harness
Radiatior/Fan: RCH (?) LS with integrated fan
Fuel Pump/Lines/tank: aeromotive external pump (wish I'd gone with in-tank instead), Aeromotive regulator
Steering System: Flaming River rack
Misc info:
Interior - Dakota Digital C3 gauges, C7 seats, alpine amp, Kenwood reciever, focal speakers, Vintage Air AC
Suspension - tracdog built 3:55 rear diff, Van Steel front coilover with rear monospring
Other - "new-way" Miata headlamp motors, Miata motor used on wiper door,
Wheels - 17" PVD finished TT II's with Nitto 555 tires
HP / Torque - Dino tuned resulting in 445 RWHP (detuned from over 500 hp) & 465 ft# Torque
Contact info: forum PM
Year of Corvette: 1972
Engine: LS3 / 480 crate motor
Engine Mounts: CIC adapter, Energy Suspension Stock mount
Engine Accessories: CIC front runner system, low mount LS1 alternator, Vitage Air Passenger Side mount compressor.
Waterpump: Stock/Aftermarket: stock LS3, CIC modified side outlets.
Manual Throttle/Drive by Wire: DBW
Transmission: Keisler RS 500 5 spd. (was an automatic)
Crossmember (stock/modified/aftermarket): stock, not modified
Exhaust Manifolds/Headers: ARH custom headers + Magna flow 72 Big Block stainless exhaust system with quad tips
Wiring Harness (modified stock/aftermarket): GM LS wiring harness tied to stock C3 wiring harness
Radiatior/Fan: RCH (?) LS with integrated fan
Fuel Pump/Lines/tank: aeromotive external pump (wish I'd gone with in-tank instead), Aeromotive regulator
Steering System: Flaming River rack
Misc info:
Interior - Dakota Digital C3 gauges, C7 seats, alpine amp, Kenwood reciever, focal speakers, Vintage Air AC
Suspension - tracdog built 3:55 rear diff, Van Steel front coilover with rear monospring
Other - "new-way" Miata headlamp motors, Miata motor used on wiper door,
Wheels - 17" PVD finished TT II's with Nitto 555 tires
HP / Torque - Dino tuned resulting in 445 RWHP (detuned from over 500 hp) & 465 ft# Torque
Contact info: forum PM
Last edited by CWerner; 02-24-2017 at 08:43 AM.
#86
Instructor
Year of Corvette:1973
Engine: L99 converted to LS3 with Texas speed stage 1 cam 418 RWHP
Engine Mounts: Ebay 1 inch forward
Engine Accessories:LS1 camaro, Vintage Air A/C bracket
Waterpump: Stock/Aftermarket: LS1 stock modified by me
Manual Throttle/Drive by Wire: drive by wire
Transmission: 6L80
Crossmember (stock/modified/aftermarket): Stock modified, exhaust holes widened for pipes to clear trans
Exhaust Manifolds/Headers:America Racing Headers
Wiring Harness (modified stock/aftermarket): PSI Converion
Radiatior/Fan: Dewitts conversion with spal fans
Fuel Pump/Lines/tank:Tanks.inc tank with walbro pump
Steering System: Borgenson
Misc info: Global West upper and lower controls arms, C5 Z06 aftermarket wheels with 2.5 inch spacers and Nitto tires, VBP fiberglass rear spring, Dakota Digital 54 pickup gauges, Vintage Air, 7 inch touch screen radio with backup camera, electric headlight conversion, custom LED side marker lights, Magna Flow 454 exhaust wit quad tips,
Contact info, greyflame1955@gmail.com
Engine: L99 converted to LS3 with Texas speed stage 1 cam 418 RWHP
Engine Mounts: Ebay 1 inch forward
Engine Accessories:LS1 camaro, Vintage Air A/C bracket
Waterpump: Stock/Aftermarket: LS1 stock modified by me
Manual Throttle/Drive by Wire: drive by wire
Transmission: 6L80
Crossmember (stock/modified/aftermarket): Stock modified, exhaust holes widened for pipes to clear trans
Exhaust Manifolds/Headers:America Racing Headers
Wiring Harness (modified stock/aftermarket): PSI Converion
Radiatior/Fan: Dewitts conversion with spal fans
Fuel Pump/Lines/tank:Tanks.inc tank with walbro pump
Steering System: Borgenson
Misc info: Global West upper and lower controls arms, C5 Z06 aftermarket wheels with 2.5 inch spacers and Nitto tires, VBP fiberglass rear spring, Dakota Digital 54 pickup gauges, Vintage Air, 7 inch touch screen radio with backup camera, electric headlight conversion, custom LED side marker lights, Magna Flow 454 exhaust wit quad tips,
Contact info, greyflame1955@gmail.com
Last edited by 71yellow454; 12-16-2019 at 07:26 PM.
#87
Intermediate
Beautiful Build
Year of Corvette:1973
Engine: L99 converted to LS3 with Texas speed stage 1 cam 418 RWHP
Engine Mounts: Ebay 1 inch forward
Engine Accessories:LS1 camaro, Vintage Air A/C bracket
Waterpump: Stock/Aftermarket: LS1 stock modified by me
Manual Throttle/Drive by Wire: drive by wire
Transmission: 6L80
Crossmember (stock/modified/aftermarket): Stock modified, exhaust holes widened for pipes to clear trans
Exhaust Manifolds/Headers:America Racing Headers
Wiring Harness (modified stock/aftermarket): PSI Converion
Radiatior/Fan: Dewitts conversion with spal fans
Fuel Pump/Lines/tank:Tanks.inc tank with walbro pump
Steering System: Borgenson
Misc info: Global West upper and lower controls arms, C5 Z06 aftermarket wheels with 2.5 inch spacers and Nitto tires, VBP fiberglass rear spring, Dakota Digital 54 pickup gauges, Vitage Air, 7 inch touch screen radio with backup camera, electric headlight conversion, custom LED side marker lights, C5 heated seats, Magna Flow 454 exhaust wit quad tips,
Contact info, greyflame1955@gmail.com
Engine: L99 converted to LS3 with Texas speed stage 1 cam 418 RWHP
Engine Mounts: Ebay 1 inch forward
Engine Accessories:LS1 camaro, Vintage Air A/C bracket
Waterpump: Stock/Aftermarket: LS1 stock modified by me
Manual Throttle/Drive by Wire: drive by wire
Transmission: 6L80
Crossmember (stock/modified/aftermarket): Stock modified, exhaust holes widened for pipes to clear trans
Exhaust Manifolds/Headers:America Racing Headers
Wiring Harness (modified stock/aftermarket): PSI Converion
Radiatior/Fan: Dewitts conversion with spal fans
Fuel Pump/Lines/tank:Tanks.inc tank with walbro pump
Steering System: Borgenson
Misc info: Global West upper and lower controls arms, C5 Z06 aftermarket wheels with 2.5 inch spacers and Nitto tires, VBP fiberglass rear spring, Dakota Digital 54 pickup gauges, Vitage Air, 7 inch touch screen radio with backup camera, electric headlight conversion, custom LED side marker lights, C5 heated seats, Magna Flow 454 exhaust wit quad tips,
Contact info, greyflame1955@gmail.com
#88
More info
I have used this thread quite a bit for ideas on my build. Some of the trials and failures have centered around where to route and mount wiring, ECU, battery posts, etc. These things are hard to see in pics and difficult to describe in the threads. Where are you guys putting your ECU? Where did you mount the fuse and relay box(es)?
On the inner passenger fender I added remote battery posts b/c it's a PITA to charge the car, especially if the battery dies with the electric locks. My relay box for the fuel pump and fans was also on the passenger fender but now I want to move it as the A/C lines will make them impossible to get to easily. I have another fuse box on the drivers wheel well. The ECU is on the firewall beside the brake booster. How about the hydraulic clutch master cylinder? Brake booster upgrades? Remote injector coils? There is limited room in the engine bay and sharing these things should help future swaps more functional after assembled and maybe look less "thrown together".
Mike
On the inner passenger fender I added remote battery posts b/c it's a PITA to charge the car, especially if the battery dies with the electric locks. My relay box for the fuel pump and fans was also on the passenger fender but now I want to move it as the A/C lines will make them impossible to get to easily. I have another fuse box on the drivers wheel well. The ECU is on the firewall beside the brake booster. How about the hydraulic clutch master cylinder? Brake booster upgrades? Remote injector coils? There is limited room in the engine bay and sharing these things should help future swaps more functional after assembled and maybe look less "thrown together".
Mike
Last edited by myko; 08-27-2022 at 07:21 AM.
#89
Advanced
Year of Corvette: 1973
Engine: LS7
Engine Mounts: Dirty Dingo Slider Adjustable

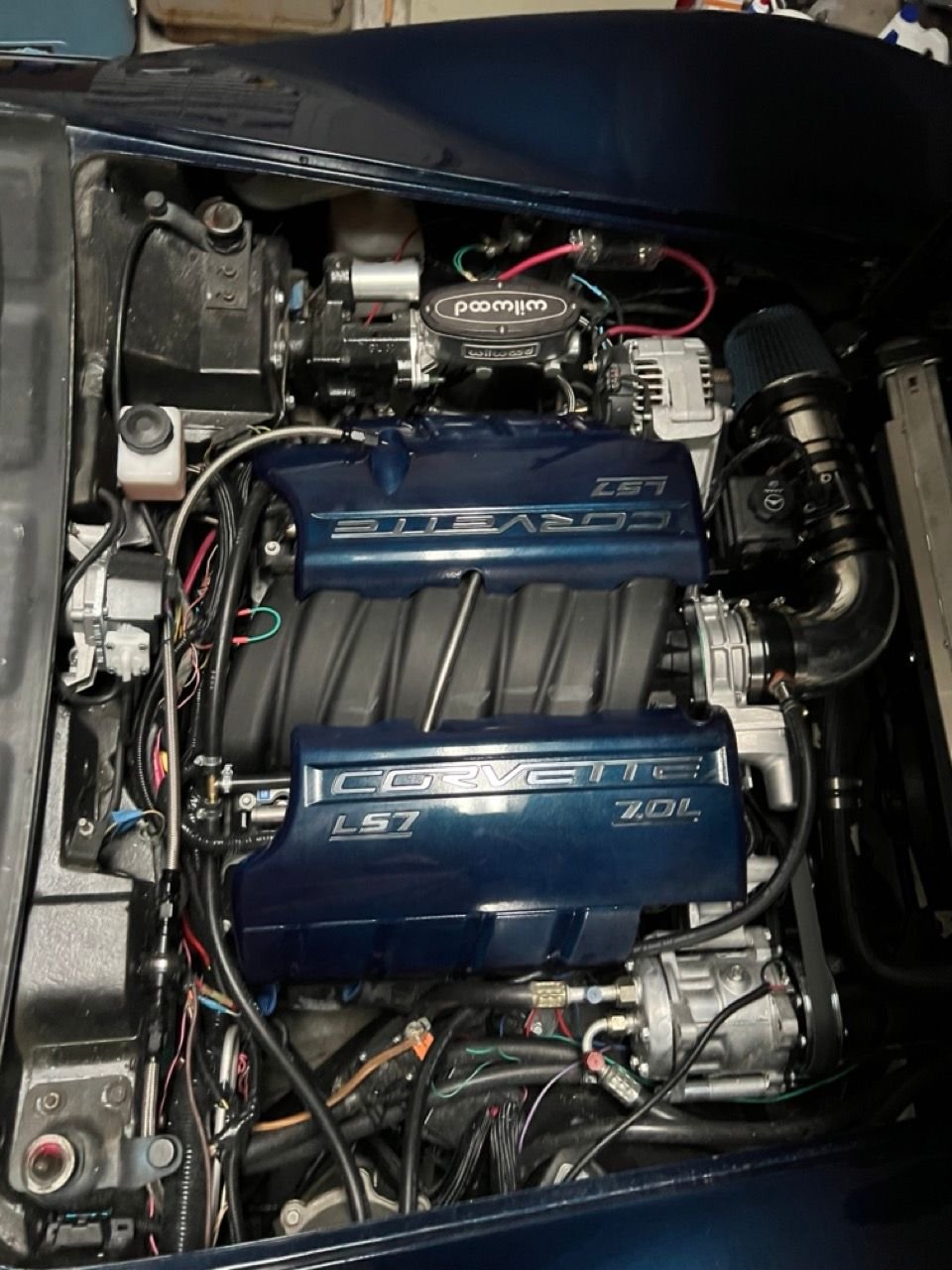

Engine Accessories: Corvette configuration from 2012 Z06 with Holley A/C Bracket 20-134 and a Dorman 300-301 Power Steering Pump Pulley. Used 960K6 Belt from AutoZone
Waterpump: Stock/Aftermarket: Stock (modified)
Manual Throttle/Drive by Wire: Drive by wire.
Transmission: Tremec TKO 500 from Silver Sport Transmissions
Crossmember (stock/modified/aftermarket): Original
Exhaust Manifolds/Headers: Hedman Headers Mid-Length 45916 (Had to remove the bracket for the reserve lock cable near steering column and put a small dimple near the steering box for fitment)
Wiring Harness (modified stock/aftermarket): Modified stock from a 2012 Z06
Radiator/Fan: DeWitts C3 LS Swap Radiator w/ dual electric fans
Fuel Pump/Lines/tank: MuscleRods LS Swap Fuel Tank with 255lph fuel pump and Summit Racing AN6 PTFE Lines.
Steering System: Borgeson Box
Misc info: Used an 8 quart dry sump tank from an 06-08 z06. I had to create custom AN12 hoses to connect the dry sump tank to the engine.
Contact info: PM
Engine: LS7
Engine Mounts: Dirty Dingo Slider Adjustable
Engine Accessories: Corvette configuration from 2012 Z06 with Holley A/C Bracket 20-134 and a Dorman 300-301 Power Steering Pump Pulley. Used 960K6 Belt from AutoZone
Waterpump: Stock/Aftermarket: Stock (modified)
Manual Throttle/Drive by Wire: Drive by wire.
Transmission: Tremec TKO 500 from Silver Sport Transmissions
Crossmember (stock/modified/aftermarket): Original
Exhaust Manifolds/Headers: Hedman Headers Mid-Length 45916 (Had to remove the bracket for the reserve lock cable near steering column and put a small dimple near the steering box for fitment)
Wiring Harness (modified stock/aftermarket): Modified stock from a 2012 Z06
Radiator/Fan: DeWitts C3 LS Swap Radiator w/ dual electric fans
Fuel Pump/Lines/tank: MuscleRods LS Swap Fuel Tank with 255lph fuel pump and Summit Racing AN6 PTFE Lines.
Steering System: Borgeson Box
Misc info: Used an 8 quart dry sump tank from an 06-08 z06. I had to create custom AN12 hoses to connect the dry sump tank to the engine.
Contact info: PM
#90
Safety Car
Member Since: May 2004
Location: los altos hills california
Posts: 3,610
Received 1,126 Likes
on
730 Posts
My motor is a GM Crate LS376. A lot of the engine and accessory mounting is from suppliers that don't exist anymore but at the time there was a thriving aftermarket.
As to your question, my 69 is non-AC and there was a lot of room behind the passenger dash pad, so that is where I put everything. I cut the starter battery lead short, brought it to a post through the firewall and then jumpered it to a post back out through the firewall to the starter. That gave me +12 supply voltage inside which I supplied to another fuse box for all the stuff that got added.
This picture is from early on when I was figuring out what went where. I have since put proper connectors on everything and tucked it away under the pad.
Here's an early picture of the battery cable through the firewall.
Last edited by ignatz; 11-26-2022 at 01:42 PM.
#91
location
Thanks for resurrecting this thread. When I built my car seems like there were a lot of LS conversions. Very few went carbureted which is what I did. Not sure I would make the same decision again. There was however a useful forum on carb'd LS motors at the time which I used a lot.
My motor is a GM Crate LS376. A lot of the engine and accessory mounting is from suppliers that don't exist anymore but at the time there was a thriving aftermarket.
As to your question, my 69 is non-AC and there was a lot of room behind the passenger dash pad, so that is where I put everything. I cut the starter battery lead short, brought it through the firewall and then back out through the firewall to the starter. That gave me +12 supply voltage which I supplied to another fuse box for all the stuff that got added.
This picture is from early on when I was figuring out what went where. I have since put proper connectors on everything and tucked it away under the pad.
Here's an early picture of the battery cable through the firewall. There are equivalent posts on the inside to the fuse box and from that to everything else.
My motor is a GM Crate LS376. A lot of the engine and accessory mounting is from suppliers that don't exist anymore but at the time there was a thriving aftermarket.
As to your question, my 69 is non-AC and there was a lot of room behind the passenger dash pad, so that is where I put everything. I cut the starter battery lead short, brought it through the firewall and then back out through the firewall to the starter. That gave me +12 supply voltage which I supplied to another fuse box for all the stuff that got added.
This picture is from early on when I was figuring out what went where. I have since put proper connectors on everything and tucked it away under the pad.
Here's an early picture of the battery cable through the firewall. There are equivalent posts on the inside to the fuse box and from that to everything else.
#92
Safety Car
Member Since: May 2004
Location: los altos hills california
Posts: 3,610
Received 1,126 Likes
on
730 Posts
Last edited by ignatz; 11-26-2022 at 09:52 PM.
#93
#94
Burning Brakes
Year of Corvette: 1977
Engine: 2004 LQ4. LS1 with turbocharger
Engine Mounts: Flat plate type to SBC mount with additional torque arm
Engine Accessories: Alternator, A/C and Turbocharger
Waterpump: Stock/Aftermarket: Stock
Manual Throttle/Drive by Wire: Drive by Wire
Transmission: 4L80E
Crossmember (stock/modified/aftermarket): Modified Automatic
Exhaust Manifolds/Headers: Modified LQ4 manifold
Wiring Harness (modified stock/aftermarket): DIY to AEM engine computer and Arduino transmission computer
Radiatior/Fan: Aftermarket radiator. Volvo brushless fan.
Fuel Pump/Lines/tank: Stock fuel tank with additional external surge tank. Wallbro 450 pump.
Steering System: Borgeson with Volvo electric power steering pump.
Misc info: 700hp+ mild cruiser. Low 10 seconds at strip. DIY 4Link +nFord 8.8" with 9" internals rear.
Contact info: Build Thread : Turbo C3 cruiser
Engine: 2004 LQ4. LS1 with turbocharger
Engine Mounts: Flat plate type to SBC mount with additional torque arm
Engine Accessories: Alternator, A/C and Turbocharger
Waterpump: Stock/Aftermarket: Stock
Manual Throttle/Drive by Wire: Drive by Wire
Transmission: 4L80E
Crossmember (stock/modified/aftermarket): Modified Automatic
Exhaust Manifolds/Headers: Modified LQ4 manifold
Wiring Harness (modified stock/aftermarket): DIY to AEM engine computer and Arduino transmission computer
Radiatior/Fan: Aftermarket radiator. Volvo brushless fan.
Fuel Pump/Lines/tank: Stock fuel tank with additional external surge tank. Wallbro 450 pump.
Steering System: Borgeson with Volvo electric power steering pump.
Misc info: 700hp+ mild cruiser. Low 10 seconds at strip. DIY 4Link +nFord 8.8" with 9" internals rear.
Contact info: Build Thread : Turbo C3 cruiser
Last edited by DblTrbl; 09-10-2023 at 02:01 PM.
