Kenwood DDX 9905s


Old 03-02-2019, 11:41 AM
  #1
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default Kenwood DDX 9905s

Hi guys I am installing the Kenwood head unit and have a few questions, just started wiring up the Kenwood and PAC RP5-GM11 harness. I have the factory Bose NAV

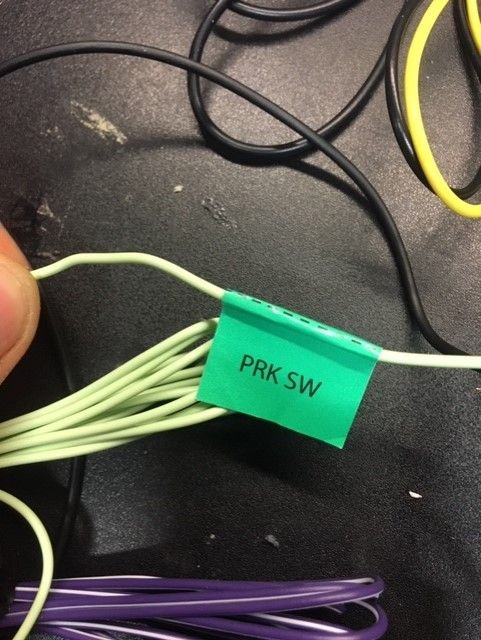

Question 1. the Light Green Parking SW wire will go to ground ?(tie it into the Kenwood(black). PAC (black).

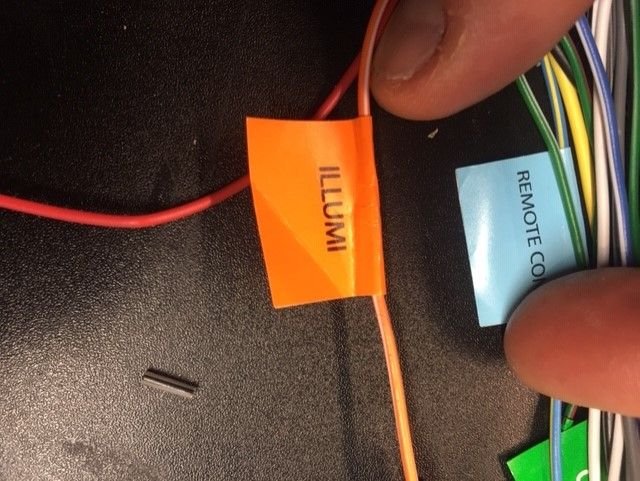

2. The Orange White strip(illum) Kenwood and PAC connect together but does that need to be connected to the traction control harness I saw former Vendor Dennis from DD posted that he connected this way from proper dimming of the radio, not sure if we need to do this?

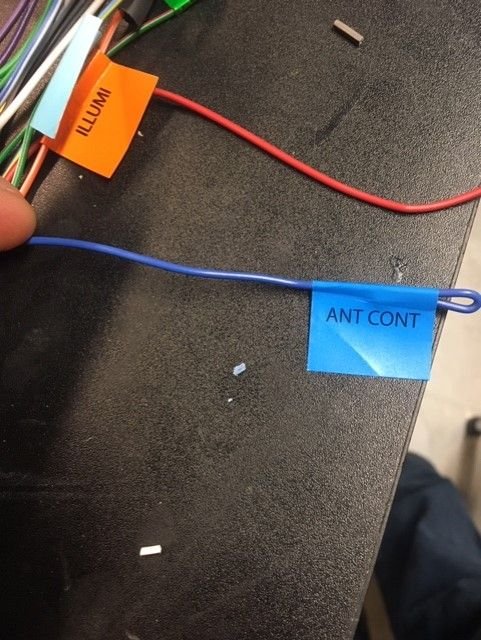

.3. The blue Ant Cont(antenna) is this being connected ? and to where? ...on the pac harness the blue in the instructions says Not Used

BTW I have and front and rear cameras I will be hooking up(font is a Pyle Camera and the rear is a Pomile Camera.


Thanks






Last edited by crusher1; 03-02-2019 at 11:44 AM.
crusher1 is offline
Old 03-02-2019, 06:38 PM
  #2
TorchRedFred
CF Senior Member

TorchRedFred's Avatar

Member Since: Jan 2017
Location: Morris County New Jersey
Posts: 2,283
Received 447 Likes on 377 Posts
Default


Grounding the parking brake
TorchRedFred is offline
Old 03-02-2019, 06:43 PM
  #3
TorchRedFred
CF Senior Member

TorchRedFred's Avatar

Member Since: Jan 2017
Location: Morris County New Jersey
Posts: 2,283
Received 447 Likes on 377 Posts
Default

The blue antenna wire doesn't need to be connected but if you like you can put the blue and the blue/white together. They both do the same thing which is send out a 12v signal when the head unit is on. I believe I read somewhere that the C6 picks up the antenna signal from another source and that is why the antenna wire is not necessary.

For the illumination wire, I just connected the orange/white wires together and that was it.

Last edited by TorchRedFred; 03-02-2019 at 06:44 PM.
TorchRedFred is offline
Old 03-02-2019, 08:43 PM
  #4
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Thanks TorchRedFred....So the green Prk SW wire I just tied it into the ground black wires from the harnesses which should be ok or should I connect it to the back of the deck like the video shows?

Another question: The front and rear cameras I have already installed them an ran the wires to the passenger foot well for now until I install the head unit later on. For the rear camera can I tie the power wire(red) into the red(Ignition wire) of the Kenwood harness or do I need to connect it to the reverse light wire at the rear of the car?. The front camera I will connect the power wire to the fuse panel in the passenger foot well to a switched source with a fuse tap.

Last edited by crusher1; 03-02-2019 at 08:46 PM.
crusher1 is offline
Old 03-02-2019, 09:26 PM
  #5
TorchRedFred
CF Senior Member

TorchRedFred's Avatar

Member Since: Jan 2017
Location: Morris County New Jersey
Posts: 2,283
Received 447 Likes on 377 Posts
Default

Originally Posted by crusher1 View Post
Thanks TorchRedFred....So the green Prk SW wire I just tied it into the ground black wires from the harnesses which should be ok or should I connect it to the back of the deck like the video shows?

Another question: For the rear camera can I tie the power wire(red) into the red(Ignition wire) of the Kenwood harness or do I need to connect it to the reverse light wire at the rear of the car?
Either way should work for both of your questions. With the parking brake wire, some models have them in the harness while some models have a wire coming from the head unit itself. If it is part of your harness, it's easier to just attach it to the ground wire. For the back up camera, if you run power wires to the head unit the camera will always be on when your head unit is on. If you run wires to the reverse lights, the camera comes on when the car is put in reverse. Either way is fine.
TorchRedFred is offline
Old 03-02-2019, 10:05 PM
  #6
VinceC5
CF Senior Member

VinceC5's Avatar

Member Since: Sep 2004
Location: Spring Texas
Posts: 1,115
Received 15 Likes on 15 Posts
Default

If your cameras have night vision LEDs, then connect the power at the reverse lights. Or else the lights will be on when the car is on.
VinceC5 is online now
Old 03-02-2019, 10:50 PM
  #7
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Thanks again .....Yeah I want it to turn on only when in reverse so I will probably tap into the reverse lights(I thought there might be a wire on the harness on the deck the same as tapping into the rear reverse lights)--oh well.... The front I have no choice as I will connect it to switched source in the fuse panel so it will always be on when the car is on but not a problem.

Last edited by crusher1; 03-02-2019 at 11:13 PM.
crusher1 is offline
Old 03-03-2019, 12:25 PM
  #8
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Another question: on the Brown Loop(Mute Loop) wire on the PAC harness do I need to cut this or leave it alone? I have Onstar in my car but never have used it and I am not subscribed
crusher1 is offline
Old 03-05-2019, 12:44 AM
  #9
VinceC5
CF Senior Member

VinceC5's Avatar

Member Since: Sep 2004
Location: Spring Texas
Posts: 1,115
Received 15 Likes on 15 Posts
Default

Originally Posted by crusher1 View Post
Another question: on the Brown Loop(Mute Loop) wire on the PAC harness do I need to cut this or leave it alone? I have Onstar in my car but never have used it and I am not subscribed
leave as is. no need to connect the mute wire on the head unit.
VinceC5 is online now
Old 03-06-2019, 09:08 AM
  #10
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Thanks Vince
crusher1 is offline
Old 03-22-2019, 09:33 PM
  #11
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

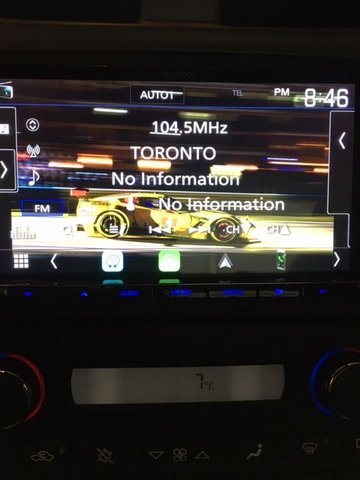

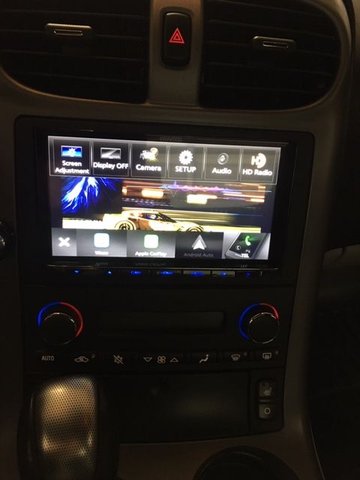

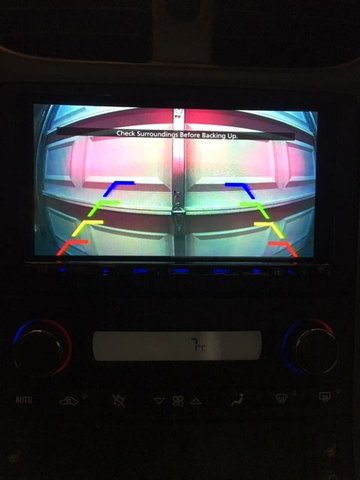

Well I finally got my Kenwood DDX 9905s installed. Wow what a awesome system!. Its like night and day compared to the factory unit.























Last edited by crusher1; 03-22-2019 at 09:47 PM.
crusher1 is offline
The following users liked this post:
j3studio (03-23-2019)
Old 03-23-2019, 03:02 PM
  #12
stevesvette
CF Senior Member

stevesvette's Avatar

Member Since: Nov 2004
Location: Fernandina Beach FL
Posts: 366
Received 9 Likes on 8 Posts
Default

Very nice. Congrats on a successful and good looking install. How did you upload your splash screen and background images? DVD or from the USB?
stevesvette is offline
Old 03-23-2019, 03:39 PM
  #13
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Originally Posted by stevesvette View Post
Very nice. Congrats on a successful and good looking install. How did you upload your splash screen and background images? DVD or from the USB?


From a usb stick. Here are the instructions for the DDX 9905s another forum member posted:


Instructions for DDX9905s



Since the 9905s is so new, the instructions floating around the net don’t work for it, after 2 days of trial and error I was able to figure this out. The 9905s has a High Def screen, the pixel ratio is better. So in order to get the boot image changed to what you want do as follows:



Using Pixelformer load up your image, change the image properties (set the width at 1280 and height at 720, set the target color to RGB color (24 bpp), click ok, click export, rename image to image1 (make sure it is .bmp format), when the bmp options box pops up set this to R5:G6: B5 (16bpp), click ok.



Now you have the picture formatted correctly and able to be loaded onto usb along with the OpeningCustomize .txt file. Make sure image name matches the image name in the .txt file. Put radio in Standby mode, tap the top left twice, tap the bottom left twice, tap the top left once, tap the bottom left once. This will open the menu needed. Then insert USB stick with files on it. (make sure files are placed in the root of the usb, don’t put them inside folders). Tap startup image and it will add the photo on the usb. Restart radio and there you have it


Here is Pixelformer: https://pixelformer.en.softonic.com/
Attached Files
File Type: txt
OpeningCustomize.txt (58 Bytes, 18 views)

Last edited by crusher1; 03-23-2019 at 04:22 PM.
crusher1 is offline
Old 04-28-2019, 01:16 PM
  #14
tjaved22
Junior Member

Member Since: Jul 2018
Location: North Carolina
Posts: 33
Received 1 Like on 1 Post
Default

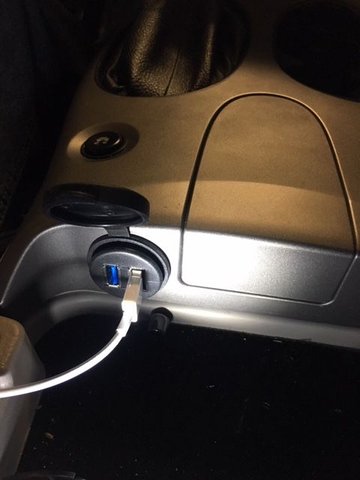

How did you replace lace the cigarette lighter in the arm rest. I bought the 2 USB adapter to replace it with but couldnít get the cigarette lighter to come out.

Also, just installed my Kenwood Unit last night, havenít put it back together yet because it keeps restarting if moved at some angles. Any idea why this happens? I donít want to hit s bump and it restarts.


Originally Posted by crusher1 View Post
Well I finally got my Kenwood DDX 9905s installed. Wow what a awesome system!. Its like night and day compared to the factory unit.






















tjaved22 is offline
Old 04-28-2019, 03:37 PM
  #15
stevesvette
CF Senior Member

stevesvette's Avatar

Member Since: Nov 2004
Location: Fernandina Beach FL
Posts: 366
Received 9 Likes on 8 Posts
Default

Originally Posted by tjaved22 View Post
How did you replace lace the cigarette lighter in the arm rest. I bought the 2 USB adapter to replace it with but couldnít get the cigarette lighter to come out.

Also, just installed my Kenwood Unit last night, havenít put it back together yet because it keeps restarting if moved at some angles. Any idea why this happens? I donít want to hit s bump and it restarts.
tj, learn from my mistake and don't put it back together till you chase down the intermittent. I didn't and had to pull it apart again to chase down a bad connection/connector on the interface module. Made "most connections most of the time" but would drop speakers or phase over bumps, turns, etc. on occasion.

I initially ordered the whole kit from Crutchfield and they sent me a full replacement of EVERYTHING and told me to replace what was needed and send the rest back including the failed harness. They even paid shipping both ways and allowed 30 days to troubleshoot and repair. All good in the end, but I got way too experienced in pulling the console and HU in and out! Good luck, hope it's a simple fix.
stevesvette is offline
Old 04-28-2019, 07:59 PM
  #16
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Originally Posted by tjaved22 View Post
How did you replace lace the cigarette lighter in the arm rest. I bought the 2 USB adapter to replace it with but couldn’t get the cigarette lighter to come out.

Also, just installed my Kenwood Unit last night, haven’t put it back together yet because it keeps restarting if moved at some angles. Any idea why this happens? I don’t want to hit s bump and it restarts.



Hi,

With the console removed there are tabs holding in it in I pushed the tabs and it popped out..Was a pain in the butt but it will come loose.


Take a look at this thread:
https://www.corvetteforum.com/forums...te-switch.html




also Here is some photos by Ray Kawal...Half way down the page take a look

http://www.kawal.net/centerconsole.htm


As for the restarting, it could be your PAC connectors not seated properly. The connectors can come loose when installing everything back. Bad design by PAC, I tie wrapped all my connectors on the PAC just to be safe since I read these connectors can pop out. I had no issues and everything worked like a charm the first install. If that doesnt help then it could be your PAC unit is defective.

Last edited by crusher1; 04-29-2019 at 10:09 PM.
crusher1 is offline
Old 05-01-2019, 12:17 PM
  #17
hmmmm16417
CF Senior Member

hmmmm16417's Avatar

Member Since: Apr 2013
Location: Erie PA
Posts: 1,008
Received 61 Likes on 55 Posts
Default

Originally Posted by crusher1 View Post
From a usb stick. Here are the instructions for the DDX 9905s another forum member posted:


Instructions for DDX9905s



Since the 9905s is so new, the instructions floating around the net donít work for it, after 2 days of trial and error I was able to figure this out. The 9905s has a High Def screen, the pixel ratio is better. So in order to get the boot image changed to what you want do as follows:



Using Pixelformer load up your image, change the image properties (set the width at 1280 and height at 720, set the target color to RGB color (24 bpp), click ok, click export, rename image to image1 (make sure it is .bmp format), when the bmp options box pops up set this to R5:G6: B5 (16bpp), click ok.



Now you have the picture formatted correctly and able to be loaded onto usb along with the OpeningCustomize .txt file. Make sure image name matches the image name in the .txt file. Put radio in Standby mode, tap the top left twice, tap the bottom left twice, tap the top left once, tap the bottom left once. This will open the menu needed. Then insert USB stick with files on it. (make sure files are placed in the root of the usb, donít put them inside folders). Tap startup image and it will add the photo on the usb. Restart radio and there you have it


Here is Pixelformer: https://pixelformer.en.softonic.com/
good info!!! I have the ddx9904s and assume it's the same?
hmmmm16417 is online now
Old 05-01-2019, 01:50 PM
  #18
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Originally Posted by hmmmm16417 View Post
good info!!! I have the ddx9904s and assume it's the same?


Yes I am pretty sure its the same..
crusher1 is offline
Old 05-07-2019, 10:52 PM
  #19
Fast one
CF Senior Member

Member Since: Jan 2001
Location: Hilton NY
Posts: 2,621
Received 61 Likes on 47 Posts
Default

Where did you connect the illumination wire?
Fast one is offline
Old 05-08-2019, 08:22 AM
  #20
crusher1
CF Senior Member
Thread Starter

crusher1's Avatar

Member Since: Jun 2005
Location: Toronto
Posts: 710
Received 38 Likes on 37 Posts
Default

Originally Posted by Fast one View Post
Where did you connect the illumination wire?



For the illumination wire, I just connected the orange/white wires together and that was it.
