1971 Journey
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

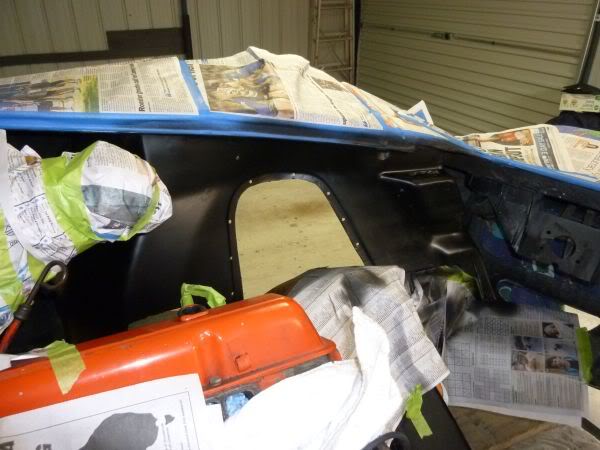

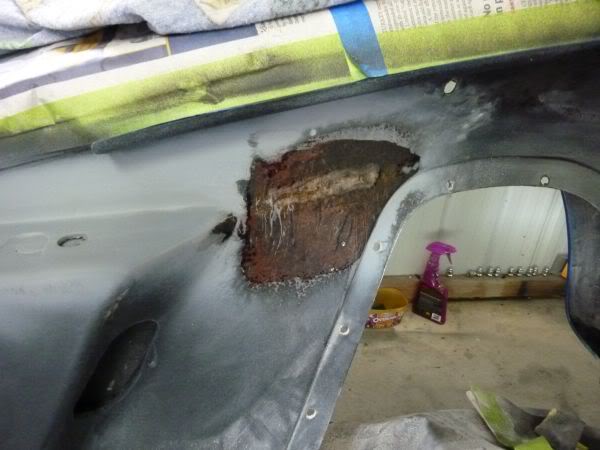

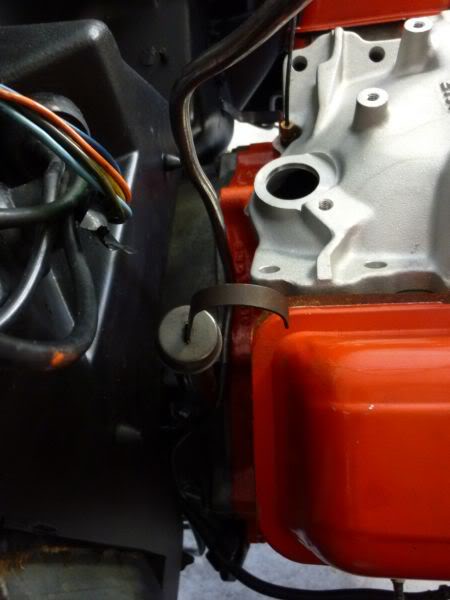

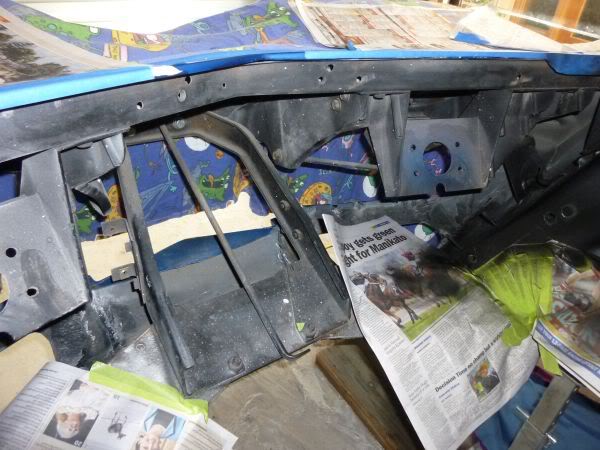

Where the AC lines used to run on the inner guard it had worn through the fiberglass outer layers and into the glass that then expanded when painted.
Some re work and a coat of resin should fix it up ok.
Some re work and a coat of resin should fix it up ok.
Last edited by CraigH; Apr 9, 2023 at 09:28 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

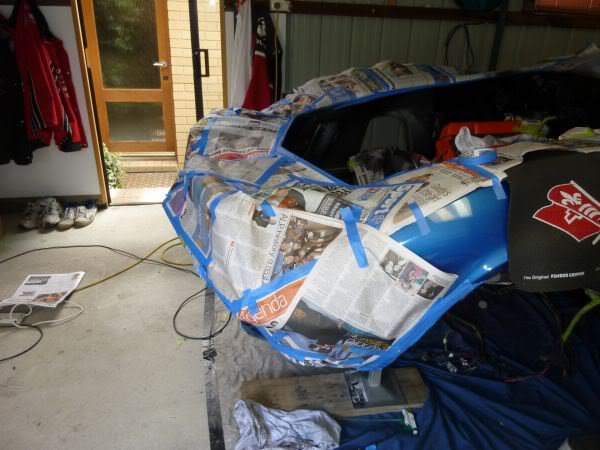

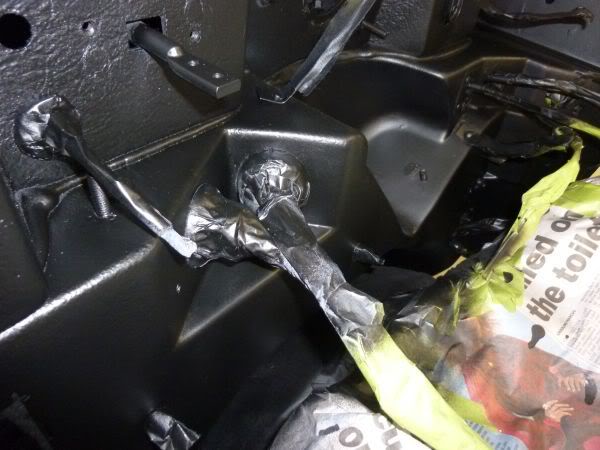

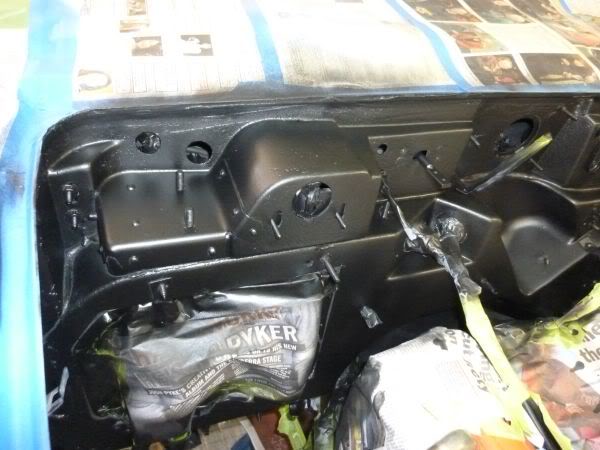

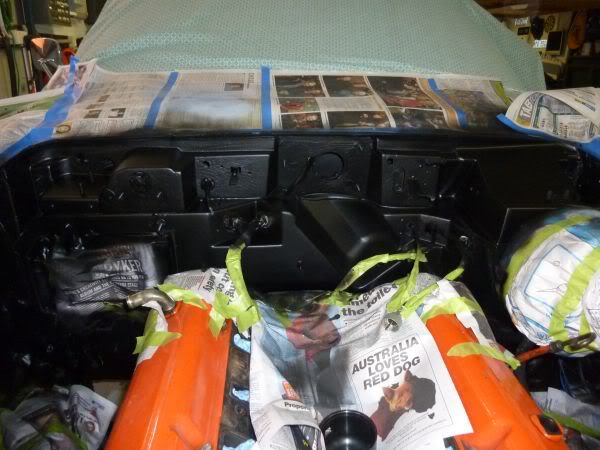

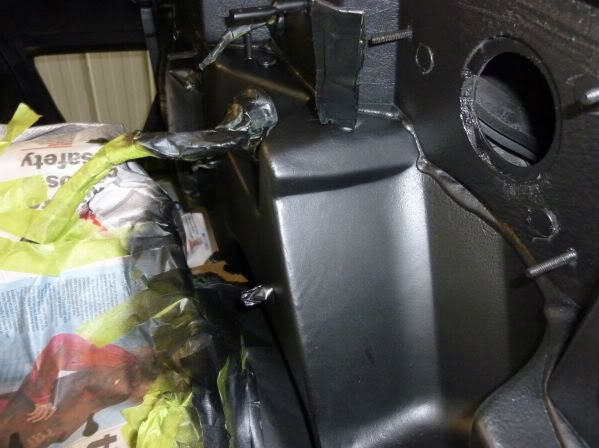

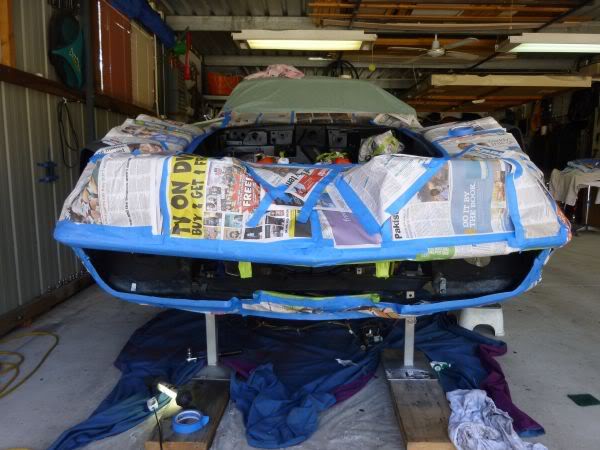

I took off all the masking tonight and it looks great,
Gave the brake power booster a re-spray in gloss black.
Am away for the next couple of days now so will have to wait to give it a second coat.
Gave the brake power booster a re-spray in gloss black.
Am away for the next couple of days now so will have to wait to give it a second coat.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

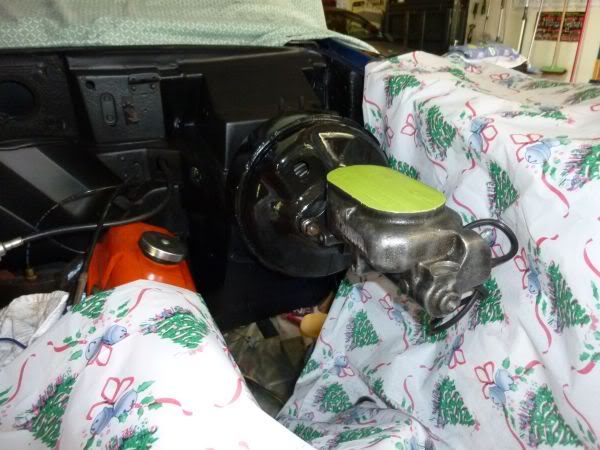

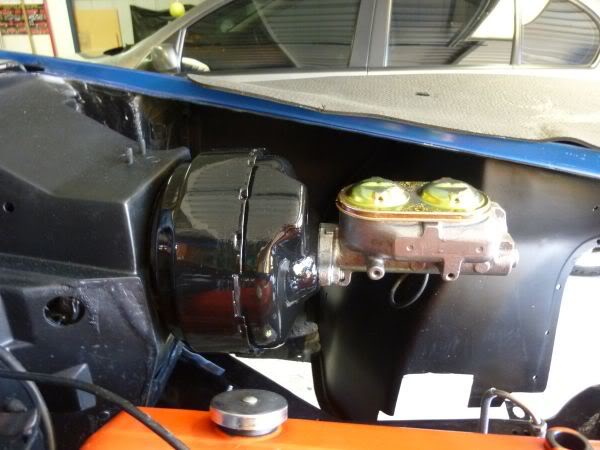

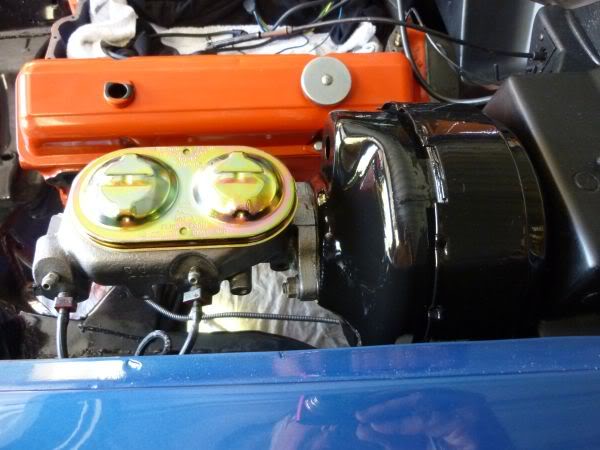

Before giving the power Booster its final spray i decided to clean up the master cylinder.
Lots of wire brush work, acid, thinners and it was ready for some paint.
I uses POR15 metal mask to give it the new cast metal look.
Lots of wire brush work, acid, thinners and it was ready for some paint.
I uses POR15 metal mask to give it the new cast metal look.
Last edited by CraigH; Apr 9, 2023 at 09:26 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Every 2027 Corvette Engine Explained
Joe Kucinski
Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette
Verdad Gallardo
10 Ugly Corvettes That We Still Kinda Love
Joe Kucinski
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

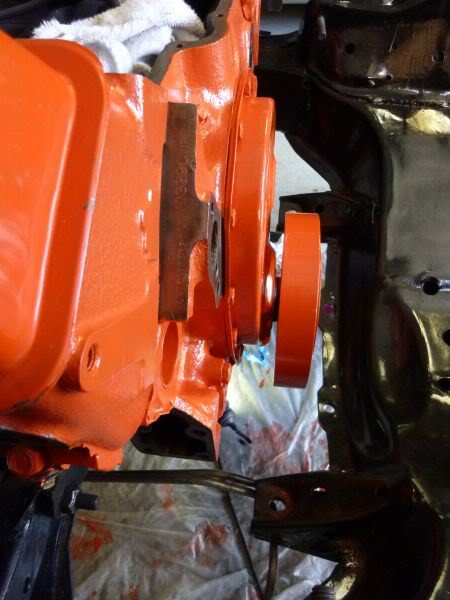

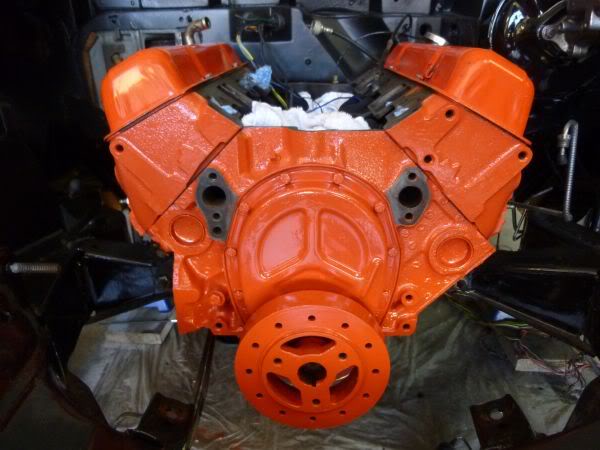

Engine block got wire brushed, cleaned with thinners then acid the again with thinners.
Then it got its first coats of Hirsch Engine Paint
Need to wait a week then give it another coat. If you try and coat it again even after 24 hours the original coat will soften - dont ask why i know :-)
Valve covers were obviously painted in the past and are a bit too orange. I will take them off and spray them later.
I did some testing with VHT Chevy Orange but it had more red in the orange mix than I wanted. There is so much variety in Chevy orange.
Then it got its first coats of Hirsch Engine Paint
Need to wait a week then give it another coat. If you try and coat it again even after 24 hours the original coat will soften - dont ask why i know :-)
Valve covers were obviously painted in the past and are a bit too orange. I will take them off and spray them later.
I did some testing with VHT Chevy Orange but it had more red in the orange mix than I wanted. There is so much variety in Chevy orange.
Last edited by CraigH; Apr 9, 2023 at 09:26 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

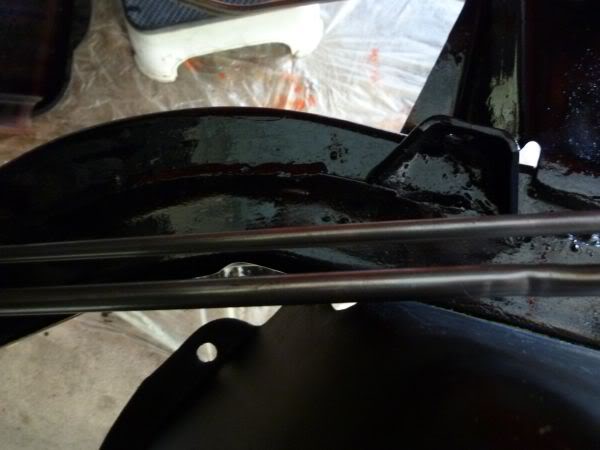

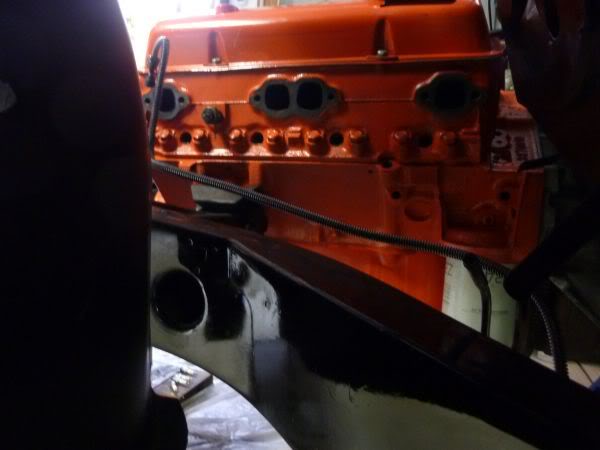

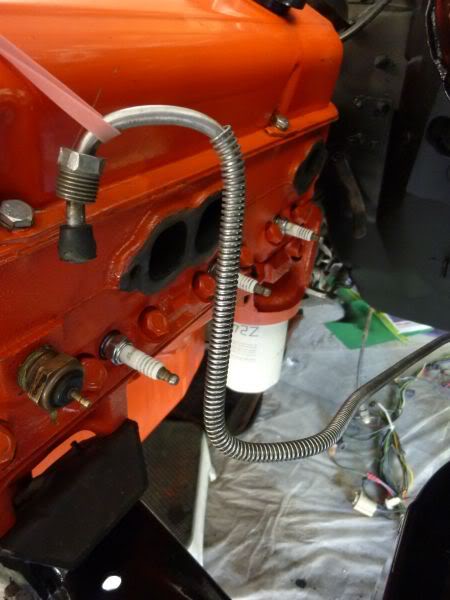

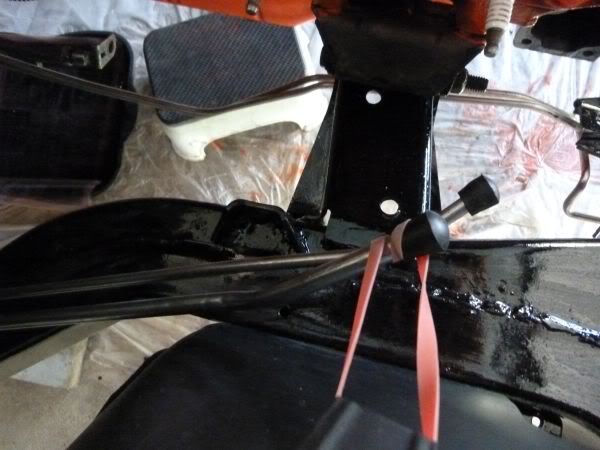

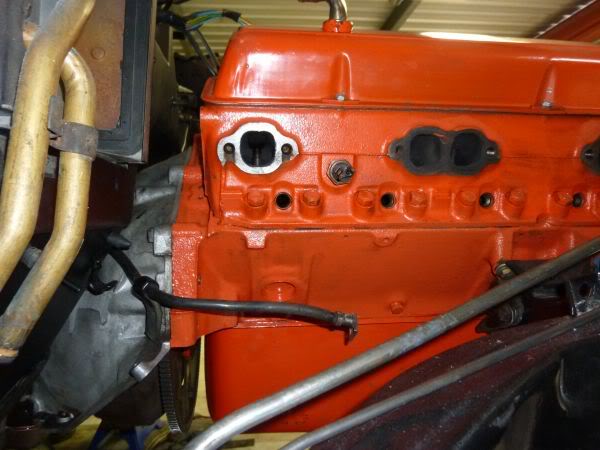

Before doing the final coat on the frame I wanted to clean up the fuel, return, vapor and trans cooler lines.
I Cleaned them with steel wool, Simple Green, thinners etc until they were back to silver again.
Considering they had paint and crud all over them this was not as hard as I had expected.
The wire wound one was the hardest.
They are now all nice back to the firewall :-)
I Cleaned them with steel wool, Simple Green, thinners etc until they were back to silver again.
Considering they had paint and crud all over them this was not as hard as I had expected.
The wire wound one was the hardest.
They are now all nice back to the firewall :-)
Last edited by CraigH; Apr 9, 2023 at 09:26 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

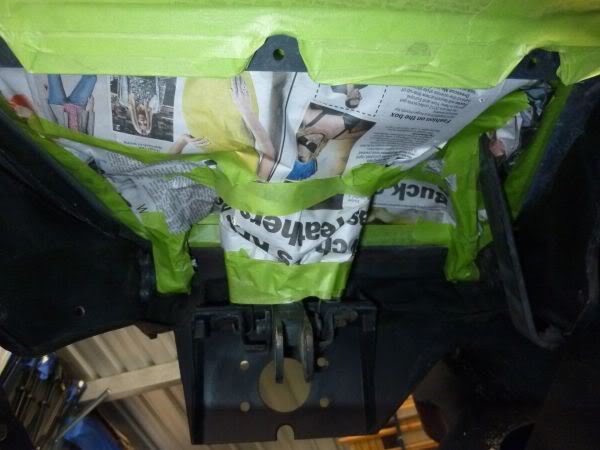

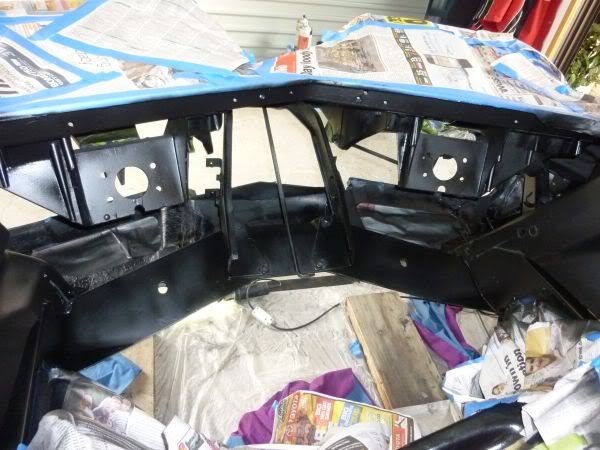

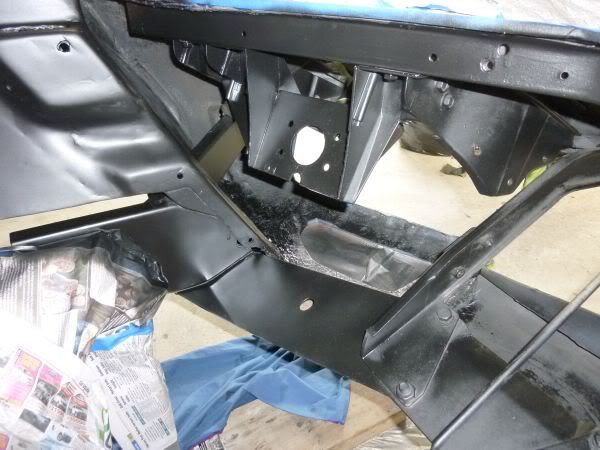

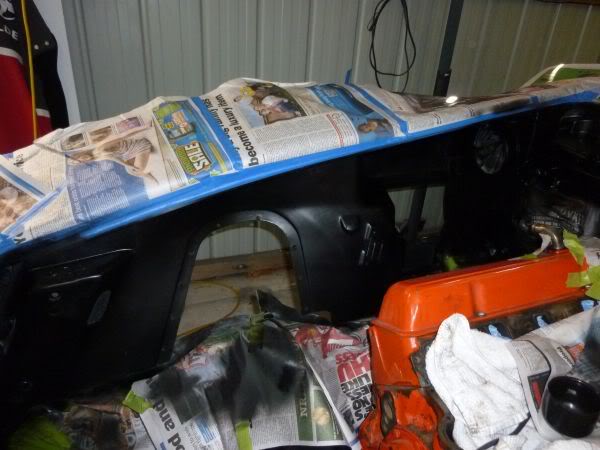

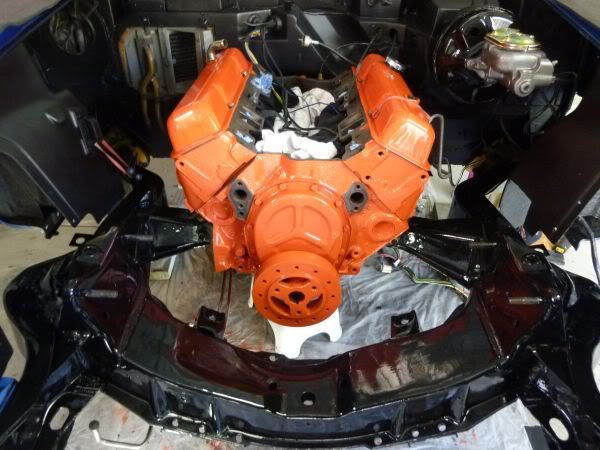

The final coat of frame gloss black is also done.
It can dry all week while I am away.
It can dry all week while I am away.
Last edited by CraigH; Apr 9, 2023 at 09:26 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

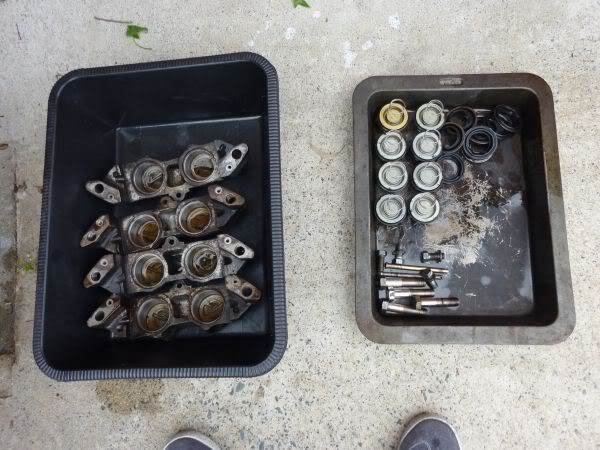

Stripped the front brakes down.
They were rebuilt when I purchased the car but I want to install o-ring sealed pistons rather than the lip seals in them now.
Will get them media blasted the powder coated red to match the back ones.
They were rebuilt when I purchased the car but I want to install o-ring sealed pistons rather than the lip seals in them now.
Will get them media blasted the powder coated red to match the back ones.
Last edited by CraigH; Apr 9, 2023 at 09:25 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified
The dip stick tube, Timing marker and sway bar brackets needed stripping so I can paint them again.
Last edited by CraigH; Apr 9, 2023 at 09:25 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

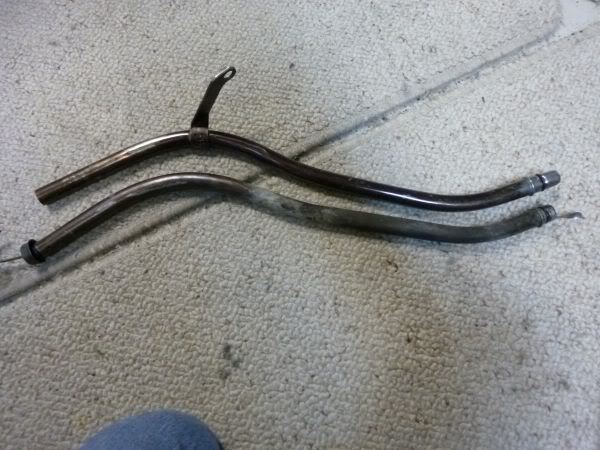

My original trans dipstick tube had lost its mount bracket so I had been searching for an original one.
Even the revised GM ones were no longer available.
Ernie from Willcox Corvette ended up giving me one from his own personal parts stash. Very nice of him.
Even the revised GM ones were no longer available.
Ernie from Willcox Corvette ended up giving me one from his own personal parts stash. Very nice of him.
Last edited by CraigH; Apr 9, 2023 at 09:25 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

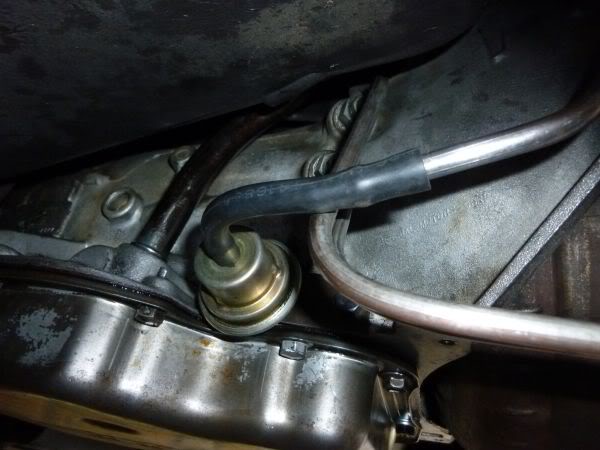

I refitted the automatic transmission dip stick and the vacuum line.
With the engine in place it was a little difficult but between Matt and myself we managed to finesse them into place.
New o-ring and some lube and it should all seal nicely I hope.
It sits in a better position than before so checking fluid should be easier.
Need to top the trans up as I lost a bit of fluid with the tube out.
With the engine in place it was a little difficult but between Matt and myself we managed to finesse them into place.
New o-ring and some lube and it should all seal nicely I hope.
It sits in a better position than before so checking fluid should be easier.
Need to top the trans up as I lost a bit of fluid with the tube out.
Last edited by CraigH; Apr 9, 2023 at 09:25 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

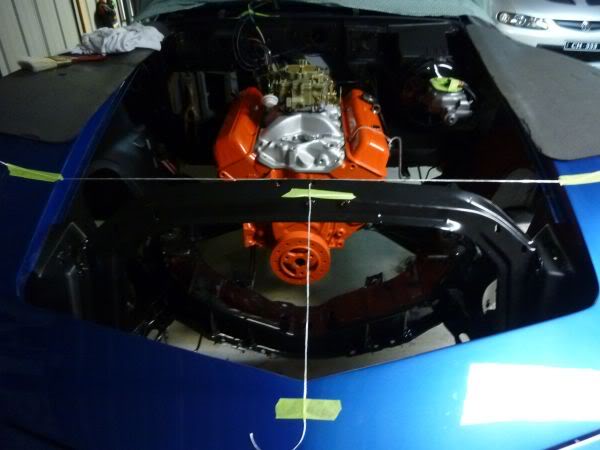

Core Support is now trial fitted.
5 of the 6 bolts lined up ok and the lower nuts were out by 1/4"
A little bit of grinding will be needed.
5 of the 6 bolts lined up ok and the lower nuts were out by 1/4"
A little bit of grinding will be needed.
Last edited by CraigH; Apr 9, 2023 at 09:24 PM.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified

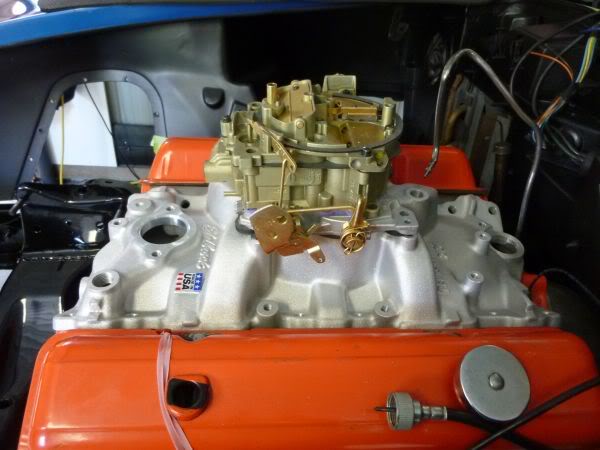

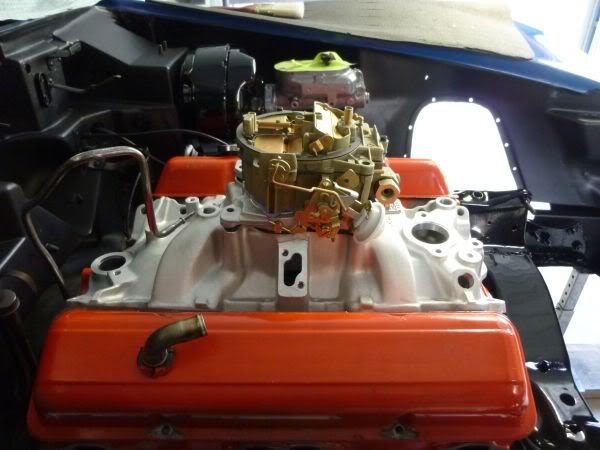

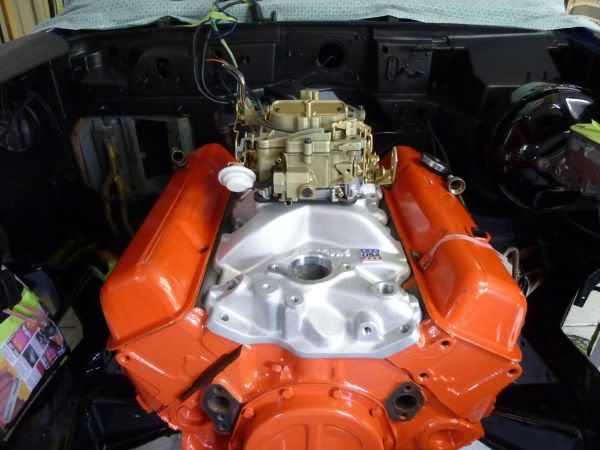

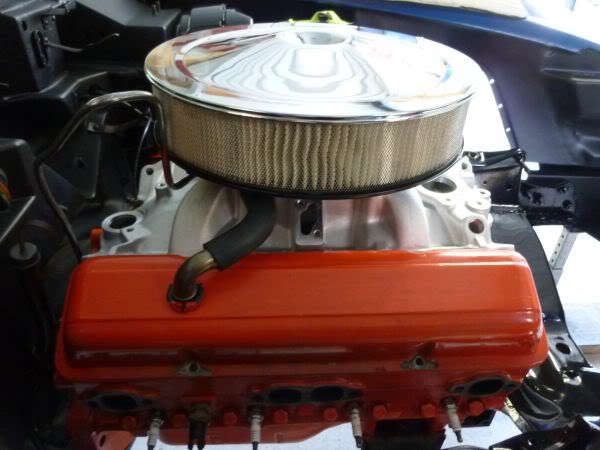

Found this info on CF
Intake 3973460 OE on 1971 L-48 C3.
Intake Manifold, Cast Iron c/n 3973460 F = 2.69”, R = 4.375”
35 degrees down in front
Intake Manifold, Weiand alum. p/n 8004 F = 3.50”, R = 4”
11 degrees down in front
Intake Manifold, Edelbrock alum p/n 2101 F = 3.50” , R = 4.60
22 degrees down in front
So its a bit under an inch higher at front and less than a 1/4" at rear.
Intake 3973460 OE on 1971 L-48 C3.
Intake Manifold, Cast Iron c/n 3973460 F = 2.69”, R = 4.375”
35 degrees down in front
Intake Manifold, Weiand alum. p/n 8004 F = 3.50”, R = 4”
11 degrees down in front
Intake Manifold, Edelbrock alum p/n 2101 F = 3.50” , R = 4.60
22 degrees down in front
So its a bit under an inch higher at front and less than a 1/4" at rear.
Thread Starter
Melting Slicks
Joined: Apr 2010
Posts: 2,796
Likes: 1,197
From: Canberra Australia
2025 C3 of the Year Finalist - Modified
September 2011

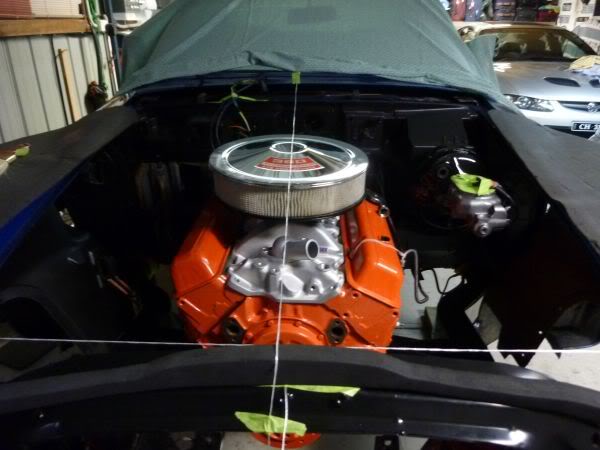

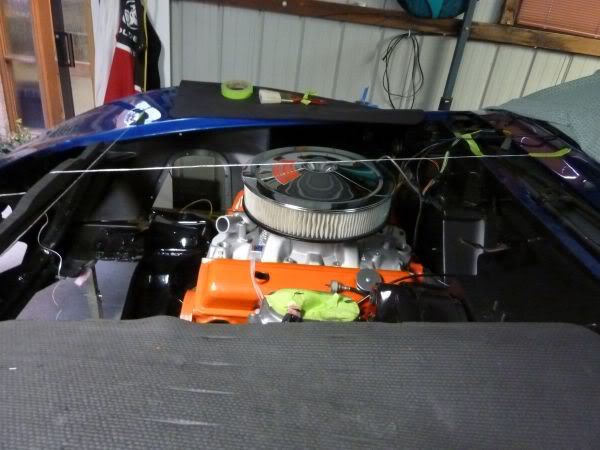

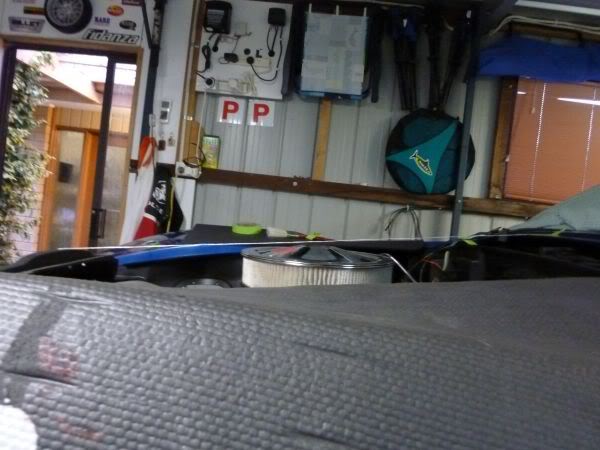

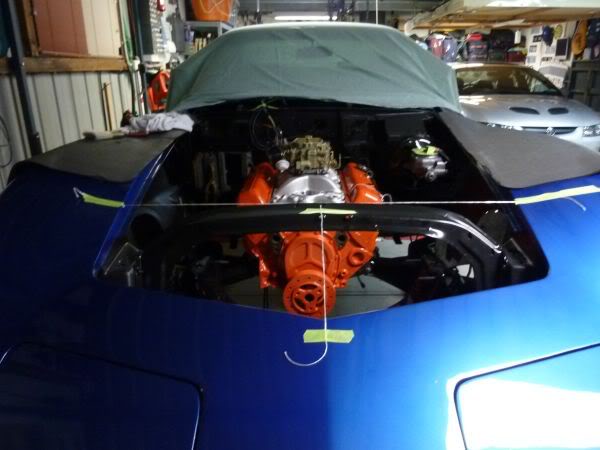

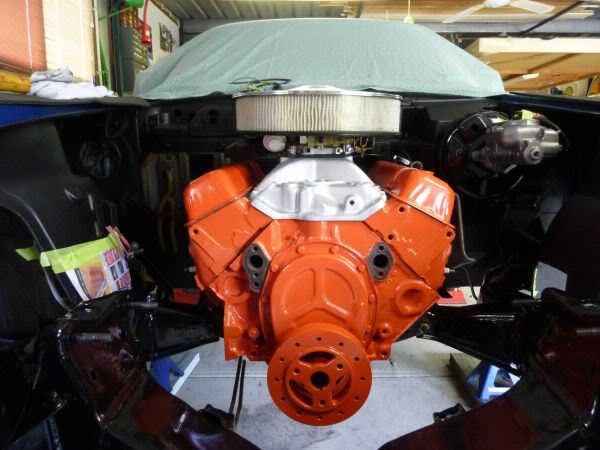

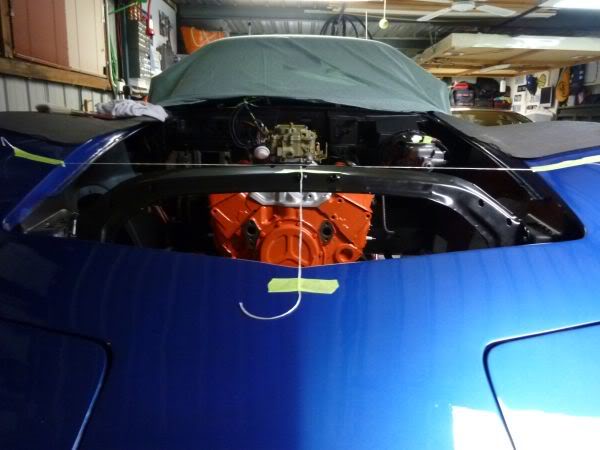

I ran string line from the wiper door down to the top if the hood seal.
1/2" clearance at front of air cleaner.
Also the small block hood has a bulge in the middle that may add some more space.
As long as it clears I will be happy.
I ran string line from the wiper door down to the top if the hood seal.
1/2" clearance at front of air cleaner.
Also the small block hood has a bulge in the middle that may add some more space.
As long as it clears I will be happy.
Last edited by CraigH; Apr 9, 2023 at 09:24 PM.
