T tops
Thread Starter
Advanced
Joined: Jul 2014
Posts: 88
Likes: 1
From: Metairie Louisiana
Team Owner
Joined: Sep 2006
Posts: 31,270
Likes: 4,362
From: Westminster Maryland
Hi s,
The AIM indicates the gap between the 2 panels was to be .12 +/- .06".

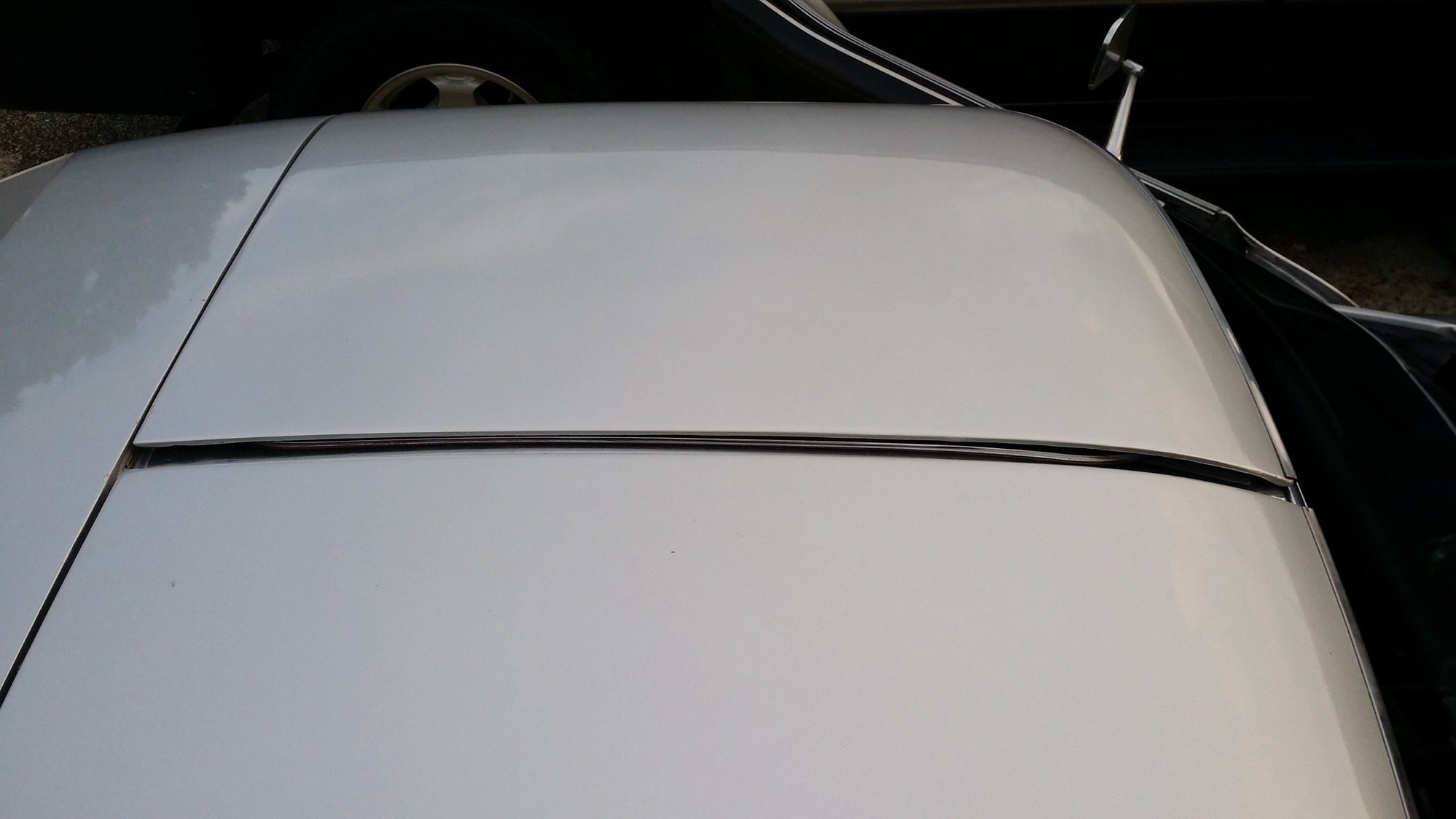

While the gap between the rear of the panel and the halo was to be .18 +/- .06".
Each gap should be consistent along it's length.
Regards,
Alan
The AIM indicates the gap between the 2 panels was to be .12 +/- .06".
While the gap between the rear of the panel and the halo was to be .18 +/- .06".
Each gap should be consistent along it's length.
Regards,
Alan
Drifting
Joined: May 2005
Posts: 1,968
Likes: 44
From: East TN
Not sure if these instructions are the same for stock, but came with my Melrose galaxy glass ttop I installed. I'll post it here, maybe it will be of help to someone.
C3 Corvette T-Top Installation
1. Place roof panels upside down on a soft surface to prevent scratching the glass.
2.
Remove plastic tongue covers (1 phillip screw each) and plastic latch covers phillip screws each.
3. Loosen (do not remove) all 7/16" nuts. There are a total of 7 nuts per top, 2 per tongue and three per latch.
4. Distinguish a mark using tape and a pencil on center of car by measuring from the left and right front locating pins holes to the center of T-Sar above the windshield.
5. Open the car doors and place T-Tops on car so tongues go into T-Sar, (see view A above) and front locating pin on latch assembly goes into hole.
6. With T-Tops on car, close latches on both tops. watching for rear locating pin to engage in switch plate.
7. Use center mark as a reference point to align tops. Move the tops side to side until you achieve a parallel position down the center or the T-Tops and across the back.
8. With T-Tops parallel tighten latch nuts.
9. Go inside car and tighten tongue nuts. NOTE: Adding shims raises top and deleting shims lowers top.
10. If T-Tops appear unlevel return to the inside of the car and add or delete shims as necessary.
11. If necessary, loosen latch and readjust tops to compensate for alignment.
12. Replace all plastic covers to the T-Top panels and return panels to car.
NOTES:
The glass roof panels are designed to sit approximately 1/8" higher than the rear roof surface, therefore, do not attempt to adjust the glass panels flush with the roof surface.
The glass panels should maintain a 1/8 - 3/16" clearance along the front between glass and car.
C3 Corvette T-Top Installation
1. Place roof panels upside down on a soft surface to prevent scratching the glass.
2.
Remove plastic tongue covers (1 phillip screw each) and plastic latch covers phillip screws each.
3. Loosen (do not remove) all 7/16" nuts. There are a total of 7 nuts per top, 2 per tongue and three per latch.
4. Distinguish a mark using tape and a pencil on center of car by measuring from the left and right front locating pins holes to the center of T-Sar above the windshield.
5. Open the car doors and place T-Tops on car so tongues go into T-Sar, (see view A above) and front locating pin on latch assembly goes into hole.
6. With T-Tops on car, close latches on both tops. watching for rear locating pin to engage in switch plate.
7. Use center mark as a reference point to align tops. Move the tops side to side until you achieve a parallel position down the center or the T-Tops and across the back.
8. With T-Tops parallel tighten latch nuts.
9. Go inside car and tighten tongue nuts. NOTE: Adding shims raises top and deleting shims lowers top.
10. If T-Tops appear unlevel return to the inside of the car and add or delete shims as necessary.
11. If necessary, loosen latch and readjust tops to compensate for alignment.
12. Replace all plastic covers to the T-Top panels and return panels to car.
NOTES:
The glass roof panels are designed to sit approximately 1/8" higher than the rear roof surface, therefore, do not attempt to adjust the glass panels flush with the roof surface.
The glass panels should maintain a 1/8 - 3/16" clearance along the front between glass and car.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Melting Slicks
Joined: Aug 2012
Posts: 3,487
Likes: 83
From: Titusville Florida
Burning Brakes
Joined: Mar 2008
Posts: 849
Likes: 28
From: Baytown Texas
2023 C3 of the Year Finalist - Modified
Not sure if these instructions are the same for stock, but came with my Melrose galaxy glass ttop I installed. I'll post it here, maybe it will be of help to someone.
C3 Corvette T-Top Installation
1. Place roof panels upside down on a soft surface to prevent scratching the glass.
2.
Remove plastic tongue covers (1 phillip screw each) and plastic latch covers phillip screws each.
3. Loosen (do not remove) all 7/16" nuts. There are a total of 7 nuts per top, 2 per tongue and three per latch.
4. Distinguish a mark using tape and a pencil on center of car by measuring from the left and right front locating pins holes to the center of T-Sar above the windshield.
5. Open the car doors and place T-Tops on car so tongues go into T-Sar, (see view A above) and front locating pin on latch assembly goes into hole.
6. With T-Tops on car, close latches on both tops. watching for rear locating pin to engage in switch plate.
7. Use center mark as a reference point to align tops. Move the tops side to side until you achieve a parallel position down the center or the T-Tops and across the back.
8. With T-Tops parallel tighten latch nuts.
9. Go inside car and tighten tongue nuts. NOTE: Adding shims raises top and deleting shims lowers top.
10. If T-Tops appear unlevel return to the inside of the car and add or delete shims as necessary.
11. If necessary, loosen latch and readjust tops to compensate for alignment.
12. Replace all plastic covers to the T-Top panels and return panels to car.
NOTES:
The glass roof panels are designed to sit approximately 1/8" higher than the rear roof surface, therefore, do not attempt to adjust the glass panels flush with the roof surface.
The glass panels should maintain a 1/8 - 3/16" clearance along the front between glass and car.
C3 Corvette T-Top Installation
1. Place roof panels upside down on a soft surface to prevent scratching the glass.
2.
Remove plastic tongue covers (1 phillip screw each) and plastic latch covers phillip screws each.
3. Loosen (do not remove) all 7/16" nuts. There are a total of 7 nuts per top, 2 per tongue and three per latch.
4. Distinguish a mark using tape and a pencil on center of car by measuring from the left and right front locating pins holes to the center of T-Sar above the windshield.
5. Open the car doors and place T-Tops on car so tongues go into T-Sar, (see view A above) and front locating pin on latch assembly goes into hole.
6. With T-Tops on car, close latches on both tops. watching for rear locating pin to engage in switch plate.
7. Use center mark as a reference point to align tops. Move the tops side to side until you achieve a parallel position down the center or the T-Tops and across the back.
8. With T-Tops parallel tighten latch nuts.
9. Go inside car and tighten tongue nuts. NOTE: Adding shims raises top and deleting shims lowers top.
10. If T-Tops appear unlevel return to the inside of the car and add or delete shims as necessary.
11. If necessary, loosen latch and readjust tops to compensate for alignment.
12. Replace all plastic covers to the T-Top panels and return panels to car.
NOTES:
The glass roof panels are designed to sit approximately 1/8" higher than the rear roof surface, therefore, do not attempt to adjust the glass panels flush with the roof surface.
The glass panels should maintain a 1/8 - 3/16" clearance along the front between glass and car.
Brack
Team Owner
Joined: Jun 2000
Posts: 38,923
Likes: 1,482
From: Southbound
Cruise-In II Veteran
Racer
Joined: Apr 2014
Posts: 406
Likes: 22
From: Lyons Colorado
My stock fiberglass tops had an almost half inch gap in the front that tapered to a little less than a quarter inch at the rear. My melrose glass tops have a nice even 3/16 gap from front to back.
Advanced
Joined: Nov 2013
Posts: 57
Likes: 0
On my 71', the t-tops look pretty much the same. I never drove it in the rain but one time I pulled into a gas station and from under the overhang, water was dripping down right dead center on the t-tops. There were no leaks. Your t-tops look good to me.
