ac control unit attachment

1969 corvette L46 with AC

I'm now in the process of installing my center console..

I'm looking at the AC control unit and puzzled as far as how it attaches to the console.

I've attached a couple of photos..

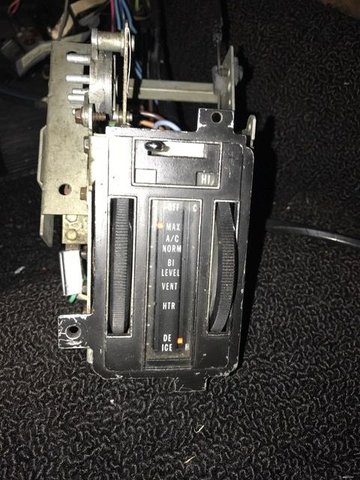

One is of the unit .. it shows a couple of flanges with holes for what it would appear to be attachment points..

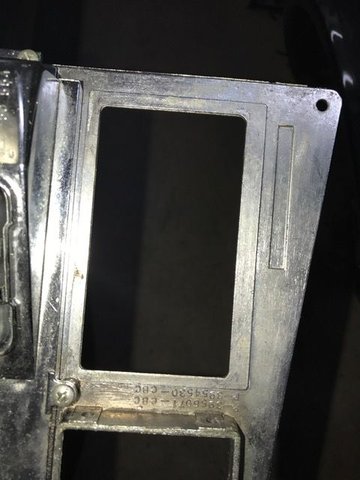

The other photo shows the underside of the console.. there doesn't seem to be any interface for the unit...

What am I missing? Can someone help?

Thanks for your help

Dec 18, 2016 | 03:56 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,274

Likes: 4,366

From: Westminster Maryland

Hi b,
It is screwed to a 'frame' that attaches to the shifter console itself below the shifter plate.
The opening in the plate then settles down around the controller.
Regards,
Alan

This is for a non a/c car but the frame is still there.

Last edited by Alan 71; Dec 18, 2016 at 03:57 PM.

Dec 18, 2016 | 07:22 PM

ballen06

Thread Starter

Pro

Joined: Nov 2004

Posts: 689

Likes: 169

From: Palm Bay Florida

Thanks .... now I just need to find that frame.

Dec 19, 2016 | 12:26 AM

7T1vette

Team Owner

Joined: Jan 2006

Posts: 37,637

Likes: 3,118

From: Crossville TN

Ugh! You'll find one at a salvaged parts place or a Corvette swap meet. Don't think there are any repops on that part. Someone on the Forum might have one stashed in some corner of their garage....

Dec 20, 2016 | 05:22 PM

ballen06

Thread Starter

Pro

Joined: Nov 2004

Posts: 689

Likes: 169

From: Palm Bay Florida

Quote:

Originally Posted by 7T1vette

Ugh! You'll find one at a salvaged parts place or a Corvette swap meet. Don't think there are any repops on that part. Someone on the Forum might have one stashed in some corner of their garage....

Thanks goodness I found mine.. hiding in the garage.

Dec 20, 2016 | 05:26 PM

ballen06

Thread Starter

Pro

Joined: Nov 2004

Posts: 689

Likes: 169

From: Palm Bay Florida

Quote:

Originally Posted by Alan 71

Hey Alan .. What type of fastener is used to attach the control unit to the frame... the frame is not threaded.. right? I'm most concerned with the forward most interface.

Dec 20, 2016 | 06:55 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,274

Likes: 4,366

From: Westminster Maryland

Hi b,
The controller mounts to the frame using 2 very small flat head, counter sunk, phillips drive fine thread machine screws.
Regards,
Alan

If your frame holes are stripped you could put nuts on the screws.
