Deck Lid Vents 68'

Reply



Thread Tools Search this Thread
Old 03-18-2017, 11:06 AM   #1
c1nicole
CF Senior Member
Thread Starter

c1nicole's Avatar

Member Since: Jul 2016
Location: Edmond Oklahoma
Posts: 493
Thanked 29 Times in 23 Posts
Default Deck Lid Vents 68'

I removed my deck lid vent covers last night for paint removal/prep.

From what I read, they drain over the spare tire compartment. When we prepped the underside of our car, there was a TON of polar white paint on the spare tire compartment, so we stripped it and restored the spare tire compartment. It looks amazing and I do not want to recover it with over spray, EVEN if that is how it was done in St. Louis.

So my question is, when we paint the car this time around, can I just stuff something down in the drain area to prevent all that over spray from ending up under the car again?

Thanks for clarification.
c1nicole is offline   Reply With Quote
Old 03-18-2017, 11:31 AM   #2
Alan 71
CF Senior Member

Alan 71's Avatar

Member Since: Sep 2006
Location: Westminster Maryland
Posts: 28,614
Thanks: 0
Thanked 2,175 Times in 1,928 Posts
Default

Hi c1n,
There's enough of a fiberglass 'lip' that the grills sit against that you can use strips of tape to completely block off the opening from body color getting through. You could tape from the topside or underside.
The sides of the opening were body color but the surface the grills sit on could be blacked-out.
Regards,
Alan

71 Coupes without a/c have plenums under the grills.




Last edited by Alan 71; 03-18-2017 at 11:59 AM.
Alan 71 is offline   Reply With Quote
Old 03-18-2017, 02:42 PM   #3
gbvette62
CF Senior Member

gbvette62's Avatar

Member Since: Oct 2000
Location: Shamong, NJ
Posts: 8,439
Thanked 419 Times in 353 Posts
Default

Quote:
Originally Posted by c1nicole View Post
So my question is, when we paint the car this time around, can I just stuff something down in the drain area to prevent all that over spray from ending up under the car again?
Short of pouring paint directly into the rear plenum drain, I don't see how any over spray could reach the tire tub, from the rear deck vent drains.

Each vent has a single 1 1/2" diameter drain hose, with a tight 90 degree bend, and a metal cover at the end of the drain, with just a small opening. I can't see how any over spray would go past the bend in the hose. Without the hose in place, over spray would end up in the rear storage compartment.

If you had a "TON" of over spray on your spare tire tub, I'd have to think that it came from somewhere else.

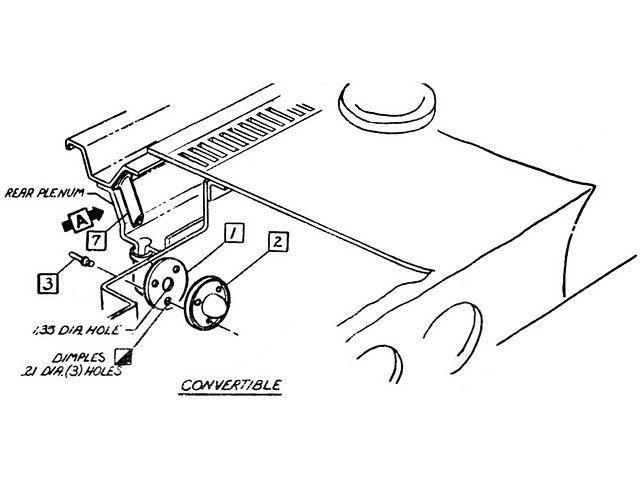

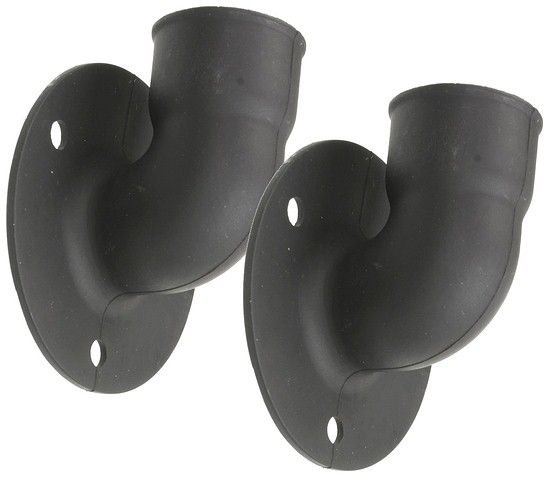

Below is the installation of the drains, as well as the drain hoses and covers.





gbvette62 is offline   Reply With Quote
Old 03-18-2017, 02:55 PM   #4
Alan 71
CF Senior Member

Alan 71's Avatar

Member Since: Sep 2006
Location: Westminster Maryland
Posts: 28,614
Thanks: 0
Thanked 2,175 Times in 1,928 Posts
Default

Hi gb,
Am I right in thinking that at least some time (early) convertible cars didn't have the plenums/drains, so you could see the ground when you looked through the vents?
Regards,
Alan

Last edited by Alan 71; 03-18-2017 at 02:59 PM.
Alan 71 is offline   Reply With Quote
Old 03-18-2017, 04:38 PM   #5
c1nicole
CF Senior Member
Thread Starter

c1nicole's Avatar

Member Since: Jul 2016
Location: Edmond Oklahoma
Posts: 493
Thanked 29 Times in 23 Posts
Default

Quote:
Originally Posted by Alan 71 View Post
Hi c1n,
There's enough of a fiberglass 'lip' that the grills sit against that you can use strips of tape to completely block off the opening from body color getting through. You could tape from the topside or underside.
The sides of the opening were body color but the surface the grills sit on could be blacked-out.
Regards,
Alan

71 Coupes without a/c have plenums under the grills.




Seriously Alan, I do not think I could open a thread question that you won't have the perfect answer to, including pictures!

I think "Bubba" did pour polar white paint down the vent slots. The entire opening is white, the screws are white, the opening down to the drains is white, EVERYTHING. But that does not shock me. There is over spray on everything. They didn't even take the time to remove emblems or cover up tail lights or the license tag light. I will do my best to make mine look as fantastic as your pictures!

Once again sir, my hats off to you for your awesomeness!!!

Last edited by c1nicole; 03-18-2017 at 04:39 PM.
c1nicole is offline   Reply With Quote
Old 03-18-2017, 04:42 PM   #6
gbvette62
CF Senior Member

gbvette62's Avatar

Member Since: Oct 2000
Location: Shamong, NJ
Posts: 8,439
Thanked 419 Times in 353 Posts
Default

Quote:
Originally Posted by Alan 71 View Post
Hi gb,
Am I right in thinking that at least some time (early) convertible cars didn't have the plenums/drains, so you could see the ground when you looked through the vents?
Regards,
Alan
The drain hoses were eliminated from convertible bodies, starting in 71. 68-70 convertibles used the drain hoses pictured above.

Even without the drain hoses, I don't see how a "TON" of over spray, to use the OP's words, could get through two 1 1/2" diameter holes? Besides, wouldn't any over spray that did go through the holes, likely be covered by black over spray, after blacking out the rear plenum?

The over spray on the OP's spare tire tub, wouldn't have been there from the factory. Since the bodies were painted separate from the frame, I'd guess the over spray on the OP's spare tire tub, was likely the result of something a previous owner did.
gbvette62 is offline   Reply With Quote
Old 03-18-2017, 04:44 PM   #7
c1nicole
CF Senior Member
Thread Starter

c1nicole's Avatar

Member Since: Jul 2016
Location: Edmond Oklahoma
Posts: 493
Thanked 29 Times in 23 Posts
Default

Forgive my silly questions, what was the purpose of these vents?
c1nicole is offline   Reply With Quote
Old 03-18-2017, 04:58 PM   #8
Tooch1
CF Senior Member

Tooch1's Avatar

Member Since: Oct 2013
Location: McClellandtown Pennsylvania
Posts: 613
Thanked 92 Times in 86 Posts
Default

Quote:
Originally Posted by c1nicole View Post
Forgive my silly questions, what was the purpose of these vents?
Those vents were for "Astro Ventilation." They allowed for air to circulate through out the car when the vents are opened. They were blocked off on AC Cars.
Tooch
Tooch1 is offline   Reply With Quote
Old 03-18-2017, 05:46 PM   #9
marshal135
CF Senior Member

marshal135's Avatar

Member Since: Sep 2011
Location: Horsham PA
Posts: 1,970
Thanked 121 Times in 109 Posts
Default

Nicole,
I'm going to do a little police work here.
When you drop the spare tire upper cover is a white outline like someone sprayed from above ie.... two squares?

Or are we talking about over spray shot on it?
It could have got hit while removed during paint.
it sounds like they painted over the bugs and everything else.
We have shops like that here with "tail light" warranties
It probably got hit while out on the shop floor as it sounds like the previous shop was sloppy.
Really... sprayed over the emblems?
They could have at least put Vaseline on them.
Some should not have a paint gun in their hand
Marshal
marshal135 is offline   Reply With Quote
Old 03-18-2017, 05:52 PM   #10
Paul L
Ontario, Canada
Support Corvetteforum!

Member Since: Aug 1999
Location: Ontario
Posts: 30,994
Thanked 75 Times in 73 Posts
Default

Quote:
Originally Posted by Tooch1 View Post
Those vents were for "Astro Ventilation." They allowed for air to circulate through out the car when the vents are opened. They were blocked off on AC Cars.
Tooch
Quite true. I can see pavement when I look straight down through mine.
Paul L is offline   Reply With Quote
Old 03-18-2017, 07:09 PM   #11
Alan 71
CF Senior Member

Alan 71's Avatar

Member Since: Sep 2006
Location: Westminster Maryland
Posts: 28,614
Thanks: 0
Thanked 2,175 Times in 1,928 Posts
Default

Hi c1n,
Those rear vents are vacuum operated.
The Hot/Cold wheel on the right side of the heater/defroster controller operates the vents.
Cold setting… vents open
Hot setting… vents closed.
A single vacuum line runs toward the rear of the car on the top, and then side, of the transmission tunnel.
The vent was closed when the heater was operating so the air in the car was warmed.
At least in some years the blower motor was operating at low even when the switch on the controller was turned to off.

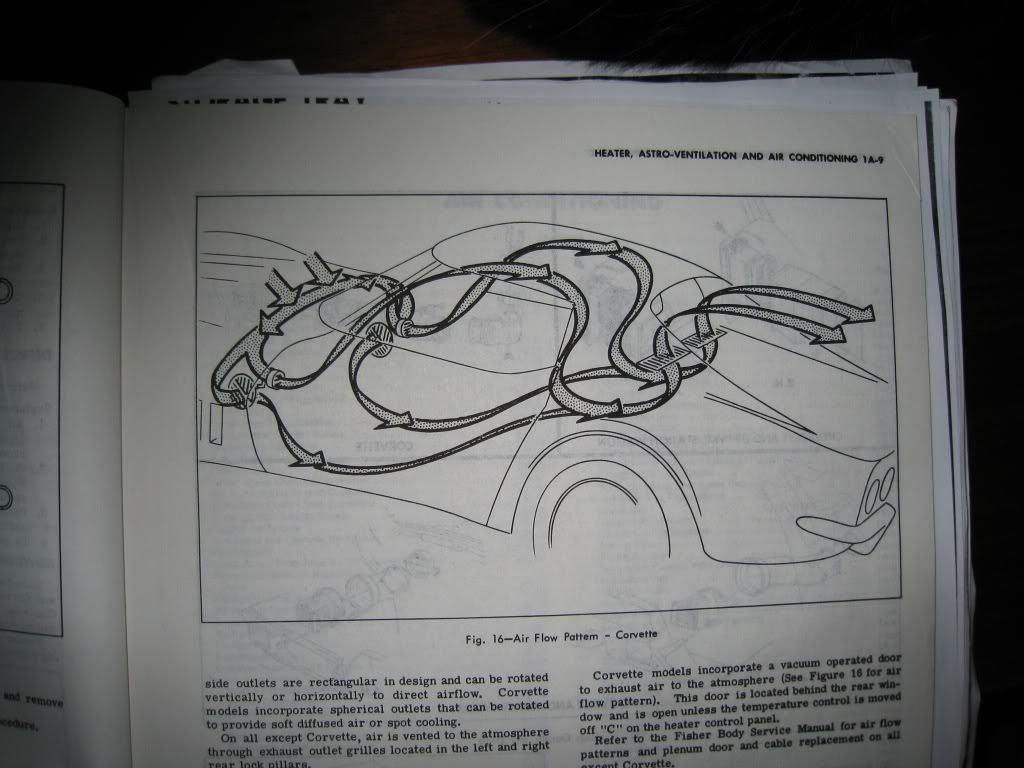

The Astro System was developed to allow fresh air to flow through the car with the windows closed. The system took the place of 'vent' windows which ended in 67 production.
Regards,
Alan
Alan 71 is offline   Reply With Quote
The Following User Says Thank You to Alan 71 For This Useful Post:
marshal135 (03-18-2017)
Old 03-18-2017, 08:30 PM   #12
loup68
CF Senior Member
Support Corvetteforum!

Member Since: Jan 2012
Location: myrtle beach sc
Posts: 2,019
Thanked 87 Times in 80 Posts
Default

Alan, 68's do not have the vacuum doors, just a rubber flap. Lou.
loup68 is offline   Reply With Quote
Old 03-18-2017, 08:36 PM   #13
oldgto
CF Senior Member

oldgto's Avatar

Member Since: Feb 2012
Location: Orlando FL
Posts: 3,929
Thanked 218 Times in 187 Posts
Default

Quote:
Originally Posted by c1nicole View Post
Forgive my silly questions, what was the purpose of these vents?
Air flow enters through the cowl vent near the wiper door.... comes into the cabin through the kick panel vents, then flows out throught the flapper doors on the rear plenum, and out through the rear deck vents. These were on NON-AC cars. Cool, huh?


oldgto is offline   Reply With Quote
The Following User Says Thank You to oldgto For This Useful Post:
c1nicole (03-19-2017)
Old 03-19-2017, 12:18 AM   #14
c1nicole
CF Senior Member
Thread Starter

c1nicole's Avatar

Member Since: Jul 2016
Location: Edmond Oklahoma
Posts: 493
Thanked 29 Times in 23 Posts
Default

Quote:
Originally Posted by marshal135 View Post
Nicole,
I'm going to do a little police work here.
When you drop the spare tire upper cover is a white outline like someone sprayed from above ie.... two squares?

Or are we talking about over spray shot on it?
It could have got hit while removed during paint.
it sounds like they painted over the bugs and everything else.
We have shops like that here with "tail light" warranties
It probably got hit while out on the shop floor as it sounds like the previous shop was sloppy.
Really... sprayed over the emblems?
They could have at least put Vaseline on them.
Some should not have a paint gun in their hand
Marshal
Marshal,

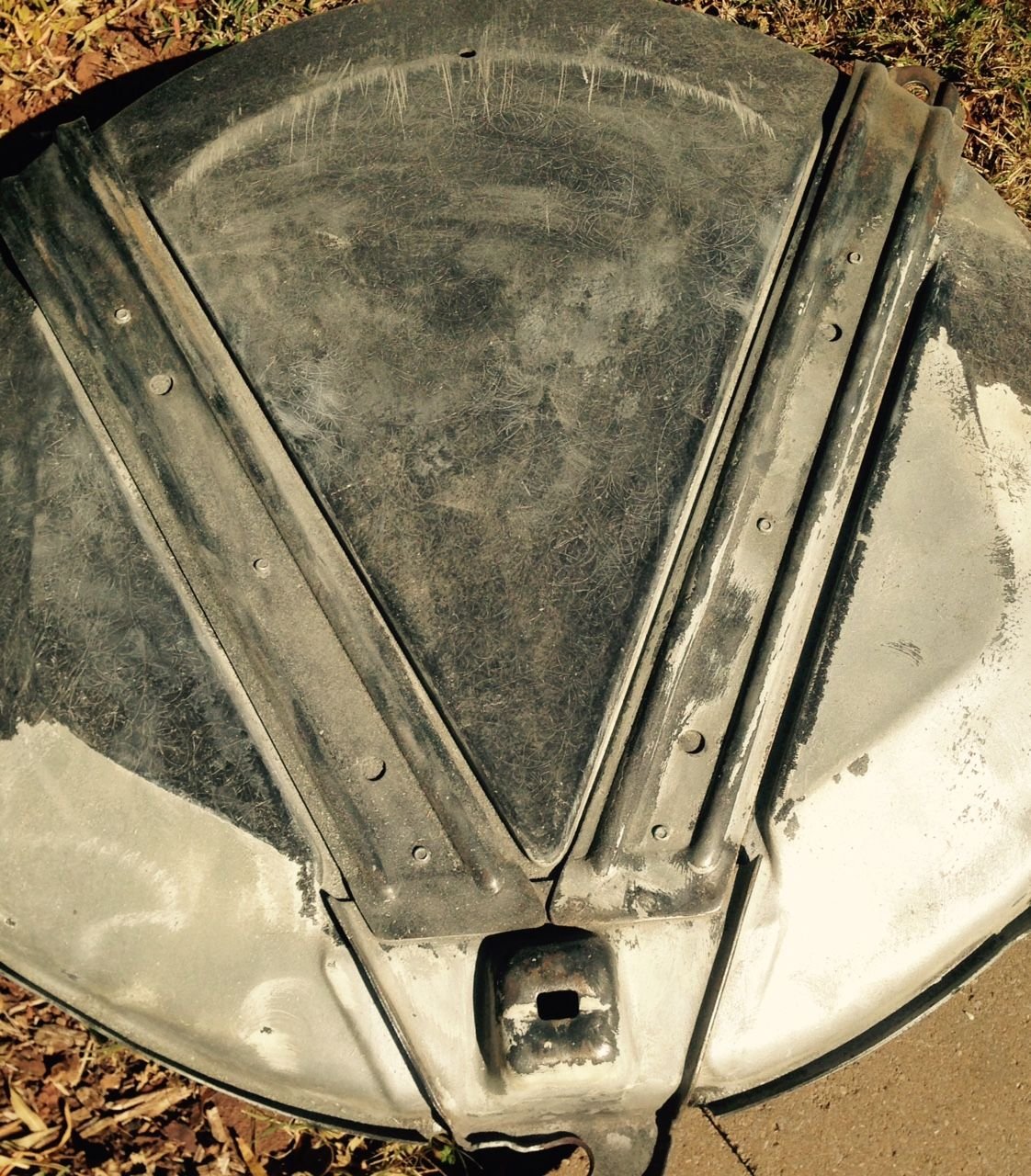

Wish I had had a picture BEFORE I had the spare tire compartment half stripped. When I say "over spray" that is an understatement.


c1nicole is offline   Reply With Quote
Old 03-19-2017, 12:24 AM   #15
c1nicole
CF Senior Member
Thread Starter

c1nicole's Avatar

Member Since: Jul 2016
Location: Edmond Oklahoma
Posts: 493
Thanked 29 Times in 23 Posts
Default And after...



Not the best picture, but way better than covered in white. Painted the fiberglass with John Deere BlitzBlack and the metal support Semigloss Krylon. 10 X better than what we started with.
c1nicole is offline   Reply With Quote
Old 03-19-2017, 12:53 AM   #16
gbvette62
CF Senior Member

gbvette62's Avatar

Member Since: Oct 2000
Location: Shamong, NJ
Posts: 8,439
Thanked 419 Times in 353 Posts
Default

That doesn't look like over spray to me. I think someone thought it would be a good idea to paint the tub white! It looks a lot better now!
gbvette62 is offline   Reply With Quote
Old 03-19-2017, 12:53 AM   #17
v2racing
CF Senior Member

v2racing's Avatar

Member Since: Mar 2008
Location: Spring Park MN
Posts: 1,827
Thanked 83 Times in 74 Posts
Default

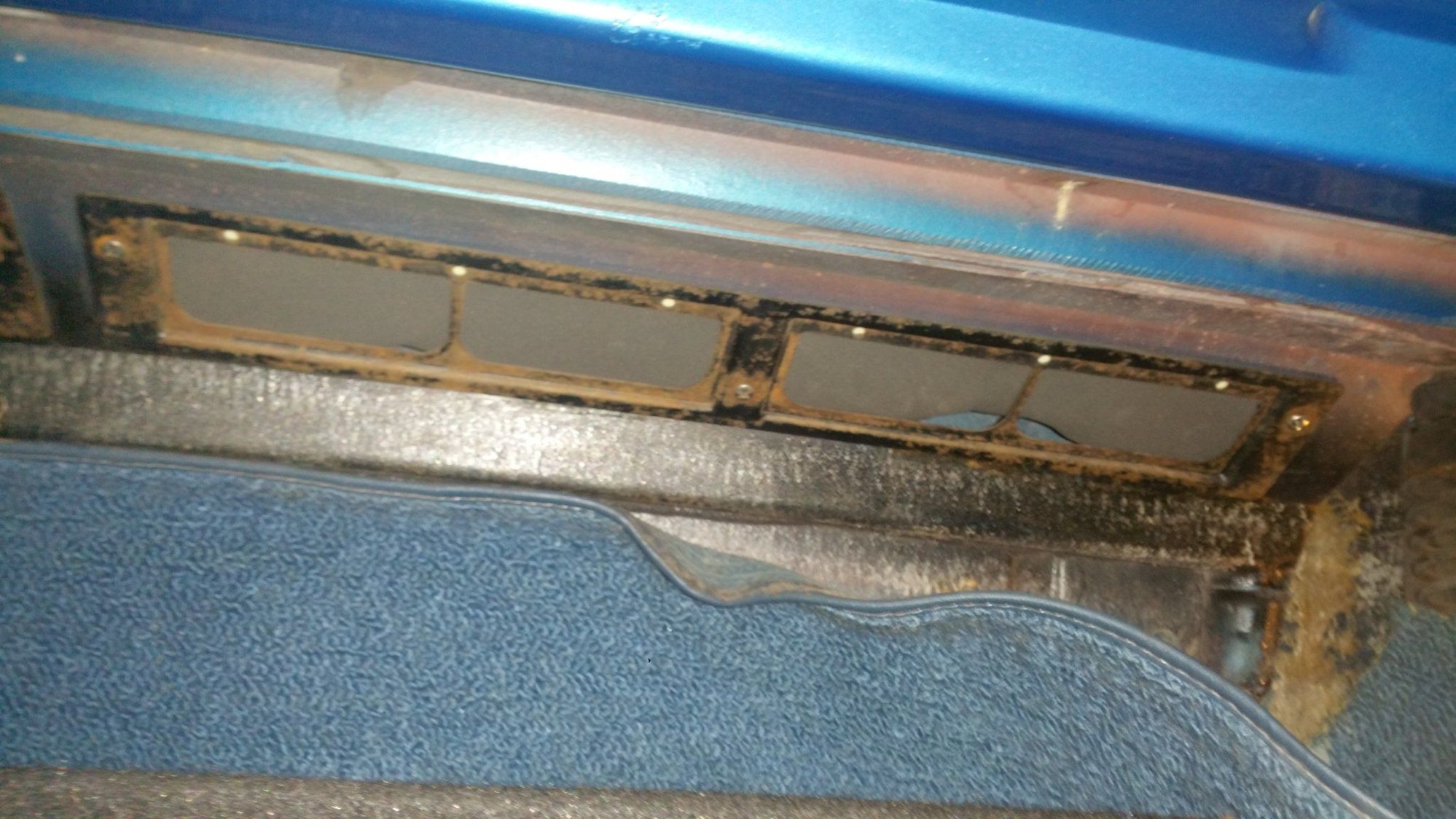

When you look in the vents on my 75 convertible AC car, you can see the ground without the spare tire carrier. There is no plenum. There are block off plates on the back of the body.
v2racing is online now   Reply With Quote
Old 03-19-2017, 09:20 AM   #18
Alan 71
CF Senior Member

Alan 71's Avatar

Member Since: Sep 2006
Location: Westminster Maryland
Posts: 28,614
Thanks: 0
Thanked 2,175 Times in 1,928 Posts
Default

Hi,
Doesn't the position of the rear bulkhead in the interior determine if you can see the ground or not?
Didn't the bullhead 'move' at some point? ( Very DUMB about convertible bodies!).
GTO's photo clearly shows the plenum is on the interior side of the rear bulkhead, to be able to see the ground the plenum has to be on the exterior side of that bulkhead.
The GRILLS didn't move, the BULKHEAD did.
There was a thread about this not that long ago but I'm unable to remember the details that were explained.
Regards,
Alan

Convertible with plenum on interior side of rear bulkhead.
An a/c car because plenum is blocked off.
Still needs drain hoses though or plenums would drain into the rear compartment.

Alan 71 is offline   Reply With Quote
Old 03-19-2017, 09:26 AM   #19
Easy Mike
CF Senior Member
Support Corvetteforum!
Cruise-In II Veteran

Easy Mike's Avatar

Member Since: Jun 2000
Location: The Bluegrass State
Posts: 34,910
Thanks: 0
Thanked 577 Times in 530 Posts
Default

It sounds like your car as been repainted in the past. The spare tire carrier was not installed in the body at the time the body was painted at St. Louis, so it would have had no white over spray. Absence of blackout beneath the deck vents and over spray around trim items and lights also suggests a repaint.
Easy Mike is offline   Reply With Quote
The Following User Says Thank You to Easy Mike For This Useful Post:
c1nicole (03-20-2017)
Old 03-19-2017, 09:35 AM   #20
Rescue Rogers
CF Senior Member
Support Corvetteforum!
C3 of Month Finalist 2016

Rescue Rogers's Avatar

Member Since: Oct 2015
Location: YUPPY HELL Westford MASS
Posts: 3,048
Thanked 364 Times in 338 Posts
Default



Hi tech flapper system and drain

Last edited by Rescue Rogers; 03-19-2017 at 10:00 AM.
Rescue Rogers is offline   Reply With Quote
The Following User Says Thank You to Rescue Rogers For This Useful Post:
c1nicole (03-20-2017)
Go Back   CorvetteForum - Chevrolet Corvette Forum Discussion >
Reload this Page
  • Deck Lid Vents 68'
  •

    Reply

    Related Topics
    Thread Thread Starter Forum Replies Last Post
    My journey so far with my 75 convertible..long post LRB C3 General 58 03-21-2017 10:19 PM
    F/S 1992 Quasar Blue Coupe Blue 92 C4s for Sale/Wanted 10 11-08-2016 11:14 PM
    Hood - Underside clean-up, pic heavy as usual Mooser C3 General 15 08-08-2016 01:23 PM
    1968 Covertible rear vent question gr8corvette C3 General 7 03-28-2016 09:19 AM
    64 Deck lid questions Oaker57 C1 & C2 Corvettes 2 12-14-2015 09:48 PM


    Thread Tools Search this Thread
    Search this Thread:

    Click for Advanced Search

    Posting Rules
    You may not post new threads
    You may not post replies
    You may not post attachments
    You may not edit your posts

    BB code is On
    Smilies are On
    [IMG] code is On
    HTML code is Off
    Trackbacks are Off
    Pingbacks are Off
    Refbacks are Off

    Forum Jump

    Sponsored Ads
    Vendor Directory

    All times are GMT -4. The time now is 05:38 AM.


    We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

    • Ask a Question
      Get answers from community experts
    Question Title:
    Description:
    Your question will be posted in:
