LED Dash Lights
A few of my dash lights are out, so I'm considering changing all of them to LEDs. Those who have done so, is any particular brand preferred? Or OK to get what's on the shelf at Pep Boy's? I've seen ads for Superbrightleds.com and they look very good, and are dimmable. Prices are all over the map, so are any really better? Experiences? Thanks in advance.
#2
Drifting
A few of my dash lights are out, so I'm considering changing all of them to LEDs. Those who have done so, is any particular brand preferred? Or OK to get what's on the shelf at Pep Boy's? I've seen ads for Superbrightleds.com and they look very good, and are dimmable. Prices are all over the map, so are any really better? Experiences? Thanks in advance.
The following users liked this post:
C3 Stroker (05-03-2018)
#3
Le Mans Master
I went all out and replaced it with led RGB strips and remote control, works great but was alot of work, now I can change the color and brightness the way I want though
The following users liked this post:
C3 Stroker (05-03-2018)
#4
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,858
Received 3,139 Likes
on
2,070 Posts
I also used superbrightLED and had no issues.
Whatever you buy, buy spares as the supplier (not the re-sellers) keep changing and what was available now may not be available in 6 months so new ones might be a slightly different brightness/color/whatever.
M
Whatever you buy, buy spares as the supplier (not the re-sellers) keep changing and what was available now may not be available in 6 months so new ones might be a slightly different brightness/color/whatever.
M
The following users liked this post:
C3 Stroker (05-03-2018)
#5
If you are going to tear apart that dash, and you are willing to modify, then you may wish to consider LED Strip Lighting. I did and I like it....mostly because no matter what I did those lamps would fall off, fall in, or just plain fail...and this minimizes the number of leads also.
Here is my story about installing LED stip lighting:
https://www.corvetteforum.com/forums...-and-tach.html
Here is my story about installing LED stip lighting:
https://www.corvetteforum.com/forums...-and-tach.html
The following users liked this post:
C3 Stroker (05-03-2018)
#6
Safety Car
Thread Starter
Thanks , all for your replies. I think I'll go with Superbrightleds bulbs. Taking the dash apart is not fun, but new lights are needed. I found this YouTube video to be helpful.
#7
Team Owner
White faced gauges, painted housings white on tach/speedo changed the gauges to white, and plugged in suber bright LED's in GREEN, they full brill all the time, no dimming....which is fine by me....there is a shot of my interior down below.....
The following users liked this post:
C3 Stroker (05-03-2018)
#8
Racer
I also used superbrite but light green to match the body color. I had to slightly modify one of the gauges on the center bezel and can't remember which one. I didn't have to pull the dash completely out and was able to get my hand far enough from the top. The steering column has to be dropped. The bottom lights we're accessed from the bottom of the dash. Good luck.
The following users liked this post:
C3 Stroker (05-03-2018)
#10
Dorman 85805.... I've bought them before at Autozone. It's the lamp assembly and a pigtail.
https://www.dormanproducts.com/p-4123-85805.aspx
Just cut the old one off and solder a new one on.....I usually leave them long so I don't have to stretch wires later.
I always solder connections if I am at all able to....and then heat shrink over it...
---FYI: I replaced several of these over the years. While you're there replace all the loose units... otherwise you'll have to go back in. This is another reason I'm glad I went to strip lighting.
https://www.dormanproducts.com/p-4123-85805.aspx
Just cut the old one off and solder a new one on.....I usually leave them long so I don't have to stretch wires later.
I always solder connections if I am at all able to....and then heat shrink over it...
---FYI: I replaced several of these over the years. While you're there replace all the loose units... otherwise you'll have to go back in. This is another reason I'm glad I went to strip lighting.
Last edited by carriljc; 05-04-2018 at 11:36 AM.
The following 2 users liked this post by carriljc:
C3 Stroker (05-04-2018),
Peterbuilt (06-13-2018)
#11
If you are going to tear apart that dash, and you are willing to modify, then you may wish to consider LED Strip Lighting. I did and I like it....mostly because no matter what I did those lamps would fall off, fall in, or just plain fail...and this minimizes the number of leads also.
Here is my story about installing LED stip lighting:
https://www.corvetteforum.com/forums...-and-tach.html
Here is my story about installing LED stip lighting:
https://www.corvetteforum.com/forums...-and-tach.html
How is did you connect this to the existing lighting system? And where did you place the lighting controller?
#12
I bought one of those cigarette lighter-to-USB adapters. Disassembled the 12 VDC side and wired it in to 2 of the gray lighting supply leads for the dash lighting (I suppose I could have used just one since it is such low amperage, but I had many available).
I then just plug in the USB supply to LED strip lighting into the adapter. It's actually a Dual-USB adapter so I plugged both LED strips (Speedo & Tach combo strips and the Center Gauges strip) into it.
The lighting controller remote is in the glove box. The little "box" that the LED leads and the USB leads plug into is attached to the passenger side of the tach. The "box" for the center gauges is attached to the back of the center gauge panel (actually to the top of the D1N radio cage attached to the center gauge panel).
I'm working on my Rad Fan controls so I'll try to take some pictures tomorrow (hope I remember).
I then just plug in the USB supply to LED strip lighting into the adapter. It's actually a Dual-USB adapter so I plugged both LED strips (Speedo & Tach combo strips and the Center Gauges strip) into it.
The lighting controller remote is in the glove box. The little "box" that the LED leads and the USB leads plug into is attached to the passenger side of the tach. The "box" for the center gauges is attached to the back of the center gauge panel (actually to the top of the D1N radio cage attached to the center gauge panel).
I'm working on my Rad Fan controls so I'll try to take some pictures tomorrow (hope I remember).
Last edited by carriljc; 06-12-2018 at 11:24 PM.
#13
I bought one of those cigarette lighter-to-USB adapters. Disassembled the 12 VDC side and wired it in to 2 of the gray lighting supply leads for the dash lighting (I suppose I could have used just one since it is such low amperage, but I had many available).
I then just plug in the USB supply to LED strip lighting into the adapter. It's actually a Dual-USB adapter so I plugged both LED strips (Speedo & Tach combo strips and the Center Gauges strip) into it.
The lighting controller remote is in the glove box. The little "box" that the LED leads and the USB leads plug into is attached to the passenger side of the tach. The "box" for the center gauges is attached to the back of the center gauge panel (actually to the top of the D1N radio cage attached to the center gauge panel).
I'm working on my Rad Fan controls so I'll try to take some pictures tomorrow (hope I remember).
I then just plug in the USB supply to LED strip lighting into the adapter. It's actually a Dual-USB adapter so I plugged both LED strips (Speedo & Tach combo strips and the Center Gauges strip) into it.
The lighting controller remote is in the glove box. The little "box" that the LED leads and the USB leads plug into is attached to the passenger side of the tach. The "box" for the center gauges is attached to the back of the center gauge panel (actually to the top of the D1N radio cage attached to the center gauge panel).
I'm working on my Rad Fan controls so I'll try to take some pictures tomorrow (hope I remember).
#14

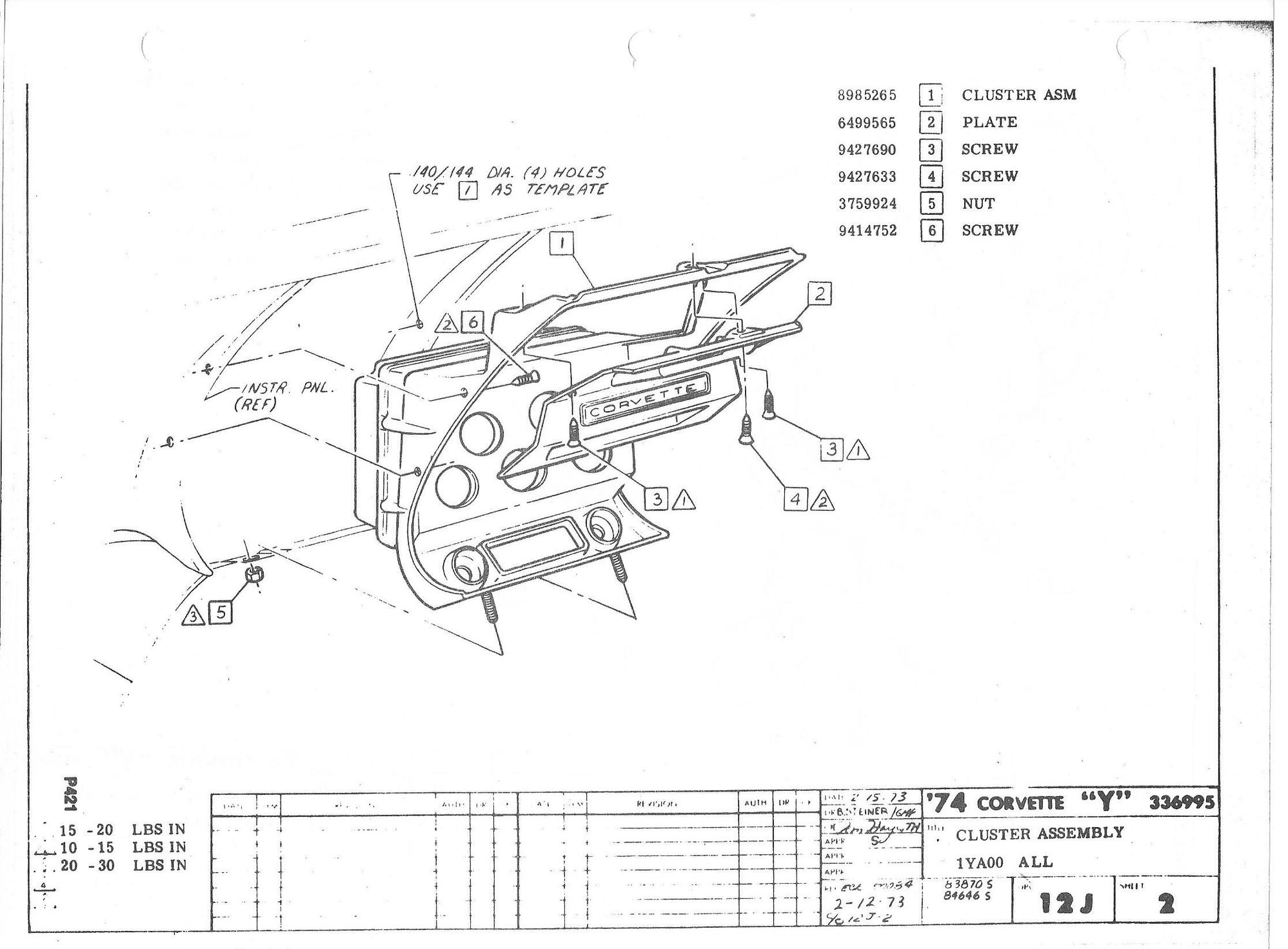

I also went the LED route for my center bezel gauges. Originally used the existing grounding sockets, and this resulted in some intermittent flickering with a sensitivity to the bright headlight switch being on or off.
Then I bought 5 new replacement grounding sockets for those LEDs, but still had flickering of several.
Suspecting a touchy ground somewhere in the gauge back plate area, I then changed over all 5 sockets to the 2-wire version, by-passing the ground to the gauge case. All 5 were then wired to a single "hot" Gray wire, and a single good ground to the dash beam.
Now I've got good, consistent gauge lights, and hopefully have pulled that center bezel off for the last time (at least for the foreseeable future).
The bulbs I used were the ones that look like bulbs (not the flat faced LEDs - those were real crap quality units). Mine don't dim, but that's fine with me. I don't see a situation where I would want them dimmer than max anyway.
Then I bought 5 new replacement grounding sockets for those LEDs, but still had flickering of several.
Suspecting a touchy ground somewhere in the gauge back plate area, I then changed over all 5 sockets to the 2-wire version, by-passing the ground to the gauge case. All 5 were then wired to a single "hot" Gray wire, and a single good ground to the dash beam.
Now I've got good, consistent gauge lights, and hopefully have pulled that center bezel off for the last time (at least for the foreseeable future).
The bulbs I used were the ones that look like bulbs (not the flat faced LEDs - those were real crap quality units). Mine don't dim, but that's fine with me. I don't see a situation where I would want them dimmer than max anyway.
#16
Race Director
Member Since: Oct 1999
Location: www.ncminsurance.com Bowling Green KY Home of the Corvette!
Posts: 14,109
Received 126 Likes
on
66 Posts
CI 1-2-3-4-5-6-7-8-9-10-11-12 Vet
St. Jude Donor '07-'08
NCM Sinkhole Donor
I bought these LEDs for my 1969. My father in law used them on his Chevelle and they worked like a charm.
https://www.ebay.com/itm/20X-BA9S-1-...72.m2749.l2649
https://www.ebay.com/itm/20X-BA9S-1-...72.m2749.l2649
Last edited by Adam Boca; 06-13-2018 at 03:19 PM.
#18
1. One is attached to the passenger side of the tach (kinda hard to see--it's for the Speedo and Tach, 1 strip each).
2 Second one is attached to "cage" for D1N radio on center inst panel (it's for the center instrumentation, 2 strips placed therein for appropriate lighting coverage overlap).
