1972 front headlight support missing


Old 06-10-2019, 10:41 AM
  #1
pierre1119
Junior Member
Thread Starter

Member Since: Feb 2019
Posts: 10
Received 0 Likes on 0 Posts
Default 1972 front headlight support missing

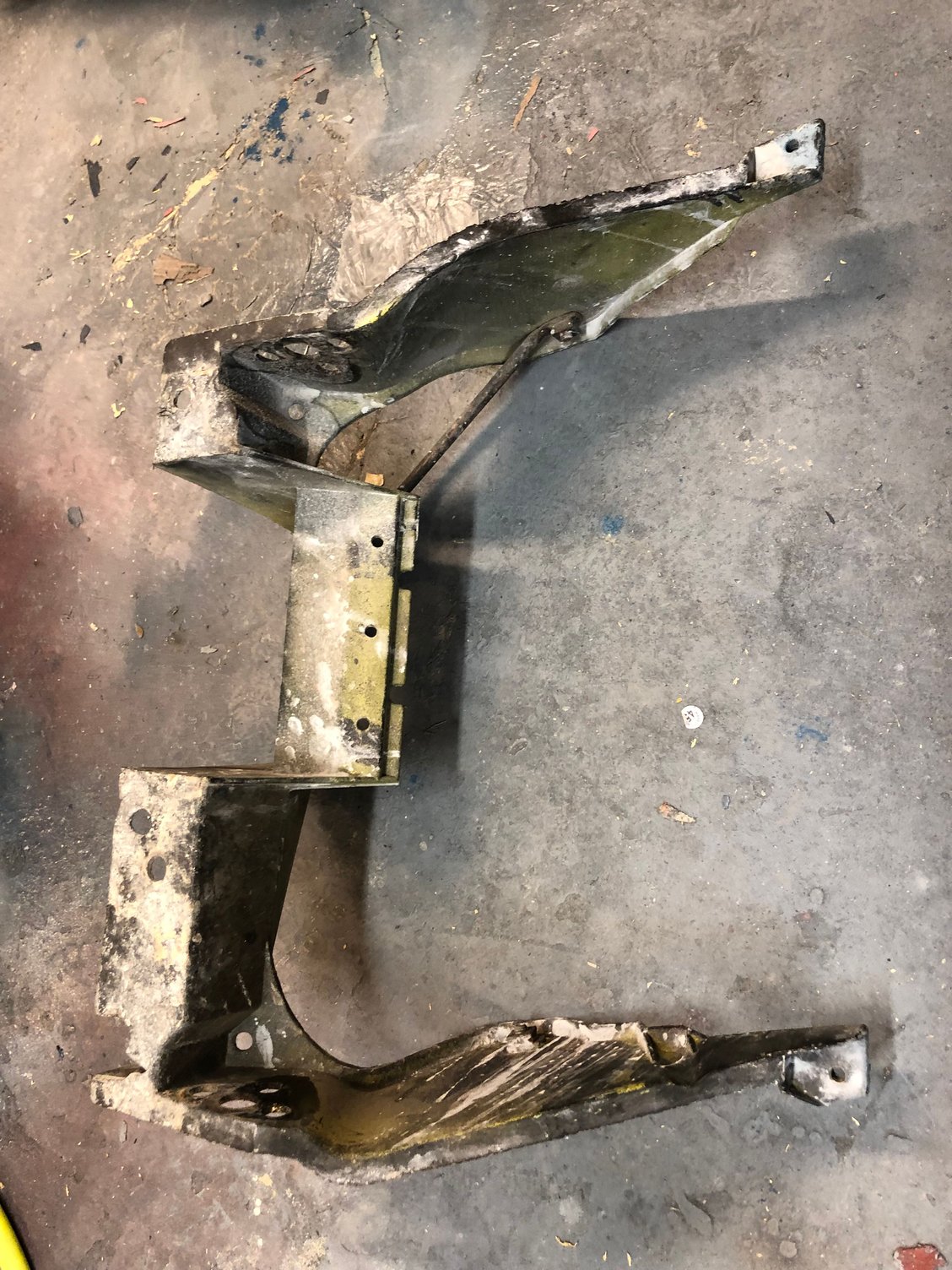

Hi, I must have a missing part or two on the front of my car. The headlight support bracket has nothing to bolt on to. The headlight support has two long skinny metal outriggers that bolt on to a bracket at the front of the car. The metal bracket is apparently missing. Does anyone have a picture of how they are bolted on and what the metal bracket looks like? I am doing a conversion back to regular headlight pop ups from the recessed headlight buckets.
pierre1119 is offline
Old 06-10-2019, 10:03 PM
  #2
Mooser
CF Senior Member

Member Since: Apr 2011
Location: Toronto Ontario
Posts: 5,572
Received 511 Likes on 442 Posts
Default

Do you mean at where the front is attached or the rear?

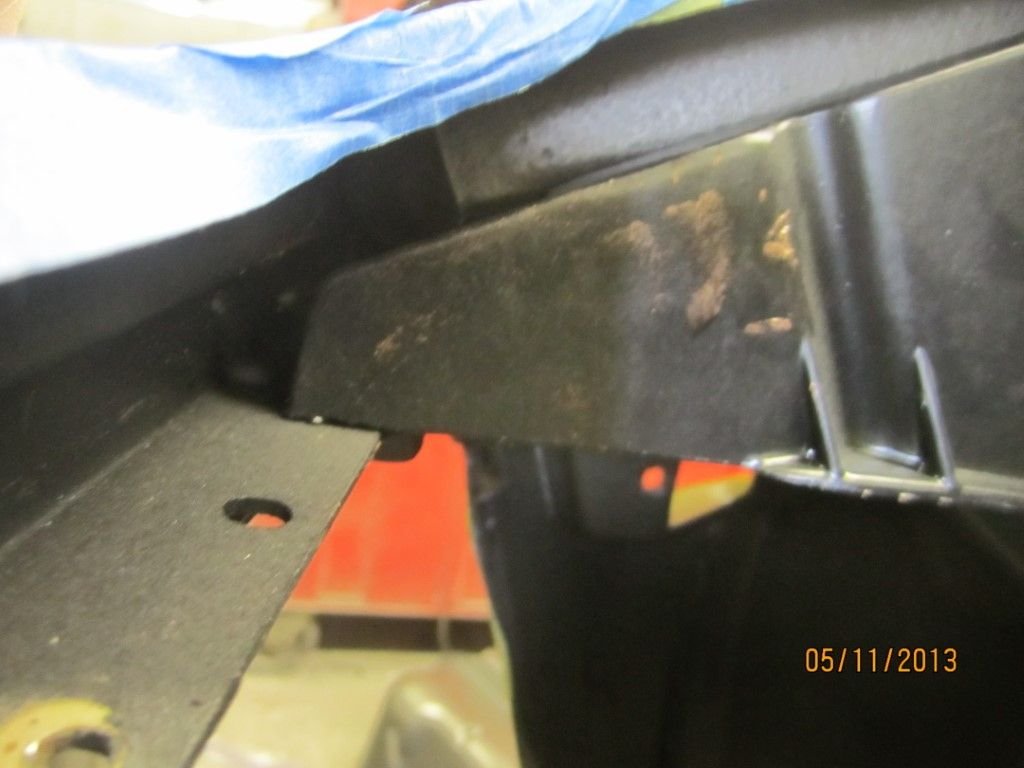

Here's where the front sits


Lip runs along the front just in behind the bumper really

Or are you talking the rear part that should be bonded underneath the body between the headlight and hood openings?
M
Mooser is offline
Old 06-10-2019, 10:19 PM
  #3
pierre1119
Junior Member
Thread Starter

Member Since: Feb 2019
Posts: 10
Received 0 Likes on 0 Posts
Default

Originally Posted by Mooser View Post
Do you mean at where the front is attached or the rear?
Here's where the front sits


Lip runs along the front just in behind the bumper really

Or are you talking the rear part that should be bonded underneath the body between the headlight and hood openings?
M
That looks like it. If I mount it like that, the rear upper side is not flush with the mounting bracket up top. Do you have a picture of the other outrigger? Or a close up of the bolting at the rear? That picture is very helpful.
thanks
Pierre
pierre1119 is offline
Old 06-10-2019, 10:39 PM
  #4
Mooser
CF Senior Member

Member Since: Apr 2011
Location: Toronto Ontario
Posts: 5,572
Received 511 Likes on 442 Posts
Default

If you have a set of headlight frames from a later vette they are slightly different at the front where that picture shows. I believe you would need to add a spacer if that's what you have.
Is your frame flat along where it mounts there or does it have a step where it meets the front bracket
M
Mooser is offline
Old 06-10-2019, 10:53 PM
  #5
pierre1119
Junior Member
Thread Starter

Member Since: Feb 2019
Posts: 10
Received 0 Likes on 0 Posts
Default

Originally Posted by Mooser View Post
If you have a set of headlight frames from a later vette they are slightly different at the front where that picture shows. I believe you would need to add a spacer if that's what you have.
Is your frame flat along where it mounts there or does it have a step where it meets the front bracket
M
Thatís probably the issue. The guy I bought the car from said he found the pop-ups at a garage sale. So they may be from a much later year. I suppose Iíll rebuild and repaint and set ell settings to mid position. With the headlight assembly installed but not bolted in place maybe I can see how big a spacer to install in order to make the door level with the body. Does that sound a reasonable course?
pierre1119 is offline
Old 06-10-2019, 11:03 PM
  #6
Mooser
CF Senior Member

Member Since: Apr 2011
Location: Toronto Ontario
Posts: 5,572
Received 511 Likes on 442 Posts
Default

Absolutely
I believe the rest of the frame was the same. If you search i also think the size of the spacer gas come before as well
M
Mooser is offline
Old 06-10-2019, 11:12 PM
  #7
pierre1119
Junior Member
Thread Starter

Member Since: Feb 2019
Posts: 10
Received 0 Likes on 0 Posts
Default

Originally Posted by Mooser View Post
Absolutely
I believe the rest of the frame was the same. If you search i also think the size of the spacer gas come before as well
M
Thanks Mooser,
where would I find that spacer size? The bolt hole donít seem to line up neither so the spacer may take the form of a bracket.
pierre1119 is offline
Old 06-11-2019, 01:42 AM
  #8
pierre1119
Junior Member
Thread Starter

Member Since: Feb 2019
Posts: 10
Received 0 Likes on 0 Posts
Default

Originally Posted by pierre1119 View Post
Thanks Mooser,
where would I find that spacer size? The bolt hole donít seem to line up neither so the spacer may take the form of a bracket.

pierre1119 is offline
Old 06-11-2019, 08:17 AM
  #9
Easy Mike
CF Senior Member
Support Corvetteforum!

Easy Mike's Avatar

Member Since: Jun 2000
Location: Southbound
Posts: 36,694
Likes: 0
Received 914 Likes on 837 Posts
Cruise-In II Veteran
Default

Originally Posted by Mooser View Post
...If you have a set of headlight frames from a later vette they are slightly different at the front where that picture shows. I believe you would need to add a spacer...
IIRC, 68-74 headlight supports will interchange. 75-82 supports will fit the earlier cars if 1/2" spacers are used under the front feet.
Easy Mike is offline
Old 06-11-2019, 08:54 AM
  #10
Mooser
CF Senior Member

Member Since: Apr 2011
Location: Toronto Ontario
Posts: 5,572
Received 511 Likes on 442 Posts
Default

Seems like Sully1882 went through this
"
68 assemblies are unique
69-72 will work for you as direct install with no mods
73-74 will work but you need to fabricate some small spacers that fit under the front tabs on each of the fronts of the assemblies, otherwise the whole thing sets too low in the surround.
75 and up did not mess with as the horseshoe is much different
"
So you might have the 73-74 which are the right shape but need the spacer, looks like about 3/8 or 1/2 on his pictures, maybe fire off a msg to him,
Do the holes for the bolts vaguely line up but need a spacer (73-74) or are the legs totally in the wrong place (75+)?

https://www.corvetteforum.com/forums...-assembly.html
M
