Offset upper A arm shafts.
Thread Starter
Race Director
Joined: Nov 2006
Posts: 13,238
Likes: 7,830
From: Sunshine Coast, Queensland, Australia
2025 C3 of the Year Finalist - Modified
2024 C3 of the Year Finalist- Modified
2022 C3 of the Year Finalist - Modified
Cruise-In VIII Veteran
Offset upper A arm shafts.
I know I have seen something in the past wherein offset upper A arm shafts that fit other Chevy's will also fit our C3's. when looking on Summit's site. nothing is listed for C3's.
Certainly someone out there knows what other Chevrolet's take the same upper A arm shaft and or where to get affordable offset upper A arm shafts.
Thanks much for any information.
Certainly someone out there knows what other Chevrolet's take the same upper A arm shaft and or where to get affordable offset upper A arm shafts.
Thanks much for any information.
Last edited by 4-vettes; Jun 23, 2021 at 06:50 AM.
Melting Slicks
Joined: May 2021
Posts: 2,274
Likes: 1,318
From: Fleming Island, FL
I copied this cross-reference list for you.CHEVROLET BEL AIR 1965-1970 CHEVROLET BISCAYNE 1965-1970 CHEVROLET CAPRICE 1966-1970 CHEVROLET CORVAIR TRUCK 1961-1964 CHEVROLET CORVETTE 1963-1982 CHEVROLET ESTATE 1969-1970 CHEVROLET IMPALA 1965-1970 CHEVROLET KINGSWOOD 1969-1970 CHEVROLET TOWNSMAN 1969-1970
Last edited by Fly skids up!; Jun 23, 2021 at 09:00 AM.
Melting Slicks
Joined: Aug 2013
Posts: 2,180
Likes: 107
From: S Fla
One of the threads here has some great info on this
'tubular a-arms' a few years old but worth the read.
Found these parts I was planning to get for mine..."upper and lower tubular a-arms for 56-64 Chevy Belaire and Biscayne"
'tubular a-arms' a few years old but worth the read.
Found these parts I was planning to get for mine..."upper and lower tubular a-arms for 56-64 Chevy Belaire and Biscayne"
Thread Starter
Race Director
Joined: Nov 2006
Posts: 13,238
Likes: 7,830
From: Sunshine Coast, Queensland, Australia
2025 C3 of the Year Finalist - Modified
2024 C3 of the Year Finalist- Modified
2022 C3 of the Year Finalist - Modified
Cruise-In VIII Veteran
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Drifting
Joined: Aug 2019
Posts: 1,510
Likes: 498

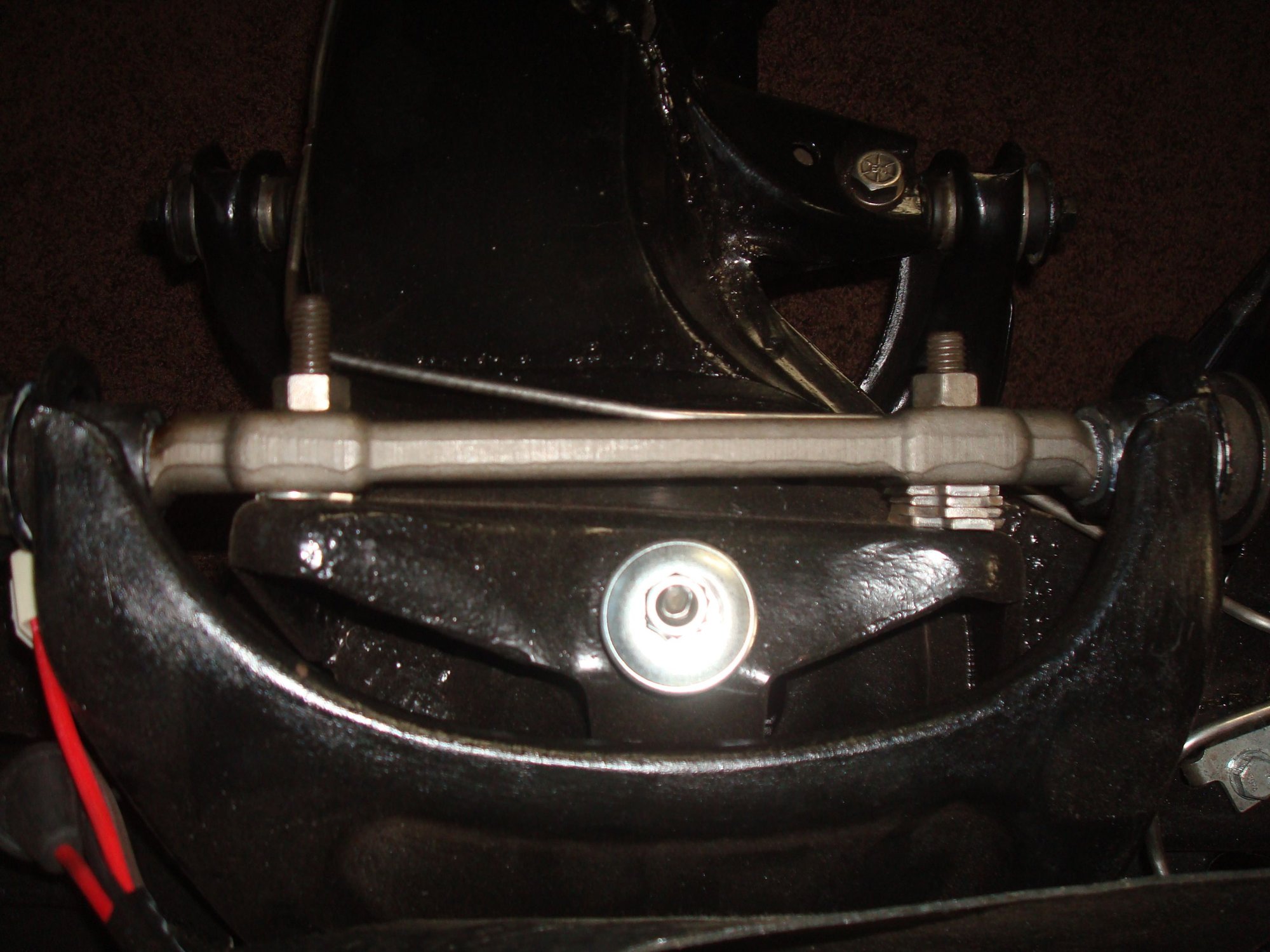

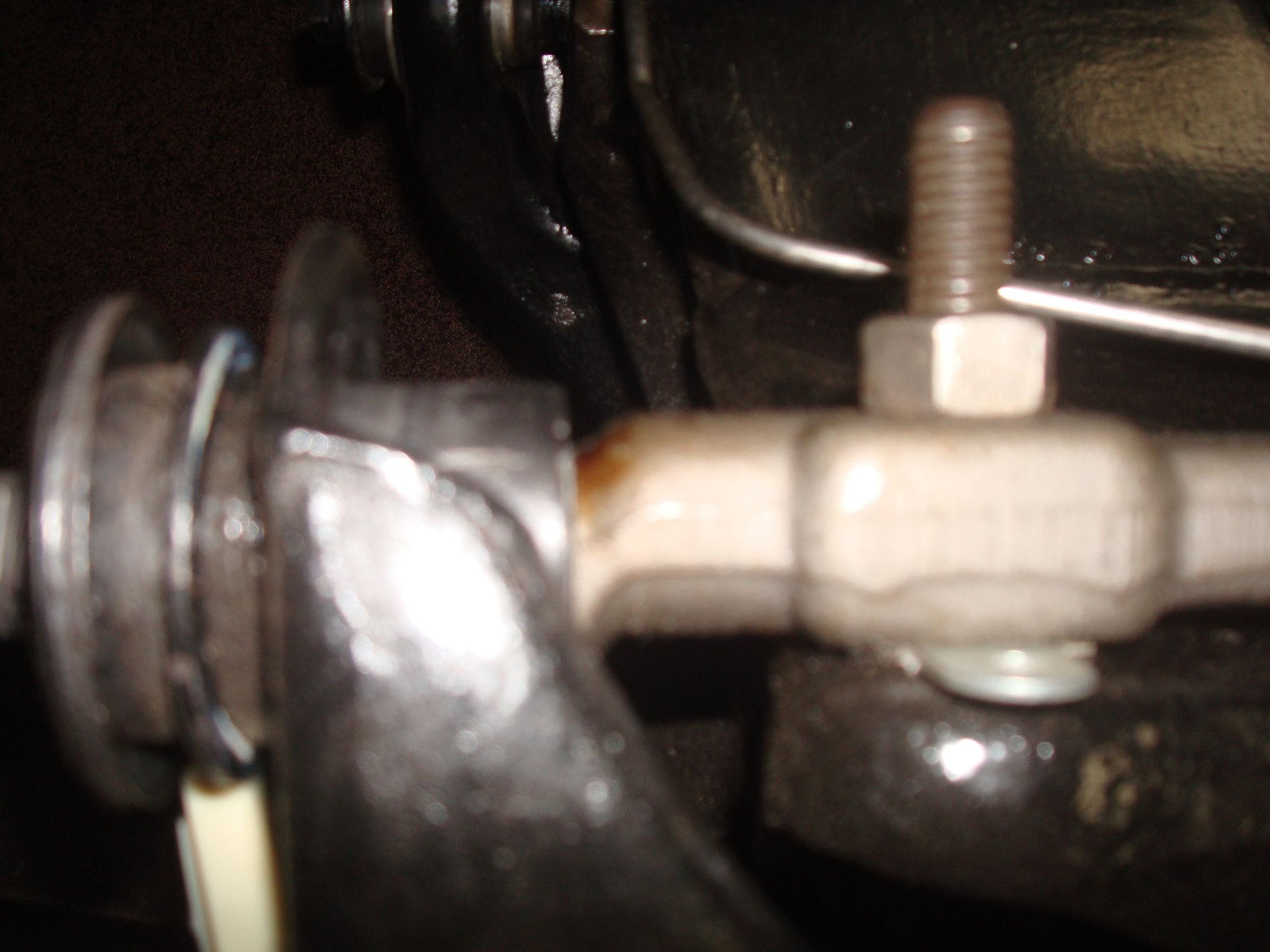

What ? Picture is a little deceiving because it's at a angle but even so the outer threaded shaft center line is still below the bolt hole center line plain as day , order up a set at the local parts store , you will be happy
