Foam block

I'm having trouble determining how the foam block below fits inside the area behind the front splash shield covering the #3 body mount area (see pic below). Couldn't find it in the AIM but it may be there nor did I find in any catalogue references. It doesn't seem intuitive how it fits, it just fell out when I pulled the shield off. A picture or reference would be great.

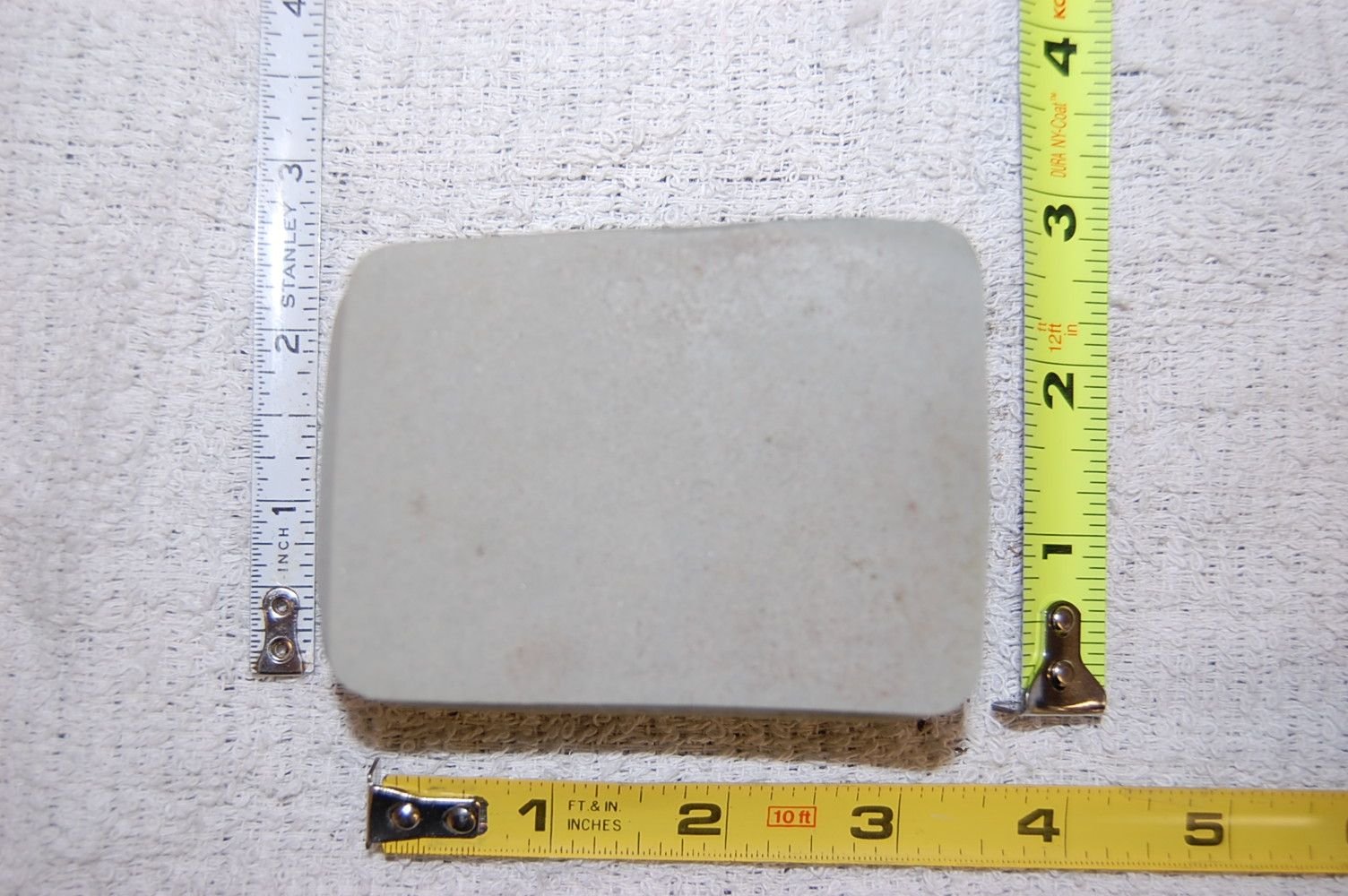

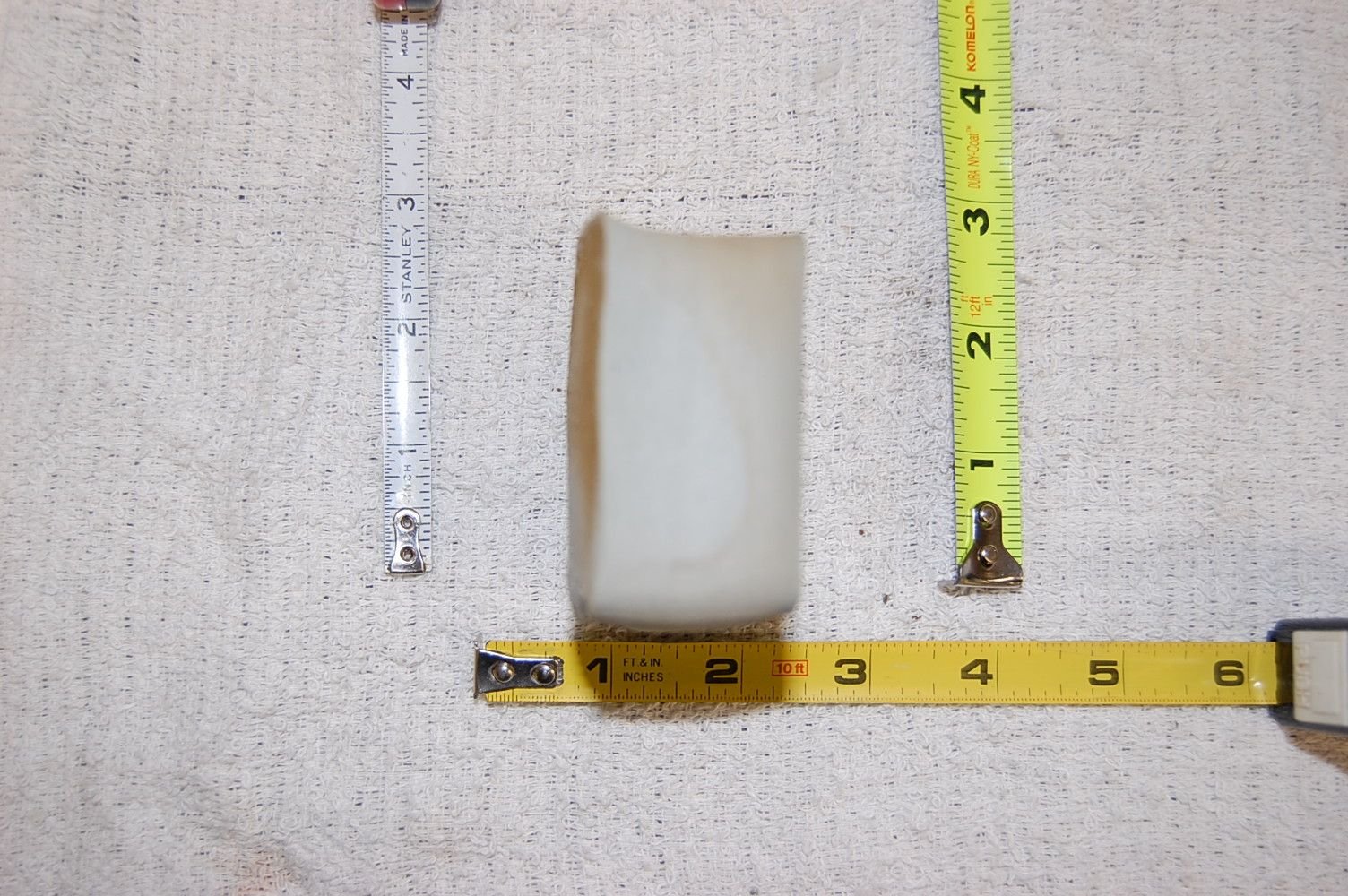

foam block (right side in area of #3 mount)

#3 mount cavities with front splash shield removed

Sep 14, 2025 | 12:22 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,273

Likes: 4,366

From: Westminster Maryland

Hello,

In my 71 AIM that part is called out and shown as a 'pad' (1 of 4) in the lock pillar.
AIM, UPS 1, Sheet 9, Parts 8 ,9, 10 and 11.

I believe the one in your photo is part no. 10.

This is pad + 8 or + 9 from my 71.

Regards.....

Last edited by Alan 71; Sep 14, 2025 at 12:47 PM.

Sep 14, 2025 | 01:29 PM

sauterindy

Thread Starter

Instructor

Joined: May 2015

Posts: 214

Likes: 76

From: Indianapolis

St. Jude Donor '25

Just what I needed, thanks Alan
Same part but item 4 on the 72 AIM

Last edited by sauterindy; Sep 14, 2025 at 01:43 PM. Reason: different item #
