Guys:

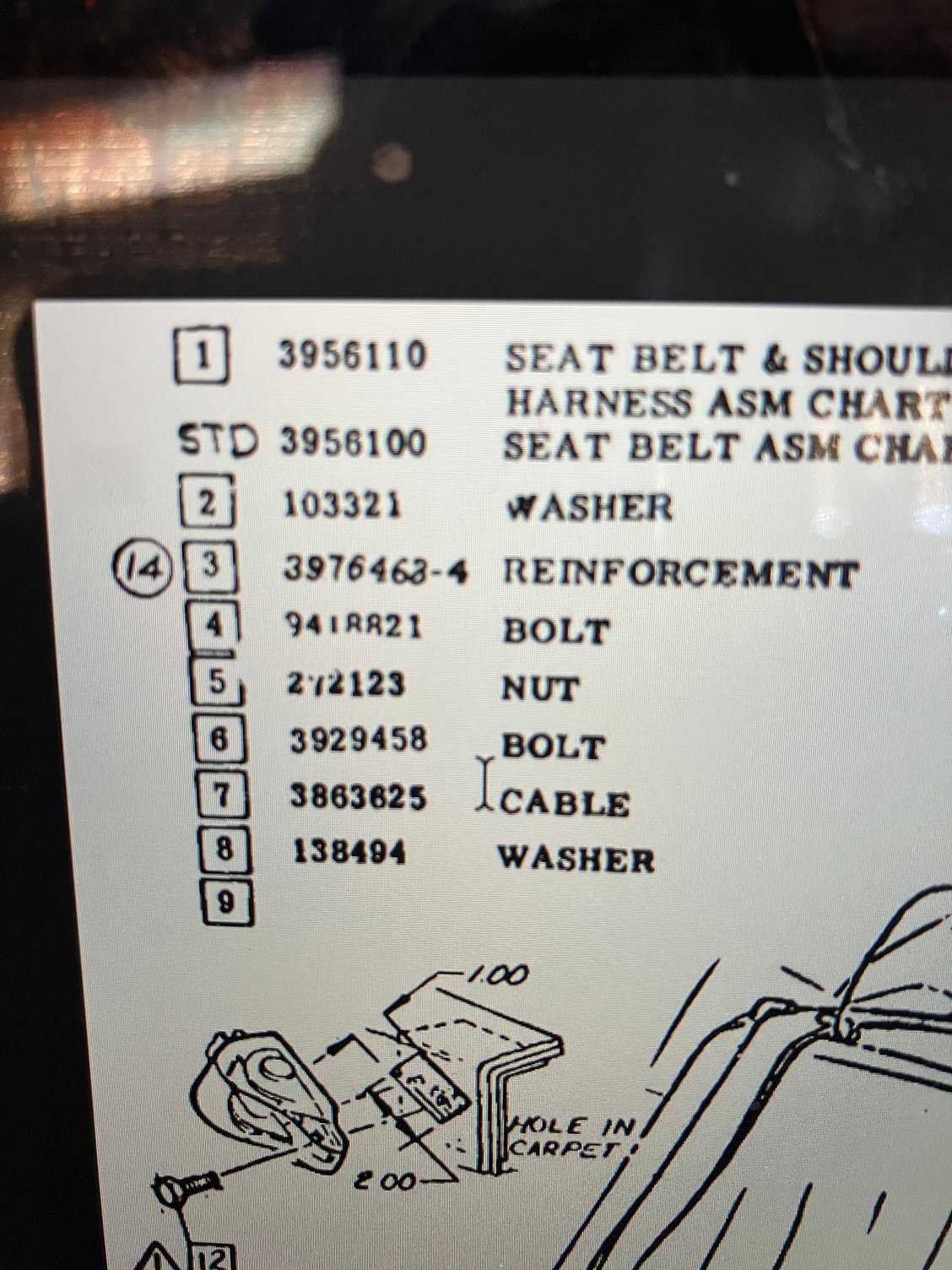

I can’t find GM part # 3976463-4 for a ‘69 coupe (reinforcement found in the assembly manual on page J133, F26, item #3).
Can I substitute a regular washer?


Reply
0
Old Mar 16, 2026 | 05:25 PM
Share
  #2
MelWff's Avatar
MelWff
Race Director
20 Year Member
Liked
Loved
Community Favorite

Joined: May 2006
Posts: 18,734
Likes: 2,582
Default
Are those two pictures actually related to one another.
This post refers to that part number but it is Not a washer.
Look at post 3.
https://www.corvetteforum.com/forums...kets-69-a.html
Reply
0
Old Mar 16, 2026 | 06:08 PM
Share
  #3
robertea's Avatar
robertea
Burning Brakes
All Eyes On Me
Photogenic
Photoriffic
Top Answer: 1

Joined: Sep 2020
Posts: 827
Likes: 807
From: Chapin SC 29036
Default

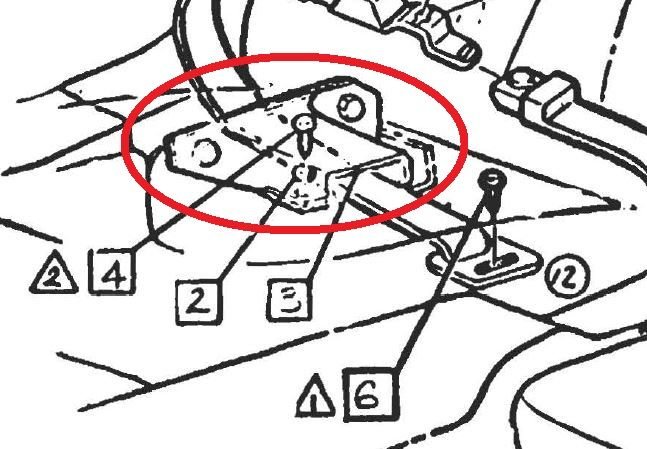

This is part number 3.

Reply
0
Old Mar 16, 2026 | 06:26 PM
Share
  #4
MelWff's Avatar
MelWff
Race Director
20 Year Member
Liked
Loved
Community Favorite

Joined: May 2006
Posts: 18,734
Likes: 2,582
Default
Originally Posted by robertea
This is part number 3.
Correct, not a washer as the original poster thinks.
Reply
0
Old Mar 16, 2026 | 06:50 PM
Share
  #5
jigoe007's Avatar
jigoe007
Thread Starter
Instructor
All Eyes On Me
Liked
Loved
Community Favorite

Joined: Aug 2016
Posts: 116
Likes: 17
From: Lometa, TX
Default
Sorry for the confusion.. It's the reinforcement that goes under the 7/16-20 jam nut.


Reply
0
Old Mar 16, 2026 | 07:17 PM
Share
  #6
MelWff's Avatar
MelWff
Race Director
20 Year Member
Liked
Loved
Community Favorite

Joined: May 2006
Posts: 18,734
Likes: 2,582
Default
Originally Posted by jigoe007
Sorry for the confusion.. It's the reinforcement that goes under the 7/16-20 jam nut.

The part that the red arrow is pointing to is NOT a washer, it's a metal reinforcement PLATE, held down by 3 bolts.
Reply
0
Old Mar 16, 2026 | 07:24 PM
Share
  #7
MelWff's Avatar
MelWff
Race Director
20 Year Member
Liked
Loved
Community Favorite

Joined: May 2006
Posts: 18,734
Likes: 2,582
Default

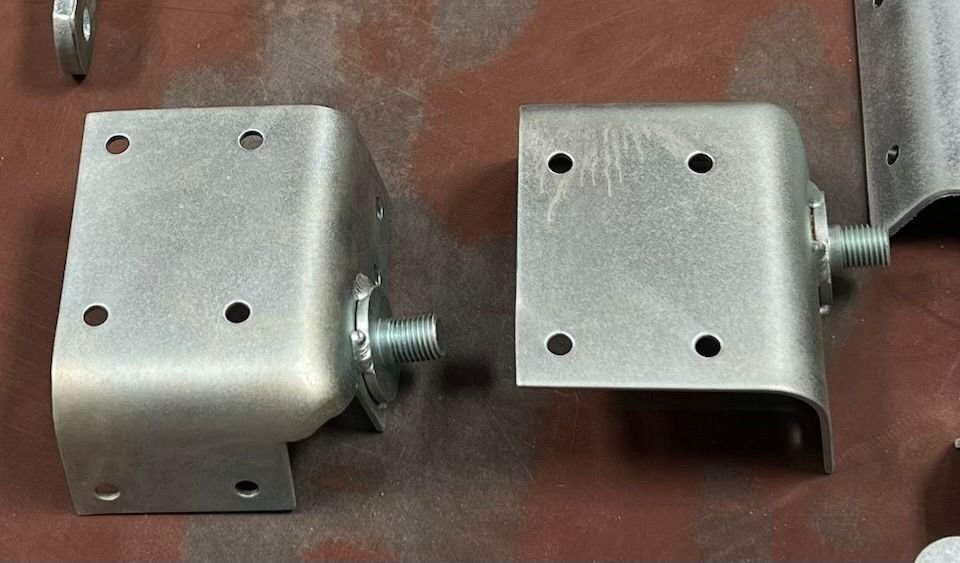

This is the reinforcement
Reinforcement
Reply
1
Old Mar 16, 2026 | 07:52 PM
Share
  #8
Rowdy Rat's Avatar
Rowdy Rat
Safety Car
Veteran: Marine Corps
25 Year Member
Liked
Community Favorite

Joined: Dec 1999
Posts: 3,600
Likes: 837
From: PA
Default
Mel,

Not sure that what you posted is the reinforcement being referenced. The one you posted is the outboard reinforcement… The reinforcement in the A.I.M. drawing (3976463-4) is the inboard reinforcement.

Looks like this…



It is reproduced by CSC, but I can’t tell you how well it is done.



Regards,

Stan Falenski
Reply
0
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-1

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-2

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-3

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-4

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-5

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-6

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
story-7

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

 Joe Kucinski
story-8

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

 Joe Kucinski
story-9

8 Coolest Corvette Pace Cars (and Replicas) of All Time

 Verdad Gallardo
Old Mar 16, 2026 | 08:08 PM
Share
  #9
MelWff's Avatar
MelWff
Race Director
20 Year Member
Liked
Loved
Community Favorite

Joined: May 2006
Posts: 18,734
Likes: 2,582
Default
Originally Posted by Rowdy Rat
Mel,

Not sure that what you posted is the reinforcement being referenced. The one you posted is the outboard reinforcement… The reinforcement in the A.I.M. drawing (3976463-4) is the inboard reinforcement.

Looks like this…



It is reproduced by CSC, but I can’t tell you how well it is done.



Regards,

Stan Falenski
Either way it's not a simple washer as the OP originally believed.
Reply
0
Old Mar 16, 2026 | 08:26 PM
Share
  #10
jigoe007's Avatar
jigoe007
Thread Starter
Instructor
All Eyes On Me
Liked
Loved
Community Favorite

Joined: Aug 2016
Posts: 116
Likes: 17
From: Lometa, TX
Default

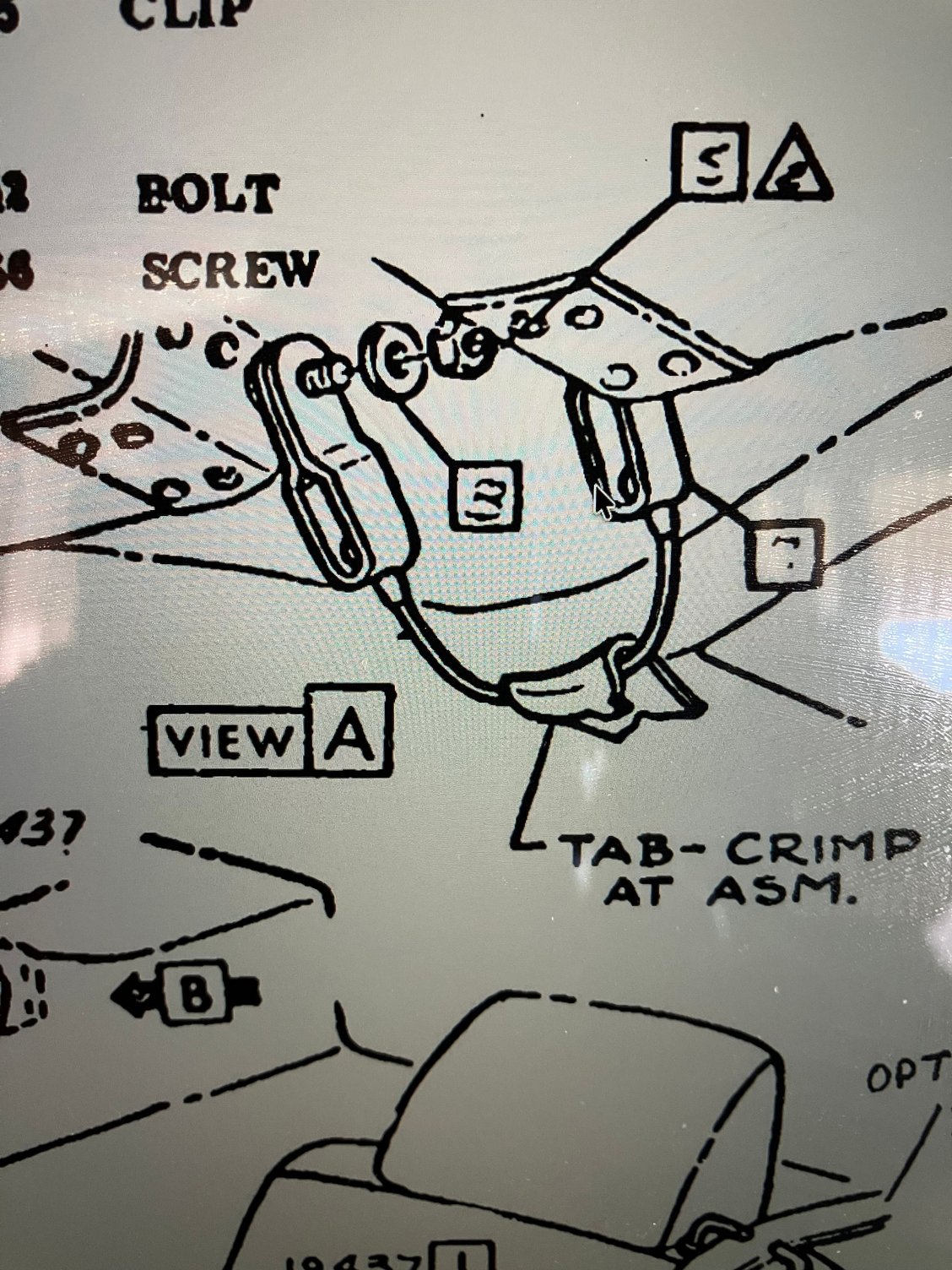

I guess I used the wrong term. Those reinforcements are installed on the car. I need the part inside the red circle at the top right.

Reply
0
Old Mar 16, 2026 | 09:54 PM
Share
  #11
Rowdy Rat's Avatar
Rowdy Rat
Safety Car
Veteran: Marine Corps
25 Year Member
Liked
Community Favorite

Joined: Dec 1999
Posts: 3,600
Likes: 837
From: PA
Default
Originally Posted by jigoe007
I guess I used the wrong term. Those reinforcements are installed on the car. I need the part inside the red circle at the top right.
That part (138494) is an external tooth washer with a 7/16” diameter hole.

Regards,

Stan Falenski
Reply
1
Old Mar 16, 2026 | 10:32 PM
Share
  #12
jigoe007's Avatar
jigoe007
Thread Starter
Instructor
All Eyes On Me
Liked
Loved
Community Favorite

Joined: Aug 2016
Posts: 116
Likes: 17
From: Lometa, TX
Default
Thanks y’all! It’s item 8 that I need. The print is lousy in the manual!
