7040205 carb
Thread Starter
Melting Slicks
Joined: Mar 2010
Posts: 2,268
Likes: 374
From: Randolph nj
7040205 carb
I recently bought a 7040205 Rochester carb for my 70 454 390 the carb was originally on a chevelle or camaro I think it seams to be missing the rear vacuum plug or nipple that would be for the power brakes now my question is did the carb just have a plug or was their a nipple that was just blocked off. maybe someone has a picture of the back of the carb that I could look at . I looked at the AIM and it does not show the carb too well thanks in advance
Drifting
Joined: Mar 2011
Posts: 1,886
Likes: 9
I can only tell you that my '74 has a 1/4" pipe tap in the center rear of the throttle plate that was used for the power brake booster. If you didn't order the power brakes, the factory installed a hex head plug there.
Maybe you can get vacuum for the PB from the manifold tap in front of the distributor instead. Or try to tap the throttle plate yourself......
Maybe you can get vacuum for the PB from the manifold tap in front of the distributor instead. Or try to tap the throttle plate yourself......
Last edited by gcusmano74; Dec 14, 2011 at 09:05 AM.
Race Director
Joined: May 2006
Posts: 18,662
Likes: 2,563
Isnt this the part that screws into the back of the baseplate?
http://willcoxcorvette.com/product_i...oducts_id=6544
http://willcoxcorvette.com/product_i...oducts_id=6544
Race Director
Joined: May 2006
Posts: 18,662
Likes: 2,563
I think I mislead you, The pipe pictured in the link above screws onto a fitting like shown in the link below. The baseplate of the carburetor would have a plug. There are different types of fittings based on the number of ports required. Strange that you cannt find it in AIM, did you try looking in the brake booster area?
http://www.ecklerscorvette.com/intak...ng-2-port.html
http://www.ecklerscorvette.com/intak...ng-2-port.html
Last edited by MelWff; Dec 14, 2011 at 12:53 PM.
Melting Slicks
Joined: Mar 2008
Posts: 2,023
Likes: 6
From: Austin Tx

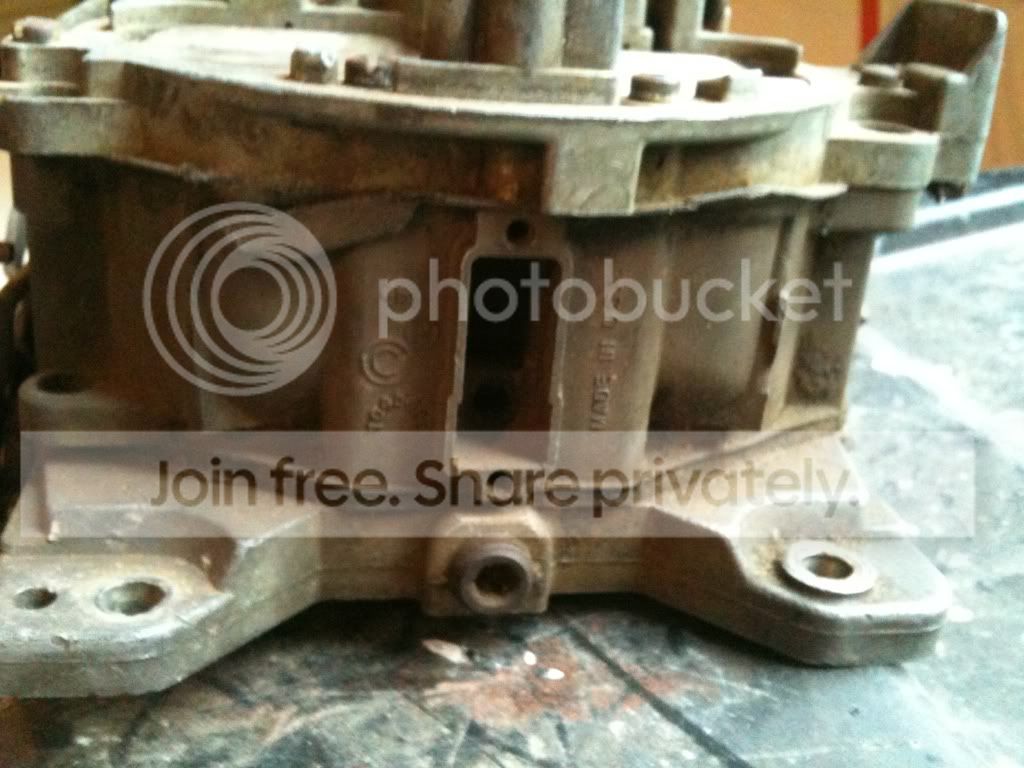

Here are some pictures that might help you out.

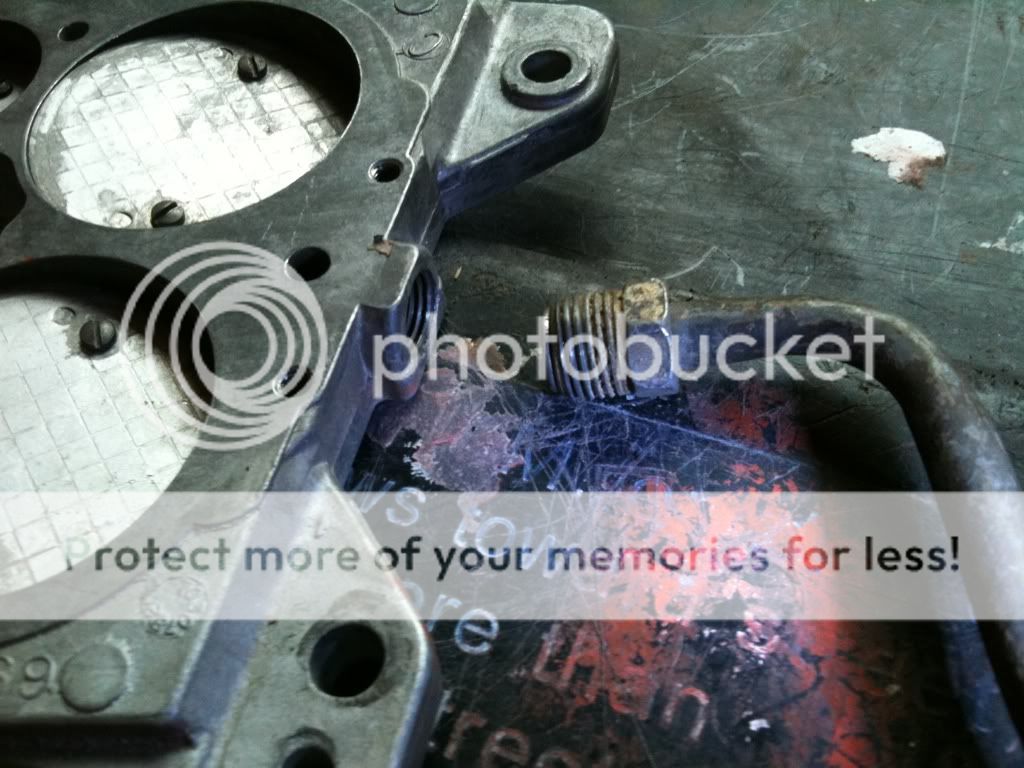

Here's a picture of a carb with a non-power brake plug in it.

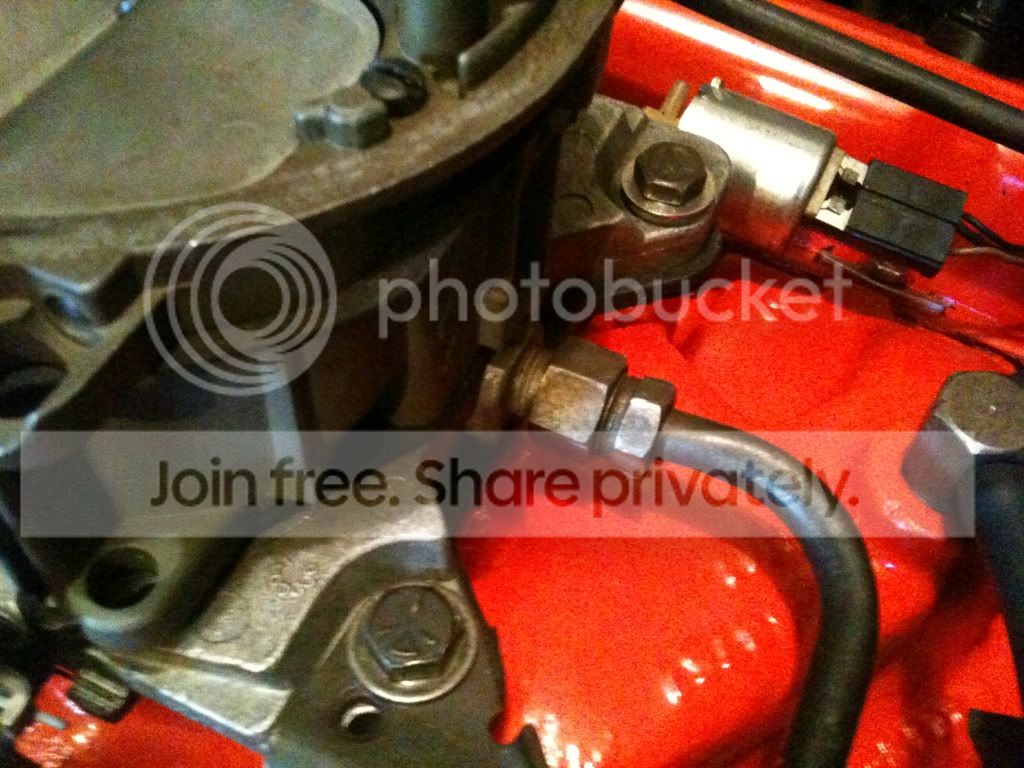

Here is a picture of my original carb, on my car (72 SB) with power brakes. You can see the pipe does not screw directly into the carb base plate, it screws into a fitting, that screws into the base plate.
Here is a picture of a spare base plate, and power brake pipe that I have. You can see that they look like they will screw together, but there is actually a fitting that goes between them.
Here's a picture of a carb with a non-power brake plug in it.
Here is a picture of my original carb, on my car (72 SB) with power brakes. You can see the pipe does not screw directly into the carb base plate, it screws into a fitting, that screws into the base plate.
Here is a picture of a spare base plate, and power brake pipe that I have. You can see that they look like they will screw together, but there is actually a fitting that goes between them.
Team Owner
Joined: Jan 2006
Posts: 37,637
Likes: 3,114
From: Crossville TN
I believe that Chevy always used the fitting on the rear of the carb base plate for power brake vacuum supply. I don't think I've ever seen a Chevy with P/Bs fed from the intake manifold.
