global west trailing arm e-brake routing difficulty
Pro
Joined: Oct 2004
Posts: 573
Likes: 0
From: Stafford VA
I have not yet installed tires and loaded the suspension, still finishing up a few things. Now that you mention it though, I'm not sure the parking brake cable is safe the way I installed it, the tire may hit and a blowout could certainly interfere. Back to the drawing board....
Thread Starter
Safety Car
Joined: May 2004
Posts: 4,353
Likes: 1,581
From: los altos hills california
That could almost be a picture of my car with the Wilwoods, Bilsteins and longer wheel studs and other stuff! But I digress. I can't possibly get my cable through the hole provided in the bracket the way your picture shows and get it seated. It has to come through the hole I enlarged. However I don't see a retaining clip and I don't see that your cable is seated, "John" (how are actual names known in this forum?). How were you going to secure it? The only good news I can tell is that least our arms started out the same, as yours looks like mine before I started modifications. What I hear from GW makes no sense given the way our arms are delivered. Ain't no "teardrop" hole. Am still waiting for clarification from them.
The ORIGINAL and bestest
Joined: Oct 2000
Posts: 10,009
Likes: 240
From: Toronto Ontario
Toronto Events Coordinator
I didn't even know Global West was making parts for the C3. The arms look nice!

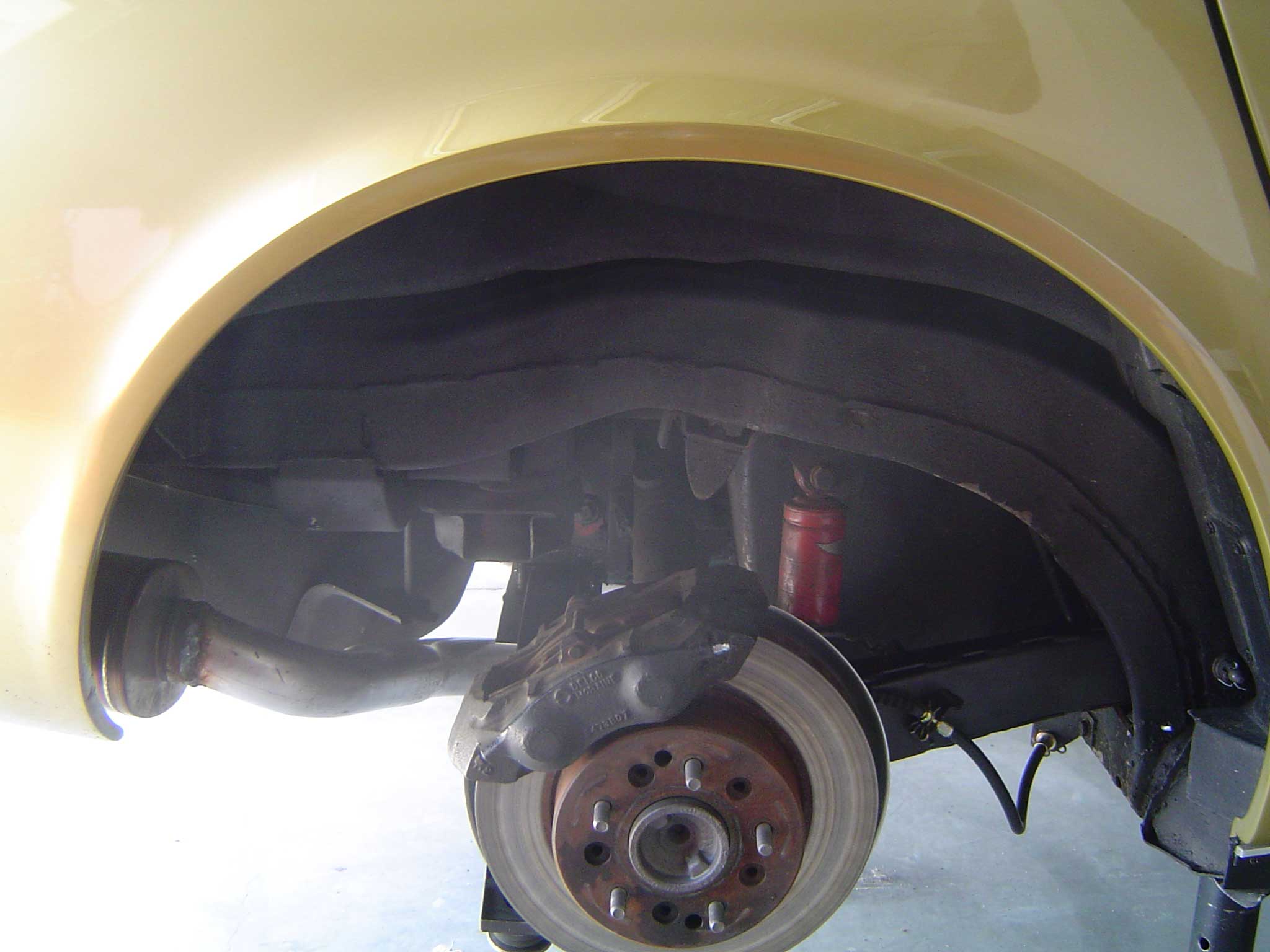

This pic shows the e-brake cable run and mounted much the same as stock, I don't see any issue with it.
A random pic I found of the stock setup:
I think the OP is routing the cable wrongly.
This pic shows the e-brake cable run and mounted much the same as stock, I don't see any issue with it.
A random pic I found of the stock setup:
I think the OP is routing the cable wrongly.
Thread Starter
Safety Car
Joined: May 2004
Posts: 4,353
Likes: 1,581
From: los altos hills california
7t2vette: The stock setup is certainly more desireable. A couple of observations
In the top picture, I can't see any retaining clips.
In the bottom picture two things:
1) The cable looks different than mine. Maybe it is just the lack of good lighting or maybe there is a more flexible cable available somewhere. In any event the mounting bracket orientation is way different.
2) Many people reroute the cable to the top of the trailing arm. 'biscuitville' reports that that introduce a kink which isn't all that bad. Maybe that kink is what I am stuck with
GW hasn't oriented the bracket in a way that suggests routing under the trailing arms and I can't force my stock cable into the hole they provided to accomplish that either. These are such nice well built arms I don't know how they could have neglected this but that seems to be the case.
Ignatz
In the top picture, I can't see any retaining clips.
In the bottom picture two things:
1) The cable looks different than mine. Maybe it is just the lack of good lighting or maybe there is a more flexible cable available somewhere. In any event the mounting bracket orientation is way different.
2) Many people reroute the cable to the top of the trailing arm. 'biscuitville' reports that that introduce a kink which isn't all that bad. Maybe that kink is what I am stuck with
GW hasn't oriented the bracket in a way that suggests routing under the trailing arms and I can't force my stock cable into the hole they provided to accomplish that either. These are such nice well built arms I don't know how they could have neglected this but that seems to be the case.
Ignatz
Pro
Joined: Oct 2004
Posts: 573
Likes: 0
From: Stafford VA
I don't yet have the retainers on mine but I can tell it's going to be a bear, the angle of the bracket appears a little off. My plan is to tweak the mounting bracket if necessary, just put a large adjustable wrench on it and lever for the proper angle to allow the retainer to slide into place. It may booger up the powdercoat some but a little gloss black paint will touch it up enough for my purposes. I am ordering new parking brake cables and retainers to finish up the rearend overhaul and should know for sure if it works with retainers in a week or so.
Team Owner
Joined: Jan 2006
Posts: 37,637
Likes: 3,117
From: Crossville TN
For what its worth: I would be concerned about having that e-brake cable flexing all the time with it routed the way you have it. From your discussions with GW, it doesn't sound like the person you've contacted really has any knowledge about how the manufacture intends these to be routed ("I think you're on the right track." ????
)
Having the whole cable 'wiggle' some with normal suspension operation should be OK...but having ALL that movement isolated to just the portion at & behind the T/A just doesn't seem right to me.
[Like I said...'for what its worth'.]
Good luck with the project.
)Having the whole cable 'wiggle' some with normal suspension operation should be OK...but having ALL that movement isolated to just the portion at & behind the T/A just doesn't seem right to me.
[Like I said...'for what its worth'.]
Good luck with the project.
Thread Starter
Safety Car
Joined: May 2004
Posts: 4,353
Likes: 1,581
From: los altos hills california
OK, here's the scoop guys. I just got off the phone with Doug (the owner) at Global West. He had forwarded me the accompanying picture of their revised design with the aforementioned teardrop and if you look carefully, a repositioned mounting bracket. He said it the bracket has been moved aft a bit which would be less constrictive to the routing. The cable is now oriented to go through the teardrop rather than under the arm. That way it won't interfere with the tire. With the shape of the teardrop, there is some play for the cable and that probably helps with 7T1vette's concern about the flex on the cable.
Doug also offered to exchange this design for my arms. Mine are of course already assembled and mounted. If you haven't already done that, don't and give GW a call. Thanks for all the feedback. It'll be a while before I can post a new picture but I'll get back to this thread when I've reinstalled things. For reference, Doug doesn't know who Ignatz is but my name is Cliff.
Doug also offered to exchange this design for my arms. Mine are of course already assembled and mounted. If you haven't already done that, don't and give GW a call. Thanks for all the feedback. It'll be a while before I can post a new picture but I'll get back to this thread when I've reinstalled things. For reference, Doug doesn't know who Ignatz is but my name is Cliff.
