Single turbo
Advanced
Joined: Apr 2018
Posts: 65
Likes: 3
Thread Starter
Safety Car
Joined: May 2006
Posts: 4,290
Likes: 140
From: Salem NH
I made a few different turbo manifolds a few different ways. The ones that were the most rigid was based on a set of cast iron Fbody LT1 manifolds, ran backwards. I used some cast weld-el's (from a plumbing supply, think steam fitter) to a T4 flange. Then gusseted some 1/4" plate in a few spots and a standoff to the head. Was very strong!
-- Joe
Advanced
Joined: Aug 2016
Posts: 99
Likes: 10
From: Denver CO
looks pretty good!! Just got these manifolds for next winters project.
It looks a little tight but seems you got it in there pretty well and under the stock hood.
Thanks for the pictures I could tell the turbo would sit too high but couldn't tell by how much, so seems like you cut about 3" as you said.
can I ask what size turbo is that in the pictures and did you have any issues with the crossover pipe and the oil pan? thanks
It looks a little tight but seems you got it in there pretty well and under the stock hood.
Thanks for the pictures I could tell the turbo would sit too high but couldn't tell by how much, so seems like you cut about 3" as you said.
can I ask what size turbo is that in the pictures and did you have any issues with the crossover pipe and the oil pan? thanks
Advanced
Joined: Apr 2018
Posts: 65
Likes: 3
looks pretty good!! Just got these manifolds for next winters project.
It looks a little tight but seems you got it in there pretty well and under the stock hood.
Thanks for the pictures I could tell the turbo would sit too high but couldn't tell by how much, so seems like you cut about 3" as you said.
can I ask what size turbo is that in the pictures and did you have any issues with the crossover pipe and the oil pan? thanks
It looks a little tight but seems you got it in there pretty well and under the stock hood.
Thanks for the pictures I could tell the turbo would sit too high but couldn't tell by how much, so seems like you cut about 3" as you said.
can I ask what size turbo is that in the pictures and did you have any issues with the crossover pipe and the oil pan? thanks

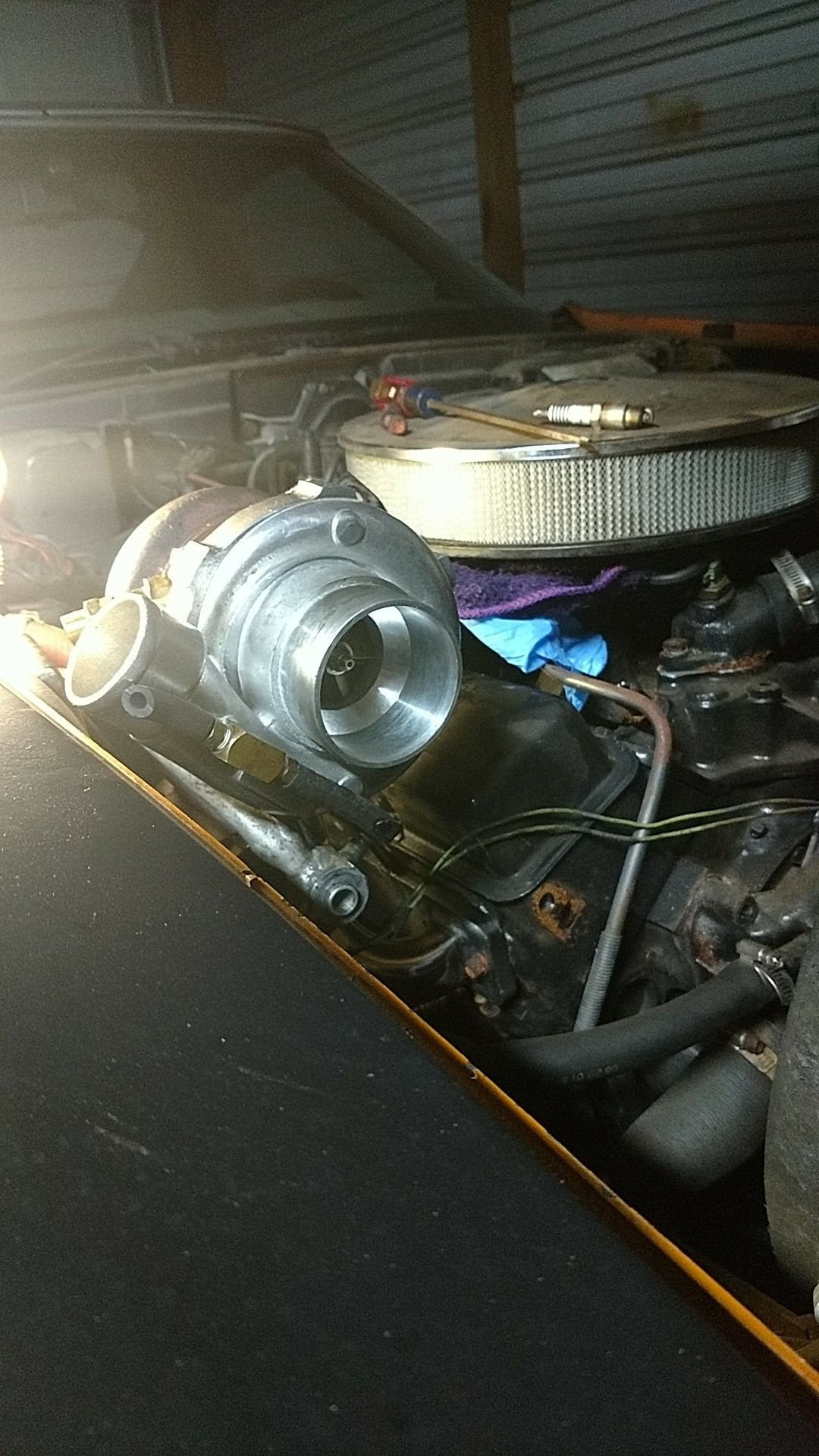

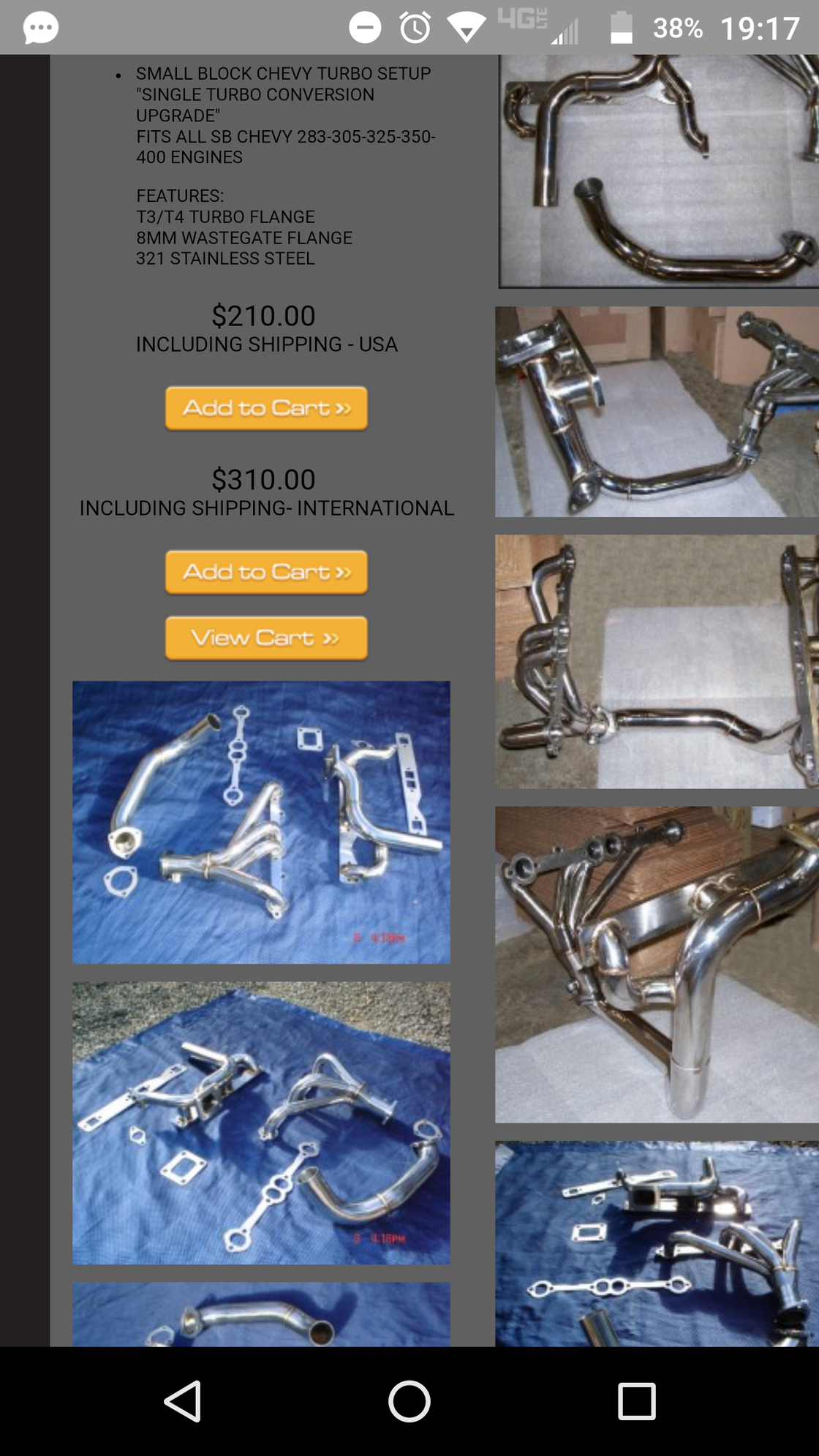

It was sitting pretty high but got the stainless manifolds for reasonable price..

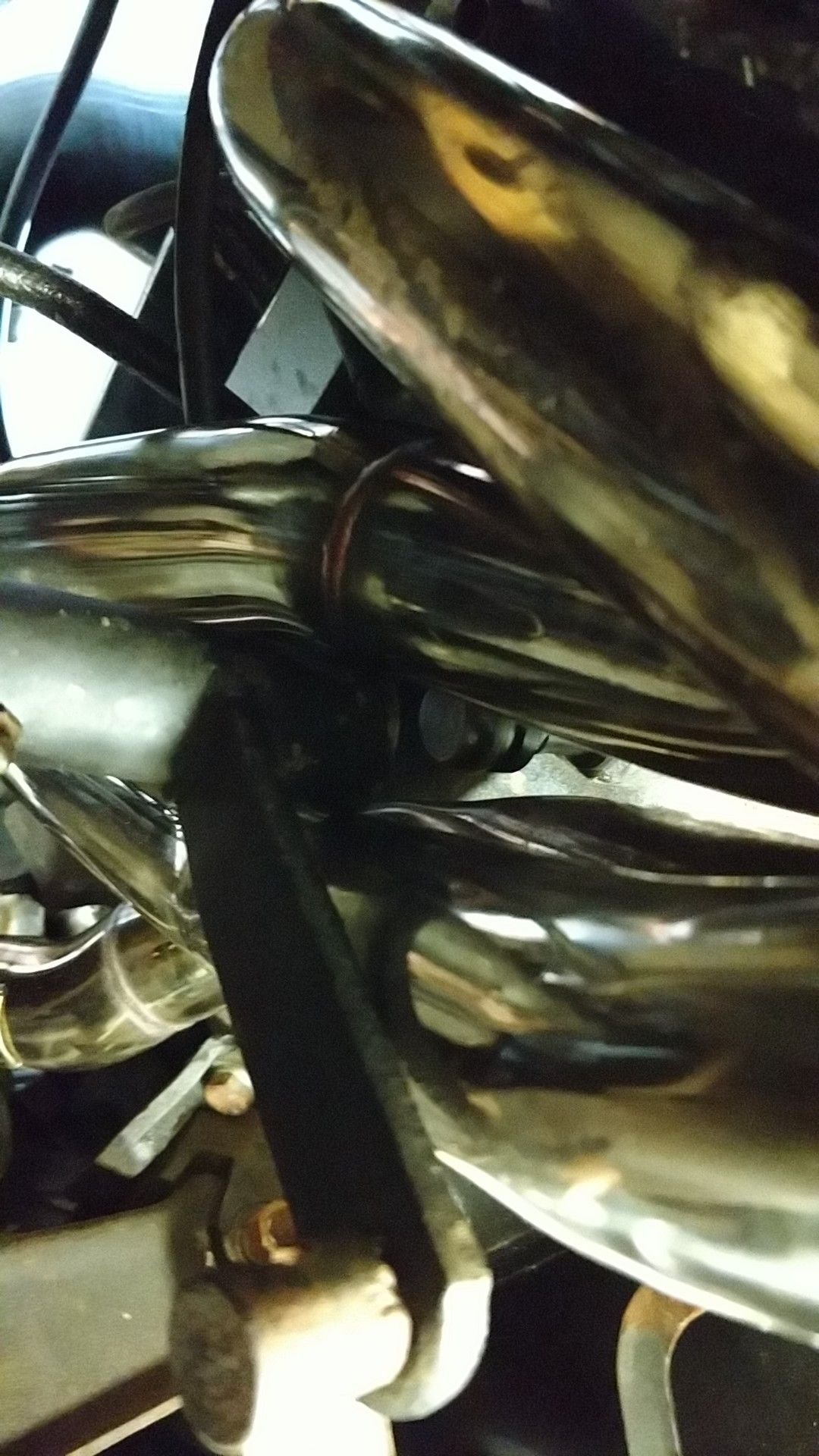

Had to cut it down & move waste gate to lower side because it was in the way of downpipe
Advanced
Joined: Apr 2018
Posts: 65
Likes: 3
looks pretty good!! Just got these manifolds for next winters project.
It looks a little tight but seems you got it in there pretty well and under the stock hood.
Thanks for the pictures I could tell the turbo would sit too high but couldn't tell by how much, so seems like you cut about 3" as you said.
can I ask what size turbo is that in the pictures and did you have any issues with the crossover pipe and the oil pan? thanks
It looks a little tight but seems you got it in there pretty well and under the stock hood.
Thanks for the pictures I could tell the turbo would sit too high but couldn't tell by how much, so seems like you cut about 3" as you said.
can I ask what size turbo is that in the pictures and did you have any issues with the crossover pipe and the oil pan? thanks
Crossover pipe fit fine it was my z bar that I had to modify and run shorter spark plugs
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Advanced
Joined: Aug 2016
Posts: 99
Likes: 10
From: Denver CO
thanks for the extra pics, yeah that looks too tall in the before picture.
I think that turbo will be a little small but looks like there is a little more space for a bigger turbo.
I won't have the Z bar as I am going hydraulic so hopefully that wont be an issue on mine.

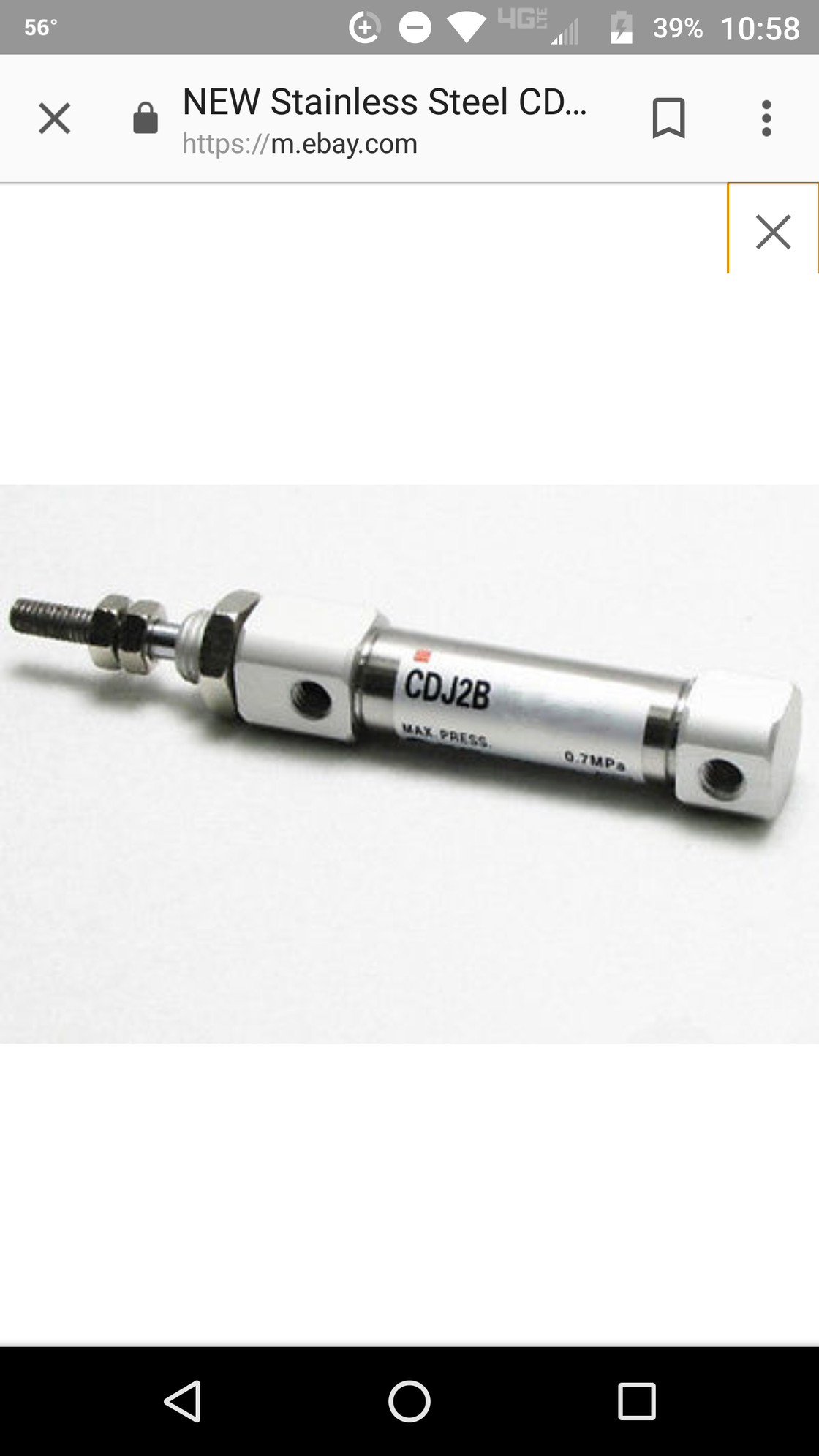

Not sure what the piston is going to do, does that fit onto the distributor somehow?
