Seat belt light
#1
Instructor
Thread Starter
Seat belt light
Hi Members,
Thought I would try this question again, I had posted this ? once before and after a response from Willcox, thought I would give it another shot.
The question and the response from Willcox is as follows:
----- Original Message -----
From:
To: Willcox Inc.
Sent: Tuesday, October 07, 2014 10:06 AM
Subject: Response from willcoxcorvette.com
Hello,
79 Corvette
Do you know of any fix to the problem, "seat belt light won't go out" other than remove the bulb. I believe the timer portion of the buzzer unit # 14004971 is at fault, all other functions of this unit work correctly i.e. key,door,light,seat belt buzzer. I have not been able to find a replacement or substitute or if their is one.
I've checked all wiring from dash unit (light) individually to the fuse block, from fuse block to seat belt clip, and door sw. all test ok (no broken wire) also ckd.the printed circuit for the bulb portion (ohm) meter---is ok, and have not found any stray ground someone may have added over the years (i.e. radio replacement)
Any help would be appreciated, sorry for the rambling on.
Thank You
Brian
PS. Your Low Fuel Module fixed my other problem
Thanks
Thank you for contacting our support team. The current volume of questions in
regards to repair and installation help has exceeded my human ability.
If your email is in regards to a question about parts please call our parts
department at 800-588-3883 or email them at Willcox@Willcoxcorvette.com
If your email is in regards to needing technical assistance please post this up
on the CorvetteForum.com as a new thread! Then email us the thread so I can
offer assistance if needed. I’m sure someone will assist you.
Thought I would try this question again, I had posted this ? once before and after a response from Willcox, thought I would give it another shot.
The question and the response from Willcox is as follows:
----- Original Message -----
From:
To: Willcox Inc.
Sent: Tuesday, October 07, 2014 10:06 AM
Subject: Response from willcoxcorvette.com
Hello,
79 Corvette
Do you know of any fix to the problem, "seat belt light won't go out" other than remove the bulb. I believe the timer portion of the buzzer unit # 14004971 is at fault, all other functions of this unit work correctly i.e. key,door,light,seat belt buzzer. I have not been able to find a replacement or substitute or if their is one.
I've checked all wiring from dash unit (light) individually to the fuse block, from fuse block to seat belt clip, and door sw. all test ok (no broken wire) also ckd.the printed circuit for the bulb portion (ohm) meter---is ok, and have not found any stray ground someone may have added over the years (i.e. radio replacement)
Any help would be appreciated, sorry for the rambling on.
Thank You
Brian
PS. Your Low Fuel Module fixed my other problem
Thanks
Thank you for contacting our support team. The current volume of questions in
regards to repair and installation help has exceeded my human ability.
If your email is in regards to a question about parts please call our parts
department at 800-588-3883 or email them at Willcox@Willcoxcorvette.com
If your email is in regards to needing technical assistance please post this up
on the CorvetteForum.com as a new thread! Then email us the thread so I can
offer assistance if needed. I’m sure someone will assist you.
#2
Race Director
I will look at my wiring diagram.
I am sure that you know this...but without having my wiring diagram with me...to make this light light up....it takes 12 volts and a ground. I am assuming that the 12 volts is present at the light bulb socket.....so GM is switching "on and off" a ground...which is what they have running into set belt clip.
You might be correct that if you KNOW what wire in the buzzer that also command the light to shine. If you know how to de-pin the terminal from the connector and using a jumper...add it and then take it away and see if the light goes out.
Are you trying to keep it working correctly...or just not want the light to shine????
DUB
I am sure that you know this...but without having my wiring diagram with me...to make this light light up....it takes 12 volts and a ground. I am assuming that the 12 volts is present at the light bulb socket.....so GM is switching "on and off" a ground...which is what they have running into set belt clip.
You might be correct that if you KNOW what wire in the buzzer that also command the light to shine. If you know how to de-pin the terminal from the connector and using a jumper...add it and then take it away and see if the light goes out.
Are you trying to keep it working correctly...or just not want the light to shine????
DUB
#3
Instructor
Thread Starter
I will look at my wiring diagram.
I am sure that you know this...but without having my wiring diagram with me...to make this light light up....it takes 12 volts and a ground. I am assuming that the 12 volts is present at the light bulb socket.....so GM is switching "on and off" a ground...which is what they have running into set belt clip.
You might be correct that if you KNOW what wire in the buzzer that also command the light to shine. If you know how to de-pin the terminal from the connector and using a jumper...add it and then take it away and see if the light goes out.
Are you trying to keep it working correctly...or just not want the light to shine????
DUB
I am sure that you know this...but without having my wiring diagram with me...to make this light light up....it takes 12 volts and a ground. I am assuming that the 12 volts is present at the light bulb socket.....so GM is switching "on and off" a ground...which is what they have running into set belt clip.
You might be correct that if you KNOW what wire in the buzzer that also command the light to shine. If you know how to de-pin the terminal from the connector and using a jumper...add it and then take it away and see if the light goes out.
Are you trying to keep it working correctly...or just not want the light to shine????
DUB
First let me thank you for your reply,
In answer your question, my first choice would be to have the unit work correctly. The issue at present is that the light is always on. All the other functions of this unit (#14004971) work correctly ie: the buzzer turns off when the seat belt is buckled, buzzer turns on if the lights are left on or the key is left in ect.
I'm not totally sure about de pin, I'm thinking ,you mean to find the pin on the buzzer unit that controls the light, and disable it, see if the light goes out, then with a jumper wire enable it and see if the light comes back on?? If that happens that portion of the unit is defective?
pic. #1 is the unit in ??
pic. from web, mine is same
pic. #2 diagram I found of this unit, to me it looks like the yellow wire controls the light
Apologies for the long answer, just trying to give enough information.
Thanks for your time
Brian
#5
Race Director
And KNOWING that the control triggers are a ground...the module can be messed up and even though you remove and chance of a ground trigger from the set belt switch/ignition switch...the module could have failed and thus is now always supplying 12 volts to the seat belt light...thus making it shine.
DUB
Last edited by DUB; 10-20-2014 at 07:15 PM.
#6
Instructor
Thread Starter
100% correct.
And KNOWING that the control triggers are a ground...the module can be messed up and even though you remove and chance of a ground trigger from the set belt switch/ignition switch...the module could have failed and thus is now always supplying 12 volts to the seat belt light...thus making it shine.
DUB
And KNOWING that the control triggers are a ground...the module can be messed up and even though you remove and chance of a ground trigger from the set belt switch/ignition switch...the module could have failed and thus is now always supplying 12 volts to the seat belt light...thus making it shine.
DUB
Thanks for the replies and confirming my thoughts it is the module at fault.
I will try to isolate the pin on the module going to the light and see what happens----- light---on or off, will post back my findings.
Thanks Guys for your time
Brian
#7
Race Director
Knowing from the schematic that circuit 238 is getting ground signal from the seat belt latch when it is NOT clipped. SO I would see if that terminal is grounded where the module is plugged in and with the module removed. The I would clip my belt and see if the ground goes away....if it does....then it is in your module...simple as that. IF it does not...then you have a problem in the seal belt latch wiring or latch...OR dirty wiring connectors or bad connections at the wiring harness clip.
You can verify which terminal is circuit 238 by using an ohm meter and checking it at your seat belt wiring harness with it disconnected. One wire is a chassis ground ( circuit 150) and the other goes to the fuse panel and can be verified.
DUB
You can verify which terminal is circuit 238 by using an ohm meter and checking it at your seat belt wiring harness with it disconnected. One wire is a chassis ground ( circuit 150) and the other goes to the fuse panel and can be verified.
DUB
#8
Instructor
Thread Starter
Seat Belt Light Fixed
Knowing from the schematic that circuit 238 is getting ground signal from the seat belt latch when it is NOT clipped. SO I would see if that terminal is grounded where the module is plugged in and with the module removed. The I would clip my belt and see if the ground goes away....if it does....then it is in your module...simple as that. IF it does not...then you have a problem in the seal belt latch wiring or latch...OR dirty wiring connectors or bad connections at the wiring harness clip.
You can verify which terminal is circuit 238 by using an ohm meter and checking it at your seat belt wiring harness with it disconnected. One wire is a chassis ground ( circuit 150) and the other goes to the fuse panel and can be verified.
DUB
You can verify which terminal is circuit 238 by using an ohm meter and checking it at your seat belt wiring harness with it disconnected. One wire is a chassis ground ( circuit 150) and the other goes to the fuse panel and can be verified.
DUB
Well after going through everything and narrowing it down to the module, here's what I found and of course "inquiring minds want to know"
So I ground off the melted pins holding the two halves of the module together and opened it up. Inside was a point set with a winding of tiny wire around it, this wire had been pinched between the case halves from day 1, now maybe it worked for some time and finally broke, or as carefully as I was separating the halves I could have broken it (This Wire is Tiny) about the diameter of fine tread and also has insulation around it I don't know as I've only had this car for three months.
Ok so I soldered it back to the pin and reinstalled it, and now the light goes off after 8-10 seconds, and all the proper chimes still work, I guess only time will tell if it will continue to work, the points are normally closed giving the light a ground, when power is applied they open----no ground-- and light goes out
Pic. attached
Want to thank everyone for the help & encouragement, and hopefully this may help some one else
Brian
Ground off melted pins
What's Inside
The Inside

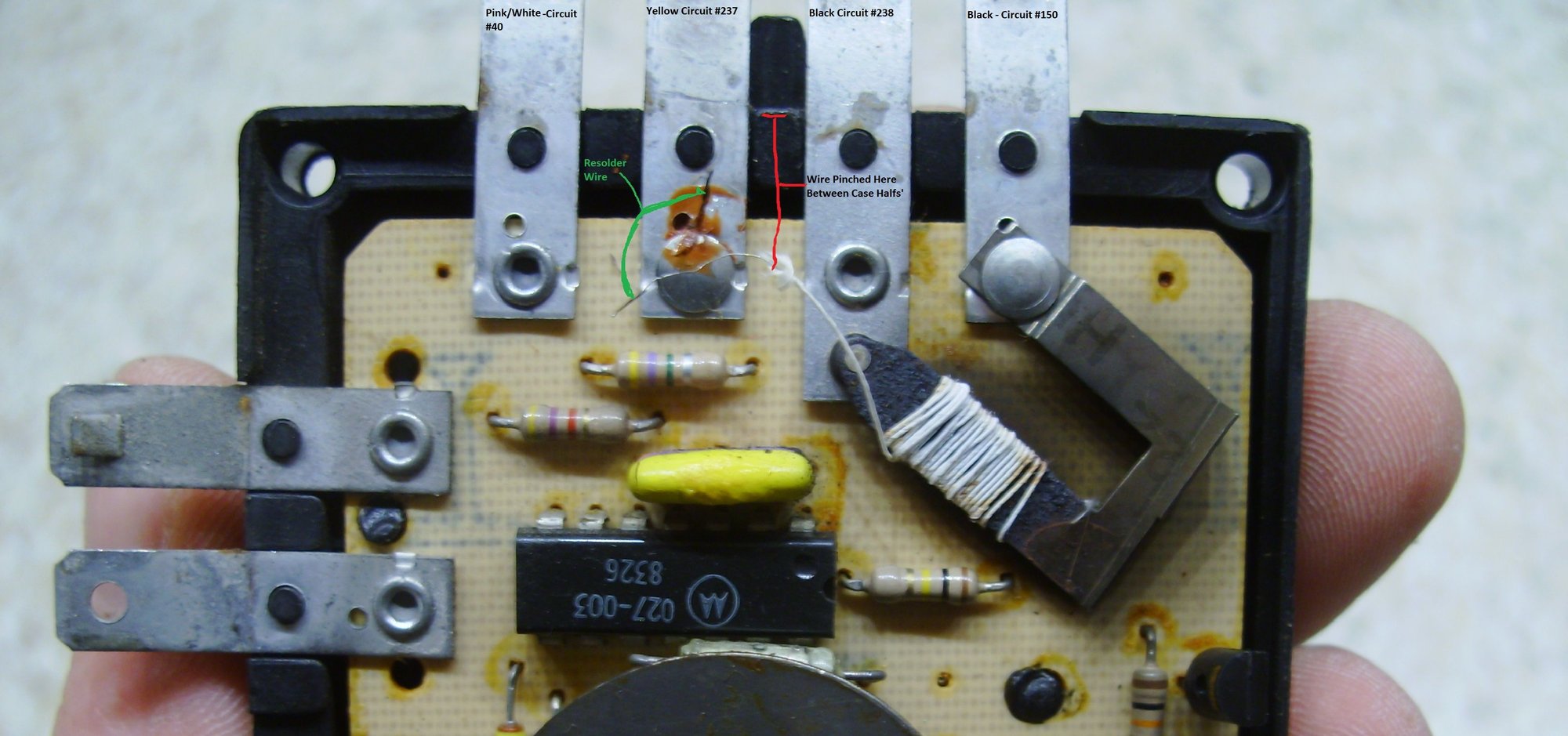

Points & Broken Wire
Repaired wire click to enlarge
#9
Race Director
Glad to read that you got it working.
DUB
DUB
