final ele. headlight wiring.
Thread Starter
Burning Brakes
Joined: Sep 2014
Posts: 776
Likes: 98
From: carroll ohio
final ele. headlight wiring.

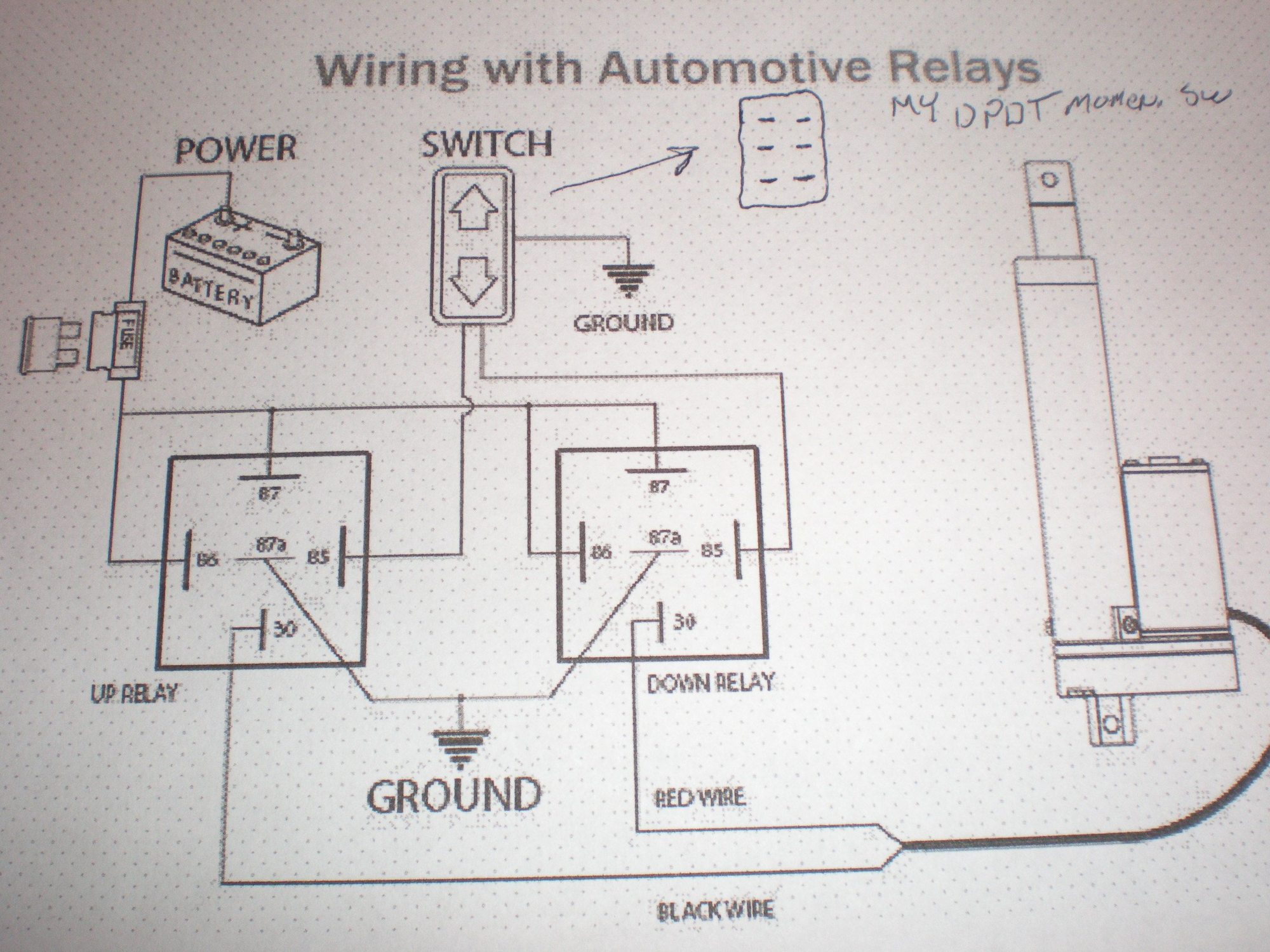

just finished the drivers side actuator install and wired up the dpdt per '75 and others instructions. worked great and i thank you all very much. i will finish the pass. side next week and feel pretty good about adding relays to it. i am a little confused about the drawing i have because it does not show the back of the switch. to test my actuator i used the "X" method on the back of the dpdt monentary switch and kept a close eye on the actuators travel. everything was good. the enclosed drawing shows the dpdt switch but not the back of it. my dpdt has power to the center two from battery and then power out on the end two to the actuators. the switch in the picture does not show the back,and two wires from which location on the back.the drawing on the right is a hand drawing of my dpdt monentary switch. i would like to see the wiring from the back of the switch in the picture. thanks
