1969 Back Up Switch Location
Hi there,
Brand new to the forum and new to corvette ownership as of December.
I have been working out many of the bugs on my early build 1969 big block convertible 4 speed. As I imported this car to Canada from the US, I need to get everything operational prior to certification and licensing.
My back up lights do not work and after chasing wiring I realize that the back up switch was not installed (or the wires cut) or something as the wires disappear down below the engine.
Is it possible to replace this switch which I see in the manual without removing the transmission. I can't figure how to access it. I do not have a hoist in my shop.
Any help or suggestions would be very much appreciated!
Brand new to the forum and new to corvette ownership as of December.
I have been working out many of the bugs on my early build 1969 big block convertible 4 speed. As I imported this car to Canada from the US, I need to get everything operational prior to certification and licensing.
My back up lights do not work and after chasing wiring I realize that the back up switch was not installed (or the wires cut) or something as the wires disappear down below the engine.
Is it possible to replace this switch which I see in the manual without removing the transmission. I can't figure how to access it. I do not have a hoist in my shop.
Any help or suggestions would be very much appreciated!
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Here is the exploded view showing all the parts... and below that is how you adjust it once you have it installed.
The best non-technical method used to adjust the back up lamp switch is to place the shifter in reverse, attach the switch rod to both the switch and the reverse rod and then move the switch until the back up lamps come on.
Installation of the rod is easy if it is installed in the correct hole. There is only one hole in the shifter lever, but there are multiple holes in the switch and the rod installs in the long lever with the single hole. You’ll notice there is a divot above the hole in the picture below.
The best non-technical method used to adjust the back up lamp switch is to place the shifter in reverse, attach the switch rod to both the switch and the reverse rod and then move the switch until the back up lamps come on.
Installation of the rod is easy if it is installed in the correct hole. There is only one hole in the shifter lever, but there are multiple holes in the switch and the rod installs in the long lever with the single hole. You’ll notice there is a divot above the hole in the picture below.
Last edited by Willcox Corvette; Feb 17, 2016 at 11:42 AM.
Le Mans Master
Joined: Sep 2003
Posts: 8,812
Likes: 2,029
From: eastern NC
Hi there,
Brand new to the forum and new to corvette ownership as of December.
I have been working out many of the bugs on my early build 1969 big block convertible 4 speed. As I imported this car to Canada from the US, I need to get everything operational prior to certification and licensing.
My back up lights do not work and after chasing wiring I realize that the back up switch was not installed (or the wires cut) or something as the wires disappear down below the engine.
Is it possible to replace this switch which I see in the manual without removing the transmission. I can't figure how to access it. I do not have a hoist in my shop.
Any help or suggestions would be very much appreciated!
Brand new to the forum and new to corvette ownership as of December.
I have been working out many of the bugs on my early build 1969 big block convertible 4 speed. As I imported this car to Canada from the US, I need to get everything operational prior to certification and licensing.
My back up lights do not work and after chasing wiring I realize that the back up switch was not installed (or the wires cut) or something as the wires disappear down below the engine.
Is it possible to replace this switch which I see in the manual without removing the transmission. I can't figure how to access it. I do not have a hoist in my shop.
Any help or suggestions would be very much appreciated!
Many of these cars have been converted to a Hurst Shifter over the years however and some of them do not have a hole in the reverse lever to insert the back-up light linkage.

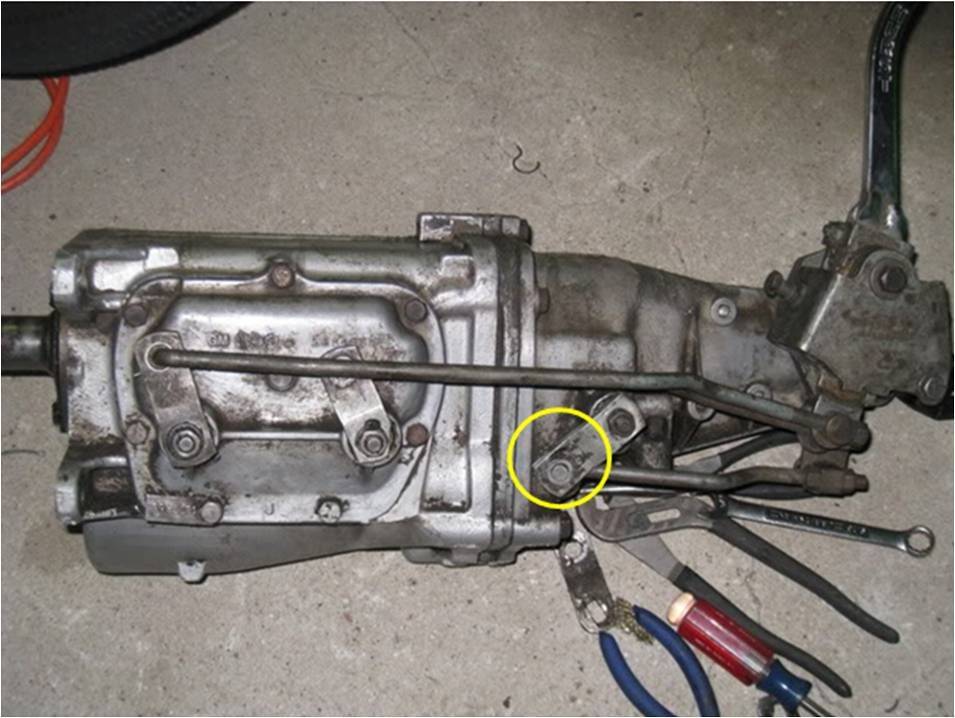

Hurst Reverse Lever - with the hole...
Hurst Reverse Lever - without the hole...
This reverse lever is hardened steel and difficult to drill for the back-up light linkage. What I did was weld a small nut to the edge of the lever in an appropriate location for the reverse lever to engage to solve my problem.
Good luck... GUSTO
Thread Starter
Racer
Joined: Feb 2016
Posts: 488
Likes: 43
From: Vancouver British Columbia
Here is the exploded view showing all the parts... and below that is how you adjust it once you have it installed.
The best non-technical method used to adjust the back up lamp switch is to place the shifter in reverse, attach the switch rod to both the switch and the reverse rod and then move the switch until the back up lamps come on.
Installation of the rod is easy if it is installed in the correct hole. There is only one hole in the shifter lever, but there are multiple holes in the switch and the rod installs in the long lever with the single hole. You’ll notice there is a divot above the hole in the picture below.
The best non-technical method used to adjust the back up lamp switch is to place the shifter in reverse, attach the switch rod to both the switch and the reverse rod and then move the switch until the back up lamps come on.
Installation of the rod is easy if it is installed in the correct hole. There is only one hole in the shifter lever, but there are multiple holes in the switch and the rod installs in the long lever with the single hole. You’ll notice there is a divot above the hole in the picture below.
I have just put in an order with you for the back up switch and components. Can you please let me know if I have ordered all the bits correctly for this switch.
It is a 1969 early built (Dec 1968) 427 muncie M21
Thanks
Pete
Team Owner
Joined: Sep 2006
Posts: 31,278
Likes: 4,372
From: Westminster Maryland
Hi Pete,
Here are the parts to the switch and it's mounting bracket.
As shown in the Willcox drawing it mounts using the exiting bolts on the transmission.
There's also a rubber covered clip that mounts to the transmission tunnel fiberglass to help contain the electrical lead…. yours may or may not still be there. (2&3 in the drawing).
Regards,
Alan
The tab with the stamped info on it is from under one of the bolts to the transmission's side cover. Be careful with the 2 tiny 'hair-pin' clips for the rod… if they 'fly' away they can be hard to find in the garage.
Here are the parts to the switch and it's mounting bracket.
As shown in the Willcox drawing it mounts using the exiting bolts on the transmission.
There's also a rubber covered clip that mounts to the transmission tunnel fiberglass to help contain the electrical lead…. yours may or may not still be there. (2&3 in the drawing).
Regards,
Alan
The tab with the stamped info on it is from under one of the bolts to the transmission's side cover. Be careful with the 2 tiny 'hair-pin' clips for the rod… if they 'fly' away they can be hard to find in the garage.
Last edited by Alan 71; Feb 26, 2016 at 09:06 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Racer
Joined: Feb 2016
Posts: 488
Likes: 43
From: Vancouver British Columbia
Hi Pete,
Here are the parts to the switch and it's mounting bracket.
As shown in the Willcox drawing it mounts using the exiting bolts on the transmission.
There's also a rubber covered clip that mounts to the transmission tunnel fiberglass to help contain the electrical lead…. yours may or may not still be there. (2&3 in the drawing).
Regards,
Alan
The tab with the stamped info on it is from under one of the bolts to the transmission's side cover. Be careful with the 2 tiny 'hair-pin' clips for the rod… if they 'fly' away they can be hard to find in the garage.
Here are the parts to the switch and it's mounting bracket.
As shown in the Willcox drawing it mounts using the exiting bolts on the transmission.
There's also a rubber covered clip that mounts to the transmission tunnel fiberglass to help contain the electrical lead…. yours may or may not still be there. (2&3 in the drawing).
Regards,
Alan
The tab with the stamped info on it is from under one of the bolts to the transmission's side cover. Be careful with the 2 tiny 'hair-pin' clips for the rod… if they 'fly' away they can be hard to find in the garage.
Thanks Alan!
