Where are the attach points for these brackets

Reply Subscribe

Thread Tools

Search this Thread

Oct 28, 2016 | 04:35 PM

kansas123

Thread Starter

Melting Slicks

Joined: Sep 2006

Posts: 2,817

Likes: 470

From: Wichita Kansas

Where are the attach points for these brackets

I have never been able to find a good illustration showing where these brackets attach on the engine side. They almost look like they line up with bolts that hold the intake manifold; surely you don't take out those two bolts to attach these brackets? Then just reinstall the two bolts? Thanks!

Name: C-ENGINE-IGN-10-shielding-71-77 3.gif
Views: 410
Size: 59.6 KB

Name: C-ENGINE-IGN-10-shielding-71-77 3.gif
Views: 410
Size: 59.6 KB

Oct 28, 2016 | 04:54 PM

Mooser

Race Director

Joined: Apr 2011

Posts: 11,183

Likes: 3,335

From: North of Toronto - Ontario

They should be the intake manifold bolts

M

Oct 28, 2016 | 05:03 PM

Mooser

Race Director

Joined: Apr 2011

Posts: 11,183

Likes: 3,335

From: North of Toronto - Ontario

...
M

Last edited by Mooser; Oct 28, 2016 at 06:45 PM.

Oct 28, 2016 | 05:15 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,285

Likes: 4,374

From: Westminster Maryland

Hi k,

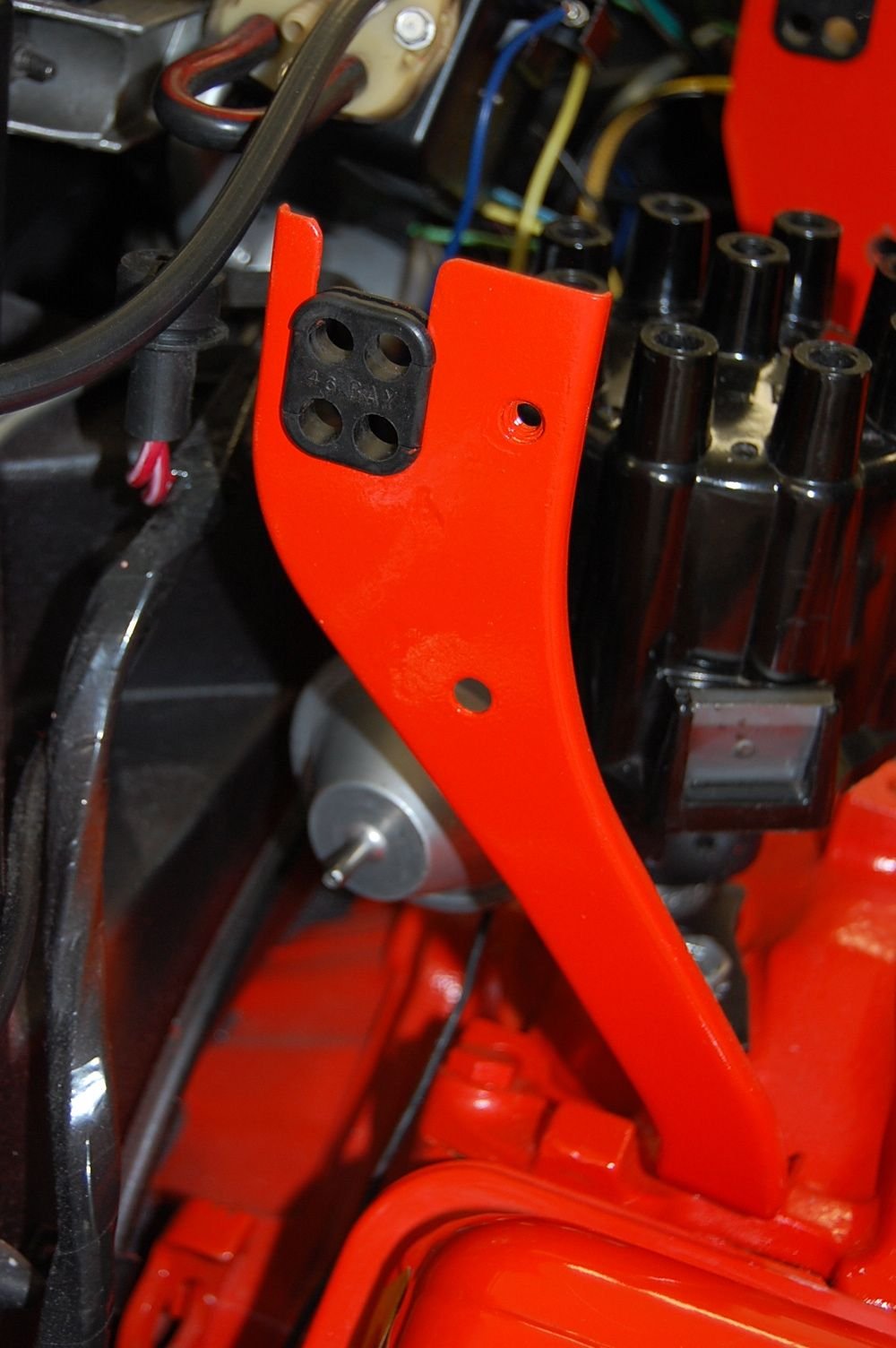

Here're the bracket locations on a sb.
On a small block the positions of the brackets is important so that the distributor shield clears the wiper motor/washer pump, and the right side bracket clears the vacuum advance can.
Regards,
Alan

Right side.. last intake bolt.

Left side… next to last intake bolt.
