ANOTHER PARTS PROBLEM :Cowl/plenum vacuum pod problem

As the thread 'says'...another problem in parts made today.

While working on a 1969 with A/C. I had to remove the wiper door and check the cowl/plenum 'flapper' door pod due to none of the actuator pods were working and it was due to lack of sufficient vacuum.

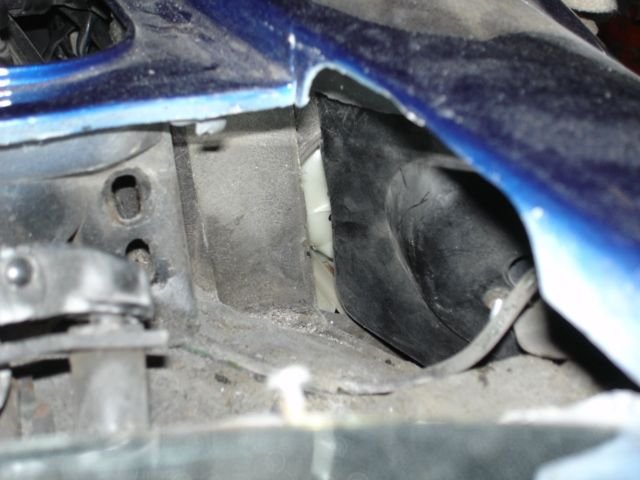

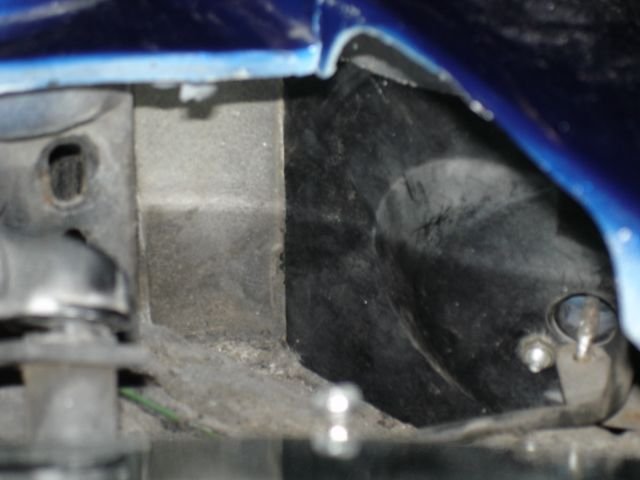

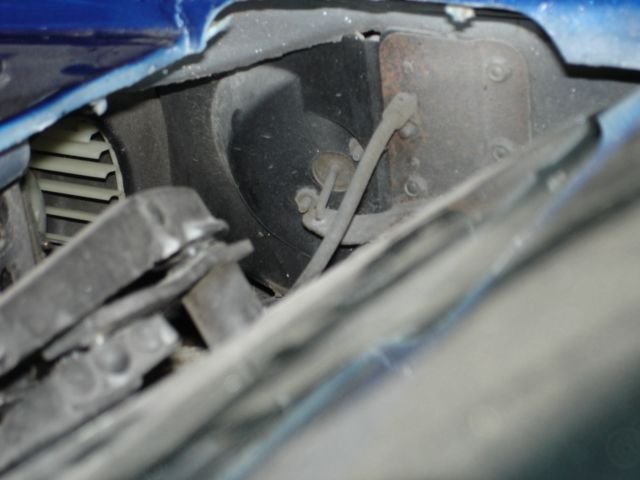

Showing the cowl/plenum 'flapper door' still installed. All looks good so for except evident age to the parts.

The 'flapper' door removed.

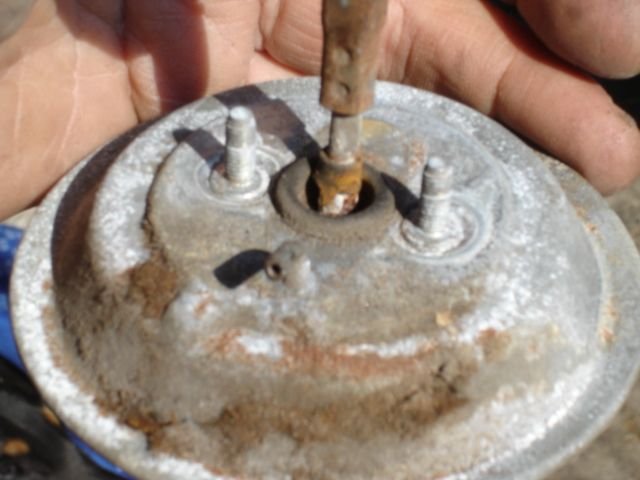

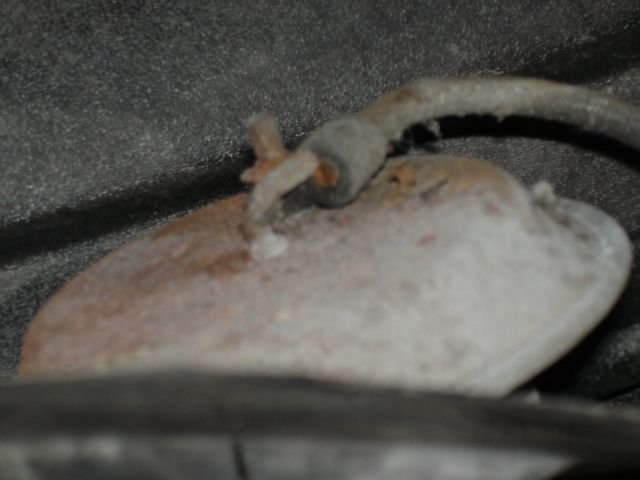

VOILA!!!...one of the culprits of loss of sufficient vacuum.

DUB

Nov 27, 2016 | 07:31 PM

DUB

Thread Starter

Race Director

Joined: Apr 2009

Posts: 19,294

Likes: 2,753

From: Charlotte NC

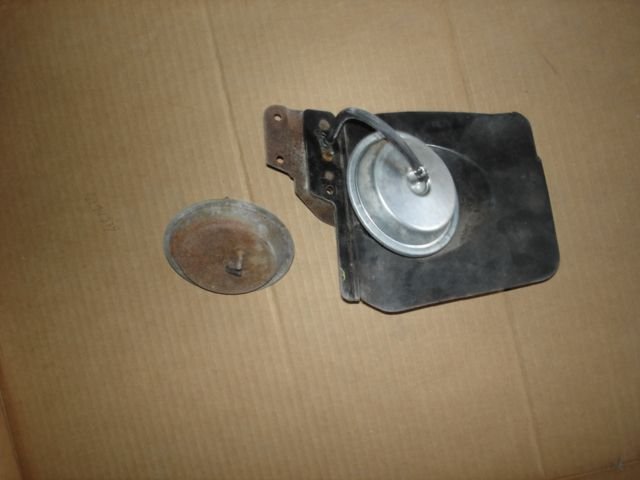

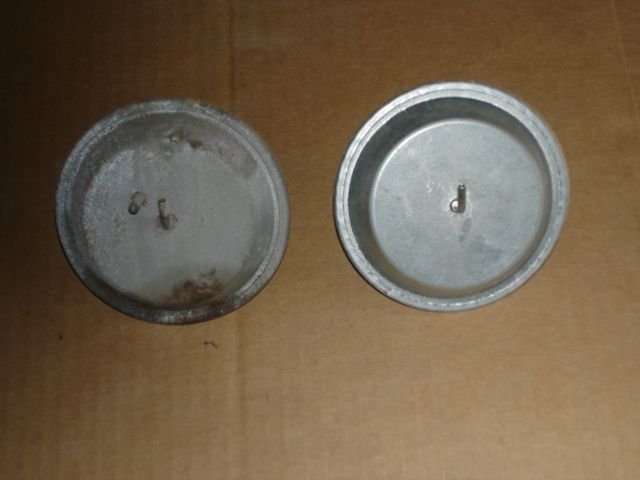

The new vacuum actuator pod on the flapper door with the original one beside it.

I had to replace the factory hose due to it also was bad and installed a new hose and used corbin clamps to make sure the hose stays put.

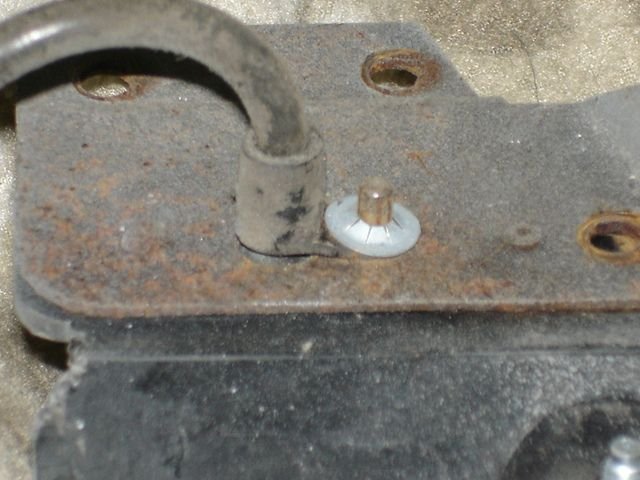

I re-installed the factory vacuum hose that is good and installed a new retainer to make sure it also does not fall off.

Installed the set up and got the door to function BUT it would not close all the way.

Close up view of the door not completely closing.

DUB

Nov 27, 2016 | 07:34 PM

DUB

Thread Starter

Race Director

Joined: Apr 2009

Posts: 19,294

Likes: 2,753

From: Charlotte NC

SO...I removed the assembly and took it apart and compared the original actuator pod to the reproduction and this is what I found.

DUB

Nov 27, 2016 | 07:34 PM

DUB

Thread Starter

Race Director

Joined: Apr 2009

Posts: 19,294

Likes: 2,753

From: Charlotte NC

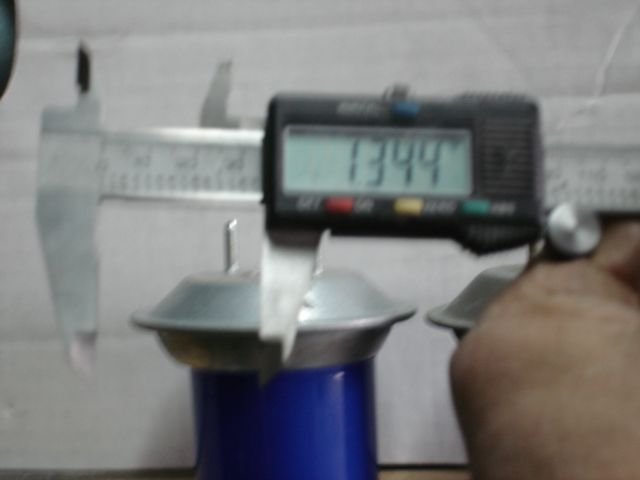

This is the measurement of the new reproduction actuator pod.

DUB

Nov 27, 2016 | 07:36 PM

DUB

Thread Starter

Race Director

Joined: Apr 2009

Posts: 19,294

Likes: 2,753

From: Charlotte NC

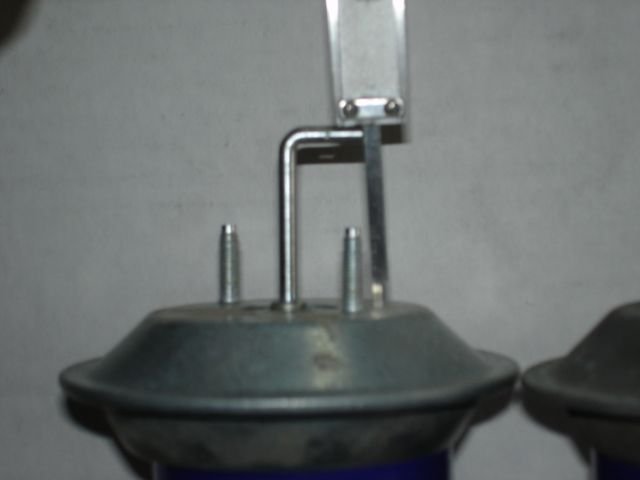

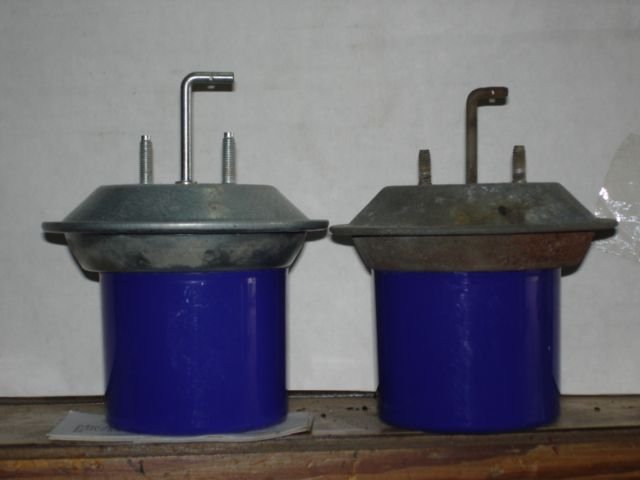

THis is showing the difference from the new pod where I locked my calipers in place and put it beside the original.

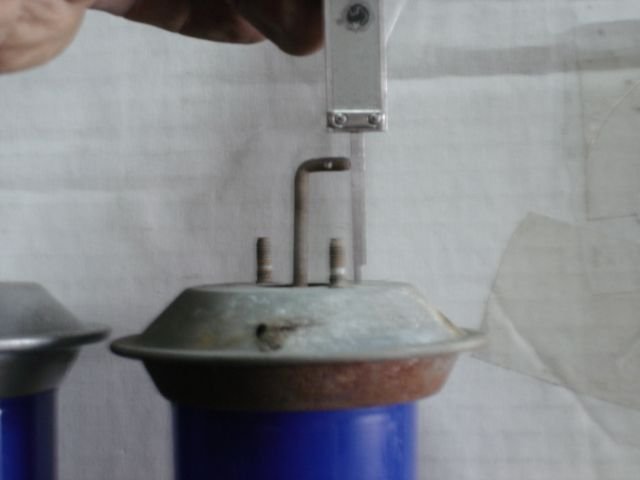

THIS is the measurement of the original actuator pod.

DUB

Last edited by DUB; Nov 27, 2016 at 07:37 PM.

Nov 27, 2016 | 07:39 PM

DUB

Thread Starter

Race Director

Joined: Apr 2009

Posts: 19,294

Likes: 2,753

From: Charlotte NC

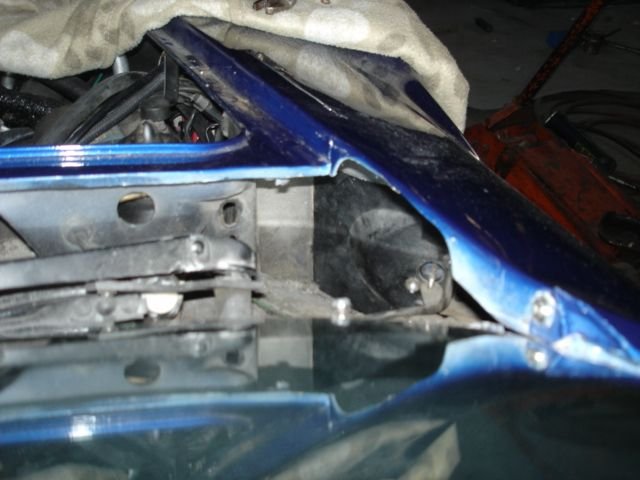

This shows that after I did some modifications...I could get the door to completely close as designed.

DUB

Nov 27, 2016 | 08:14 PM

Richard454

Le Mans Master

Joined: May 2003

Posts: 8,876

Likes: 3,556

From: Fernandina Beach FL

2023 Restomod of the Year finalist

2020 C3 of the Year Winner - Modified

Man- that sux- and you can't really bill the customer for that....

Is that the picture- but the re-po canister looks a bit thicker on one side too.

Nov 28, 2016 | 06:56 PM

DUB

Thread Starter

Race Director

Joined: Apr 2009

Posts: 19,294

Likes: 2,753

From: Charlotte NC

Quote:

Originally Posted by Richard454

Man- that sux- and you can't really bill the customer for that....

YES..I kinda have to. Or it means putting out a car that is not right.

Richard..as you know they do not come here for repairs and get stuff half-@ssed.

Is that the picture- but the re-po canister looks a bit thicker on one side too.

YES..I noticed the canister is a tad but wider...but regardless of that....the photo and the system proved differently.

I AGREE...this totally sux! But as you also know...how often nowadays do the reproduction parts we buy actually go in perfectly the FIRST TIME.

DUB
