Vacuum question help
Thread Starter
Pro
Joined: Apr 2012
Posts: 696
Likes: 193
From: USA
Vacuum question help
Safety Car
Joined: Apr 2006
Posts: 4,057
Likes: 421
From: BC
My 69 has 2 total. One for the headlights mounted in the center between the two headlights and the washer door relay on the firewall just inboard of the brake booster. I think there was a single headlight vacuum relay until 1970 when it changed to two. Also, 1968 and early 69 had the wiper door vacuum relay by the passenger side inner fender. It was changed to the drivers side firewall mid 69 year.
Last edited by CanadaGrant; Jan 19, 2017 at 10:22 PM.
Team Owner
Joined: Sep 2006
Posts: 31,269
Likes: 4,362
From: Westminster Maryland
Hi,
CG is right.
For 71 the wiper door relay location was moved back to the rear of the right side wheel apron and the headlight system continued to use 2 relays located between them mounted on a plate that was crewed to the headlight reinforcement bar.
Regards,
Alan
71… 1 wiper door relay on apron
71…. 2 headlight relays.
CG is right.
For 71 the wiper door relay location was moved back to the rear of the right side wheel apron and the headlight system continued to use 2 relays located between them mounted on a plate that was crewed to the headlight reinforcement bar.
Regards,
Alan
71… 1 wiper door relay on apron
71…. 2 headlight relays.
Last edited by Alan 71; Jan 20, 2017 at 02:13 PM.
Thread Starter
Pro
Joined: Apr 2012
Posts: 696
Likes: 193
From: USA

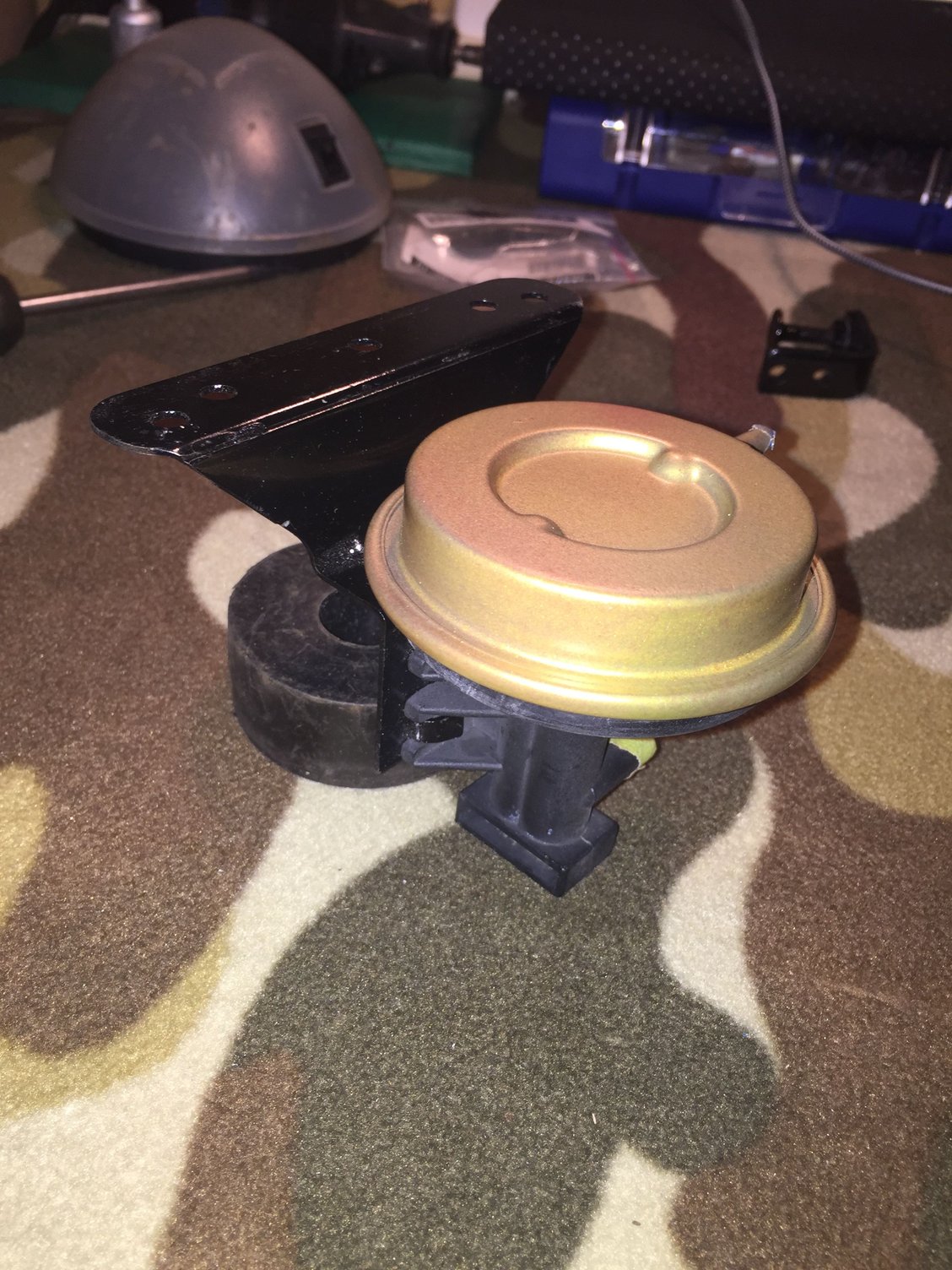

Thanks for the replies. Mines a early 69 and there is only one mounted up front between headlights. The other must go on the passenger fender well. There was no provision on mine for it to attach to my brake booster support. Thank
Team Owner
Joined: Sep 2006
Posts: 31,269
Likes: 4,362
From: Westminster Maryland
Hi cam,

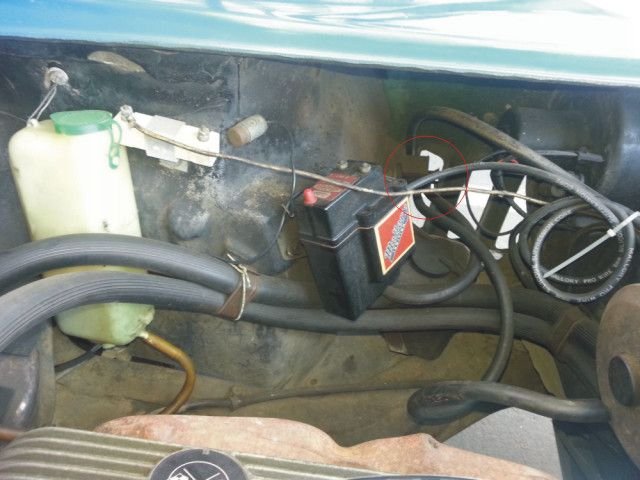

Typically there's a plate riveted to the fiberglass apron on the wheel side of the apron that has two holes that the relay mounting screws tighten in to.
This the plate and location on a 71.
Regards,
Alan
Typically there's a plate riveted to the fiberglass apron on the wheel side of the apron that has two holes that the relay mounting screws tighten in to.
This the plate and location on a 71.
Regards,
Alan
