Brake pedal height

Reply



Thread Tools Search this Thread
Old 04-24-2017, 11:03 AM   #1
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default Brake pedal height

I'm having problems with the brakes in my 1969 Corvette.
I'm wondering why the brake pedal is so low on this car.

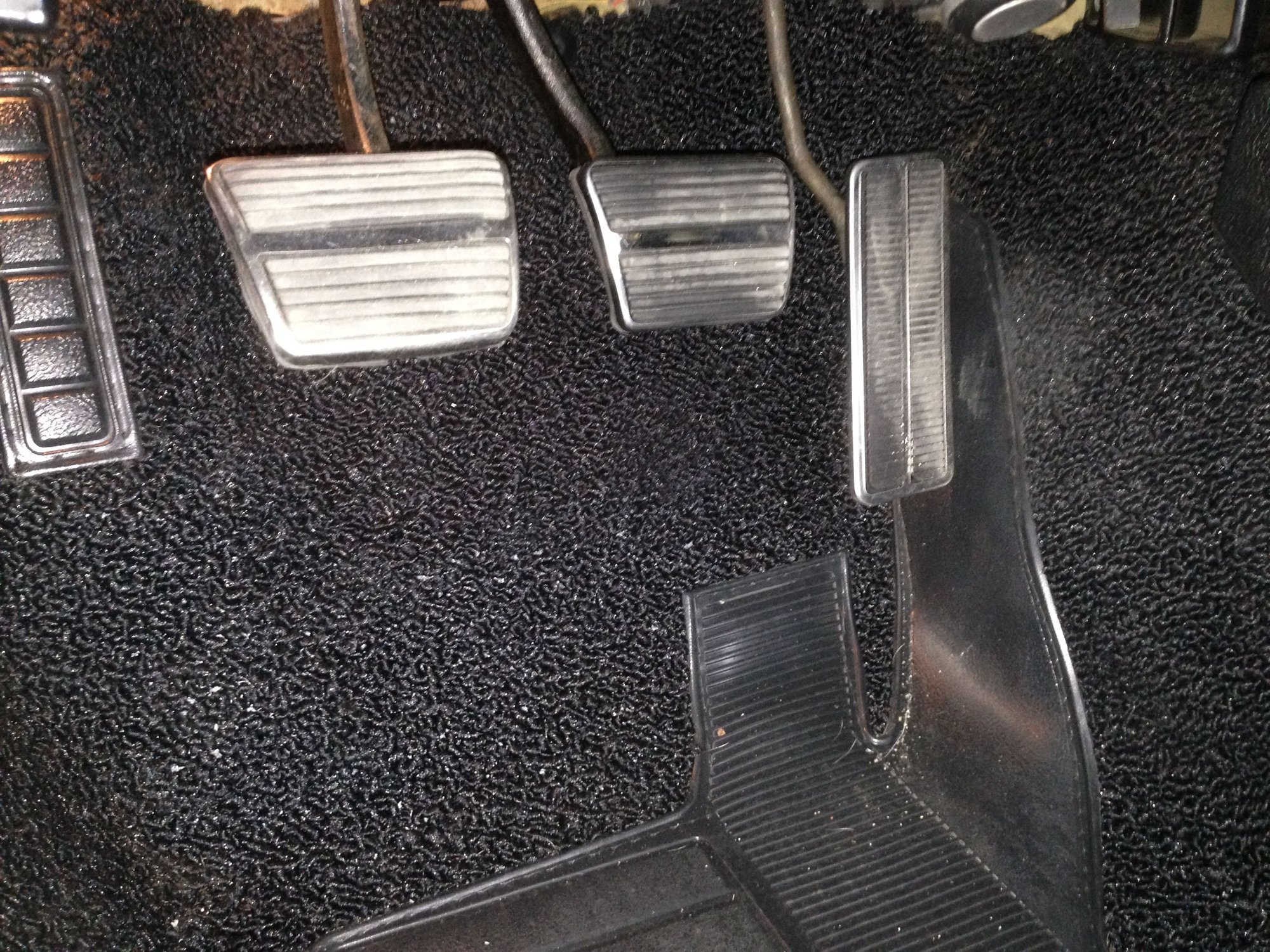

It is hard to see in the picture, but the brake pedal is at the same height as the gas pedal and the clutch pedal is much higher than the brake pedal:


Looking at the brake switch it looks like the pedal should sit much higher:



This is the third booster I've tried on this car. The first one (that was on the car when I bought it) was very sensitive, touch the brakes and they slammed on. The reaction disc had fallen off.
The next one didn't work at all. No assist.
This one seems to work (pedal sinks about 1 inch when vacuum is applied).

I did some measurements on the three boosters I have:
Length from firewall to the brake pedal clevis is about 3 3/4'' plus the thread (about 4'' total) on all of them.
As I recall the clevis length is about 2'' from the threaded end to the center of the cross pin. I'm wondering if I have the wrong clevis?
It the clevis a Corvette specific item that is longer than normal? Or have all the boosters been wrong (the second one was bought from a "Corvette vendor", the last one from Summit).

The clevis is in the correct (lower) hole on the pedal.

Anyone know what's going on?
/Karsten

Last edited by Danish Shark; 04-24-2017 at 11:05 AM.
Danish Shark is offline   Reply With Quote
Old 04-25-2017, 12:35 AM   #2
ronarndt
CF Senior Member
Support Corvetteforum!

ronarndt's Avatar

Member Since: Jul 2015
Location: Catlett VA
Posts: 1,144
Thanked 93 Times in 81 Posts
Default

Quote:
Originally Posted by Danish Shark View Post
I'm having problems with the brakes in my 1969 Corvette.
I'm wondering why the brake pedal is so low on this car.

It is hard to see in the picture, but the brake pedal is at the same height as the gas pedal and the clutch pedal is much higher than the brake pedal:


Looking at the brake switch it looks like the pedal should sit much higher:



This is the third booster I've tried on this car. The first one (that was on the car when I bought it) was very sensitive, touch the brakes and they slammed on. The reaction disc had fallen off.
The next one didn't work at all. No assist.
This one seems to work (pedal sinks about 1 inch when vacuum is applied).

I did some measurements on the three boosters I have:
Length from firewall to the brake pedal clevis is about 3 3/4'' plus the thread (about 4'' total) on all of them.
As I recall the clevis length is about 2'' from the threaded end to the center of the cross pin. I'm wondering if I have the wrong clevis?
It the clevis a Corvette specific item that is longer than normal? Or have all the boosters been wrong (the second one was bought from a "Corvette vendor", the last one from Summit).

The clevis is in the correct (lower) hole on the pedal.

Anyone know what's going on?
/Karsten

If your brakes actually work OK and the pedal does not go to the floor when you step on it, have you considered the brake pedal height may be OK, but the clutch pedal is too high? If the rubber bumper on the clutch pedal is worn or missing, the clutch pedal will be higher than normal. The clutch pedal on my 68 convert was about 1 1/2 inches too high until I replaced the bumper- then it was the same height as the brake pedal.
ronarndt is offline   Reply With Quote
Old 04-25-2017, 03:12 AM   #3
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default

Quote:
Originally Posted by ronarndt View Post
If your brakes actually work OK and the pedal does not go to the floor when you step on it, have you considered the brake pedal height may be OK, but the clutch pedal is too high? If the rubber bumper on the clutch pedal is worn or missing, the clutch pedal will be higher than normal. The clutch pedal on my 68 convert was about 1 1/2 inches too high until I replaced the bumper- then it was the same height as the brake pedal.
Thank you for answering

No, the brakes don't work OK. Without vacuum on the booster I have pedal, but very low. When vacuum is applied the pedal is almost at the floor (less than an inch left).

I can't rule out that the pin between the booster and the MC is adjusted too short and that may contribute to the low pedal when brakes are applied, but I have never seen another car where the brake pedal was in line with the accelerator pedal.
I tink (not 100% sure) that the rubber bumper for the clutch pedal is there.
Danish Shark is offline   Reply With Quote
Old 04-25-2017, 12:02 PM   #4
ronarndt
CF Senior Member
Support Corvetteforum!

ronarndt's Avatar

Member Since: Jul 2015
Location: Catlett VA
Posts: 1,144
Thanked 93 Times in 81 Posts
Default

Quote:
Originally Posted by Danish Shark View Post
Thank you for answering

No, the brakes don't work OK. Without vacuum on the booster I have pedal, but very low. When vacuum is applied the pedal is almost at the floor (less than an inch left).

I can't rule out that the pin between the booster and the MC is adjusted too short and that may contribute to the low pedal when brakes are applied, but I have never seen another car where the brake pedal was in line with the accelerator pedal.
I tink (not 100% sure) that the rubber bumper for the clutch pedal is there.
Hope you find out what the problem is.
ronarndt is offline   Reply With Quote
Old 04-26-2017, 12:27 PM   #5
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default

Maybe the original Corvette booster or clevis was longer than the one available today?
Danish Shark is offline   Reply With Quote
Old 04-26-2017, 01:05 PM   #6
CanadaGrant
CF Senior Member

CanadaGrant's Avatar

Member Since: Apr 2006
Location: Blind Bay BC
Posts: 3,403
Thanked 200 Times in 179 Posts
Default

It sounds like you obviously have booster problems but those pedals are not supposed to be at the same height. On my 69 with the pedal bumper installed and original booster the clutch pedal sits about 1.5 inches higher than the brake pedal. You need the clutch pedal like that for proper clutch travel but you never want the brake pedal that high. GM designed it like that so when removing your foot from the accelerator pedal to apply the brakes it's a smooth transition and there is no chance of getting your foot caught behind the brake pedal on the way over instead of on top of it. It is supposed to be that low. I have a bit less than a half inch free play in the brake pedal.

CanadaGrant is offline   Reply With Quote
The Following User Says Thank You to CanadaGrant For This Useful Post:
Danish Shark (04-27-2017)
Old 04-27-2017, 12:21 PM   #7
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default

Thanks

inch travel, is that to the point where it starts braking?
Danish Shark is offline   Reply With Quote
Old 04-27-2017, 01:13 PM   #8
CanadaGrant
CF Senior Member

CanadaGrant's Avatar

Member Since: Apr 2006
Location: Blind Bay BC
Posts: 3,403
Thanked 200 Times in 179 Posts
Default

Quote:
Originally Posted by Danish Shark View Post
Thanks

inch travel, is that to the point where it starts braking?
Yes. About a quarter inch of free play where there is no pedal pressure except the return spring and then it starts braking on the discs at at about a half inch of total travel. Then it's mostly just more pressure for more braking without much more pedal movement. There is no sponginess at all. The entire setup is stock.
CanadaGrant is offline   Reply With Quote
Old 04-28-2017, 02:34 AM   #9
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default

Quote:
Originally Posted by CanadaGrant View Post
Yes. About a quarter inch of free play where there is no pedal pressure except the return spring and then it starts braking on the discs at at about a half inch of total travel. Then it's mostly just more pressure for more braking without much more pedal movement. There is no sponginess at all. The entire setup is stock.
Thanks, great info.

I will take it all apart again and check the total travel in the master cylinder and then compare it with how much travel the booster rod on the master cylinder side has with this setup.
I probably also have the rod in booster to master cylinder adjusted too short. I set it at 0.020 but I will reset it to 0.

Then I will probably weld a nut onto the booster clevis until I get a longer clevis (takes some time to get it from the US) so the pedal sits a little higher.

/Karsten
Danish Shark is offline   Reply With Quote
Old 01-22-2018, 09:06 PM   #10
J-Vette1
Junior Member

Member Since: Dec 2017
Posts: 8
Thanked 1 Time in 1 Post
Default

Quote:
Originally Posted by ronarndt View Post
If your brakes actually work OK and the pedal does not go to the floor when you step on it, have you considered the brake pedal height may be OK, but the clutch pedal is too high? If the rubber bumper on the clutch pedal is worn or missing, the clutch pedal will be higher than normal. The clutch pedal on my 68 convert was about 1 1/2 inches too high until I replaced the bumper- then it was the same height as the brake pedal.
I have some similar questions. I just put a clutch and brake pedal into my 1972 housing to convert from an automatic. I noticed there was no rubber stop on the brake, and the brake pedal was stopping directly on the brake light switch, so I stuck the rubber stop that came for the clutch (it is the same part# listed where I ordered the pedals), on the brake side. It seems like it got rid of way too much travel. Someone answered a similar forum question saying that the AIM specifies 7 inches from the floor for the clutch, and 6 inches for the brake. The problem is, I was hoping to adjust the brake switch location while the pedal assembly is still out. Does anyone know if the rubber brake stop is the same as the clutch? Also, any idea how thick they should be. It seems that in order to adjust that brake switch properly the rubber stop needs to be in place.
J-Vette1 is offline   Reply With Quote
Old 01-23-2018, 09:33 AM   #11
PainfullySlow
CF Senior Member

PainfullySlow's Avatar

Member Since: Sep 2017
Location: Tolland CT
Posts: 793
Thanked 159 Times in 111 Posts
Default

It goes without saying that any air in your system will increase brake pedal travel so if it hasn't been done recently you may want to consider a flush and bleed.

Also it is difficult to tell but in the 2nd picture it does not look like the brake pedal is riding anywhere near the bumper. Is that correct?
PainfullySlow is offline   Reply With Quote
Old 01-24-2018, 08:52 AM   #12
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default

Quote:
Originally Posted by PainfullySlow View Post
...

Also it is difficult to tell but in the 2nd picture it does not look like the brake pedal is riding anywhere near the bumper. Is that correct?
Hi

The brake pedal doesn't have a rubber bump stop like the clutch pedal has, and as far as I know it shouldn't (not on a power brake car at least).
The pedal is quite far away from the brake light mounting tab, which is why I raised the question about whether the booster/clevis combo may be too short.

/Karsten
Danish Shark is offline   Reply With Quote
Old 02-13-2018, 12:28 AM   #13
69ttop502
CF Senior Member

69ttop502's Avatar

Member Since: Mar 2001
Location: Watkinsville, GA and Roslyn, NY GA and NY
Posts: 3,755
Thanked 156 Times in 145 Posts
Default

Correct me if I am wrong, but the brake pedal should have a rubber bumper. Catalogs show it as the same part number as the clutch bumper.
69ttop502 is offline   Reply With Quote
Old 02-13-2018, 10:39 AM   #14
lvmyvt76
CF Senior Member

lvmyvt76's Avatar

Member Since: May 2011
Location: Springfield Missouri
Posts: 2,760
Thanked 119 Times in 116 Posts
Default

AllVets4Me has rebuilt these , maybe he will chime in and tell us what is correct???

Last edited by lvmyvt76; 02-13-2018 at 10:41 AM.
lvmyvt76 is offline   Reply With Quote
Old 02-13-2018, 07:07 PM   #15
DUB
CF Senior Member

Member Since: Apr 2009
Location: Charlotte NC
Posts: 17,130
Thanked 1,784 Times in 1,590 Posts
Default

Knowing that the clevis is attached to the rod coming out of the back of a power brake booster. The distance from where the brake booster contacts the firewall and the hole in the clevis is a given length.

So...even if the 'book' shows a rubber bumper stop...it more than likely is NOT against it...because that would be telling me that the booster has not been allowed to fully go all teh way back IF it were resting on the rubber stop.

NON- power brake cars do have a rubber stop.

Karsten,
Hopefully you have your issue resolved to your liking.

DUB
DUB is offline   Reply With Quote
Old 02-13-2018, 09:14 PM   #16
calwldlife
CF Senior Member

calwldlife's Avatar

Member Since: Jan 2007
Location: Southern Cal Ca
Posts: 38,382
Thanked 69 Times in 69 Posts
Default

i don't see a booster issue.
2 things
the piston in the master cylinder has a recess for the rod.
i have had to put my original piston in a new/rebuilt
m/c to get it right.

the rod length between the m/c and the booster
calwldlife is offline   Reply With Quote
Old 02-14-2018, 10:17 AM   #17
69Vett
CF Senior Member

69Vett's Avatar

Member Since: Oct 2007
Location: Austin Texas
Posts: 3,454
Thanked 180 Times in 170 Posts
Corvette of the Year Winner 2017
C3 of Month Winner 2016
Default

the pedal arm is against the brake switch, it could maybe go in about.25"
but thats it for pedal height travel . you have other brake problems.
69Vett is offline   Reply With Quote
Old 02-15-2018, 07:43 AM   #18
Danish Shark
CF Senior Member
Thread Starter

Danish Shark's Avatar

Member Since: Aug 2008
Posts: 700
Thanked 16 Times in 16 Posts
Default

Quote:
Originally Posted by 69Vett View Post
the pedal arm is against the brake switch, it could maybe go in about.25"
but thats it for pedal height travel . you have other brake problems.
0.25'' at the switch is a lot more at the pedal
I bought another master cylinder, but never got around to installing it.
I ran out of patience with this car. It also has engine problems so now it's just collecting dust and taking up space.

Last edited by Danish Shark; 02-15-2018 at 07:46 AM.
Danish Shark is offline   Reply With Quote
Old 02-15-2018, 10:40 AM   #19
The Punisher
CF Senior Member

The Punisher's Avatar

Member Since: Oct 2006
Location: hebron IL
Posts: 2,498
Thanked 98 Times in 92 Posts
Default

Don't use the brake light switch as a height guide. Its adjustable
The Punisher is offline   Reply With Quote
