SFI flywheel
I'm doing a M21 to T5 swap right now. (69 L46 convertible)
My plan is to replace the factory 11" clutch flywheel, with a SFI 23lbs flywheel.
BUT I can see that the thickness of the factory flywheel is 30mm, the SFI is 23mm
I'm using the same clutch, will the 7-8mm difference give me problems?
My plan is to replace the factory 11" clutch flywheel, with a SFI 23lbs flywheel.
BUT I can see that the thickness of the factory flywheel is 30mm, the SFI is 23mm
I'm using the same clutch, will the 7-8mm difference give me problems?
Last edited by c3_dk; Oct 24, 2017 at 03:30 PM.
Thread Starter
Safety Car
Joined: Jan 2008
Posts: 3,795
Likes: 435
From: Aarhus, Denmark
Thread Starter
Safety Car
Joined: Jan 2008
Posts: 3,795
Likes: 435
From: Aarhus, Denmark
As far as I can see, it is this one, it is 0.28" longer then std, I think std. is 1.5"
0.28" = 7.11mm
Correct??
https://www.ebay.com/itm/Chevrolet-P...BYOMQ-&vxp=mtr
0.28" = 7.11mm
Correct??
https://www.ebay.com/itm/Chevrolet-P...BYOMQ-&vxp=mtr
Last edited by c3_dk; Oct 24, 2017 at 05:10 PM.
Team Owner
Joined: Apr 1999
Posts: 21,953
Likes: 1,445
From: Reno Nevada
2024 C3 of the Year Finalist- Modified
Gm long ball stud 3790556. I never liked the adjusable type but they are an option
http://www.manchestermuncies.com/new...ball-stud.html
http://www.manchestermuncies.com/new...ball-stud.html
Thread Starter
Safety Car
Joined: Jan 2008
Posts: 3,795
Likes: 435
From: Aarhus, Denmark
Gm long ball stud 3790556. I never liked the adjusable type but they are an option
http://www.manchestermuncies.com/new...ball-stud.html
http://www.manchestermuncies.com/new...ball-stud.html
Here is what is it today.
Team Owner
Joined: Apr 1999
Posts: 21,953
Likes: 1,445
From: Reno Nevada
2024 C3 of the Year Finalist- Modified

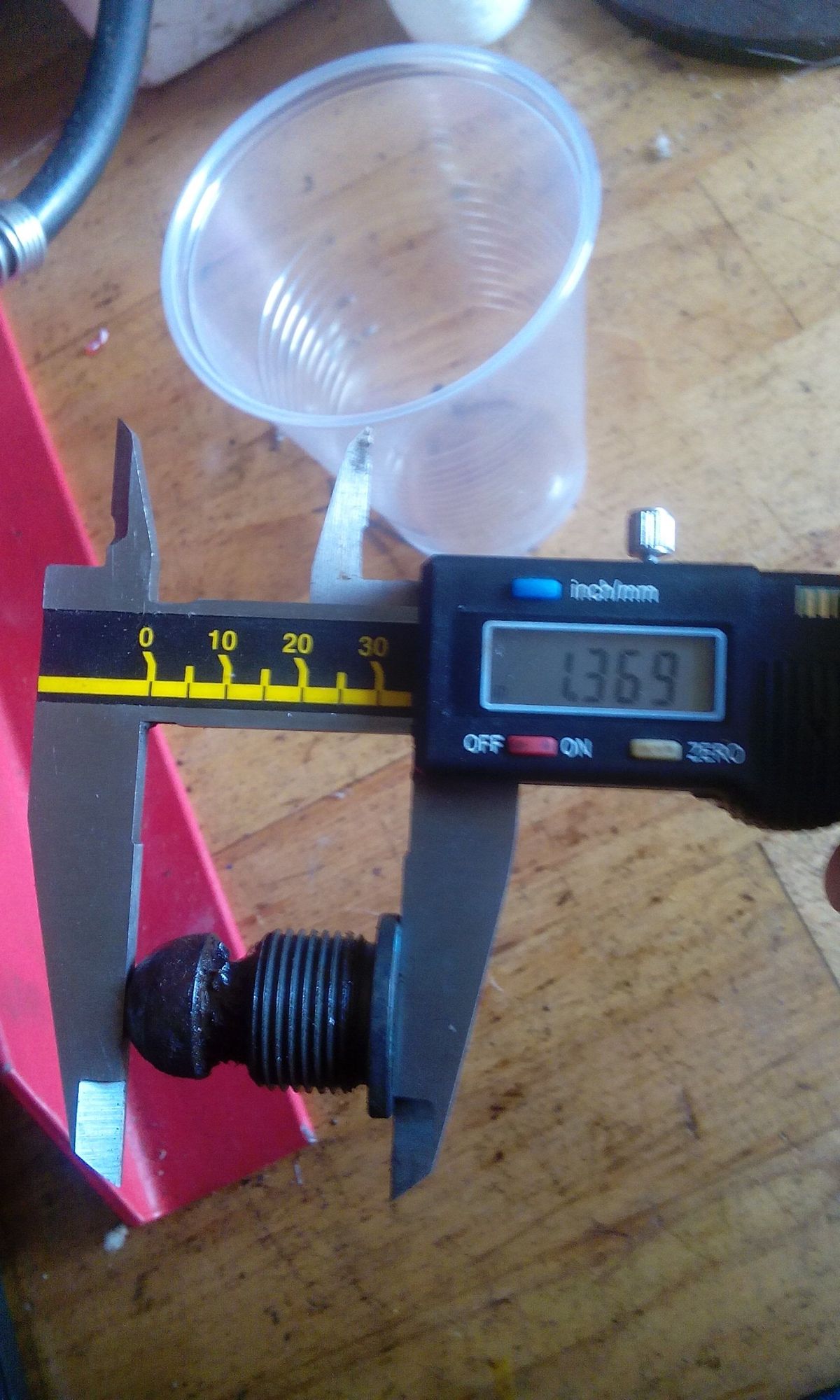

GM 3790556 Clutch Fork Ball Stud (1 3/4 Long) Or 1.750 - 1.369 =.381 =9.6774 mm
You only needed 7-8mm, but a couple of mm is not a big deal. It is just the pivot point for your clutch fork rod. I installed a 21 pound SFI steel 168 tooth flywheel in front of my tko 600 and with the short ball stud sent by keisler the clutch would not disengage. So I went down to the local chevy dealer and bought the longer one
You only needed 7-8mm, but a couple of mm is not a big deal. It is just the pivot point for your clutch fork rod. I installed a 21 pound SFI steel 168 tooth flywheel in front of my tko 600 and with the short ball stud sent by keisler the clutch would not disengage. So I went down to the local chevy dealer and bought the longer one
